SUNWE DT-2299 Operation Manual

Battery power, led array + photo tach

Advertisement

Quick Links

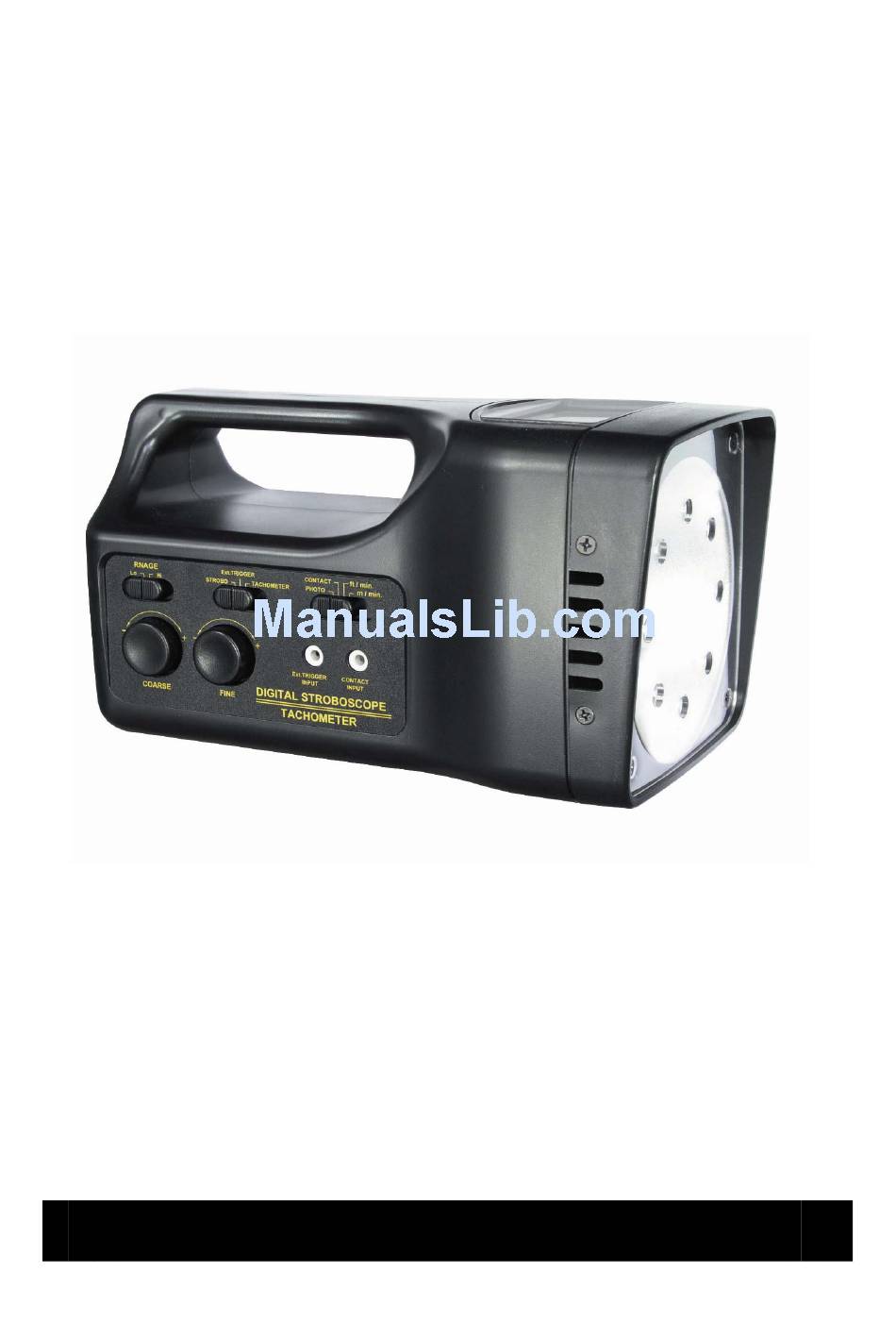

Battery power, LED array + photo tach.
STROBOSCOPE
Model : DT-2299
Your purchase of this STROBOSCOPE marks a step forward for
you into the field of precision measurement. Although this
METER is a complex and delicate instrument, its durable structure
developed. Please read the following instructions carefully and
always keep this manual within easy reach.
OPERATION MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the DT-2299 and is the answer not in the manual?

Questions and answers

Summary of Contents for SUNWE DT-2299

  • Page 1 Battery power, LED array + photo tach. STROBOSCOPE Model : DT-2299 Your purchase of this STROBOSCOPE marks a step forward for you into the field of precision measurement. Although this METER is a complex and delicate instrument, its durable structure developed.
  • Page 2 Warning Do not look directly at strobe/reflector. Light pulses at the frequency greater than 5 Hz may cause photosensitvie epilepsy in some individuals if directly viewed. A feature of the instrument is to make moving objects appear to be stationary. Precaution should therefore be taken to ensure that there is no physical contact made with objects being viewed.
  • Page 3: Table Of Contents

    TABLE OF CONTENTS 1 FEATURES..............1 2 SPECIFICATIONS............2 3 FRONT PANEL DESCRIPTION........5 3-1 Power On/Off Switch..........7 3-2 DC9V Power Adapter Input Socket......7 3-3 High, Low Range Switch........7 3-4 Stroboscope, Ext. Trigger, Tachometer Switch..7 3-5 Photo Tach, Contact Tach, ft/min.. m/min SW..7 3-6 Coarse Adjust Knob..........7 3-7 Fine Adjust Knob..........
  • Page 4: Features

    1. FEATURES * Combination Stroboscope with 3 functions : Digital Stroboscope, Laser Photo Tachometer, Contact Tachometer ( optional probe ), 3 in 1 , intelligent function. * Battery power Stroboscope, use high intensity LED array, long life. * Stroboscope, wide measuring range up to 99,999 RPM. * The Digital Stroboscope is used the microprocessor circuit design, high accuracy, digital readout, light duty, that is ideal for inspecting and measuring the speed of...
  • Page 5: Specifications

    2. SPECIFICATIONS 2-1 General Specifications Display 5 digits ( 0 to 99999 ) LCD display. Circuit Exclusive one-chip design microprocessor LSI circuit. Stroboscope Measurement Unit : FPM ( rotation per minute ). build in external trigger input. Laser Photo Tachometer Unit : RPM ( rotation per minute ).
  • Page 6 Accessories Operation manual......1 PC. Included Reflective tape.......1 PC. Optional Contact Tachometer probe ( TA-35 ). Accessories ACV 110V, 220/230V to DC 9V adapter. 2-2 Electrical Specifications of Stroboscope Stroboscope 100 to 99,999 flashes per minute (FPM). Flash Rate Low range : 100 to 1,000 RPM/FPM. High range : 1000 to 99,999 RPM/FPM.
  • Page 7 Accuracy ± ( 0.05% + 1 digit ). Sampling Time 1 sec. ( 60 RPM ). Resolution 0.1 RPM < 1,000 RPM 1 RPM 1,000 RPM ≧ Time base Quartz crystal Laser light * Less than 1 mW. source * Class 2 laser diode. Red. Wave length is 645 nm approximately.
  • Page 8 3. FRONT PANEL & LAYOUT DESCRIPTION Fig. 1...
  • Page 9 Fig. 1...
  • Page 10: Power On/Off Switch

    Fig. 1 3-1 Power On/Off Switch 3-2 DC 9V Power Adapter Input Socket 3-3 High, Low Range Switch 3-4 Stroboscope, Ext. Trigger, Tachometer Switch 3-5 Photo Tach, Contact Tach, ft/min.. m/min Switch 3-6 Coarse Adjust Knob 3-7 Fine Adjust Knob 3-8 Ext.
  • Page 11: Stroboscope Measuring Procedures

    4. STROBOSCOPE MEASURING PROCEDURES 4-1 Preparation 1)Install the batteries ( UM1/D type, 4 PCs ) into the Battery Compartment ( 3-17, Fig. 1 ) * Please make attention the polarity of the battery. 2)Turn the power switch to " Power On/Off Switch " ( 3-1, Fig.
  • Page 12 Consideration : * During the measurement, If the object mark look like rotating as the counterclockwise direction, the stroboscope's flash speed is higher than the object' s RPM typically. It should decrease the Stroboscope's FPM value will get synchronize ( mark stop ). * During the measurement, If the object mark look like rotating as the clockwise direction, the stroboscope's flash speed is lower than the object's RPM.
  • Page 13: Checking Motion

    4-3 Checking Motion For motion analysis, simply locate the actual speed as mentioned above and then turn the dial slowly up or down. This will give a slow motion effect allowing complete inspection. 4-4 External trigger The stroboscope can accept the external trigger signal instead of the internal trigger ( setting the value by knobs ).
  • Page 14: Procedures

    5. LASER PHOTO TACHOMETER MEASURING PROCEDURES 1)Select the " Stroboscope, Ext. Trigger, Tachometer Switch " ( 3-4, Fig. 1 ) to the " Tachometer " position. 2)Select The " Photo Tach, Contact Tach, ft/min., m/min Switch " ( 3-5, Fig. 1 ) to the " Photo Tach " position. 3)Adhesive a reflecting mark to the object being measured.
  • Page 15: Measuring Procedures

    6. CONTACT TACHOMETER MEASURING PROCEDURES 1)Prepare a optional Contact Tachometer Probe " Model : TA-35 ". ThRPM adapter ( Cone type )....RPM adapter ( Funnel type )....Surface speed test wheel....... 2)Insert the output plug of the " Contact Tachometer Probe "...
  • Page 16 Contact RPM measurement 4)Select The " Photo Tach, Contact Tach, ft/min., m/min Switch " ( 3-5, Fig. 1 ) to the " Contact Tach " position. 5)Pressing the " RPM Adapter " lightly against the center hole on the hole of the measured rotating axis. Note : Making the contact RPM measurement due to different kind measured rotating axis, it may...
  • Page 17: Battery Replacement

    7. BATTERY REPLACEMENT 1)When the LCD display ( 3-14, Fig. 1 ) show " LO ", it is necessary to replace the battery. However, in-spec measurement may still be made for several hours after low battery indicator appears before the instrument become inaccurate.
