Packing List
Floor Firebacks (4 pieces)
Installation
WARNING
Turn off gas to the appliance and make sure it has fully cooled prior to conducting service.
1
Remove the glass frame and logs (see the installation manual for details).
2

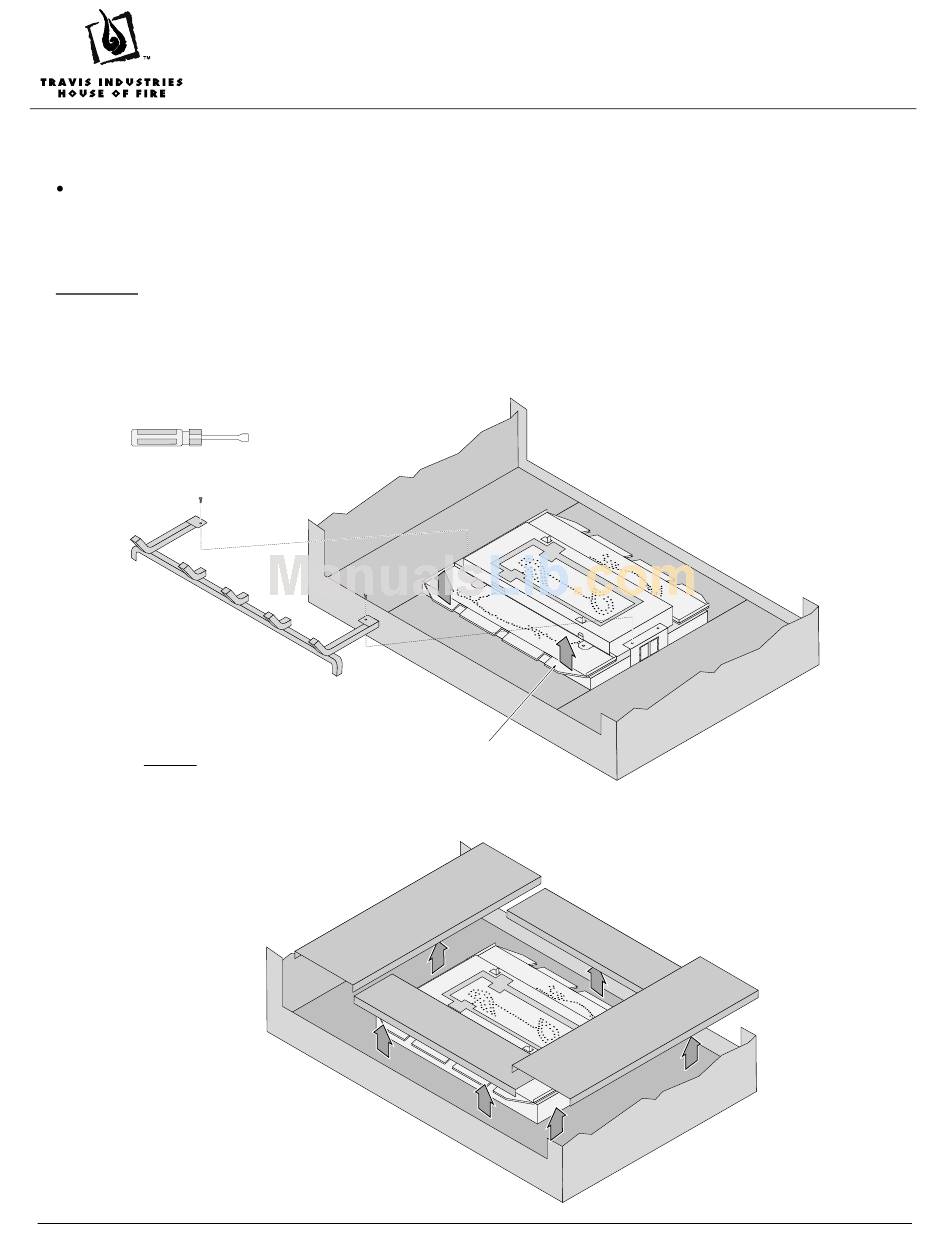

Remove the front and rear grates (see the illustration below).
1/4" Nutdriver
Remove the grate from both sides.
NOTE: lift the burner to remove the grate.
3
Remove and discard the steel ember trays.
Remove and discard the steel
ember trays.
Page 1 of 2
864 ST Fireback Installation
SKU # 96100184 – 96100186 – 96100189 - 96100190
• (2) Side Firebacks
9/15/08
Travis Industries, Inc.
