Summary of Contents for Buhel D01
- Page 1 HELMET COMMUNICATION SYSTEM DISPOSITIVO VIVAVOCE PER CASCHI SISTEMA DE COMUNICACION DE CASCO SYSTEME DE COMMUNICATION POUR CASQUE HEADSET FUR MOTORRADHELM DISPOSITIVO MAOS LIVRES PARA CAPACETES ヘルメット通信システム 头盔通信产品 BUHEL D01 INSTRUCTION MANUAL...

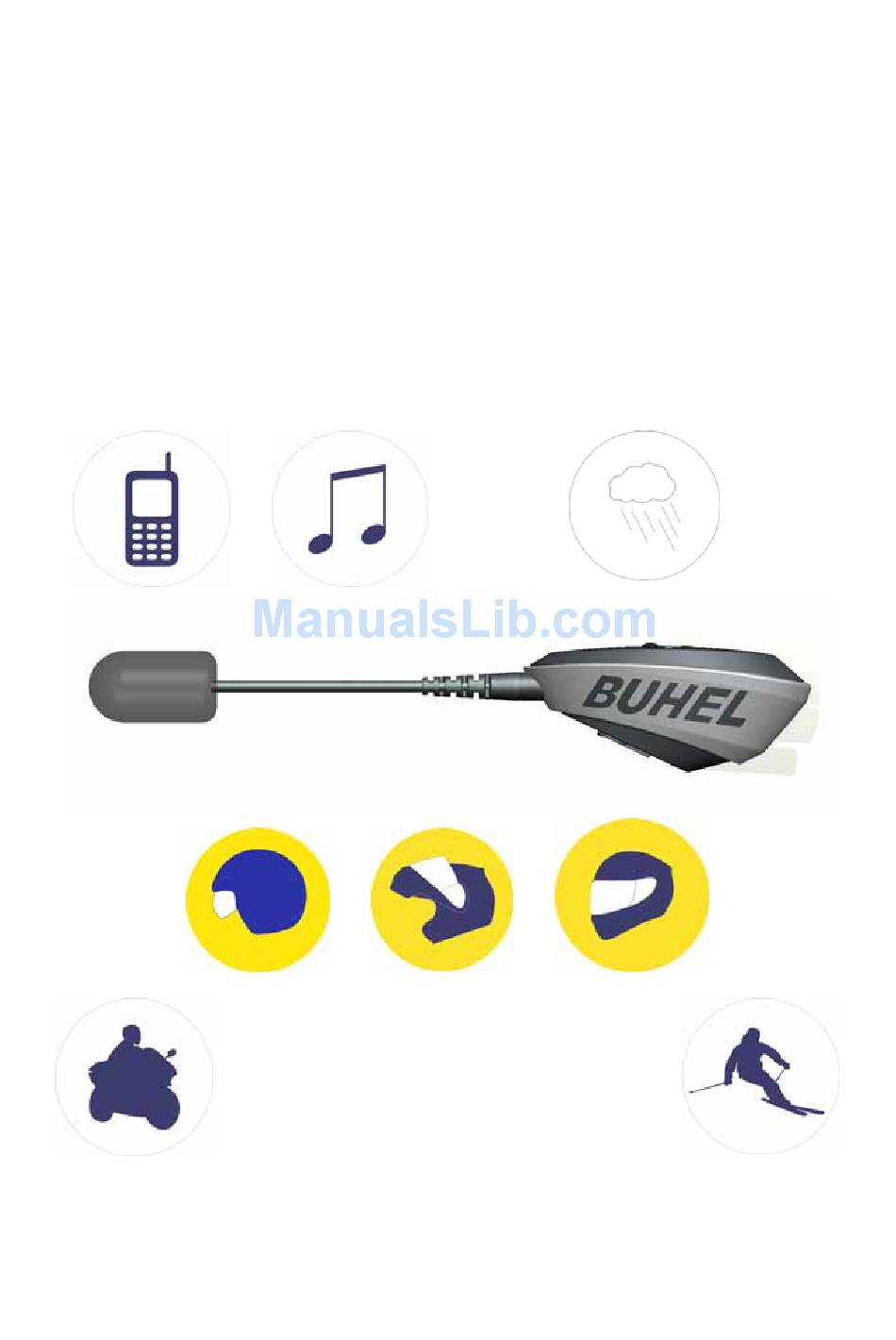

- Page 2 D01 CAN WORKS AND COMUNICATES WITH MOBILE PHONES AND MUSICAL READERS EQUIPPED WITH BLUETOOTH° TECNOLOGY. D01 CAN BE FITTED AND USED ON ANY COVERING EARS HELMETS, WITHOUT EFFECTING STRUCTURES; IT DOESN’T AFFECT HELMET HOMOLOGATION AND CAN BE REMOVED AT ANY TIME JUST PULLING.
-
Page 3: Safety Instructions
Safety Instructions ● Review this Safety Instructions before using the product for safe and correct usage. ● All of the following contains important safety instructions and must be strictly followed. ● Descriptions of sign and terminology are as follows. < Terminology > Wrong usage may cause serious or fatal injury to people. - Page 4 Emergency procedure In case of water immersion, fallen, damaged case on impact, unusual sounds, smoke generation or strange odor, it may cause fire, electrification or failure. Please turn off the power and do not use. Please contact your local dealer after checking no smoke on the body.
- Page 5 Kit Checklist Ensure that the package contains all of the following. Body (D01) FULL FACE MIC(F.F. MIC) (D01/FFM) OPEN FACE MIC (O.F. MIC) (D01/OFM) Baseplate (D01/BP) Magic band female part Instruction Manual FULL FACE MIC(F.F. MIC) D01 Body OPEN FACE MIC (O.F. MIC)
- Page 6 Important: Please make sure to attach the base plate on the helmet left side and near to left ear position Put the lower side of charged D01 parallel to baseplate printed line and fix D01 on baseplate by using magnet. ( make sure that D01 is correctly fitted by smoothly turning it ) On full face helmets fix F.F.
- Page 7 Operation before using Please charge battely before to use D01. charging indicator Power/Pairing LED Volume switch Power/Pairing switch Body D01 Decorative Cover Cover’s attachment. Insert cover’s hole into D-01’s hole at front.(Mic’s attachment part) Then, squeeze rear cover into the body.
-
Page 8: How To Use
How to Use 1. ON/OFF power switch. Push Power/Pairing button from 3 to 6 seconds. Blue indicator 2 flashes slow as the power turns ON. Another push to the Power/Pairing button 4 from 3 to 6 seconds turns the power OFF and the indicator goes out. 2. - Page 9 5. The blue indicator 2 changes from fast to slow flash when the pairing succeeds. *D01 is adapted for audio profile, hands free profile and headset profile. Depending on suitable profile, you need to follow above procedure from 1 to 5.
- Page 10 Duration of Power/Pairing Button pushed at “OFF” Less than 3 3 to 6 sec. More than 6 sec. sec. Duration of doing ― ― 0 to 120 sec. → More than 120 nothing after sec. releasing the Button Lights out Slow blinking in Blinking →...
-
Page 11: Specifications
Specifications Type Electret’s Condenser Frequency 200Hz ∼ 8000Hz Response Microphone -47dB ± 4dB at 1kHz (0dB= 1V/Pa) Sensitivity Directivity Non-directional Type Magnetic Frequency 300Hz ∼ 3000Hz Response Output Level 92dB±5dB at 1kHz (0dB=1uN/1mW) Size（WxHxD） 103 x 50 x 35 Weight 60 g Built-in Battery 3.7V 400mA lithium polymer battery... -
Page 12: Warranty
Temco and Buhel shall not be liable for any incidental or consequential damages resulted from malfunctioning of the product. Warranty period: Two years from the date of purchase for D01 Device, one year for removable and expendable components. - Page 13 Damage caused by acts of God; caused by fire, natural disaster, sea wind. Replacement of expendable supply such as battery. Repair service done during warranty period does not extend warranty period. Defective devices or components returned to be replaced will become Buhel’s property. Warranty Model name...
