UFO NSD9021 Instruction Manual

Ballistic nailscrew driver
Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual
IMPORTANT!
Upon receipt of your NailScrew® Driver,
Read and follow all safety rules and
Operating instructions.
Retain this manual for future reference.
INSTRUCTION
MANUAL
Contents:
◎ Parts List

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NSD9021 and is the answer not in the manual?

Questions and answers

Summary of Contents for UFO NSD9021

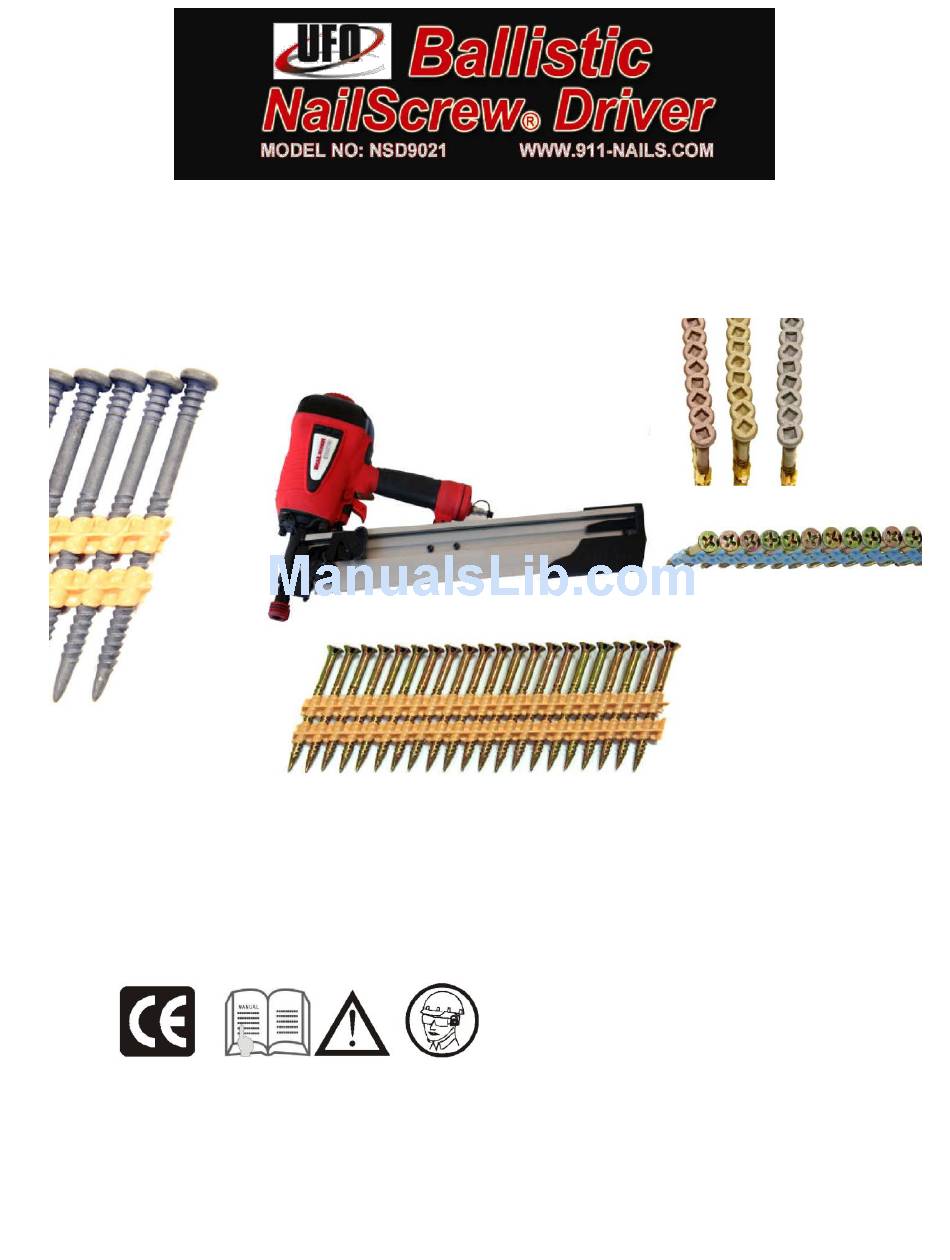

  • Page 1 INSTRUCTION MANUAL IMPORTANT! Upon receipt of your NailScrew® Driver, Read and follow all safety rules and Operating instructions. Retain this manual for future reference. Contents: ◎ Technical Data ◎ Important Safety Rules ◎ Operating Instructions ◎ Trex® Installation ◎ Maintenance ◎...

  • Page 2: Technical Data

    Technical Data ◎ Capacity 2x30, full round head 20º/21ºstrips Nail length 50-90 mm (2 in. to 3 ½ in). Fastener diameter 2.87-3.76 mm (.113 in. to .148 in.) Operation pressure 70-120 PSI (5.0-7.5 bar) Air inlet 1/4 in. N.P.T. Dimension 142 ×...
  • Page 3 ◎ Description Model NSD9021 drives round head NailScrews® or nails from 2 in. (50 mm) to 3 ½ in. (90 mm) in length. The die cast aluminum body provides more power to easily drive NailScrews® intoTrex® composites and other standard composite lumber, as well as wood.
  • Page 4 See the “How to” video wit h the Deck Doctor™, Mr. Rich Steptoe at www.howtonailscrew.com. This video contains many tricks of the trade. For best results have your crews or subcontractor watch this before they start using the UFO NailScrew Driver™ with UFO Ballistic NailScrews®...

  • Page 5: Troubleshooting

    Loading Fasteners and Operation  WARNING: Always disconnect the tool from the compressed air source before loading. When loading the tool always point the tool away from yourself and others. Make sure that you are not holding the tool with the trigger depressed while loading the tool. 1.
  • Page 6 SYMPTOM PROBLEM SOLUTIONS Air leak near top of tool or 1. O-ring in trigger valve is damaged. 1. Check and replace O-ring. in trigger area 2. Trigger valve head is damaged. 2. Check and replace. 3. Trigger valve stem, seal or O-ring 3. Check and replace trigger valve is damaged.
  • Page 7 NSD9021 No Desc. Desc. Desc. Desc. Bolt Lock Washer Safety Plate Bolt M6*14 Air Deflector Bolt M8*25 Roll Pin 3*16 Rubber Cover Deflector Piece Left Orientation Rubber Switch Groupware Handle Protecting Cashion Right Orientation Rubber Spring Handle Sleeve Spring Seal Washer...
