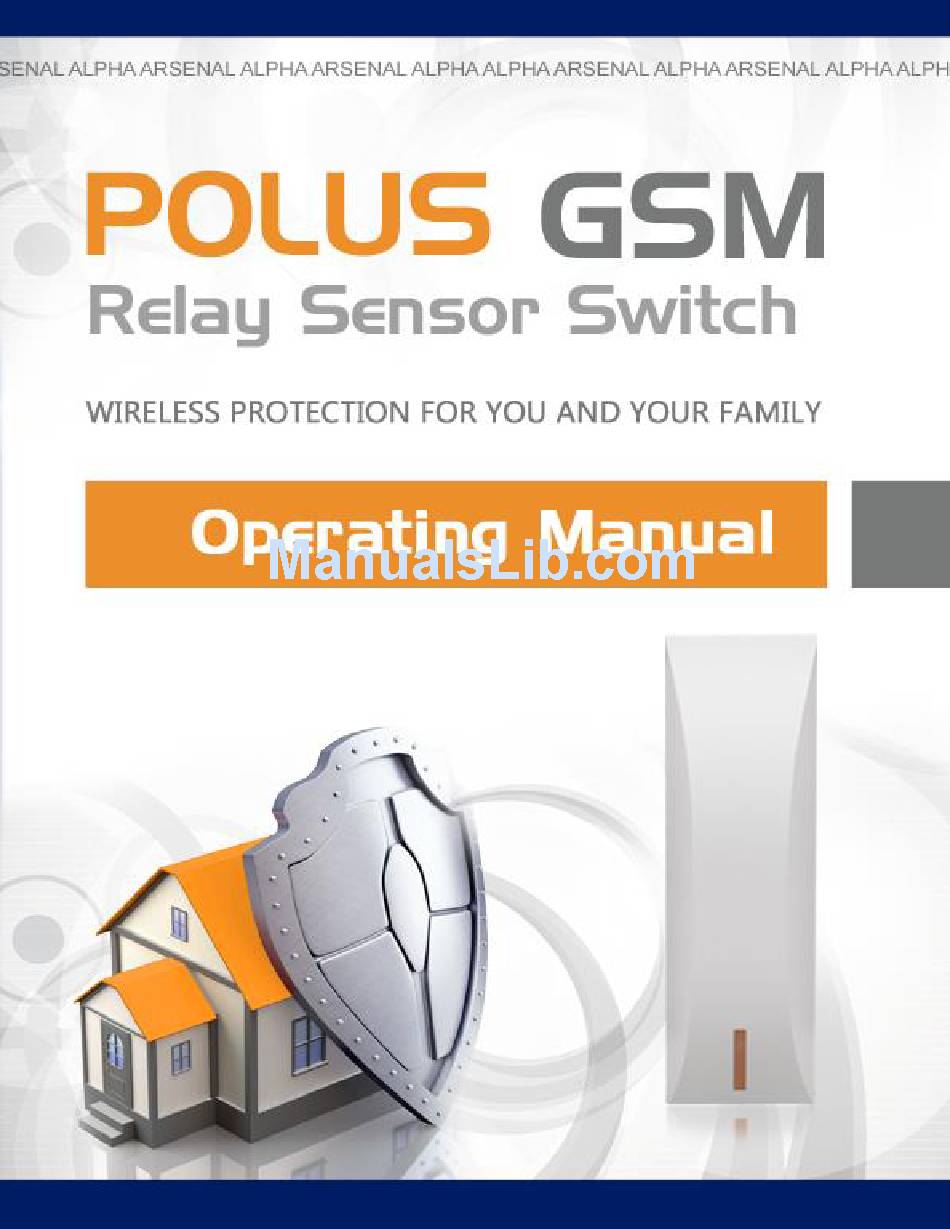

Alpha Arsenal POLUS GSM Operating Manual

Relay sensor switch
Hide thumbs Also See for POLUS GSM:
Table of Contents

Advertisement

Quick Links

Download this manual
3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the POLUS GSM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Alpha Arsenal POLUS GSM

Summary of Contents for Alpha Arsenal POLUS GSM

  • Page 2: Table Of Contents

    Preparing the GSM Relay Sensor Alarm Switch for operation Configuring the GSM Relay Sensor Alarm Switch Accessing Programing mode Setting-up for First Time Use Verifying set-up Changing & Adjusting the Parameters GSM Relay Sensor Alarm Switch Installation Troubleshooting the POLUS GSM Relay Sensor Alarm Switch Contact Us Warranty...

  • Page 3: Description And Operation

    Description and Operation Function The POLUS GSM Relay Sensor Alarm Switch was designed to notify the subscriber’s mobile telephone via an SMS and a call (up to six (6) notification numbers), when triggered by a change in the position of the Relay Sensor Alarm Switch contacts (opened or closed position) caused by any externally (hard wired) connected device.

  • Page 4: Technical Specifications

    Technical Specifications Table 2- Primary Technical Specifications DESCRIPTION VALUE Max. Number of telephones notified- (6) six Time lapse for notification- 20-40 seconds GSM Module Operating Standards- GSM-800/900/1800/1900 Battery type- 1 x CR123A 3 V Uninterrupted operating life span using one up to 12 months battery at a temperature of +25C- from -10...
  • Page 5 Diagram 2: Top & bottom view of the Relay Sensor Alarm Switch Design The controller circuit board (refer to diagram 3) contains a: battery holder GB1, audio indicator BQ1, two color LED indicators VD1 and a terminal block X2 for connecting to the Relay Sensor Alarm Switch contacts.

  • Page 6: Operation Of The Gsm Relay Sensor Alarm Switch

    Operation of the Relay Sensor Alarm Switch 1.5.1 Primary Functions of the Relay Sensor Alarm Switch The Relay Sensor Alarm Switch executes the following functions: - Monitors and detects a change in the position of the Relay Switch contacts when connected to an external device;...

  • Page 7: Set-Up

    1.5.4 Notifications The GSM Relay Sensor Alarm Switch transmits “ALARM” SMS notifications to the numbers registered at “1SMS”…”6SMS” (Diag.4). The primary number registered at “1SMS” will receive SMS notifications containing the selected settings (Item 2.4, diag. 8), Test/status SMS notifications showing remaining SIM card balance and Auto Reset to “Armed On Guard”...
  • Page 8 Table 4- GSM Relay Sensor Alarm Switch Settings Default Cell# Cell label Description Available Values Value 1st telephone Enter number in the following format 1sms number (primary) for +1********** e.g.:+17180000000 notification 2sms 3sms Telephone numbers Enter number in the following format 4sms notification +1********** e.g.:+17180000000...

  • Page 9: Accessing Programing Mode

    Accessing Programing Mode In order to access “Programing” mode, consecutively execute the following actions. 1. Install the SIM card as shown in diag. 5. Caution! Prior to installing or removing the SIM card, it is necessary to de-activate the GSM Relay Sensor Alarm Switch electrical supply! (i.e.

  • Page 10: Setting-Up For First Time Use

    Setting-up for First Time Use After powering-up the GSM Relay Sensor Alarm Switch, a template with cells containing default values will be created in the SIM card phone book (in accordance with table 4). Later on, you are able to edit and alter these parameters and values. It is necessary to record notification telephone numbers to the SIM card memory.

  • Page 11: Changing & Adjusting The Parameters

    5. Open the contacts onterminal block X2. The events will be analogical to previous pt.’s 2-4, but the position of the contacts will have changed from “Closed” to “Open”, the Relay Switch LED indicator will glow green andthe SMS notification will contain the text “Pcn OFF”. Changing the Parameter Value Settings Value parameter settings are installed during the (1 ) first power-up and can later be changed.

  • Page 12: Gsm Relay Sensor Alarm Switch Installation

    telephone number to the GSM Relay Sensor Alarm Switch while in “Programing” mode. After calling from the primary notification telephone number, all telephone numbers contained in the SIM card memory are erased and it will be necessary to re-add all required telephone numbers all over again.

  • Page 13: Troubleshooting The Polus Gsm Relay Sensor Alarm Switch

    Relay Sensor Alarm Switch contacts (from open to Closed): LED indicators do not glow, no Notifications 4 Contact Information ALPHA ARSENAL, LLC 104-20 Queens Blvd., Ste 1B Forest Hills, NY 11375, US T/F: +1.718.440.3281 +1.718.355.9281 Skype: alpha.arsenal E-mail: info@alpha-safe.com...

  • Page 14: Warranty

    Warranty Coverage The warranty period is one year from date of purchase. During the Warranty period, the manufacturer will repair, exchange, adjust, or replace at its discretion, any defective product. This warranty does not cover damage resulting from any unauthorized attempts to repair or from any use not in accordance with the instruction manual.
