Summary of Contents for DIYtrade SF-LM17

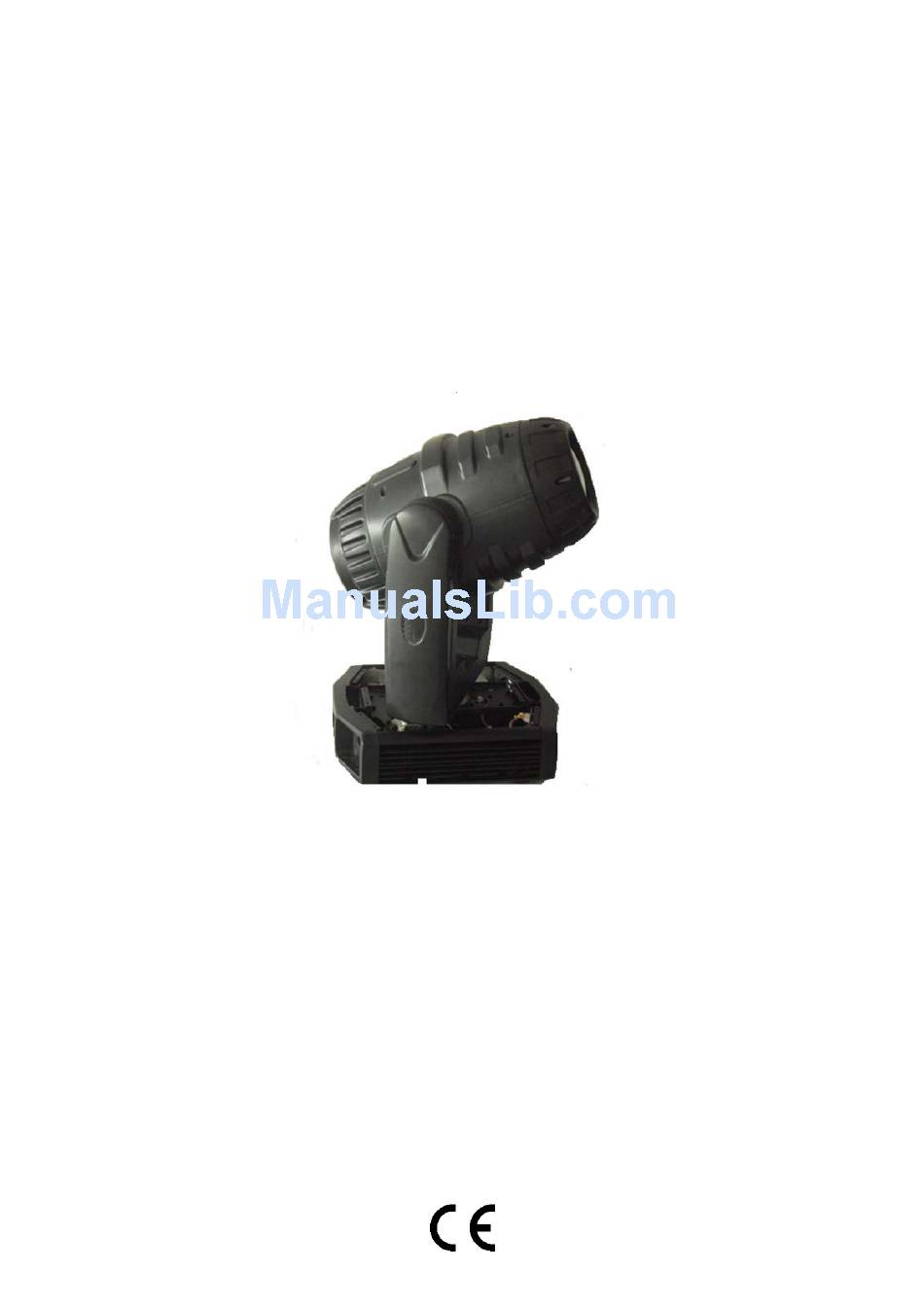

- Page 1 SF-LM17 MOVING HEAD LIGHT 90W-120w LED USER MANUAL...
- Page 2 Congratulations on purchasing this 120W LED moving head Thank you for extending your trust in our technology! For reasons of safety and approval(CE) the personal reconstruction and/or modification of this product is prohibited.Please observe that damage caused by modifications performed manually to this device is not covered by the warranty.
- Page 3 AC100~230V/50~60Hz! Always onsure during installation,operation, transport and when storing the product that the mains cord is not exposed to possible mechanical damage, or damage caused by humidity,flulds,heat or cold! The products cable entry must not be exposed to stress from pull! Create the mains connection once the product has been installed only .Always connect the mains plug last ! The producct must only be connected to a proper outlet of the public supply grid .Connect the mains cord to suitable outlets only ! Use entensions cords in compliance with specifications only!
- Page 4 may destroy the device! Protect the product against dus!Dust may reduce the protective insulation,which may cause fatal electric shocks! The product must be operated at altitudes ranging beween 20m below and 3000m above sea level only! The product must not be operated during thunder storms;risk of destruction from surge voltages! The product must be operated at a minimum distance of 0.5m to lit objects only! 5.
- Page 5 Operating the product for the first time may generate smoke and odour,this is not a defect.Avoid dis/connecting the product repeatedly and quickly from/with mains!Always wait 15 minutes prior to the next dis/connection! The device starts not until a self-testing and starting time.If the moving head is ready to start,push and roll the function wheel.The LCD display shows the options,as below: 7.
- Page 6 4. Tilt reverse: On (reversed) Off (normal) 5. Pan/Tilt speed: from 01-16, to set the speed for Pan/Tilt movement 6. Pan/Tilt mode: 8bit, 16bit, when set as 8bit, the channels Pan fine and Tilt fine will be disabled, the fixture has 15 channels now. 7.
- Page 7 Shutter off when changing color or gobo 080-089 Reset Shutter off when pan and titt movement and color and gobo 090-099 /Shutter off changing Shutter off when pan and tilt moverment and gobo changing 100-109 Shutter off when pan and titt movement and color and gobo 110-119 changing No function...
- Page 8 Gobo5 shaking from slow to fast 090-109 Gobo4 shaking from slow to fast 110-129 Gobo3 shaking from slow to fast 130-149 Gobo2 shaking from slow to fast 150-169 Gobo1 shaking from slow to fast 170-189 White shaking from slow to fast 190-209 Gobo wheel CCW flowing withIncreasing speed 210-229...
