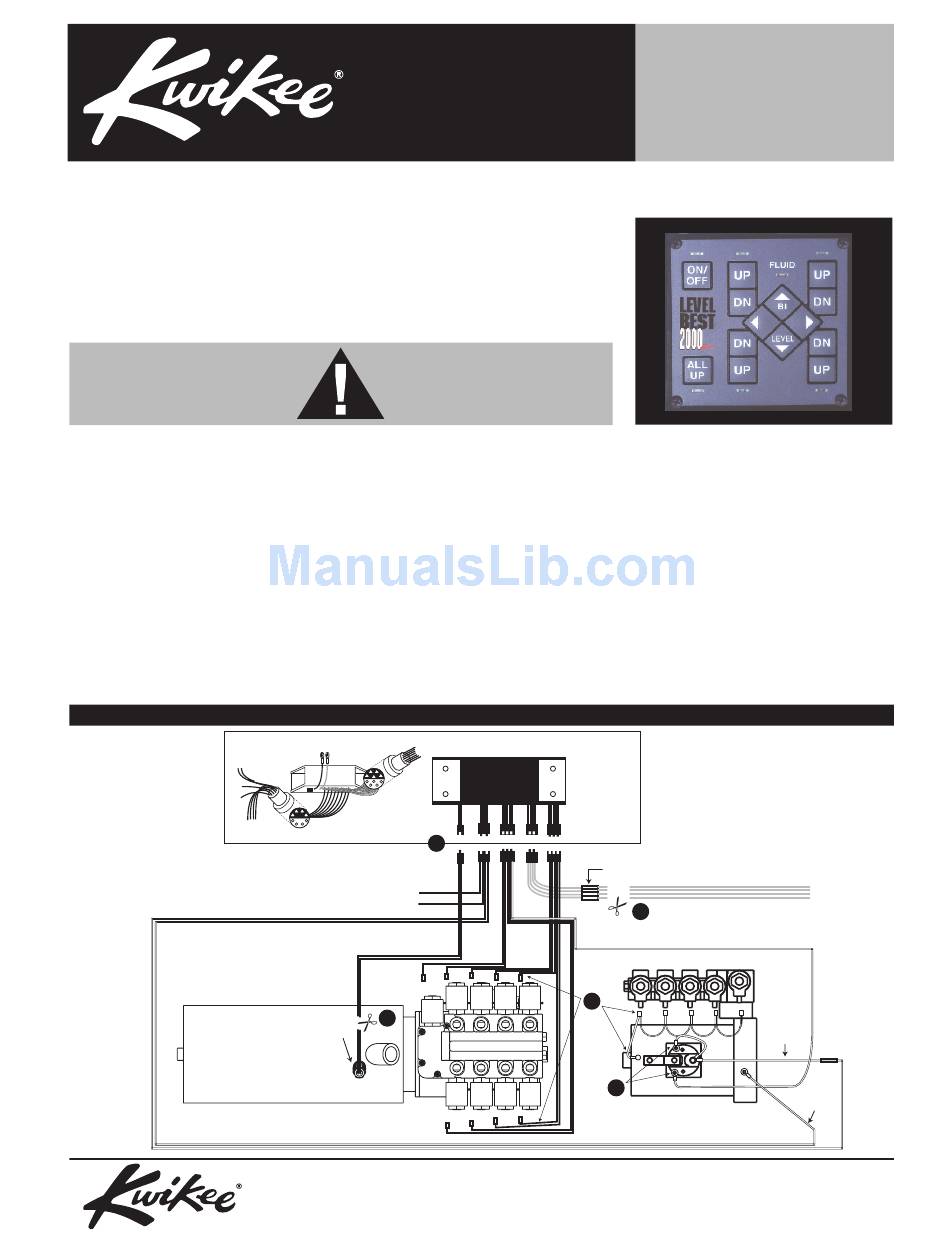

Kwikee 2000 Installation Instructions

Level best control replacement

Advertisement

LEVEL BEST
CONTROL REPLACEMENT
Systems 2000, 2010, 3000, 3010
Before beginning any work, read
these instructions.

Removing the old control and wiring

Disconnect the positive cable from
the battery before beginning any
work.
1. Cut the wires going to the Fluid
Level Sensor approximately 1 to 2
inches from the sensor.
2. Remove the wires attached to the
two small posts on the motor
control solenoid. Leave the battery
cables in place.
FIGURE 1
The control is wired to the pump using one of these two styles of connectors
Pump, Reservoir, Manifold
Assembly (top view)
Disconnect the chassis battery
before beginning any work on the
Level Best System.
(Refer to Figure 1 for Steps 1 through 5.)
3. Remove all the spade connectors
from the valve solenoids. One of
the wires forms a daisy chain
connecting each valve together.
Trace this wire back to its
connection point and remove it.
4. Unscrew the hose clamps
connecting the jack motor control
unit to the motor. Pull the control
unit and all of the wires away from
the pump unit.
To Ignition Activated Circuit (+)
To Park Brake Switch
1
Fluid level
Sensor
Level Best
Control Unit
4
Butt connect to yellow leg reed switch wires
3
Installation
Instructions
Kit 906915110
© 04/03 Kwikee Products Co., Inc.
Kwikee #1422271
5. Cut the yellow wires that go to
each jack leg from the control unit.
Discard the control unit unless this
is a warranty repair, in which case
you will need to ship it back with
the warranty claim RMA.
5
To power
2
Pump Motor & Solenoid
(side view)
© 04/03 Kwikee Products Co., Inc.
Kwikee #1422271
Control
ground
