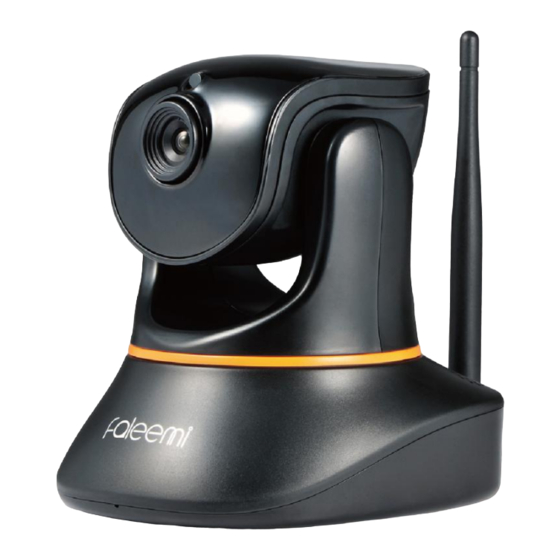

FALEEMI FSC880 User Manual For Browser

Pan & tilt wireless ip camera
Hide thumbs Also See for FSC880:
Table of Contents

Advertisement

Quick Links

See also: User Manual

Advertisement

Table of Contents
loading

Related Manuals for FALEEMI FSC880

Summary of Contents for FALEEMI FSC880

  • Page 2: Table Of Contents

    2.2.1 Set up WiFi by Mobile Phone ......................4 2.2.2 WPS/QSS One key configure Wi-Fi ....................5 Web Access ................................6 Use Faleemi SearchPro to find your camera ..................6 Login the Camera by Browser ......................6 Install Plug-in to View Live Video ....................... 7 3.3.1...

  • Page 3: Introduction

    1. Introduction 1.1 Overview Thank you for choosing FALEEMI full HD Wireless IP Camera. This is the user manual which will help you to set your camera up with browsers, including IE, Firefox, Safari, Chrome, etc. 1.2 Product Information Please check carefully if all listed items are included in the package, ...

  • Page 4: Wi-Fi Setting

    2.2.1 Set up WiFi by Mobile Phone 1. Download the App (Android and iOS) First, connect your mobile device to your WiFi and download the App “Faleemi” on the App Store or Google Play store, or scan below QR code to download it.

  • Page 5: Wps/Qss One Key Configure Wi-Fi

    Status LED will become blue and stay blue all the time. If the process above is not working, please contact Faleemi Support via one of the following options:  Contact Us and use the email form 1.

  • Page 6: Web Access

    If your camera label on the bottom of the camera is missing somehow, and you also forget the camera DID, you can use this Faleemi SearchPro to find back the DID number (Device Name) as shown in below screenshot. Also you can change the camera’s IP address and Port number here (see below screenshot).

  • Page 7: Install Plug-In To View Live Video

    3.3 Install Plug-in to View Live Video After login, there are two View Video Modes for your choice. 3.3.1 View Video- Mode 1 It is APNPI viewing mode (OCX plug-in) Click to download the plug-in and install it to your computer for your first time use. Because the latest Google Chrome, Firefox and Edge don’t support APNPI plug-in, if you use these browsers, please ensure their versions meet below requirements.

  • Page 8: View Video- Mode 2

    3.3.2 View Video- Mode 2 It is Flash Player View Mode (Adobe Flash Player plug-in)  You are required to download and install Flash Player Plug-in to your computer for first time use. If you don’t install it in your computer before. ...
  • Page 9 Play/ Stop Play or stop the live video Click this button to enable or disable audio output from the camera. This feature allows the user to listen in on the audio the camera’s Audio microphone is picking up. Click and hold this button to enable bidirectional talk. This feature allows the user to broadcast audio from their computer to the Bidirectional Talk camera.

  • Page 10: View Video Mode 2

    Stop Cruising Set 8 Preset Go back to the 8 Preset 3.4.2 View Video Mode 2 Click the button “View Video Mode 2” to view live video by Mode 2. Under Mode 2, it doesn’t support Audio, Bidirectional Talk, Snapshot, Manual Record, Digital Zoom, Face Recognition, and Multi-View, etc.

  • Page 11: Playback Video

    4. Playback Video 4.1 Playback Video Click Playback Video to access to SD record playback interface, click record date which you want to query, click Search to list recording file, select one to playback it, also can click download button to download the file. 5.
  • Page 12 5.1.1.2 Time Setting You can set your time zone, active “Synchronize with PC” or Sync. with NTP server.  When IP Camera is connected to internet, it will automatically correct the NTP server time.  After IP Camera is launched, it will automatically correct the time according to NTP server; and later on, it will automatically correct NTP server time every 30 minutes.
  • Page 13 5.1.1.3 Pan & Tilt Setting Do the settings of Pan/Tilt speed and cruise circles. Disable the motion detection when PTZ moving. 5.1.1.4 Others Setting You can turn off Status LED (Red) and Wi-Fi LED (Blue) here if needed. 5.1.1.5 Multiple Settings ...
  • Page 14 cameras, and then you can view one or four cameras in one screen.  If “View Video-Mode 2", it doesn’t support multi-view function. 5.1.1.6 System Maintenance The system maintenance includes System setting and Restart timing setting. You can set up reboot, backup setting, restore backup setting, upgrade camera and timing reboot etc.

  • Page 15: Network

    5.1.1.7 Device information You can modify device name and check system firmware version, system firmware time and Web Ul firmware here. 5.1.2 Network 5.1.2.1 IP Address Setting You can modify IP address of the camera here, there is no default IP address, it is DHCP.
  • Page 16 5.1.2.2 Port Setting You can change webpage HTTP port here. 5.1.2.3 Wi-Fi Setting Click Search and enable Wi-Fi, then select the wireless router you want to connect to, enter password of the router; dick Save to finish the Wi-Fi configuration. Click Test to check if your settings are successful.
  • Page 17 Access to port forwarding, you can enable UPNP port forwarding and check the status of it. 5.1.2.5 DDNS Setting You can enable product’s DDNS and set up third party DDNS (the third party DDNS support 3322.org / Dyndns.org / No-ip.com now, FALEEMI provide a free DDNS for every camera.
  • Page 18 5.1.2.6 RTSP Setting You can set up RTSP port, and also disable RTSP authentication. You can view video by some general RTSP stream media software, for example, VLC. The visit link as below:  First stream：rtsp://user:password@IP:rtsp port/live/ch0  Second stream：rtsp://User:password@IP:rtsp port/live/ch1 ...
  • Page 19 5.1.2.8 FTP Setting Please fill in relative FTP parameters as the following to set up FTP. 5.1.2.9 SMTP ( E-mail) Setting Please fill in relative parameters as the following to set up email.

  • Page 20: Audio And Video

    5.1.3 Audio and Video 5.1.3.1 Video Encoding Setting Access to Video Encoding setting, you can set up AC frequency and video stream as Figure 26. • AC frequency： 50HZ and 60HZ optional. • Video stream： Bit rate (256~4-096kbps), frame rate (1~30fps), video encoding control etc. Tips You can set up the video with audio or not.
  • Page 21 5.1.3.2 Volume Setting Access to Volume setting, you can adjust the volume of MIC and speaker. 5.1.3.3 Image Setting Access to Image Setting, you can flip and mirror the image, and also adjust the brightness, contrast, saturation and hue of image for best image color and quality.
  • Page 22 5.1.3.4 OSD Setting Access to OSD setting, you can stamp the time and camera name in live video. 5.1.3.5 Night Vision Setting Access to Night Vision Settings, you can set up IR LED and IRCUT.

  • Page 23: Security

    5.1.4 Security 5.1.4.1 User Setting Access to User management, you can add or edit the user. Tips: After setup, dick refresh button, it will renew the information filled. 5.1.4.2 IP Filtering You can set up the IP filtering to enable or disable some IP address to visit the device as below, as Figure 32. In IP Address filter, there are 2 settings：...

  • Page 24: Alarm

    5.1.4.3 Mask Area  “View Video-Model”： the user can hide the specified area not to be monitored, support Max. 4 areas to be hidden.  “View View-Mode 2”： It doesn’t support privacy setting. 5.1.5 Alarm 5.1.5.1 IO Detector Access to IO detector, can enable detector function and set up input sensor type.

  • Page 25: Motion Detection

    5.1.5.2 Motion Detection  “View Video-Mode 1”： Access to motion detection, you can set up Max 4 detection area, also can set up the sensitivity for every area.
  • Page 26  “View Video-Mode 2”： User only can set one area for motion detection, and input sensitivity. 5.1.5.3 Audio Detection Access to audio detection, you can enable audio detection and set up sensitivity of it.

  • Page 27: Storage

    5.1.5.4 Linkage alarm setting You can set up 10 detect, motion detection and audio detect, it can Linkage to trigger the action, snapshot to Email or FTP server or SD card, recording to FTP server or SD card, and trigger 10 output. 5.1.6 Storage 5.1.6.1 SD/TF Management Access to SD management, you can check and download recording and snapshot file in SD card, and check SD card...
  • Page 28 5.1.6.2 SD/TF Capture setting (Timing Snapshot) Access to SD/TF capture, you can enable timing snapshot and set up snapshot time interval and snapshot duration time format is 7 days, 24 hours per day, 15 minutes each block. 5.1.6.3 SD/TF Card Recording Setting Access to SD Card Recording Setting, you can enable SD recording and set up recording duration for every file time format is as 7 days, 24 hours a day, 15 minutes each block.

  • Page 29: Log

    Tips ： It will overwrite SD/TF recording file automatically by default, also overwrite previous recording file when the SD/TF space is full. 5.1.7 Log Access to Log menu, you can check the user operation Log.

  • Page 30: Local Setting

    Local Setting Access to local configuration, you can set up recording path, snapshot path and recording duration. Tips: You must use administrator to run the browse, then recording path and snapshot path can be saved successfully at above IE9 ； the default recording path is D:\HYRec.
