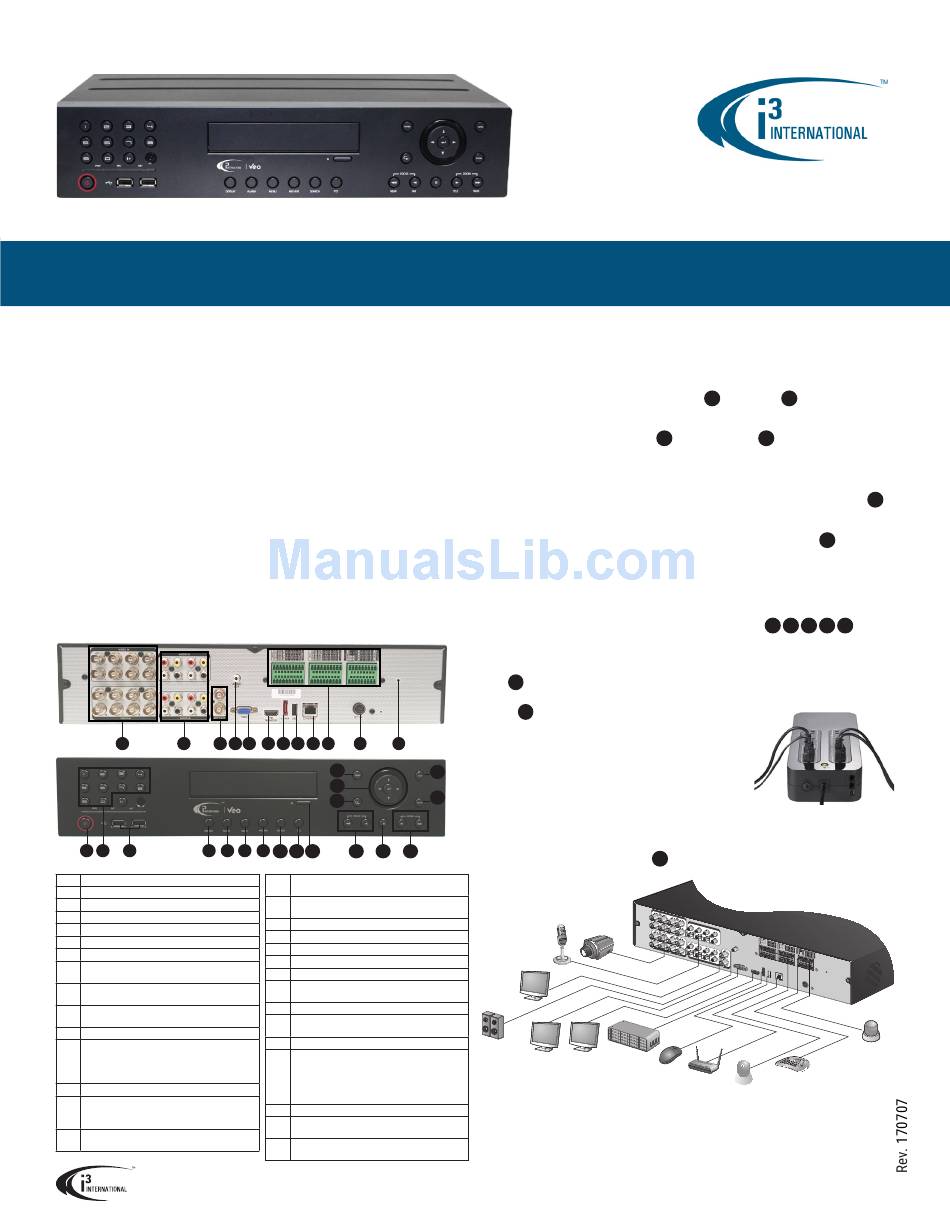

i3 Veo16i Quick Installation Manual

Embedded DVR
Thank you for purchasing i3's Embedded DVR Veo16i. The following items should be
included with your DVR. If any of these items are missing, please contact your dealer
or call our Customer Care Department toll free at 1.866.840.0004.
ACCESSORIES
1. Power Cable (x1).
2. 12V DC Power Adapter (x1)
3. Power cable retainer clip (x1)
4. Hard Drive screws (x12)
5. CD (Player, codec, documentation)

INSTALLATION REQUIREMENTS

When installing your Veo16i be sure to avoid:
• Temperatures outside of the acceptable 20°C-25°C (68°F -77°F)
• Humidity outside of acceptable range of 20%-80%, non-condensing
• Contaminants such as dust and smoke
• Areas with strong magnetic fields or mechanical vibrations
Important: an Uninterrupted Power Supply (UPS), minimum 1000 VA, with a
constant power of 118 to 120 AC must be used with each i3 DVR Server to
ensure longevity and to maintain warranty.

DVR COMPONENTS

1 2 3 4 5
13 14 15 16 17
1
BNC Camera ports (x16)
2
RCA Audio input ports (x16)
3
BNC Spot Out monitor ports (x2)
4
RCA Audio Output (speaker) port
5
VGA monitor port
6
HDMI monitor port
7
eSATA port for external storage
USB port. Connect USB mouse or USB
8
storage.
Ethernet port. Connect the DVR to a
9
switch or a hub.
Alarm In (x18), Alarm Out (x8), Relay
10
(x8), RS485 (x2) ports
11
12V DC Power Adapter port (provided)
Secure the power cable with the power
cable retainer clip, then fasten retainer
12
clip to the opening to help prevent
unintended disconnection of the power.
13
Power button. Press to turn the DVR on.
Channel selection buttons. Enter the
14
channel number to display individual
channels in the full screen mode.
USB ports x2. Connect USB mouse or
15
USB storage.
i3 INTERNATIONAL INC.
i3-TRNG-DVR-U3-QIG.indd
6. USB Mouse (x1)
7. Remote Control and 2x AAA batteries
8. 9P Terminal block (x2). (Pre-installed).
9. 10P Terminal block (x4). (Pre-installed)
6 7 8 9 10 11 12
26
27
28
18 19 20 21 22 23 24 25
DISPLAY. Changes the camera split
16
screen: 1, 2x2, 3x3 or 4x4
ALARM. Displays alarm status in a
17
popup window.
18
MENU. Displays system menu.
19
ARCHIVE. Displays backup mode.
20
SEARCH. Displays Time Search mode.
21
PTZ. Displays PTZ Control mode.
22
CD/DVD eject button
FOCUS. Focus selected PTZ camera
23
Near/Far.
24
Pause. Freezes the playback video.
ZOOM IN/OUT. Zoom selected PTZ
25
camera In (tele) or Out (wide).
26
PANIC. Start the emergency recording.
Menu navigation buttons. Use the
arrows to move through the system
27
menus. Use the Enter button in the
middle to select a menu item or
confirm a setting.
28
RETURN. Return to the previous menu.
LOCK. Lock Veo16i to prevent all
29
operations.
ZOOM. Enter the digital zoom mode.
30
Then use Zoom In/Out buttons (#25)
1.866.840.0004
www.i3international.com

Quick Installation Guide

INSTALLATION
Before installation: Ground yourself. This will remove any static electrical charge
your body might be carrying.
STEP 1
Plug the mouse into the USB port in the front
STEP 2
Plug the main monitor into the VGA
To connect a DVI monitor, use HDMI-DVI adapter (not included).
Note: For proper display, your main monitor must support 1920 x1080 at 60Hz.
STEP 3
Connect Veo16i DVR to the network. Use the RJ45 port on the back of the unit.
STEP 4
Connect all analog cameras to the BNC ports on the back of the unit.
If using PTZ cameras, connect RS485 communication cable to the
corresponding ports on the back of the DVR.
STEP 5
Connect other peripheral devices, if using, such as Spot Out monitor, RCA Audio
Inputs/Output, eSATA storage, Alarm IN/OUT devices, etc.
STEP 6
Connect the provided 12V DC Power Adapter to the power port on the back of the
DVR. Secure the power cable with the power cable retainer clip (provided) then
11
fasten retainer clip to the opening to help prevent unintended disconnection of the
power. 12
STEP 7
Connect the power cable to the 12V DC Power
Adapter to the power port on the back of the DVR.
29
Connect the power cable to the Uninterruptible Power
Supply (UPS), 1000VA min., to maintain warranty.
30
Connect the UPS to the Power Source / power outlet.
STEP 8
The system will power on automatically. If this does not happen, press the power
button on the front of Veo16i DVR.
Microphone
Cameras x16
SPOT
Monitor
Speaker
VGA HDMI
Monitor Monitor
