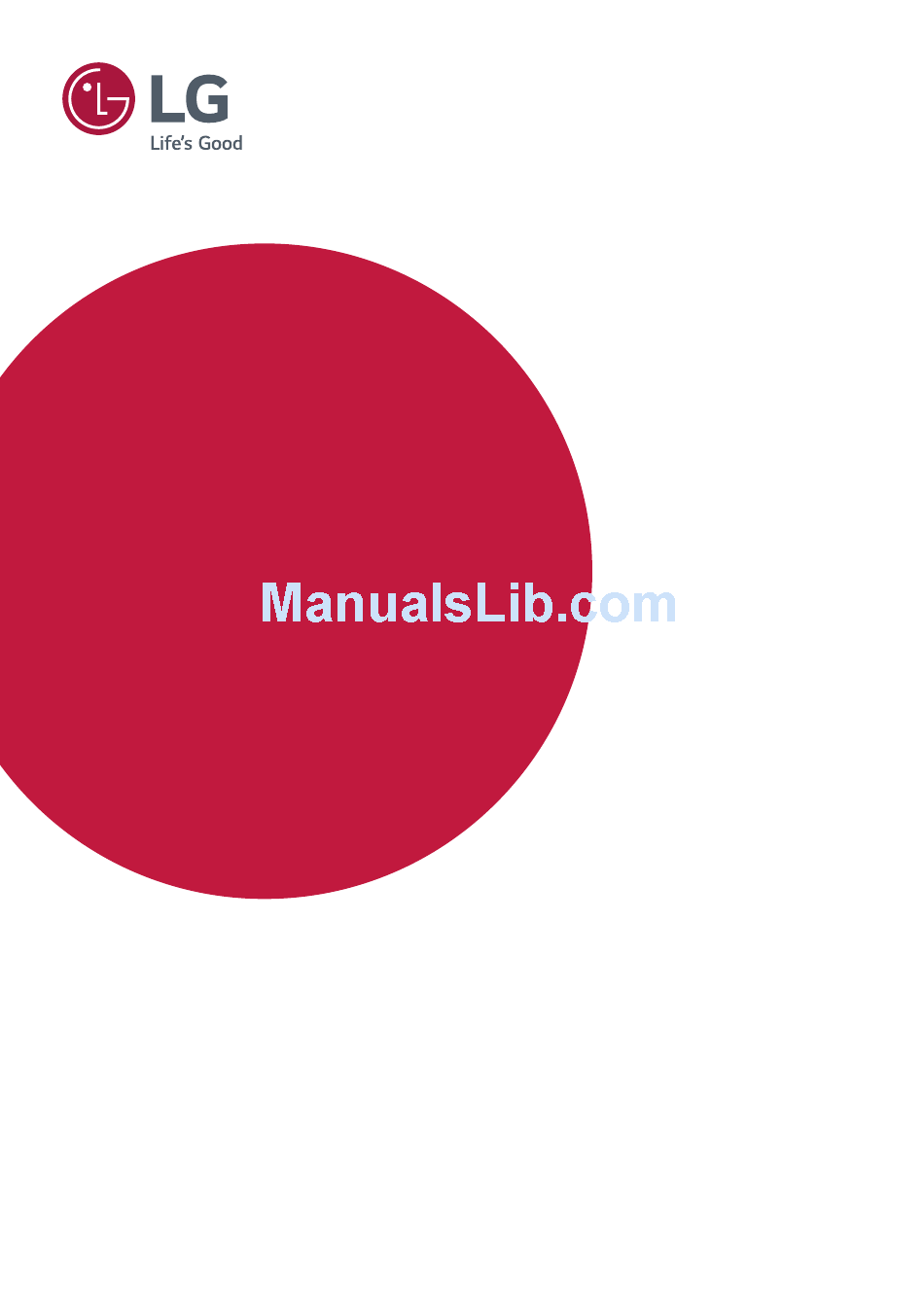

- Page 1 OWNER’S MANUAL LG Digital Signage (MONITOR SIGNAGE) Please read this manual carefully before operating your set and retain it for future reference. 65EV5C-2 65EV5C-3 65EV5C-2E www.lg.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS SAFETY PRECAUTIONS ....3 - Precautions for Installing the Product ....3 - Precautions for using AC Adapter and Electrical Power ..............5 - Precautions for Moving the Product ......7 - Precautions while Using the Product.....8 - Mounting on a Wall ............9 LICENSES ........ -
Page 3: Safety Precautions
WARNING - This is a class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. SAFETY PRECAUTIONS Please read these safety precautions carefully before using the product. WARNING If you ignore the warning message, you may be seriously injured or there is a possibility of accident or death. - Page 4 If you install the product in a place that does not meet the recommended conditions, this may cause serious damage to the product’s picture quality, life cycle, and appearance. Please check with LG or a qualified installer before installing. This caution applies to a place where there is an abundance of fine dust or oil mist, chemical substances are used, the temperature is very high or low, the humidity is very high, or the product is likely to remain turned on for a long period of time (airport and train station).
-
Page 5: Precautions For Using Ac Adapter And Electrical Power
- Otherwise, this may cause a fire or electric shock. • Be sure to use power cords and AC adapters provided or approved by LG Electronics, Inc. - The use of non-approved products may cause a fire or electric shock. - Page 6 • If you don’t intend to use the product for a long time, unplug the power cable from the product. - Covering dust can cause a fire, or insulation deterioration can cause electric leakage, electric shock or fire. • Fix the power cable completely. - If the power cable is not completely secured, a fire can break out.
-
Page 7: Precautions For Moving The Product
Precautions for Moving the Product WARNING • Make sure to turn off the product. - You may be electrocuted or the product can be damaged. • Make sure to remove all cables before moving the product. - You may be electrocuted or the product can be damaged. •... -
Page 8: Precautions While Using The Product
Precautions while Using the Product WARNING • Do not disassemble, repair or modify the product at your own discretion. - Fire or electric shock accident can occur. - Contact the service center for check, calibration or repair. • When the display is to be left unattended for an extended period of time, unplug it from the wall outlet. •... -
Page 9: Mounting On A Wall
• Spray water onto a soft cloth 2 to 4 times, and use it to clean the front frame; wipe in one direction only. Too much moisture may cause staining. CHEMICALS WATER • Always wear protective gear such as gloves when cleaning the panel as the parts where the edges meet are very sharp. -
Page 10: Licenses
LICENSES Supported licenses may differ by model. For more information of the licenses, visit www.lg.com. The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. -
Page 11: Assembly And Preparation
SuperSign Software & Manual - Downloading from the LG Electronics website. - Visit the LG Electronics website (http://partner.lge.com) and download the latest software for your model. • The warranty will not cover any damage caused by using the product in an excessively dusty environment. -
Page 12: Storage Method For Panel Protection
STORAGE METHOD FOR PANEL PROTECTION Correct Method If the product needs to be set upright, hold both sides of the product and make sure that the panel does not touch the floor. Panel When laying down the product, lay a cushion on a flat floor. Put the product on it with the panel of the product facing down. - Page 13 Incorrect Method If the product is tilted onto the bezel, the bottom of the panel may be damaged. Panel If the product is tilted onto the edge of the panel, the panel may be damaged. Panel...
-
Page 14: Cautions For Connecting Video Wall Panels
Cautions for connecting Video Wall Panels Please use suction cups to secure the display while connecting. Maximum absorption 10 kg Handle size 180 mm Vacuum cup size 85 mm Anti-static pad (Rubber or Silicon) Do not touch the back-side of panels. -
Page 15: Installing On The Wall
• Use of non-standard screws may damage the product’s interior. • Use of non-standard screws may cause product damage or cause the product to fall. LG Electronics is not liable for any such accidents. • Use screws of the following standards. - Page 16 Hanging the product safely on the wall WARNING • If the product is not positioned in a sufficiently stable location, it can be potentially hazardous due to falling. Take note of the following precautions to prevent injury. - Only use furniture that can safely support the product. - Ensure the product is not overhanging the edge of the supporting furniture.
-
Page 17: Remote Control
REMOTE CONTROL This manual describes how to operate the product using the remote control. Please read this manual carefully to use the monitor correctly. To replace the batteries, open the battery cover, match the ends of the replacement batteries (1.5 V AAA) to the label inside the compartment, and close the battery cover. - Page 18 PSM Selects the Picture Status Mode. Activates the Launcher. W.BAL Press to enter the White Balance menu. Press to access the main menu and save or turn off settings. S.MENU The Super Sign menu key. Navigation Buttons Press to navigate the menus or options. Selects menus or options and confirms your input.
-
Page 19: Making Connections
MAKING CONNECTIONS You can connect various external devices to your monitor. Change the input mode and select the external device you want to connect. For more information about external device connections, see the user manual provided with each device. Connecting to a PC Some of the cables are not provided. - Page 20 NOTE • It is recommended you use an HDMI connection for the best monitor image quality. • To comply with the standard specifications of the product, make sure to use a shielded interface cable made with a ferrite core for the HDMI cable. •...
-
Page 21: Using The Input List
Using the Input List → • HDMI → DISPLAYPORT → USB... -
Page 22: Connecting Multiple Products
Connecting Multiple Products To use multiple products connected to each other, connect one end of the signal input cable (DP cable) to the DP Out connector of Monitor 1 and connect the other end to the DP In connector of a connected product. Monitor 1 Monitor 2 Monitor 3... -
Page 23: Troubleshooting
TROUBLESHOOTING No image is displayed. Problem Action Is the product power cord connected? • Check if the power cord is correctly plugged into the power outlet. Does the “Invalid Format” message • The signal from the PC (Graphics card) is out of the vertical or appear? horizontal frequency range of the product. - Page 24 The screen color is strange. Problem Action The screen has low color resolution (16 • Set the color resolution to 24 bits (true color) or higher. Use the [Control Panel] → [Display] → [Settings] → [Color Table] menu colors). in Windows. (The settings may differ depending on your operating system.) The screen color is unstable or •...
- Page 25 CAUTION • Image sticking may occur when displaying a fixed image for an extended period of time. It is recommended that you display videos for 12 hours or less per day to decrease the likelihood of image sticking. • A few horizontal lines may appear on the screens while running the Clear Panel Noise feature (OFF-RS). This is normal, so there is no need for concern.
-
Page 26: Product Specifications
Display 65EV5C-3: 2452 mm x 1450.5 mm x 7.9 mm / 78.9 kg x Height x Depth) / 65EV5C-2: 1639 mm x 1450.5 mm x 7.9 mm / 52.6 kg Weight Main box 423 mm x 390.2 mm x 24.2 mm... - Page 27 [Unit: mm] Main box 24.2 390.2 PSU box...
- Page 28 Display [Unit: mm] 65EV5C-2 (1 x 2) 1639 36.3 1450.5 65EV5C-3 (1 x 3) 2452 36.3 1450.5...
- Page 29 HDMI/DisplayPort (PC) supported modes Horizontal Frequency Resolution Vertical Frequency (Hz) (kHz) 800 x 600 37.879 60.317 1024 x 768 48.363 60.0 1280 x 720 1366 x 768 47.712 59.79 1280 x 1024 63.981 60.02 1920 x 1080 67.5 3840 x 2160 67.5 Only applies to HDMI, DisplayPort.
- Page 30 NOTE • PC resolutions available for the Input Label option in HDMI input modes: 640 x 480 / 60 Hz; 1280 x 720 / 60 Hz; 1920 x 1080 / 60 Hz; DTV resolutions: 480p, 720p and 1080p. • Vertical frequency: To enable the user to view the monitor display, the screen image must change dozens of times every second like a fluorescent lamp.
- Page 31 Make sure to read the Safety Precautions before using the product. The model and serial numbers of the SET are located on the back and one side of the SET. Record it below should you ever need service. MODEL Temporary noise is normal when powering ON or OFF this device.
