Summary of Contents for Leica CTR35
-

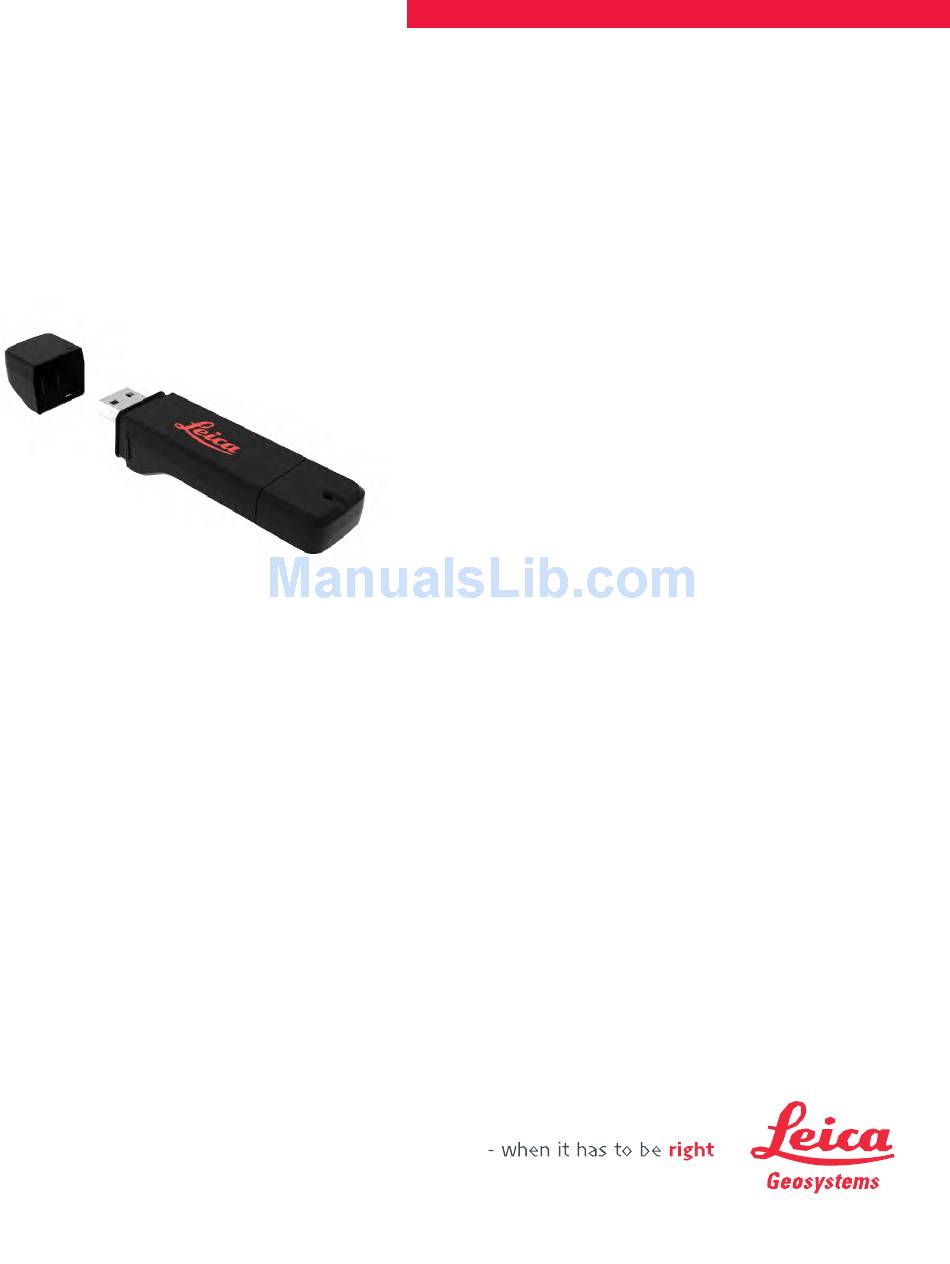

Page 1: User Manual
Leica CTR35 User Manual Version 1.0 English... - Page 2 Product Identifica- The model and serial number of your product are indicated on the type plate. tion Always refer to this information when you need to contact your agency or Leica Geosystems authorised service workshop. Symbols The symbols used in this manual have the following meanings:...
-
Page 3: Table Of Contents
Electromagnetic Compatibility EMC FCC Statement, Applicable in U.S. IC Statement, Applicable in Canada. Description of the System Operation Configuration Troubleshooting Care and Transport Transport Storage Cleaning and Drying Technical Data CTR35 Technical Data Conformity to National Regulations CTR35, Table of Contents... -
Page 4: Safety Directions
Local safety authorities and safety experts must be contacted before working in DANGER hazardous areas, or close to electrical installations or similar situations by the person in charge of the product. CTR35, Safety Directions... -
Page 5: Responsibilities
• To ensure that it is used in accordance with the instructions. • To be familiar with local regulations relating to safety and accident prevention. • To inform Leica Geosystems immediately if the product and the application becomes unsafe. • To ensure that the national laws, regulations and conditions for the operation of e.g. -
Page 6: Electromagnetic Compatibility Emc
WARNING Although the product meets the strict regulations and standards which are in force in this respect, Leica Geosystems cannot completely exclude the possibility that other equipment may be disturbed. There is a risk that disturbances may be caused in other equipment if the product is... -
Page 7: Fcc Statement, Applicable In U
FCC Statement, Applicable in U.S. Changes or modifications not expressly approved by Leica Geosystems for compliance WARNING could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B WARNING digital device, pursuant to part 15 of the FCC rules. -
Page 8: Description Of The System
Description of the System General Technology The CTR35 is a radio device having a long-range radio module. It can be used on Leica CS35 tablets only to extend the radio range. The CTR35 is intended to be connected to the following radio devices: •... -
Page 9: Operation
Operation Standard setup with Standard setup at the CS35 for remote CTR35 on CS35 surveying using the CTR35. The CTR35 can be connected to the following radio devices: • RH16/RH17 • TCPS29/TCPS30 These radio devices can be attached to the following instruments: •... -
Page 10: Configuration
Open the door of the top USB port on the CS35 completely. Hold down the opened door of the CS35. Insert the CTR35 with the USB plug into the top USB port of the CS35 as far as possible. ... - Page 11 Download the CTR35 driver from myWorld. CS35 It is found in the folder Controller\CS35\Tools. Mount the CTR35 to the top USB port of the CS35, refer to Mount the CTR35 to the CS35. Open the Start screen. Tap the Control Panel tile.
- Page 12 Close all applications. Configure the A wizard guides through the Leica Captivate connection settings. CTR35 with The TS Connection Wizard only runs with Leica Captivate version 2.0 or higher. Leica Captivate on Step Description the CS35 Start Leica Captivate Choose Settings.
-
Page 13: Troubleshooting
Troubleshooting Troubleshooting Problem Troubleshooting CTR35 is not powered. • Check, if CTR35 is properly connected to the correct USB port of the CS35. • Check status of the LED. Refer to Description of the LED indi- cator. Leica Captivate error message: "Attach •... -
Page 14: Care And Transport
Always carry the product in its transport container, original packaging or equivalent and secure it. Shipping When transporting the product by rail, air or sea, always use the complete original Leica Geosystems packaging, transport container and cardboard box, or its equivalent, to protect against shock and vibration. Storage Product Respect the temperature limits when storing the equipment, particularly in summer if the equipment is inside a vehicle. -
Page 15: Technical Data
External Influences Protection Water, dust and sand IP54 (IEC60529) Humidity Up to 90% Effectively counteract the effects of condensation by periodically drying out the CTR35. Input/Output Interface USB 2.0 Port Type of connector USB 2.0 A, for power supply and communication... -
Page 16: Conformity To National Regulations
• FCC Part 15 (applicable in US) national regulations • Hereby, Leica Geosystems AG, declares that the product CTR35 are in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC and other applicable European Directives. The declaration of conformity can be consulted at http://www.leica-geosystems.com/ce. - Page 17 CTR35, Technical Data...
- Page 18 843695-1.0.0en Original text Printed in Switzerland © 2016 Leica Geosystems AG, Heerbrugg, Switzerland Leica Geosystems AG Heinrich-Wild-Strasse CH-9435 Heerbrugg Switzerland Phone +41 71 727 31 31 www.leica-geosystems.com...
- Page 19 CTR35, Technical Data...
- Page 20 CTR35, Technical Data...
- Page 21 CTR35, Technical Data...
