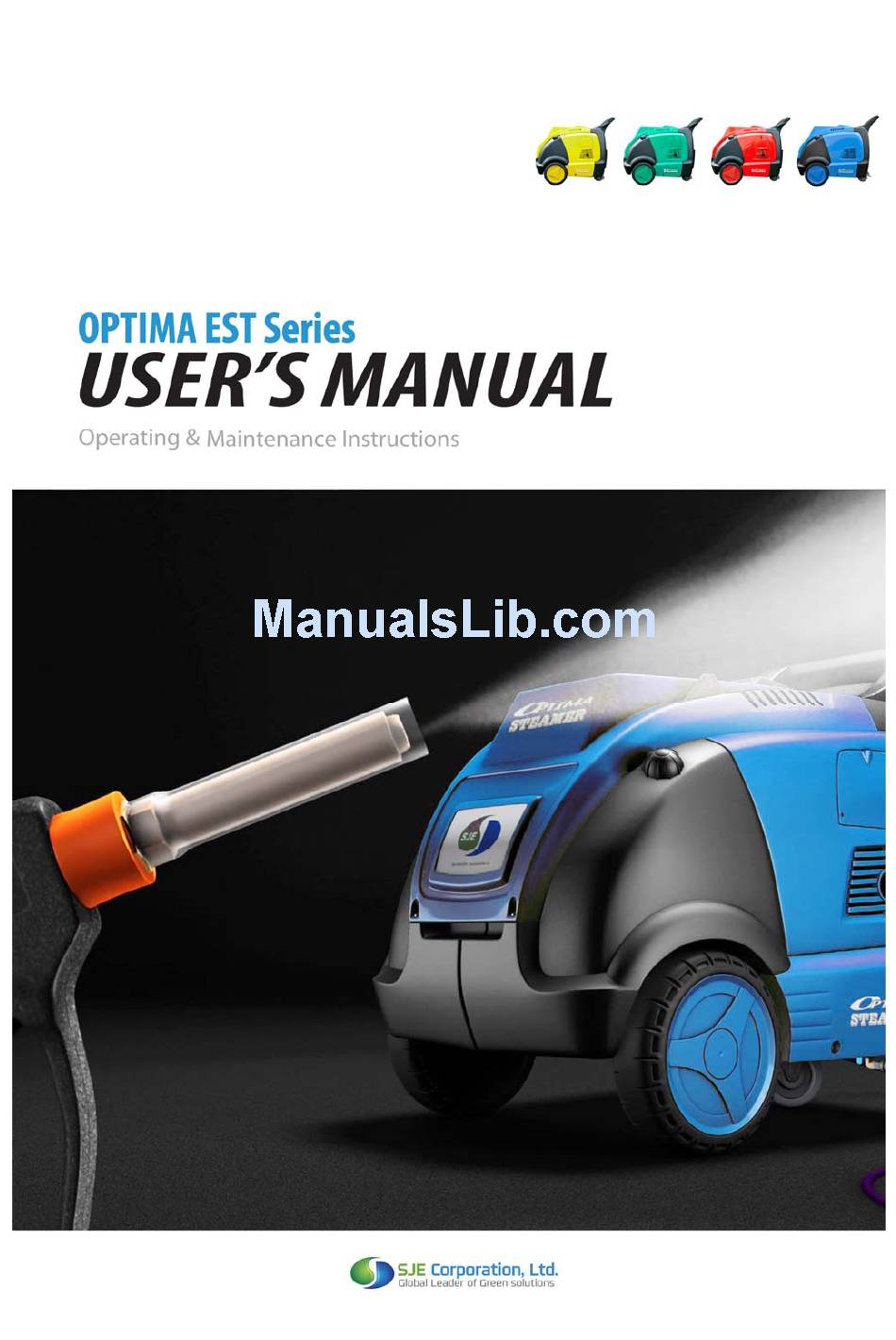

Page 2 Manufactured by SJE Corporation, Ltd. User’s Manual Operating and Maintenance Instructions Model: OPTIMA EST Series <For EST (05K, 12K, 18K, 27K)> Ver. G2.1.00 Distributor’s Contact Information...
Page 3 All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior permission of SJE Corporation, Ltd. Printed in Republic of Korea...
Page 4: Table Of Contents
Table of Contents Introduction ------------------------------------------------------------------------------------------------------ 1 Intended Applications ------------------------------------------------------------------------------------------ 1 Safety Precautions --------------------------------------------------------------------------------------------- 1 Symbols Key ----------------------------------------------------------------------------------------------------- 3 Product Specifications ----------------------------------------------------------------------------------------- 4 Exterior Descriptions ------------------------------------------------------------------------------------------- 5 Pre-start Procedures ------------------------------------------------------------------------------------------- 6 Initial Operation ------------------------------------------------------------------------------------------------- 8 Standard Operating Procedures ---------------------------------------------------------------------------- 9 Moisture Control ----------------------------------------------------------------------------------------------- 10 Pause Operations --------------------------------------------------------------------------------------------- 11 Shutdown Procedures ---------------------------------------------------------------------------------------- 11 Freeze Prevention --------------------------------------------------------------------------------------------- 12...
Page 5: Introduction
Introduction The Optima Steamer represents the future of environmentally friendly and effective cleaning. Safe, durable and easy to use, the Optima will support your cleaning operations for many years to come. Intended Applications The Optima Steamer is designed for cleaning surfaces capable of handling steam jet pressure of up to 7~8.5 bar (101~123 psi) and maximum temperatures reaching at 135℃...
Page 6 Do not use the Optima if any part, power cord, safety device, hose or spray gun is visually • damaged or suspected of being damaged. Use proper ear, eye and hand protection when operating the Optima. Noise can be generated •...
Page 7: Symbols Key
Symbols Key Do not direct the steam jet at people, live electricity, Read the manual. animals, etc. Warning: risk of burns. Water pump run Warning: Feed-Water risk of electric shock. Water supply connection. Caution. Pressure gauge Ground Thermistor Main power Steam jet Electric Heater LED Light Indication...
Page 8: Product Specifications
Product Specifications Model Name Optima EST (05K, 12K, 18K, 27K) Capacity Display 7~8.5 bar / max 9.5 bar (101~123 psi / Max 137.7 psi) Working Pressure < 135℃ (< 275℉) Spraying Temperature Boiler / Steam 174℃ / max. 180℃ (346℉ / Max 356℉) Temperature Preheating Time 20~21...
Page 9: Exterior Descriptions
Exterior Descriptions Model Name: EST(05K, 12K, 18K, 27K) 1. Top Cover 11. Moisture control valve 2. Lateral/Side panel 12. Turning wheel with brake 3. Tank cap 13. Steam outlet 4. Water tank 14. Warning sticker 5. Throttle door 15. Specification sticker 6.
Page 10: Pre-Start Procedures
Pre-start Procedures Steps: 1. Connect the steam hose and gun to the steam outlet valve. Ensure a tight connection (use tools). 2. Fill the water tank with soft water. When tap water is used, add anti-scaling solution to the water tank as instructed by the supplier.
Page 11 Water Quality Matters! Water quality can greatly affect the Optima’s life span/time and performance. It is important to use SOFT WATER. If tap water is used, daily use of water treatment (water softening liquid) and regular sediment removal will help ensure efficient operations (see page 14 “Maintenance A & B” for more information).
Page 12: Initial Operation
Initial Operation “Initial operation” means operating the machine after draining all water from the steam vessel. After completing the pre-start procedure, follow the steps below. Steps Instructions / Corrective action Type Signal indications Make sure the water tank is full. (If using the auto water filling system, connect water hose to water supply source, i.e.
Page 13: Standard Operating Procedures
Standard Operating Procedures Steps: 1. Turn on the POWER (EMERGENCY STOP) switch, and then turn on the STEAM switch. If the alarm beeps once, and the POWER light is on, the machine is ready to operate. (If you are starting the Optima for the first time or using after draining the steam vessel, refer to “Initial Operation”...
Page 14: Moisture Control
Moisture Control You can increase the moisture content in the steam by opening the moisture control valve. Increasing the moisture content in the steam increases water consumption and may produce water run-off. Dry steam may persist due to extremely hot weather; adjust the moisture control valve accordingly. When cleaning and/or sterilizing interior surfaces, ensure that the moisture control valve is closed to minimize surface moisture.
Page 15: Pause Operations
Pause Operations (Follow these steps if you intend to stop using steam for more than 5 minutes temporarily.) Steps: 1. Turn the STEAM switch off. 2. Close the steam outlet valves and pull the steam gun trigger to release any remaining steam in the hoses.
Page 16: Freeze Prevention
Freeze Prevention The Optima Steamer can perform in the sub-zero weather. However, it takes precautions for storage. In cold climates it is necessary to store the Optima in an area where the temperature is above freezing. Unplug the machine from electrical source and follow steps below to protect the Optima against ruptured lines and damage caused during cold climates.
Page 17 3. Drain the water suction lines and the water pump. Open the drain valve or Y-strainer drain cap, then disassemble / detach water suction line from top of water pump and drain all remaining water using compressed air. Keep drain valve open until next use.
Page 18: Maintenance
Maintenance Warning! Unplug the machine from electrical source and allow it to cool off before conducting maintenance. Wear appropriate safety protection. Note: To avoid unexpected downtime, keep up with maintenance schedule. Maintenance Schedule Every year Monthly or Maintenance Items Daily or as as needed needed...
Page 19 B. Check for/drain sediments from steam vessel Open the drain valve and check the color of the water. If the water is milky, drain all remaining water & sediment from the steam vessel by opening the Y-strainer drain valve or cap. C.
Page 20 E. Check/clean water probe sensors. The Optima has three water probe sensors (High, Com, Low). Scale build-up on the water probe sensors can affect sensor accuracy and will prevent the machine from operating abnormally. What you will need: screw driver (+), 14mm deep socket wrench, breaker bar (DO NOT USE A POWERED/TORQUED WRENCH!!!), sandpaper, and Teflon tape.
Page 21 F. Perform vessel de-scaling. What you will need: screw driver (+), wrenches, 10mm T-box wrench, container (14liters or larger), 14 liters (3.7 gal) of diluted de-scaling liquid, and 2 liters (0.5 gal) of clean tap water. Steps: 1. Remove the top and lateral covers. 2.
Page 22 Note! Check local regulations regarding the disposal of de-scaling liquid. Depending on the de-scaling product used, a special disposal method may be required.
Page 23: Safety Features
Safety Features The Optima was designed with operator safety first in mind. There are multiple safety features that protect both the operator(s) and the Optima. Understanding the Optima’s safety features will enhance the user experience and assist you when troubleshooting The Optima’s Main Safety Features: 1.
Page 24 Required Conditions for the electric heaters to Activate: 1. The POWER (EMERGENCY STOP) and STEAM switches are on; 2. The float switch in the water tank detects liquid; 3. The low water probe sensor in the vessel detects water; AND. 4.
Page 25: Troubleshooting Guide
Troubleshooting guide When a malfunction occurs, refer to the troubleshooting guide below. If the problem persists, please contact your local distributor and report the problem by referring to the reference number on the left hand side. LED Light Indication Main power on. Water pump over-run flashing Water pump run on.
Page 26 The POWER (EMERGENCY STOP) and STEAM switches are on. The POWER light is on and the alarm beeps once. This is normal operating condition. The POWER (EMERGENCY STOP) and STEAM switches are on. The POWER & WATER PUMP RUN light are on, and the alarm beeps once.
Page 27 The low water probe sensor cannot detect water in the steam vessel because: 1) The low water probe sensor is defective; or 2) The low water probe sensor’s connection cable is disconnected; or 3) The low water probe sensor cannot detect water due to scale built-up.
Page 28 1) Water or steam in the vessel traveled backwards into the water tank due to damaged non-return valves. 2) Steam comes out continuously from air purge valve into water tank. 1) Clean or replace the non-return valves. The steam pressure drops;...
Page 29: Optional Items
Optional Items OPTIMA EST is designed to use with various useful optional items as below. 1. Various accessories 2. Omega Softener Caution! Please refer to the instruction of each item before using optional items with Optima EST...
Page 30 Technical Service Request Form Thank you for using our products. When you encounter any problems using the Optima Steamer, please fill out the form and email it to tech@sjecorp.com. We will be in contact with you until the issue is resolved to your satisfaction. Items that should be checked basically Remark What is the serial number of the machine?
