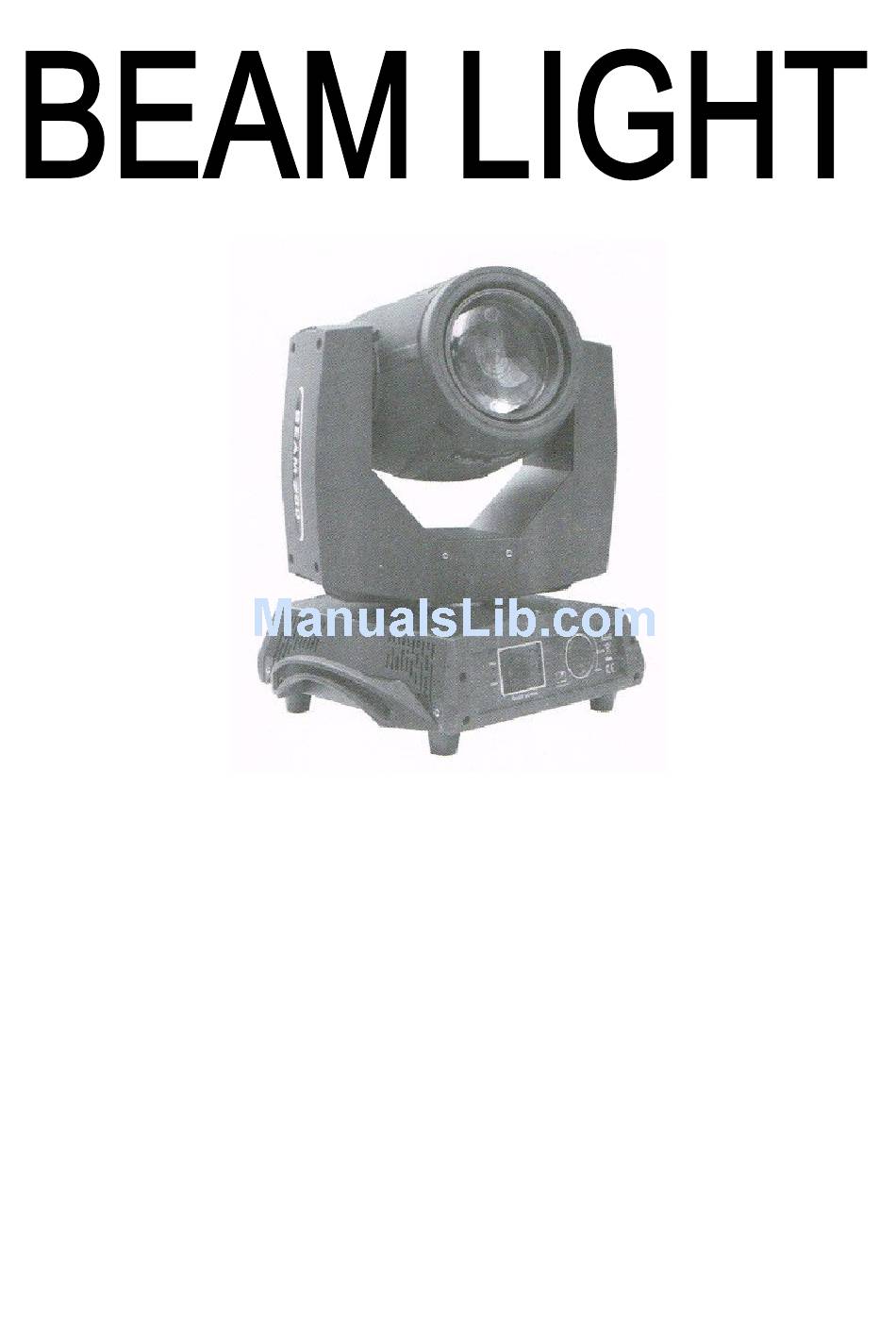

Page 1: User Manual
USER MANUAL ITEM No.：200W/230W - 1 -... -
Page 2: Operation Modes
Please read over this Manual before Operating the Light Fixture First, thank you for purchasing our professional lighting equipments. This manual includes important information of how to install and use the fixture safely. Please install and operate it correctly as required, and keep the manual properly in case of need. This moving head light is the perfect combination of humanity and industrial design with beautiful modeling. -
Page 3: Control Panel Instructions
For example, how to change DMX address? 1. Please press “Setting” in the main interface to enter “setting” interface. 2. There are 4 touch key-presses on the right side, namely, “Up” “Confirm” “Down” “Return” buttons. DMX address”. 3. Please press “Up” or “Down” keys to enter “ 4. - Page 4 The 3 buttons on the up right corner are for language switch and screen rotation. The 4 buttons on the bottom are for sub-interfaces. How to use the wheel to control the sub-interface? Please see as follows:: For “Up” button: Please turn left. For “Down”...
-
Page 5: Information Interface
XY Exchange Exchanging XY channels（Pan/Tilt fine included） XY Encorder Use Encorder (optocoupler) to judge out of sync or not, and self-correct the position. Don’t use Encorder (optocoupler) to rectify the position No DMX signal stay Stay the same reset Stop running Screen Save mode Screen light off automatically after 30secs Screen stay on... -
Page 6: Advanced Interface
2.5. Advanced Interface The code is “up down up down”，and code for the wheel is “ left right left right”. Manu Operation modes： Press “Up” to see the first “*” ， and press “Down” key to see the second “*” ， and press “Up”... - Page 7 RESET RESET LAMP CONTROL LAMP CONTROL PAN-TILT TIME COLOUR TIME DIMMER-PRISM-FROST TIME GOBO TIME COLOER WHEEL-channel 1 EFFECT 备注 FAST ROTATION ..…… SLOW ROTATION COOL COLOR +WHITE In order to facilitate memory, color value always COOL COLOR multiple of five. Color ratio BROWNISH YELLOW+COOL COLOR can be adjusted, for example: BROWNISH YELLOW...
- Page 8 BLUISH GREEN+LIGHT YELLOW BLUISH GREEN PURPLISH RED+BLUISH GREEN PURPLISH RED FLUORESCENCE+PURPLISH RED FLUORESCENCE BROWN+FLUORESCENCE BROWN GREEN+BROWN GREEN BLUE+GREEN BLUE DARK YELLOW +BLUE DARK YELLOW RED+DARK YELLOW WEITE+RED WEITE STOP/STOBE-channel 2 EFFECT Remarks 252-255 OPEN Controlled by a dimmer channel 239-251 RANDOM FAST STROBE 226-238 RANDOM MEDIUM STROBE...
- Page 9 …… …… STATIC GOBO CHANGE-channel 4 EFFECT Remarks GOBOI 17 SHAKE,FAST SPEED Every five values is correspond to a pattern. …… …… GOBO 17 SHAKE,SLOW SPEED GOBO 16 SHAKE,FAST SPEED …… …… GOBO 16 SHAKE,SLOW SPEED …… …… GOBO 2 SHAKE,FAST SPEED ……...
- Page 10 GOBO 17 Value is always five multiple GOBO 16 GOBO 15 GOBO 14 GOBO 13 GOBO 12 GOBO 11 GOBO 10 GOBO 9 GOBO 8 GOBO 7 GOBO 6 GOBO 5 GOBO 4 GOBO 3 GOBO 2 GOBO 1 WHITE PRISM INSERTION-channel 5 EFFECT Remarks...
- Page 11 FOCUS-channel 9 EFFECT Remarks 100% …… …… PAN-channel 10 (………) PAN FINE-channel 11 (………) TILI-channel 12 (………) TILT FINE-channel 13 (………) FUNCTION-channel 14(NOUSED) RESET-channel 15 EFFECT Remarks 128-255 COMPLETE RESET Reset is activated passing through the unused range and staying 5 seconds. 77-127 PAN/TILT RESET 26-76...
-
Page 12: Timing Channels
UNUSED RANGE TIMING CHANNELS Timing Channel Channel function Remark Pan-Tilt time Pan-Tilt-(Pan fine-Tilt fine) SLOW SPEED ….. …… Color time Color wheel FAST SPEED Beam time Dimmer-Prism-Frost Gobo time Static Gobo Control signal connection XLR-XLR control cable from the DMX output of the controller connected to each projector DMX input port, and from the first fixture in the DMX output port connected to the second fixture in the DMX input port, and so on, until the All lighting connection is completed, and then plug the supplied loop connected to the signal output of the last fixture to complete the connection, as shown:... - Page 13 Three pin（Canon）DMX512 connector - 13 -...
-
Page 14: Installation
Installation - 14 -... - Page 15 - 15 -...
- Page 16 - 16 -...
- Page 17 - 17 -...
- Page 18 - 18 -...
- Page 19 - 19 -...
- Page 20 - 20 -...
-
Page 21: Protection And Maintenance
Protection and Maintenance: You should exchange the lens timely, if you find the led has damaged. You should instant replacement the bulb when you find the deformation damage. The aging bulb has a danger of blowout. Please check the power fuse of light when the light unable to start. -
Page 22: Product Warranty Card
Product Warranty Card Product Name： Product Item： Produce time： Buyer Purchase Time： User： Sale Shop： Company Name： Contact： Address： Tel： Contact： Tel; Stamp： Specification ： Above blank by the end user and point-of-sale must truthfully fill, seal, or without warranty. (Warranty period and terms as following) Warranty ：...
