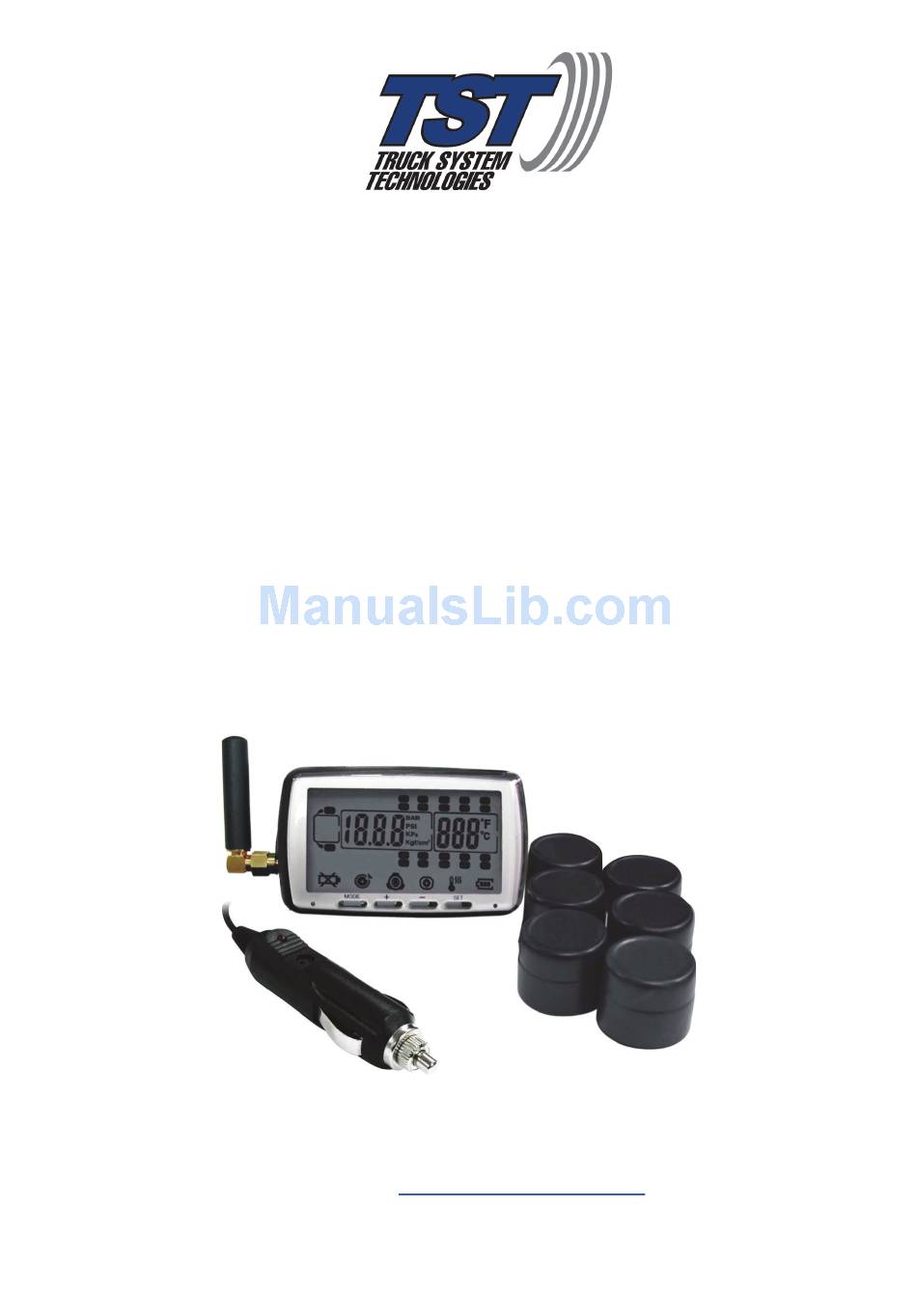

TST-Doc-510 Manual-(A)

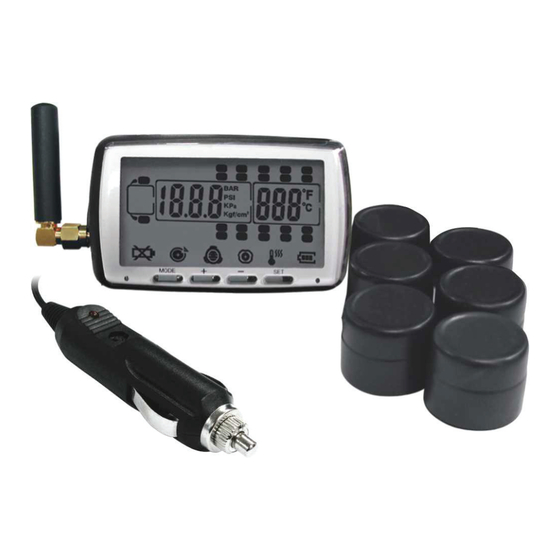

Wireless Tire Pressure and Temperature
Monitoring System Instruction Manual
Model #: TM-510
510 Cap Sensors
Thank you for purchasing the TST Tire Pressure Monitoring
System. With minimal care, your new TPMS will
provide reliable service for many years. Please read and
understand the information contained within this manual.
Keep this manual for future reference.
Telephone: 770.889.9102
Website:
www.tsttruck.com
1
Truck System Technologies - 4250 Keith Bridge Road, Suite 200, Cumming, GA 30041
info@tsttruck.com
Advertisement
Table of Contents
Related Manuals for TST TM-510
Summary of Contents for TST TM-510
- Page 1 Monitoring System Instruction Manual Model #: TM-510 510 Cap Sensors Thank you for purchasing the TST Tire Pressure Monitoring System. With minimal care, your new TPMS will provide reliable service for many years. Please read and understand the information contained within this manual.
- Page 2 TST-Doc-510 Manual-(A) INDEX Page 1 - Sensor Features Page 1 - Display Features Page 2 - System Components in Kit Page 3 - Display Controls/Display Components and Icons Pages 4 - 6 - Programming Sensor Codes Into the Display - Manual Coding (Option #1)
-
Page 3: Sensor Features
TST-Doc-510 Manual-(A) SENSOR FEATURES 1. Sensors easily install on the valve stem. 2. Sensors are water resistant. 3. Pressure and temperature data is read every two (2) minutes. 4. Removal of a sensor (0 lbs. pressure) will shut off the sensor battery. -
Page 4: System Components In Kit
TST-Doc-510 Manual-(A) 10) Selectable temperature unit: °C or °F 11) Program up to 22 tires. 12) Tire pressure and temperature is displayed simultaneously for quick viewing of each tire. 13) The trailer display can be electronically removed from the screen when not towing. - Page 5 TST-Doc-510 Manual-(A) DISPLAY CONTROLS • There are four (4) programming buttons located across the lower front face of the display. They are: “MODE,” (+), (-) and “SET.” • The power switch is the (-) button on the front of the display.
-
Page 6: Manual Coding (Option #1
TST-Doc-510 Manual-(A) PROGRAMMING SENSOR CODES INTO THE DISPLAY Note: It is recommended to label each sensor first with the provided numbering code stickers, similar to the following pattern, before you code the sensors. This allows you to know which sensor is programmed to which tire position. You can also write in your sensor number pattern. - Page 7 TST-Doc-510 Manual-(A) • Press and hold the “SET” button until it beeps and then release it (approx. 5-7 seconds). You are now in the code programming mode. • A tire icon will flash and all 22 tires will be displayed.
-
Page 8: Automatic Code Learning (Option #2
TST-Doc-510 Manual-(A) • To remove the tire icon from the screen, the four-digit code has to display all F’s. With the first digit flashing, set it to “F” using the (+) or (-) buttons. • Press “MODE” to move to the next digit. Set that to “F.”... -
Page 9: Sensor Installation
TST-Doc-510 Manual-(A) • Using the (+) or (-) button, navigate to the tire on the monitor you are standing at. • Again, finish screwing that sensor down to seat it. That code now will appear on the monitor. • Continue this procedure until you have coded all the sensor positions. -
Page 10: Display Installation
TST-Doc-510 Manual-(A) DISPLAY INSTALLATION • There are two ways to mount the display to your dash. • The vent clip can be attached to the display and then clipped inside one of the vehicle A/C vents. • Optionally, the provided velcro pads can be used to secure the display to the top of the dash. - Page 11 TST-Doc-510 Manual-(A) • Be sure your monitor is ON and it is showing the main screen. • Press and hold the “MODE” button until the monitor beeps (approx. 6 seconds) • You should see “PSI” on the screen. If not, push and release the (+) button to scroll through the pressure units until “PSI”...
- Page 12 TST-Doc-510 Manual-(A) High Pressure-Front Axle • Again, press and release the “MODE” button. The low- pressure alarm setting will appear. Set this 10% below the normal tire pressure for this axle. Low Pressure-Front Axle NOTE: If your normal tire pressures are below 100 lbs., you must first set the low-pressure alarm and then go back to the same axle (by clicking the “MODE”...
- Page 13 TST-Doc-510 Manual-(A) • Continue to set the high and low pressures for each axle. • When you get to the Trailer Section of the display, all the tires will flash. You can now set all the trailer axle high and low pressures as one group. Set the high-pressure alarm first, than press and release the “MODE”...
-
Page 14: Monitor Alerts
TST-Doc-510 Manual-(A) MONITOR ALERTS Out of Parameter Alert The 510 Cap sensors send the tire pressure and temperature readings to the monitor every two (2) minutes. If a tire is outside the parameters that were set, an immediate audible alarm will sound and the red LED light will immediately flash. -
Page 15: Other Functions
If your sensor is not reporting to the display, you may have to replace the sensor. Call TST for Tech Support. Low Sensor Battery Alert... -
Page 16: Troubleshooting Tips
The display run time is 5-7 days on a full charge. SENSOR BATTERIES • Sensor batteries are not replaceable by the consumer. Call TST at 770-889-9102 for sensor replacement. TROUBLESHOOTING TIPS • Label all your sensors with a silver sharpie first so you will know which sensor goes on which tire position or write down your sensor code and tire position in this manual. - Page 17 TST-Doc-510 Manual-(A) • When done programming the Parameters into the display, remember to quickly push and release the “SET” button to save the Parameters. • To save the sensor codes when done coding all the sensors, press and hold the “SET” button. The display will beep and the codes are saved.
- Page 18 2) Be aware that an indoor/outdoor thermometer with an external temperature sensor may interfere with the TST TPMS. Temporarily remove all the batteries in the thermometer AND exterior sensor and see if the problem is corrected. A thermometer with a higher frequency (915 Mhz) may be required.
- Page 19 TST-Doc-510 Manual-(A) • Why does my display sometimes alarm while I am sitting still in the evening? As night approaches and outdoor temperatures decrease, your tire pressures may drop below the parameters you have set, thus causing an out of spec alarm. When temperatures drop, turn your monitor off overnight.
- Page 20 TST-Doc-510 Manual-(A) • How do I remove my trailer from the display screen when I am not using it? To electronically disconnect the trailer tire icons from the screen: 1. Press and hold the “MODE” and (-) buttons. 2. When the trailer section on the display disappears, release the buttons.
-
Page 21: Repeater
TST-Doc-510 Manual-(A) REPEATER The repeater is used to strengthen/amplify the sensor signal forward to the display. A repeater is packaged with this system. Wire the repeater into a 12v source that will be constant while driving. The red light on the repeater will illuminate when operational. The unit is waterproof and can be mounted inside or out. -
Page 22: Display Specifications
TST-Doc-510 Manual-(A) DISPLAY SPECIFICATIONS Temperature Operating Range -4 ° F – 176° F / -20° C – 80° C Storage Temperature Range -22° F – 185° F / -30° C – 85° C Charger Input Voltage 11v – 24v DC Frequency 433.92 MHz... -
Page 23: Notes
TST-Doc-510 Manual-(A) NOTES: Truck System Technologies - 4250 Keith Bridge Road, Suite 200, Cumming, GA 30041 info@tsttruck.com... - Page 24 TST-Doc-510 Manual-(A) 4250 Keith Bridge Rd. Cumming, GA 30041 770.889.9102 www.tsttruck.com ©2017 Truck System Technologies - All Rights Reserved TST-Doc-510 Manual-(A) Truck System Technologies - 4250 Keith Bridge Road, Suite 200, Cumming, GA 30041 info@tsttruck.com...
