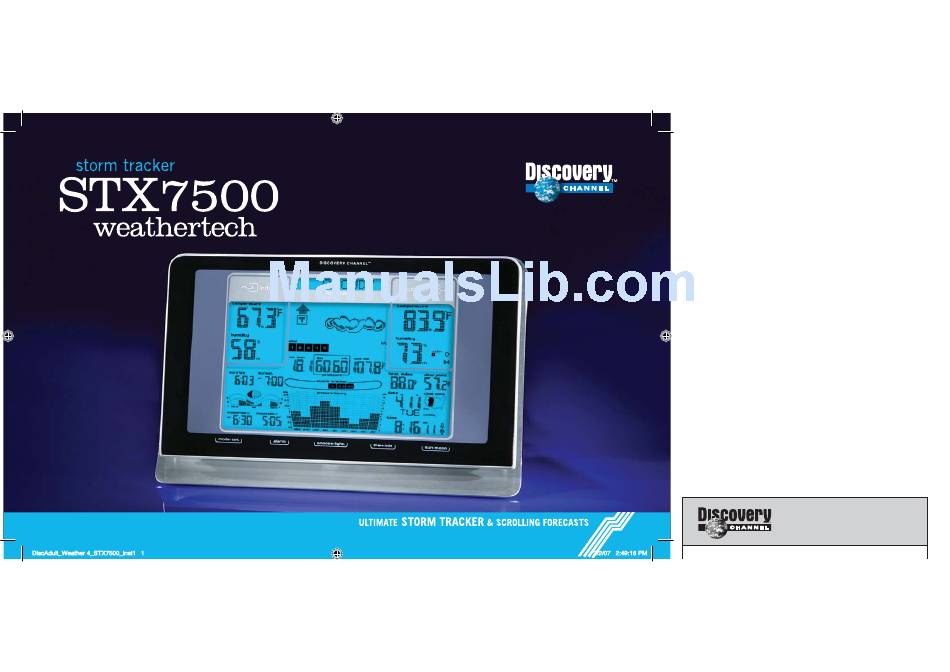

- Page 1 1608 Fourth Street Berkeley, CA 94710 tel: (510) 558-6441 DiscAdult_Weather 4_STX7500_inst1 1 2/2/07 2:49:16 PM Filename: DIscAdult_weather4_STX7500_Instr.indd...
- Page 2 Set up your remote sensor Your first step is to set up the STX7500 remote sensor. The remote device will read external conditions and automatically send them to the main station inside your home. 1. Open up the back panel of the remote sensor and add two AA (1.5V) batteries (not included).
- Page 3 7. When setting the weather, please note: Your third step is to set up and program your STX7500 main station. You will set the current weather, location, and other settings. a. If the outdoor sensor reads below 0°C and you have input the weather to “rain” or “heavy rain” then your main station will display snow b.
- Page 4 3. To set the alarm time, hold “ALARM” button for 3 seconds. Your STX7500 main station will automatically calculate the sunrise and sunset once it knows the time and day and the “Country” and “City”. 4. Press “+” or “-”, located on the back of the unit, to adjust alarm time.
- Page 5 Wind Speed of Force Note: Before permanently mounting ensure that the STX7500 main unit is able to receive the WWVB signals from desired location. Also, extreme and sudden changes in temperature will decrease the Scrolling Forecasts accuracy of the indoor weather station. To achieve true temperature readings, avoid mounting where direct sunlight can reach the remote temperature and humidity sensor or indoor weather station. While...
-
Page 6: Helpful Hints
Seeing Your Pressure History Graph Back Light • The Barometric Pressure Reading at –30hr, -24hr, -12hr, –6hr, -3hr, -2hr, -1hr, 0hr is recorded and shown on the Barometric Pressure Bar Graph. Press the “SNOOZE/LIGHT” button to turn on the back light for 5 seconds. The Graph is displayed in both hPa (Hectopascal) and inHg (inches of mercury). -
Page 7: Battery Warnings And Cautions
Battery warnings and cautions Specifications Important Safety Instructions STX7500 When using this product, especially when children are present, basic safety precautions should be followed. Radio-controlled time signal 60KHz from Ft. Collins, CO. Read All Instructions Before Using Indoor weather station recommended 32°F to 122°F (0°C to 50°C) - Page 8 Wind Heat and humidity chart Wind speed measuring range 0 to 111.8 mph (0 to 50 m/s) Here’s a quick way to calculate the heat index inside and outside —a combination of humidity and heat. Wind Gust 0 to 111.8 mph (0 to 50 m/s) How temperature and humidity combine to make it feel hotter Wind Chill -20°C to 50°C with 0.1°C resolution -4°F to 158°F with 0.2°F resolution “--.-”...
-
Page 9: Troubleshooting
• Remove batteries or unplug the adaptor for five minutes, reinsert and leave the unit alone overnight without pressing any buttons. • If there are still problems, contact Discovery Channel. FCC Disclaimer Problem: Hour is incorrect (minute and date are correct). - Page 10 ©2007 Discovery Communications, Inc. All rights reserved. Discovery Channel and logo are trademarks of Discovery Communications, Inc. Made in China for The Discovery Channel Store, Inc. Berkeley, CA 94710 For Customer Service or Questions call: 1-800-379-0244 Product and color may vary.
