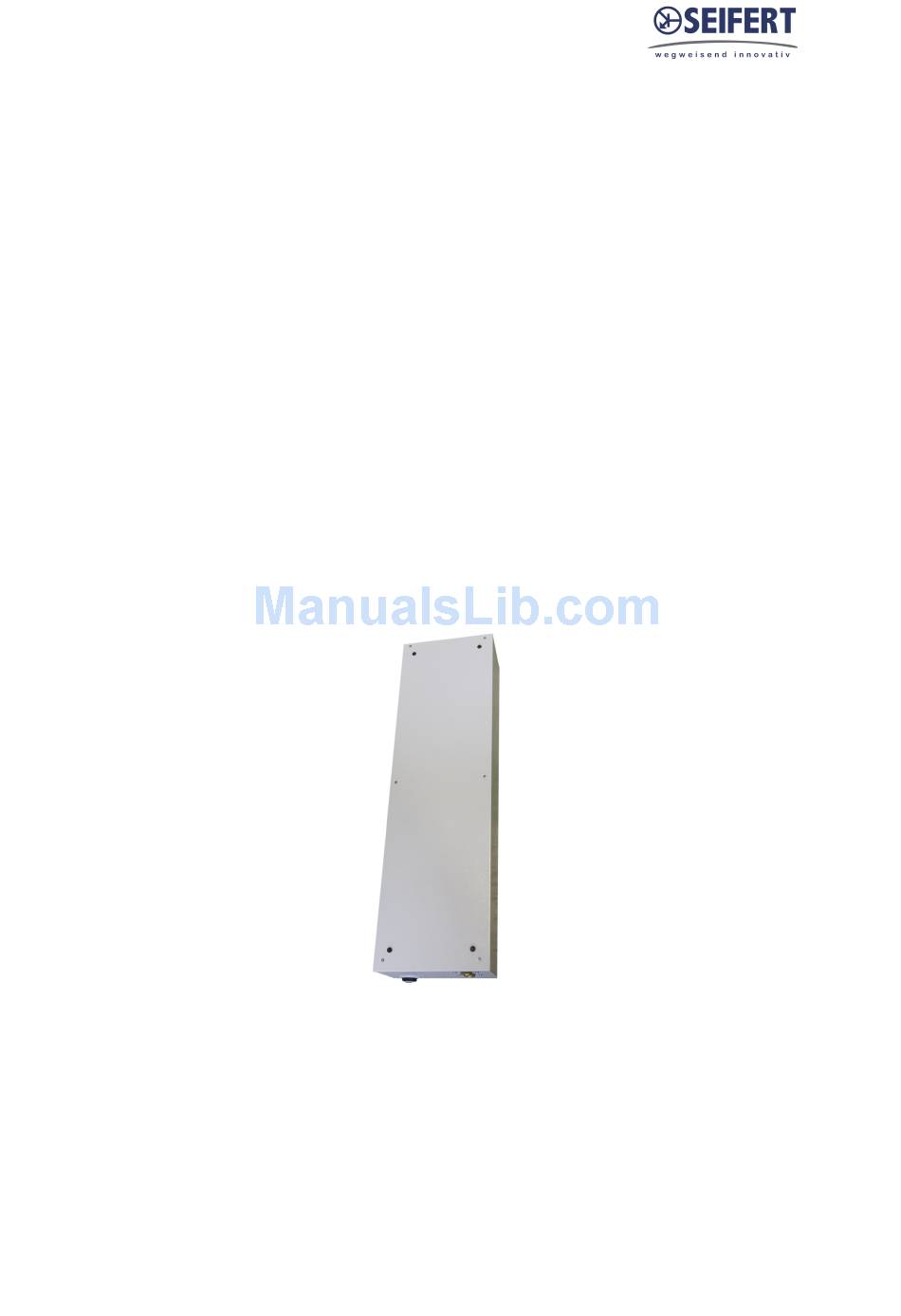

Seifert RK 2125 A-400V Manual

Hide thumbs

Table of Contents

Quick Links

Download this manual

Table of Content RK 2125 A-400V

1. User manual

...................................................................................................................

2. Legal regulations

3. Safety instructions

4. Technical information

5. Functional principle

6. Technical data

7. Mounting

.........................................................................................................................

8. Mounting Principle

9. Electrical connection

10. Wiring diagram

11. Taking into operation

12. Maintenance & Cleaning

13. Maintenance

...............................................................................................................

14. Transport & Storage

15. Parts supplied

Version Nr. 1-1 - 31.08.2017

...........................................................................................................

........................................................................................................

...................................................................................................

......................................................................................................

................................................................................................................

........................................................................................................

.....................................................................................................

..........................................................................................................

...............................................................................................

..........................................................................................

.................................................................................................

............................................................................................................

Doc. Nr. 992125210

1 / 14

Table of Contents

Need help?

Do you have a question about the RK 2125 A-400V and is the answer not in the manual?

Questions and answers

Summary of Contents for Seifert RK 2125 A-400V

Page 1: Table Of Contents
Table of Content RK 2125 A-400V 1. User manual ........................2. Legal regulations ......................3. Safety instructions ......................4. Technical information ....................5. Functional principle ...................... 6. Technical data ........................ 7. Mounting ......................... 8. Mounting Principle ......................9. Electrical connection .....................
Page 2: User Manual
1. User manual This instruction manual contains information and instructions to enable the user to work safely, correctly and economically on the unit. Understanding and adhering to the manual can help one: Avoid any dangers. Reduce repair costs and stoppages. Extend and improve the reliability and working life of the unit.
Page 3: Safety Instructions
Disregarding the instruction manual Operating error Inappropriate work on or with the unit The use of non-specified spare parts and accessories Unauthorised modifications or changes to the unit by the user or his personnel The supplier is only liable for errors and omissions as outlined in the guarantee conditions contained in the main contractual agreement.
Page 4: Technical Information
4. Technical information Air - water heat exchangers are intended as complementary accessories to large industrial equipment which include a motor-operated fan or blower together with a cooling heat exchanger. These may also include an electric heater. The fan or blower is intended to recirculate air and allow heat exchange. The heat exchanger is designed for chilled water or anti-freeze/corrosion inhibitor mixed water from a separate source.
Page 5: Functional Principle
Potassium manganate consumption < 1.46 gr/gal Suspended matter < 0.1753 gr/gal (part flow cleaning recommended) > 0.1753 < 0.8763 gr/gal (continuous cleaning) > 0.8763 gr/gal 5. Functional principle The air inside the control cabinet is moved over a laminar heat exchanger through which a coolant medium runs, making use of the counter-flow principle.
Page 6: Technical Data
6. Technical data Order Number 2125210 Cooling capacity L35W10 (200 l/h) 8,705 BTU Cooling capacity L35W10 (500 l/h) 10750 Btu/hr @ 50 Hz 11090 Btu/hr @ 60 Hz Refrigerant / GWP Water, light oils or similar Temperature range +34°F - +162°F Air volume flow 294 cfm @ 50 Hz / 311 cfm @ 50 Hz Mounting...
Page 7: Mounting
7. Mounting Seifert heat exchangers have an extremely compact design and construction, giving them the advantage of occupying very little space. In addition, the RK-2114 A/AM, RK-2114 A/AM 632 and RK- 2116 A/AM models can be mounted externally or internally, as required.
Page 8: Mounting Principle
8. Mounting Principle Mounting gasket Heat exchanger Set screw Washer Lock nut Version Nr. 1-1 - 31.08.2017 Doc. Nr. 992125210 8 / 14...
Page 9: Electrical Connection
9. Electrical connection High electric voltage present. Installation, maintenance, cleaning and any other work must be carried out by qualified personnel only. The personnel must ensure that for the duration of this work the unit and the cabinet are disconnected from the electrical supply and protected against unauthorised/accidental reconnection.
Page 10: Wiring Diagram
10. Wiring diagram Radial fan Thermal motor protector 6 pin connector Alarm Thermostat Version Nr. 1-1 - 31.08.2017 Doc. Nr. 992125210 10 / 14...
Page 11: Taking Into Operation
11. Taking into operation The cooling performance of the heat exchanger is dependent on the water flow rate available from the supply. The water flow is dependent on the water supply system to which the heat exchanger is connected and is affected by various factors, such as conduit pressure, conduit diameter, etc. 1.
Page 12: Maintenance & Cleaning
5. Units with temperature controller The unit is equipped with a temperature controller which regulates the function of the unit. On normal working conditions the display shows the temperature inside the enclosure. The controller “set point” for the interior of the enclosure (parameter St / St1) is pre-set at 95°F and can be adjusted between +68°F and +122°F.
Page 13: Transport & Storage
When connecting the new fan, take care that the correct polarity is maintained. 2.Thermostat replacement Before replacing the thermostat, isolate the equipment from the power supply (pull out mains plug or connecting cable). Detach the thermostat from its support by unclipping it from the DIN railing and loosening the 4 connecting cables.
Page 14 Seifert Systems GmbH Seifert Systems Ltd. Seifert Systems AG Seifert Systems Inc. Seifert Systems Pty Ltd. Haßlinghauser Str. 156 HF09/10 Wilerstrasse 16 75 Circuit Drive 105 Lewis Road Hal-Far Industrial Estate North Kingstown Wantirna South 58285 Gevelsberg Birzebbuga, BBG 3000...
