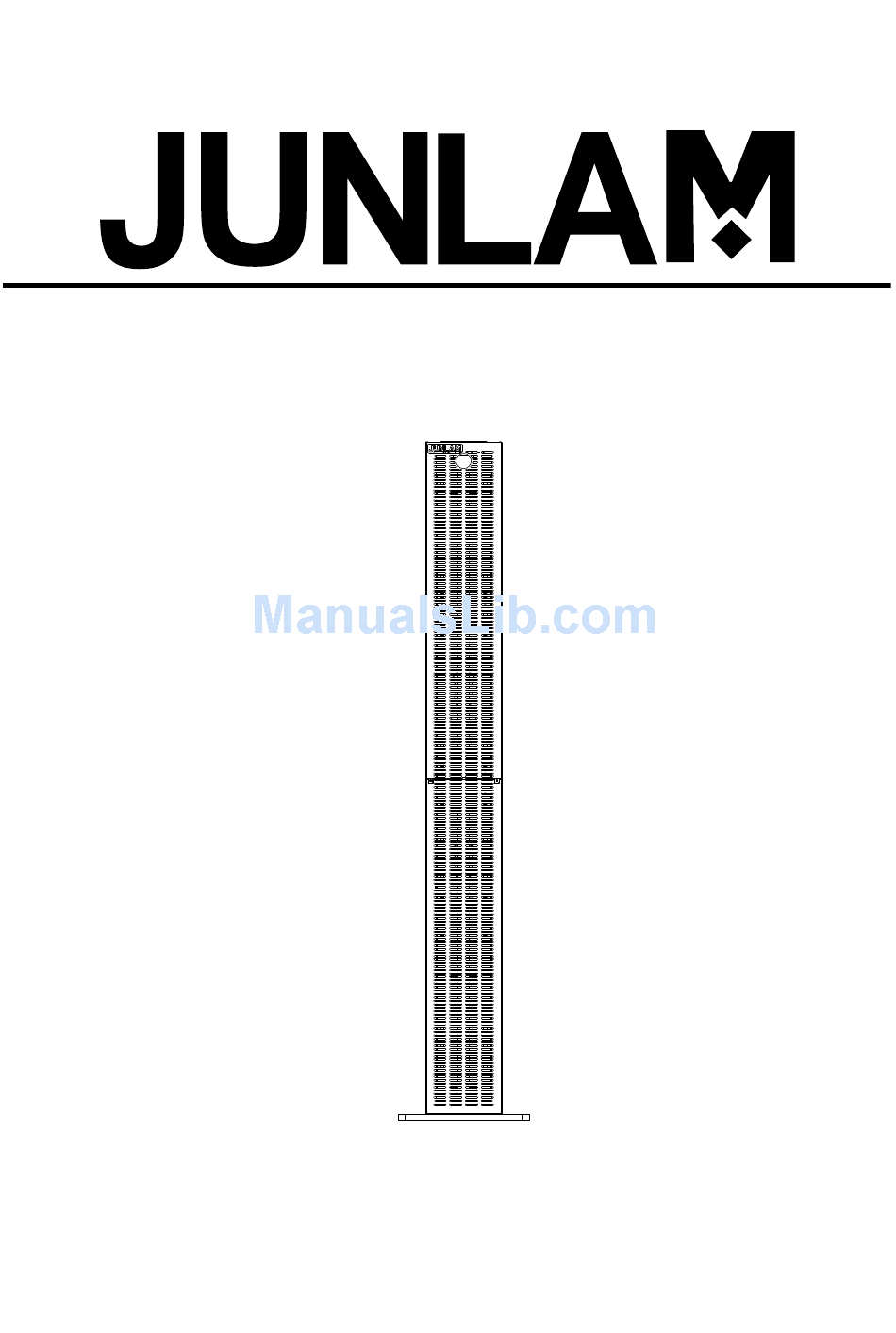

- Page 1 Bluetooth Tower Speaker with LED Light Show MODEL:TSB-89717-BLK INSTRUCTION MANUAL PLEASE READ CAREFULLY BEFORE OPERATING THIS EQUIPMENT...
-
Page 2: Fcc Statement
CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK). NO USER SERVICEABLE PART INSIDE, REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. DANGEROUS VOLTAGE:The lighting flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage”... -
Page 3: Fcc Notice
FCC NOTICE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. - Page 4 washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool. 6. Clean only with dry cloth The appliance should be cleaned only as recommended by the manufacturer. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
- Page 5 moisture, does not operate normally, or has been dropped. 15. Power source This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your appliance dealer or local power company.
- Page 6 20. Service Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel. 21. Replacement parts When replacement parts are required, be sure the service technician uses replacement parts specified by the manufacturer or those that have the same characteristics as the original parts.
-
Page 7: Installation
INSTALLATION Installing the baseplate CAUTION: The unit must never be used without the baseplate attached. Lay a soft protective cloth on a large table or work-surface. Lay the unit on the cloth, with the base accessible. Fit a washer to each of the special screws. Lining up the holes in the baseplate with the holes in the base. -
Page 8: Location Of Controls
LOCATION OF CONTROLS MAIN UNIT Play/Pause Button 1. Remote Sensor 2. LED Display 10. TUNE- (Previous) Button 3. Indicator 11. TUNE+ (Next) Button 4. AUX IN Jack 12. VOL+(Volume Up) 5. USB CHARGE Port 13. VOL-(Volume Down) 6. SOURCE Button 14. - Page 9 POWER SOURCE TUNE- TUNE+ ST/MO MODE ON/OFF 5.SOURCE Button 1.POWER Button 2.TUNE- (previous) Button (mute) Button TUNE+ (next) Button (play/pause) Button 3.VOL- (volume down) 8.ST/MO(stereo/mono) Button VOL+(volume up) 9.LED Mode Button 4.LED ON/OFF Button...
- Page 10 -First Time Use Remove and discard the insulation tab as figure on the right. -Replacing Batteries For Remote Control 1. Push and slide out the battery holder as figure 1 below. 2. Replace the battery with a new CR2025 button cell as the polarity markings on the rear of the Remote Control.
-
Page 11: General Operations
GENERAL OPERATIONS 1. Insert the AC/DC Adapter plug into a conveniently located AC outlet having 100-240V~50/60Hz. The Indicator will light up Red. 2. Press the Power button on the unit to power on the unit. 3. Press the SOURCE button repeatedly to switch to desired mode.The color of Indicator turns corresponding color as below: ~ Green: Radio... - Page 12 FM RADIO Power on the unit and press the SOURCE button repeatedly until the indicator turns GREEN. 1. Press TUNE- or TUNE+ button to search manually to play the available station. 2. Press and hold TUNE- or TUNE+ to search station automatically until a station is found, and it will play automatically.
-
Page 13: Bluetooth Pairing And Playback
(For details pairing procedures, please refer to the user’s manual of your Bluetooth compatible device.). C. When the external device searched the unit, the pairing name “TSB-89717-BLK” will appear on the display of external device. Select it and make pairing. -
Page 14: Troubleshooting Guide
TROUBLESHOOTING GUIDE Check the followings before requesting service SYMPTOM POSSIBLE CAUSE POSSIBLE SOULTION Plug to the wall outlet. AC/DC adapter plug not No power connected to the wall outlet Raise volume level by pressing the VOL Volume in minimum position (Volume) + button Play the music/movie in the connected The connected device is not... -
Page 15: Technical Specifications
TECHNICAL SPECIFICATIONS AC/DC Adapter Input......................AC 100-240V~50/60Hz Output....................DC 9V 2.5 A Speakers ..........................5W x 2 FM 87.5 -108.0 MHz Radio Coverage....................Bluetooth Working Distance...................Up to 30 feet (Measured in open area. Wall and structures may affect the effective range.) Accessories 1 x User Manual 1 x AUX IN Cable 1 x AC/DC Adapter...
