Summary of Contents for Core Lighting StripPoint

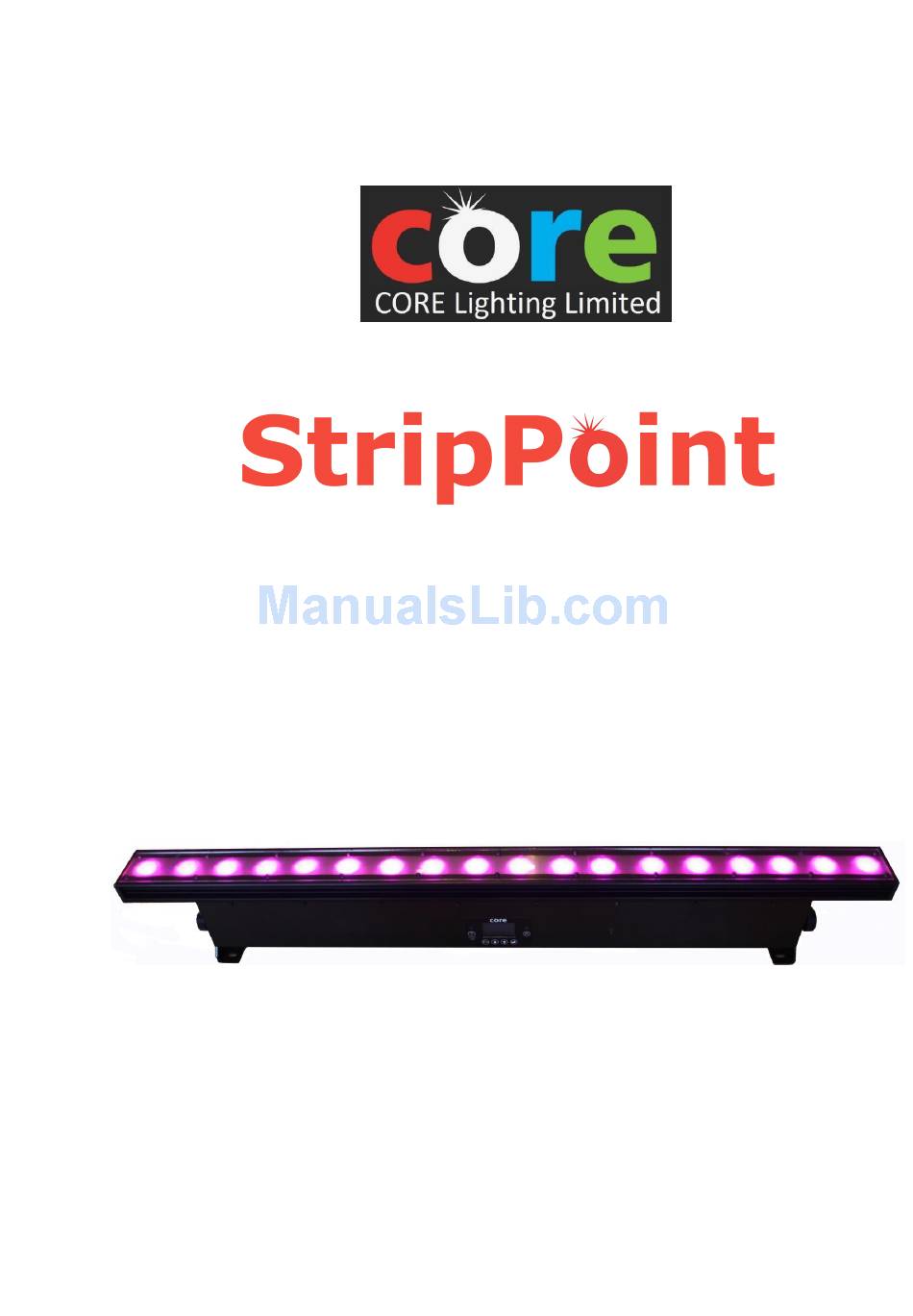

- Page 1 USER MANUAL Wireless LED Batten...
-
Page 3: Table Of Contents
Product Contents ..................... 4 Safety ........................ 4 Power ........................ 5 Ventilation and Mounting ................5 Getting Started ..................... 6 StripPoint Key Elements ................. 6 Operation ......................6 Turning On and Off ..................6 Battery Charging ....................6 Mains Power ..................... 7 Control Panel .................... - Page 4 Compliance Information ..................19 System Compliance ..................19 FCC & Industry Canada Statement for Radio Compliance ......19 W-DMX Transmitter & Receiver ..............19 WEEE & RoHS Statement .................. 20 Appendix 1 – DMX Mapping Table ..............21 StripPoint User Manual rev.1_0...
-
Page 5: Disclaimer
Disclaimer CORE Lighting Limited believe the information in this manual is accurate and complete however assumes no responsibility for any error or omissions within this document or any other documentation accompanying the product. We reserve the right to revise this document at any time. -
Page 6: Before You Begin
Before You Begin The CORE StripPoint is a battery-powered wireless LED batten capable of providing portable and instant architectural and feature lighting anywhere. With high-powered red, green, blue and white LEDs the fixture is capable of producing any colour or shade of white using combinations of those LEDs. Ideal for illuminating buildings in colour, both indoors and outdoors, the fixture is powerful enough to light buildings of 3 or 4 storeys. -
Page 7: Power
‘non-dim‘ or ‘switched’ operation. Ventilation and Mounting Always use the product in a safe position and ensure there is enough room around it for ventilation. Do not close the lid during charging; this allows escape of heat. StripPoint User Manual rev.1_0... -
Page 8: Getting Started
Push and hold this power button for >1 second to switch the unit ON or OFF The display will show “CORE Lighting” and software version for a few seconds before starting The display backlight will extinguish after a short time to reduce power use Battery Charging ... -
Page 9: Mains Power
Navigates forward through the menu list or increments a numeric value or navigates forward through available values Enters the currently displayed menu option or saves the currently displayed value StripPoint User Manual rev.1_0... -
Page 10: Function Modes
Value range 0 to 255. Set Col. Green: 000 Tip: Mix red & blue for purple/pink Set Col. Tip: Mix red & green for orange/yellow Blu: 128 Tip: Mix red & green with White for warm shades of white StripPoint User Manual rev.1_0... -
Page 11: Function Static
Pale Lavender Lee779 Bastard Pink Lee026 Lee138 Lee789 Bright Red Pale Green Blood Red Lee046 Lee139 Lee793 Dark Magenta Primary Green Vanity Fair Lee058 Lavender Lee147 Apricot Lee795 Magical Magenta Lee068 Lee153 Sky Blue Pale Salmon StripPoint User Manual rev.1_0... -
Page 12: Function Dmx
(NB only 4 channel mode is output at the time of going to press). If not using a StripPoint as a Master unit then a compatible W-DMX transmitter attached to a DMX controller is necessary, available separately. This could be a lighting desk, a specific controller, or a CORE ColourPoint, Point 15, 20 or 30 Master unit. -
Page 13: Function Effect
Use the keys to select the new start address then to confirm. In Master mode the StripPoint will transit in 4 channel mode only (at the time of going to press). Function EFFECT Function The StripPoint is equipped to generate a number of special effects as a stand-alone unit when Function EFFECT is selected. - Page 14 This could be a lighting desk with DMX Output, or another CORE Master unit with a W-DMX transmitter inside. This allows a group of StripPoint fixtures to be controlled from a lighting desk or Master using the built-in colour cycles (inside StripPoint/ColourPoint/Point15/20/30). Or set up individually selected colours across many units at once from just one Master unit.
- Page 15 Pairing a StripPoint slave to a W-DMX Transmitter unit or CORE Master unit Switch on the StripPoint Slave and ensure it is in DMX Slave Mode (see above DMX Slave Operation). Ensure the StripPoint is unpaired from any other transmitter (i.e. the LINK LED is OFF) – above Unpairing a Slave fixture from W-DMX Transmitter Units.
-
Page 16: Additional Settings
In DMX slave mode the Brightness control will have no effect if the DMX mode includes dimmer data. Ie the Brightness control will be inactive when set to 5 channel and 9 channel mode but active when 4 channel, 8 channel and 72 channel is selected. StripPoint User Manual rev.1_0... -
Page 17: Dmx Mode
4, 5, 8, 9 or 72 Chan mode then press to save changes. PWM Frequency Control For HD TV work StripPoint is equipped with an option to adjust the PWM frequency of the LEDs to prevent ‘beating’ with the TV scan frequency. keys to select “CHANGE Settings” then press... -
Page 18: W-Dmx Power
To Unlock: First switch OFF the unit. Hold down the whilst switching ON the unit to Unlock. Master Reset All settings can be reset to the default factory set up by pressing the keys while turning the unit on with the button. StripPoint User Manual rev.1_0... -
Page 19: Mechanical
Truss mounting options: The unit is supplied with Adjustable feet designed to be attached to standard 10mm mountings. Alternatively the StripPoint can be attached to a baseplate using quick- release, ¼ turn fixings available from CORE Lighting Ltd. This baseplate has 10mm fixings to be attached to trussing walls or other structures. -
Page 20: Warranty
To obtain warranty service, please contact the CORE Lighting authorised dealer from which you purchased this product. If your dealer is not equipped to perform the repair of your CORE Lighting product, it can be returned directly to CORE Lighting, with carriage being paid at your own expense. You will need to ship this product in either its original packaging or packaging affording an equal degree of protection. -
Page 21: Compliance Information
Compliance Information System Compliance CORE Lighting Limited declares that this product conforms to the specifications listed in this manual, following the provisions of the European R&TTE directive 1999/5/EC: Restrictions on Hazardous Substances (RoHS) (2002/95/CE) Electromagnetic Compatibility (2004/108/EC). Safety (EN 60950) Technical requirements for radio equipment. -
Page 22: Weee & Rohs Statement
The consumer must contact their local authority or retailer for information concerning disposal of their products. CORE Lighting provides a take-back facility for batteries used within CORE Lighting products, although the expense for transport remains the liability of the consumer. Please contact CORE Lighting directly if this service is required. StripPoint User Manual rev.1_0... -
Page 23: Appendix 1 - Dmx Mapping Table
W on Pixel 16 R on Pixel 17 G on Pixel 17 B on Pixel 17 W on Pixel 17 R on Pixel 18 G on Pixel 18 B on Pixel 18 W on Pixel 18 StripPoint User Manual rev.1_0...
