Summary of Contents for RinG-MASTER DNA934P

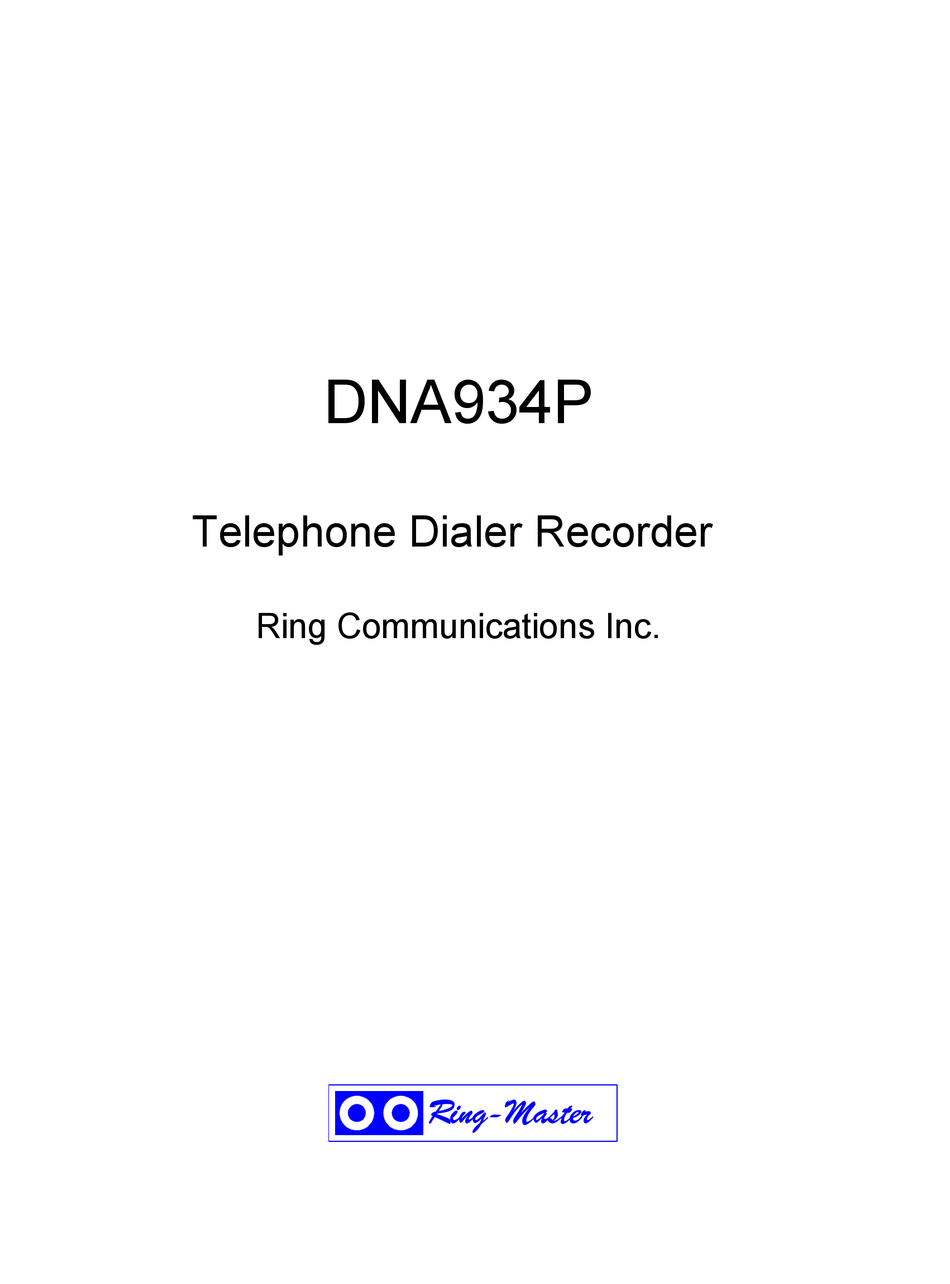

  • Page 1 DNA934P Telephone Dialer Recorder Ring Communications Inc. Ring-Master...
  • Page 3: Table Of Contents

    DNA934P Telephone Dialer with Recorder Table of Contents INTRODUCTION:........................5 OPERATION:..........................5 INSTALLTION:..........................7 J1 Connector:..........................7 J3 Connector:..........................8 Front Panel Switches and Indicators:..................8 Resetting Battery RAM:......................9 CONFIGURATION:........................10 Type fonts:..........................10 Prompt:............................10 Error Handling:........................10 HELP COMMANDS:.......................11 Telephone Numbers:.......................11 LINE SUPERVISION:........................13 RECORDED MESSAGES:.......................14 RM5000EX/CB901EX CONFIGURATION:................15 CB901CA CONFIGURATION:....................16...
  • Page 5: Introduction

    DNA934P INTRODUCTION The DNA934P is an interface used for connecting the Intercom Central Exchange to a telephone line connected to a PABX or the Central Office. One FXO Port is provided. Recorder messages, phone numbers, number of rings and number of times to play the Caller ID message are programmed using a master intercom station and a DNA100/PC.
  • Page 6 DNA934P Telephone Dialer with Recorder April 2017 Page 6 Ring-Master...
  • Page 7: Installtion

    April 2017 Telephone Dialer with Recorder DNA934P INSTALLATION The DNA934P Interface connects to the telephone line on modular connector J3. Modular connector J1 connects to the Ring-Master Central Exchange for Power, Voice and Data. RM EXCHANGE 123456 12345678 Ring-Master Illustration 1: DNA934P rear view J1 Connector: Use a modular jack with screw terminals (KB171) for external connections.
  • Page 8: J3 Connector

    OFF HOOK 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 RESET Illustration 2: DNA934P front view Indicators: Processor is active MASTER The Master of the RS485 Network will have this LED on.
  • Page 9: Resetting Battery Ram

    6. OFF 7. OFF 8. Telephone Line Supervision Resetting Battery RAM: When the system is first installed the DNA934P must be reset before any configuration is done. Procedure 1. Set all 8 DIP switches in SW2 to OFF 2. Push and release RESET switch 3.
  • Page 10: Configuration

    April 2017 CONFIGURATION One DNA100 and a PC is used for programming the DNA934P. The DNA100 sets up a link to the DNA934P and the PC is used to input configuration commands. The configuration is stored in battery back up memory in the DNA934P. When the system is first installed the DNA934P must be reset before any configuration is done (see page 4).
  • Page 11: Help Commands

    April 2017 Telephone Dialer with Recorder DNA934P HELP COMMANDS: The Help command list all the commands in the Configuration program. DNA934P>help DNA934P Command Summary ======= ============== Help Help List Speed Dial List Line Test Timer Set Speed Dial Set Ringing Timer...
  • Page 12 DNA934P>SSD 1 P46315857418 waits 4 seconds before dialing the number. To insert a “wait for dial tone” use the option D. DNA934P>SSD 1 9D6315857418 choice 1 dial 9, wait for dial tone then dialing the number. To change how long time it should ring for a telephone number: Default is 30 seconds ( 5 x 6seconds) DNA934P>SRT 1 4 choice 1 ring for 24 seconds(4x6) then call choice 2.
  • Page 13: Line Supervision

    The DNA934P will test the RS485 data connection to the RM5000EX (CB901EX) where it is connected. If the data connection fails the DNA934P will activate the Fault condition after 5 seconds. When the data connection is restored the Fault condition is deactivated after max 5 seconds.
  • Page 14: Recorded Messages

    “to accept this call dial one to reject this call hang up” To listen to a message: Disconnect Telephone Line. From a intercom master station dial the extension of the DNA934P. From the PC enter the command DNA934P>P 10 Message number 10 will now be played to the intercom speaker.
  • Page 15: Rm5000Ex/Cb901Ex Configuration

    Connect voice to call number 30. Connect data to RS485 using Network address 0C. Calls are to transfer from intercom 10 to the DNA934P if not answered by intercom 10 within 30 seconds. Programming commands that need to be added to RM5000EX/CB901EX: EX500>SDT 30 2 Set device type ICM...
  • Page 16: Cb901Ca Configuration

    The interface can be used to manually dial out on the telephone line from a master station by dialing the extension of the DNA934P. A telephone can dial in to the central exchange by dialing the phone number of the DNA934P then dial any intercom extension.
