Optelecom 9000 Series
Installation and Operation Manual

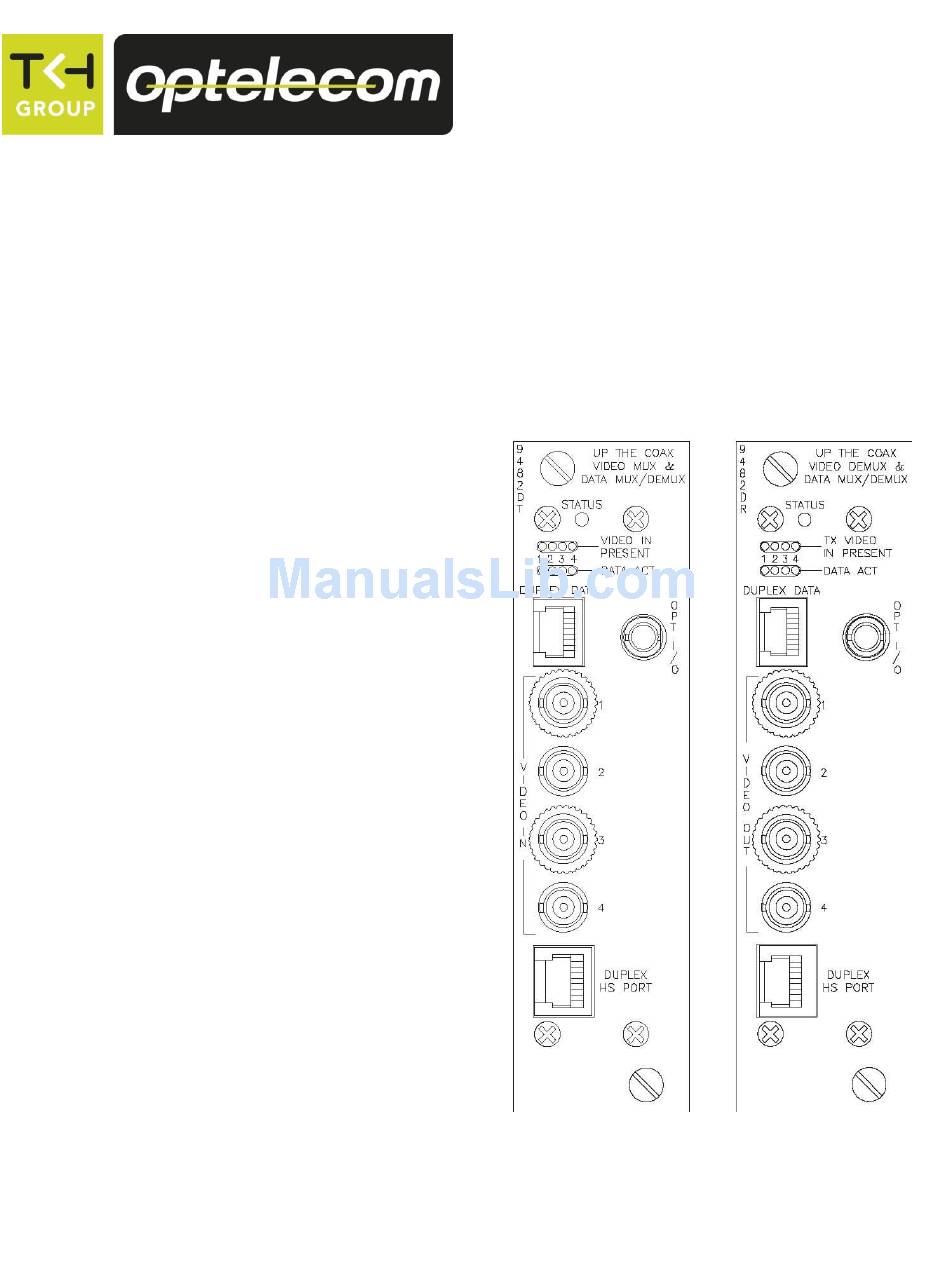

Model 9482-DT
Model 9482-DR
Four Channel Digital Video
Transmitter and Receiver Cards with
"Up-the-Coax" Control Data
9482D cards transport four video signals
with "up-the-coax" control data along with
two duplex data channels and duplex high-
speed port data over one optical fiber.
UM50372, Manual 9482DT/DR, Rev. E

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 9482-DT and is the answer not in the manual?

Questions and answers

Related Manuals for Optelecom 9482-DT

Summary of Contents for Optelecom 9482-DT

  • Page 1 Optelecom 9000 Series Installation and Operation Manual Model 9482-DT Model 9482-DR Four Channel Digital Video Transmitter and Receiver Cards with “Up-the-Coax” Control Data 9482D cards transport four video signals with “up-the-coax” control data along with two duplex data channels and duplex high- speed port data over one optical fiber.

  • Page 3: Table Of Contents

    Table of Contents Section Page Safety Instructions Instrucciones de Seguridad Sicherheitsanleitungen Consignes de Sécurité Fiber Information Functional Description 9482DT Indicator and Connector Locations,Functions, and Settings 9482DR Indicator and Connector Locations, Functions, and Settings Set Up and Operation of the 9482D Operation of the 9482D with the Network Management System Specifications for the Model 9482D...

  • Page 4: Safety Instructions

    Safety Instructions RM-1 The safety information contained in this section, and on other pages of this manual, must be observed whenever this unit is operated, serviced, or repaired. Failure to comply with any precaution, warning, or instruction noted in the manual is in violation of the standards of design, manufacture, and intended use of the unit.

  • Page 5: Instrucciones De Seguridad

    Instrucciones de Seguridad RM-1 Debe observarse la información de seguridad contenida en esta sección, y en otras páginas de este manual siempre que se opere, dé servicio o repare esta unidad. Si no se cumple con alguna precaución, advertencia o instrucción indicada en este manual se infringen los estándares de diseño, fabricación y el uso destinado a la unidad.

  • Page 6: Sicherheitsanleitungen

    Sicherheitsanleitungen RM-1 Die in diesem Abschnitt und auf anderen seiten dieses Handbuchs enthaltenen Sicherheitsinformationen müssen befolgt werden, wenn diese Einheit betrieben, gewartet oder repariert wird. Falls Vorsichtsmassnahmen, Warnungen oder Anweisungen in diesem Handbuch nicht befolgt werden, verstösst dies gegen die Konstruktions, und Herstellungsstandards und erfolgt im gegensatz zum vorgesehenen Verwendungszweck dieser Einheit.

  • Page 7: Consignes De Sécurité

    Consignes de Sécurité RM-1 Les consignes de sécurité contenues dans cette section et dans le reste de ce manuel doivent être respectées a chaque fois que cet appareil est utilisé ou fait l’objêt d’une maintenance ou d’une réparation. Le non-respect d’une précaution, d’un avertissement ou d’une instruction figurant dans ce manuel est une violation des normes de conception, fabrication et indication d’usage de l’appareil.

  • Page 8: Fiber Information

    Fiber Information This unit was manufactured with attention to fiber cleanliness by TKH Security Solutions USA. Beyond the optical safety information contained in this manual, the following guidelines should be observed when working with optical fibers. The biggest problem is dirt! It takes very little contamination to cause problems with optical fiber connections;...

  • Page 9: Functional Description

    Functional Description The 9482DT transmitter accepts four composite video signals in NTSC or PAL format via four BNC video input ports. The baseband video signals are each sampled at a 15 Mhz rate by an A-to-D converter operating with nine bits of precision. The resulting digital signals are multiplexed and serialized along with the serial data from the two data ports and the high-speed port and converted to an optical signal for transmission over the fiber.

  • Page 10: 9482Dt Indicator And Connector Locations,Functions, And Settings

    9482DT Indicator and Connector Locations,Functions, and Settings IGURE STATUS INDICATORS This multicolor LED provides status information about the link as follows:  OFF: Indicates no power is applied to the card.  (No Sync): Indicates the local unit is not receiving sufficient optical signal from the remote unit or the local demux circuitry is not able to synchronize to the incoming signal.
  • Page 11 OPTICAL CONNECTOR The optical connection is made here. VIDEO INPUT CONNECTORS 1, 2, 3, AND 4 These BNC connectors are the inputs for the video signals and outputs of the “up-the-coax” PTZ data. DUPLEX HIGH-SPEED PORT CONNECTOR This RJ45 connector provides the connections for the high-speed port. Refer to the Set Up section of this manual for instructions on programming and connecting this port.

  • Page 12: 9482Dr Indicator And Connector Locations, Functions, And Settings

    9482DR Indicator and Connector Locations, Functions, and Settings IGURE STATUS INDICATORS This multicolor LED provides status information about the link as follows:  OFF: Indicates no power is applied to the card.  (No Sync): Indicates the local unit is not receiving sufficient optical signal from the remote unit or the local demux circuitry is not able to synchronize to the incoming signal.
  • Page 13 OPTICAL CONNECTOR The optical connection is made here. VIDEO OUTPUT CONNECTORS 1, 2, 3, AND 4 These BNC connectors are the outputs for the video signals and inputs for the “up-the-coax” PTZ data. DUPLEX HIGH-SPEED PORT CONNECTOR This RJ45 connector provides the connections for the high-speed port. Refer to the Set Up section of this manual for instructions on programming and connecting this port.

  • Page 14: Set Up And Operation Of The 9482D

    Set Up and Operation of the 9482D Operation of the 9482DT and 9482DR cards consists of:  Setting the dipswitch on the Receiver and Transmitter cards for the data port mode per the application requirements, if required  Making the proper connections for the data signals ...
  • Page 15 TABLE 2 — DATA PORT CONNECTOR ELECTRICAL CONNECTIONS Channel 2 Channel 2 Channel 2 Channel 2 Channel 1 Channel 2 Pin Number RS422 RS485 RS485 Manchester RS232 RS232 2- or 4-Wire 2-Wire 4-Wire Bi-Phase Chassis/ Signal Chassis/ Signal Chassis/ Signal Chassis/ Signal Chassis/ Signal Chassis/ Signal...
  • Page 16 RS485 duplex 2- and 4-wire can be configured as “one- to-one“ or “one-to-many” as RS485 systems allow up to 32 devices to be daisy-chained together in one electrical system. Markings on RS485 devices vary, sometimes being marked the same as RS422 systems in 4-wire connection modes or marked as TD+, RD+, TD–, and RD–.
  • Page 17 6 — D 2 RS232 C IGURE ONNECTIONS 7 — D 2 RS422 RS485 4-W IGURE ONNECTIONS...
  • Page 18 8 — D 2 RS488 2-W IGURE UPLEX ONNECTIONS 9 — D IGURE ANCHESTER HASE ONNECTIONS...
  • Page 19 10 — RS422 RS485 T IGURE ERMINATION XAMPLES...
  • Page 20 11 — RS422 T IGURE ERMINATION XAMPLES 12 — RS422 T IGURE ERMINATION XAMPLES...
  • Page 21 ONNECTING THE PEED The duplex high-speed port on the 9482DT and 9482DR is a synchronous RS422 duplex port operating at 15 Mbps. It may be used as an RS422 port asynchronously at 1.5 mbps. Its primary purpose is to provide the I/O port for accessory modules that can add additional data, audio, contact closure, or Ethernet connections to the existing video and data channels already on the 9482D cards.

  • Page 22: Operation Of The 9482D With The Network Management System

    Operation of the 9482D with the Network Management System Operation of the 9482DT with the Network Management System consists of the following parameters: Slot Number Card Name (Model Number) Serial Number Time Wavelength Revision Number Chronometer Value (Cumulative Hours of Operation) Reset Cycles (Cumulative Number of Power Cycles) Firmware Revision 10.

  • Page 23: Specifications For The Model 9482D

    Specifications for the Model 9482D OPTICAL Model Pair Fiber Size 50/125 62.5/125 09/125 Transmitter Optical Output Power (dBm) –7 –7 –7 Transmitter Optical Output Wavelength (nm) 1310 1310 1310 Transmitter Optical Input Sensitivity (dBm) –26 –26 –31 Maximum Transmitter Optical Input (dBm) –7 –7 –7...
  • Page 24 Electrical Data Ports Fixed Data Port Type RS232 Duplex Data Rate 128 Kbps (auto baud) Programmable Data Port Type Programmable as RS232 Duplex, RS422 20 or 4-Wire Duplex, RS485 2- or 4-Wire Duplex, All Auto Baud, Manchester 32 Kbps High-Speed Port RS422 4-Wire Synchronous @ 15 Mbps RS422 4-Wire Asynchronous @ 1.5 Mbps Power...
