Page 1: User Manual
Mobile Broadband modem U602 User Manual Web Interface... -
Page 2: Table Of Contents
1. BEFORE USING U602....................4 About This User’s Manual ......................... 4 Product Overview ............................4 Product Package Contents ........................4 Introduction to U602 USB Modem ......................5 Product Specifications ..........................5 Product handling ............................5 Configuration .............................. 6 2. INSTALLATION AND SETUP FOR REMOTE NDIS DRIVER ........7 Installing driver ............................ - Page 3 The Help Menu ............................27 5. U602 INFORMATION ....................30 Recommended System Requirements ....................30 Remove the Modem from your Computer ..................30 Using the USB Extension cable ......................30 Trouble Shooting ............................30 CARE AND MAINTENANCE........................31 WARRANTY ..............................31 SAR INFORMATION ..........................
-
Page 4: Before Using U602

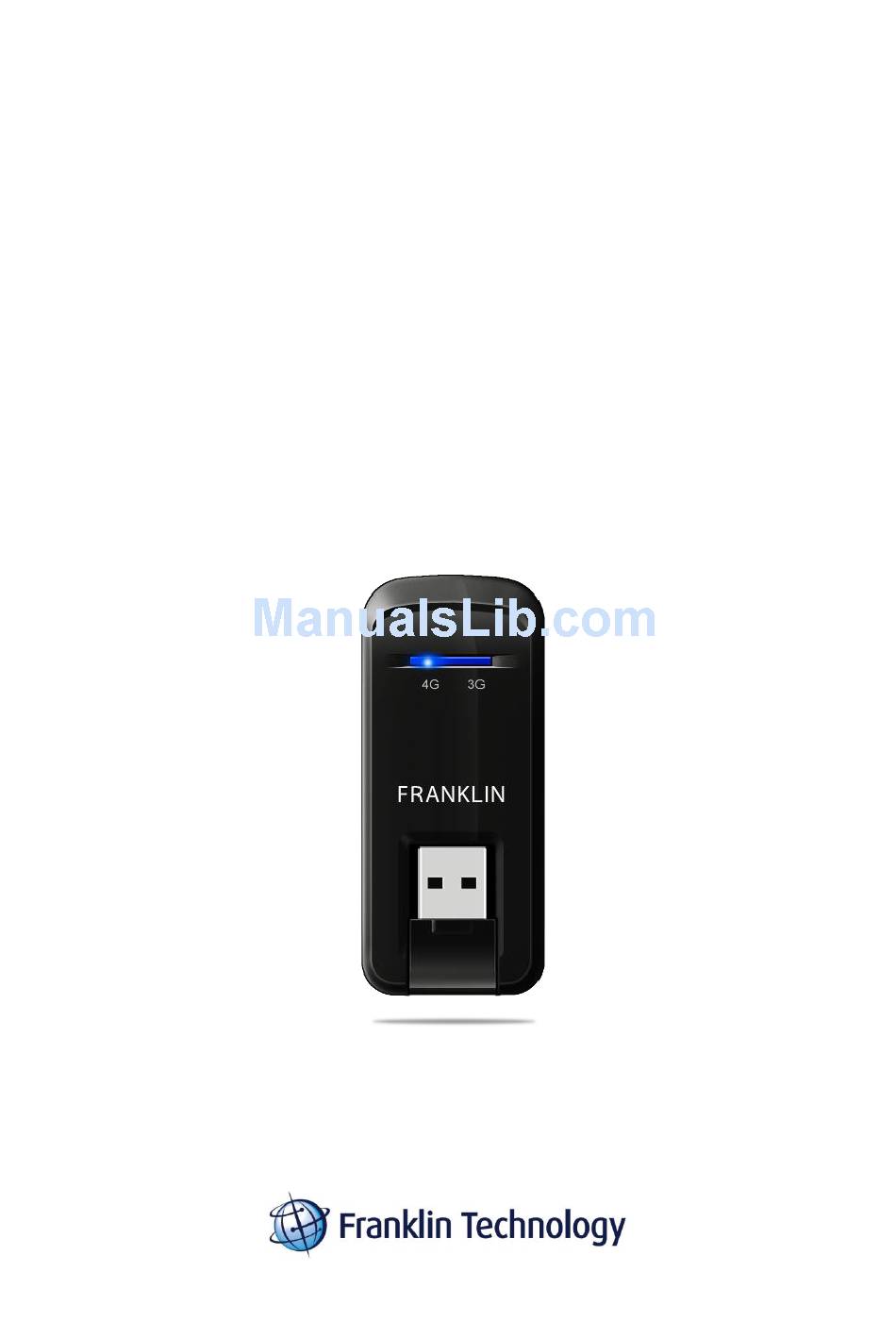

• Broadband Usage Conditions, Terms & Conditions • User Manual Product Overview Welcome and thank you for choosing U602 USB Modem for your wireless internet connection. The U602 is a high-speed wireless device that enables your computer to connect to 3G high-speed wireless network. The U602 provides simple yet powerful user interface that is easy to install and use. -
Page 5: Introduction To U602 Usb Modem
• Do not place any adhesive labels on the USB connector. It may leave a sticky residue that can cause problems inside the PC USB port. • The U602 USB device should easily slide into the USB port. Do not force... -
Page 6: Configuration
U602 into the USB port as it may cause damage to the modem and/or the port. • Keep the U602 in a dry and clean place. (Storage temperature: -22°F to 149°F [- 30°C to 65°C]). Keep your device away from liquids, dust and excessive heat. -
Page 7: Installation And Setup For Remote Ndis Driver
• It is normal to hear a short beep sound each time you insert or remove the U602. • It is an audible notification that your PC recognizes the new hardware. Getting Started (Windows) To install the U602 Remote NDIS driver: ① Turn on your computer then close all applications. -
Page 8: Setup Remote Ndis - For Windows
② Insert the U602 modem into your USB port. ③ Your computer will recognize U602 modem and install the Remote NDIS driver automatically. If the program does not launch automatically, go to my computer and select the „FranklinCD‟ drive and double click „dm- install.exe‟... -
Page 10: Starting Web Ui
Enter key. About Terms Of Service When the U602 device is used for the first time, the TOS acceptance terms will be shown in the web browser. If “I Agree” is clicked, after a few seconds, browser displays the Plug &... - Page 11 3G/4G USB or not. About the Wireless Networks View Web browser will open main page for the Sprint 3G/4G Broadband Networks as shown below. This page is where you manage your Broadband connections. The main page displays all the available network connections.
-
Page 12: Connecting To The Internet
Network Connection Box along the center of main page. For more information on this Network Connection Box, see the section “The Home Menu” in the “Using U602 WEB UI” section. Dormancy The data session can go to dormant mode if you are not sending or... - Page 13 receiving any data for an extended period of time. As soon as you resume sending or receiving data, the data session will return to an active state automatically.
-
Page 14: Using Web Ui
4. Using WEB UI The Home Menu Clicking on the Home Menu always show the main page. The Menu Bar The menu bar is at the left side of all pages in the browser interface. This helps that you configure your device, view network status and find location. - Page 15 GPS Indicator This icon indicates whether GPS/NMEA functions are enabled on your device. : GPS disabled. : GPS enabled. : GPS enabled and NMEA enabled. Datalink Indicator : Datalink enabled. : Datalink disabled. The Network Connection Box Information regarding your current network connection can be seen in the Network Connection Box is displayed on the center of main page.
-
Page 16: The Status Menu
Button “No Signal” “No Signal” Radio power is on but device is in low signal. All actions are disabled. “Disconnected” “Connect” Radio power is on and device is disconnected. Ready to connect. “Radio off” “Radio On” Radio power is off and ready to turn on. “Connecting”... - Page 17 The Status Menu is divided into five sections: • 3G Device • 4G Device • 3G Service • 4G Service • Network 3G Device By selecting the “3G Device” link, 3G Device status are displayed as below.
- Page 18 • Device Name – name of the device. • Device Description – description of the device. • Manufacturer – manufacturer of the device. • Modem Model – model name of the device. • MEID – unique number the network uses to identify your device. •...
- Page 19 • Mac ID – current media access control address. • Base Band Chip – chip name of the device. • RF chip Version – current internal RF chip version. • Firmware Version – current internal software version. • 4G Realm – name of domain. 3G Service By selecting the “3G Service”...
- Page 20 • Status – current network status. • CINR – carrier to interface and noise ratio measurement in dBm. • RSSI – measurement in dBm of current signal strength. • Tx – measurement of power transmitted in dBm. • Realm – name of domain. •...
-
Page 21: The Settings Menu
The Settings Menu The Settings Menu allows you to set 3G/4G configuration, Network option and GPS settings. The Settings Menu is divided into eight sections: • Connection Option • Updates • Display Connection Timer • Enable Datalink • Roaming Configure •... - Page 22 Connection Option By selecting the “Connection Option” link, Connection section expands. The Connection section displays the following: • Mode – select 4G preferred, 3G preferred, 4G Only or 3G Only. Updates By selecting the “Updates” link, Updates section expands. The Updates section displays the following: •...
- Page 23 Enable Datalink By clicking the “Enable Datalink” link, you can configure the Data Link settings and use the Data Link service of Sprint. The Data Link Setup option is generally applicable to corporate enterprise users configuring connection options for multiple users. Roaming Configure By selecting the “Roaming Configure”...
-
Page 24: Advanced Settings
The GPS section displays the following: • GPS Enable - check the Enable GPS to turn on GPS. • GPS Mode – select Standalone or Autonomous. • Mapping Service Default – select Microsoft Live, MapQuest, Yahoo or Google Internet Maps. •... -
Page 25: The Applications Menu
By selecting the “Advanced Settings” link, Advanced Settings section expands. The Advanced Settings displays the following: • LED Control – check the Disable LED to turn LED off. • Device IP Address – the Internet protocol address of the device. •... -
Page 26: The Location & Search Services Menu
• Guardian Control – directs you to a website where you can download an Internet Parental control solution that helps parents protect their children and monitor their Internet usage. The Location & Search Services Menu If your device is enabled GPS, you can use the Location & Search Services Menu to search for the nearest restaurants, bank and other amenities. -
Page 27: The Help Menu
• Restaurant • Bank • Hotel • Gas Station • Coffee House • Hospital The Help Menu The Help Menu allows you to view system hardware and software information and user manual. -
Page 28: System Information
The Help Menu is divided into two sections: • System information • System upgrade • User Guide System information By selecting the “System information” link, System information section expands. The System information displays the following: • System Name – the current system name. - Page 29 • System Date – the current system time. • CM Version – the current Web UI version. System upgrade The System upgrade section allows you to update system. • Click “Browse…” button. • Select system image file(*.tar) • Click “Start Upgrade” button. User Guide By clicking the “User Guide”, user guide is downloaded in the host system.
-
Page 30: U602 Information
5. U602 Information Recommended System Requirements To successfully use the U602 USB device in your PC, the following system specifications are required. Item Required Specification Windows® 2000/XP/Vista/7 Operating system Mac OS X 10.4/10.5/10.6 USB Port Type A USB port Processor/Memory... -
Page 31: Care And Maintenance
Ensure that your USB modem has been activated. Ensure that the USB modem is fully plugged into the USB slot. Ensure that the LED light is on; otherwise connect and then reconnect the USB modem. CARE AND MAINTENANCE Your device is a product of superior design and craftsmanship and should be treated with care. - Page 32 (a) Product subject to abnormal use or conditions, accident, mishandling, neglect, unauthorized alteration, misuse, improper installation or repair or improper storage; (b) Products whose mechanical serial number or electronic serial number has been removed, altered, or defaced; (c) Damage from exposure to moisture, humidity, excessive temperature or extreme environment conditions; (d) Damage resulting from connection to, or use of any accessory or other product not approved or authorized by the company;...
-
Page 33: Sar Information
FCC ID: XHG-U602. Additional information on Specific Absorption Rates (SAR) can be found on the Cellular Telecommunications Industry Association (CTIA) web-site at http://www.wow-com.com. * In the United States and Canada, the SAR limit for mobile modems used by the public is 1.6 watts/kg (W/kg) -
Page 34: Safety Information
averaged over one gram of tissue. The standard incorporates a substantial margin of safety to give additional protection for the public and to account for any variations in measurements. SAFETY INFORMATION SAFETY INFORMATION FOR FIXED WIRELESS TERMINALS POTENTIALLY EXPLOSIVE ATMOSPHERES Turn your modem OFF when in any area with a potentially explosive atmosphere and obey all signs and instructions. -
Page 35: Fcc Compliance Information
FCC Compliance Information This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received. Including interference that may cause undesired operation.
