Owner's Manual & Safety Instructions
Save This Manual
operating, inspection, maintenance and cleaning procedures. Write the product's serial number in the
back of the manual near the assembly diagram (or month and year of purchase if product has no number).
Keep this manual and the receipt in a safe and dry place for future reference.
Email our technical support at: productsupport@harborfreight.com
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
please call 1-888-866-5797 as soon as possible.
©
Copyright
2017 by Harbor Freight Tools
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
Tools required for assembly and service may not be included.
Keep this manual for the safety warnings and precautions, assembly,
Visit our website at: http://www.harborfreight.com
®
. All rights reserved.
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
17g
Advertisement
Table of Contents
Related Manuals for Thunderbolt 63585
Summary of Contents for Thunderbolt 63585
- Page 1 Owner’s Manual & Safety Instructions Save This Manual Keep this manual for the safety warnings and precautions, assembly, operating, inspection, maintenance and cleaning procedures. Write the product’s serial number in the back of the manual near the assembly diagram (or month and year of purchase if product has no number). Keep this manual and the receipt in a safe and dry place for future reference.
-
Page 2: Table Of Contents
5. Do not stand on or otherwise unless they are connected through a regulator. apply pressure to panel. Page 2 For technical questions, please call 1-888-866-5797. Item 63585... - Page 3 2. Use an appropriate charge controller safety goggles and electrically insulated whenever connected to battery. gloves while working near batteries. 3. Charge, store, and maintain batteries according to supplier’s instructions. Item 63585 For technical questions, please call 1-888-866-5797. Page 3...
- Page 4 2. Do not service during rain, fog, or 6. Maintain product labels and nameplates. any other wet/humid weather. These carry important safety information. If unreadable or missing, contact Harbor Freight Tools for a replacement. SAVE THESE INSTRUcTIONS. Page 4 For technical questions, please call 1-888-866-5797. Item 63585...
-
Page 5: Specifications
Latitude + 15° that all accessory cables reach their connection 65° or more 80° points without placing any stress on the wiring. Angle towards true north if installed in southern hemisphere. Item 63585 For technical questions, please call 1-888-866-5797. Page 5... - Page 6 4. Repeat for the bottom ends of panels. Insert Screws into mounting holes along the bottom end and fasten Connection Brace onto the back using Wing Nuts. See Figure C. Screws Figure c Page 6 For technical questions, please call 1-888-866-5797. Item 63585...
- Page 7 WARNING! Connect red connector to positive (+). Connect black connector to negative (-). Unit will not function with reverse connection. See Figure G. Battery Terminals charge controller (3) Figure G Item 63585 For technical questions, please call 1-888-866-5797. Page 7...
- Page 8 3. Secure all connections using terminals, or solder all wire splices to ensure good connections. 4. Weatherproof all connections and route the wire in a way that it will not be torn loose from the panel. Page 8 For technical questions, please call 1-888-866-5797. Item 63585...
- Page 9 Battery will can resume. charging battery. need to be charged separately first, but may already be ruined from over-discharge. Item 63585 For technical questions, please call 1-888-866-5797. Page 9...
- Page 10 6. Press Display button once to cycle to Ouput Duration display, as shown below. Output Duration Note: 15h indicates 15 hours before the output automatically shuts off. Page 10 For technical questions, please call 1-888-866-5797. Item 63585...
- Page 11 7. To charge a cell phone or other small electronic item, plug the item’s power cord into the USB Port on the front of the Charge Controller. Item 63585 For technical questions, please call 1-888-866-5797. Page 11...
-
Page 12: Operation
1. In the Winter, increase the panels’ angle by 10°. 2. In the Summer, decrease the angle by up to 10°. 3. In Spring and Fall, keep the angle recommended on page 5. Page 12 For technical questions, please call 1-888-866-5797. Item 63585... - Page 13 LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO. Item 63585 For technical questions, please call 1-888-866-5797. Page 13...
-
Page 14: Parts List And Diagram
List and Diagram part Description part Description Solar Panel Screw 4-in-1 Splitter Cable Connection Brace Charge Controller DC Connector & J-plug Battery Clamp Cable Wing Nut LED Light Page 14 For technical questions, please call 1-888-866-5797. Item 63585... - Page 15 Note: If product has no serial number, record Note: Some parts are listed and shown for month and year of purchase instead. illustration purposes only, and are not available individually as replacement parts. Item 63585 For technical questions, please call 1-888-866-5797. Page 15...
-
Page 16: Warranty
Limited 90 Day Warranty Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards, and warrants to the original purchaser that this product is free from defects in materials and workmanship for the period of 90 days from the date of purchase.
Need help?
Do you have a question about the 63585 and is the answer not in the manual?
Questions and answers

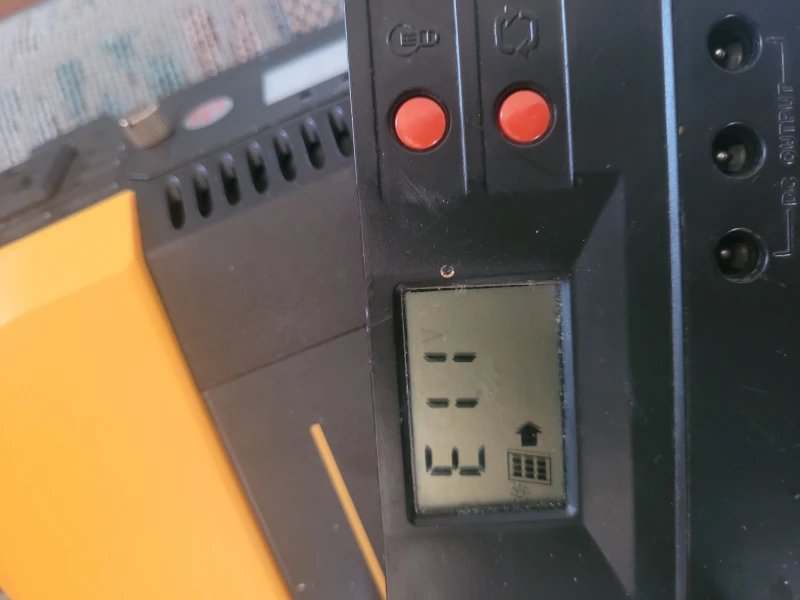

what is error code E11
Error code E11 for Thunderbolt part number 63585 means low-voltage protection; the battery voltage has dropped below 10.5–10.8V, and the controller will shut off and enter low-voltage protection state.
This answer is automatically generated
What does E11 error code mean it be nice to have a troubleshooting guide
The E11 error code for the Thunderbolt 63585 indicates low-voltage protection; it occurs when the battery voltage drops below 10.5–10.8V. The controller will shut off and enter a low-voltage protection state.
There is no dedicated troubleshooting guide mentioned, but the manual provides instructions for interpreting error codes and checking system conditions such as loose hardware, insulation damage, and battery maintenance.
This answer is automatically generated
Hola!Estoy utilizando por primera ves los paneles del kit solar thunderbolt magnum d 100w en mi river2 y hoy solo me entrego 51w casi permanente durante el medio dia me gustaria saber si ese es el maximo rendimirnto de esos paneles. Gracias.
Hola el kit d panel thunderbolt d 100w lo máximo q me esta dando es 51w sobre las 12pm a 2pm q puede ser ese bajo rendimiento.Gracias x su tiempo
