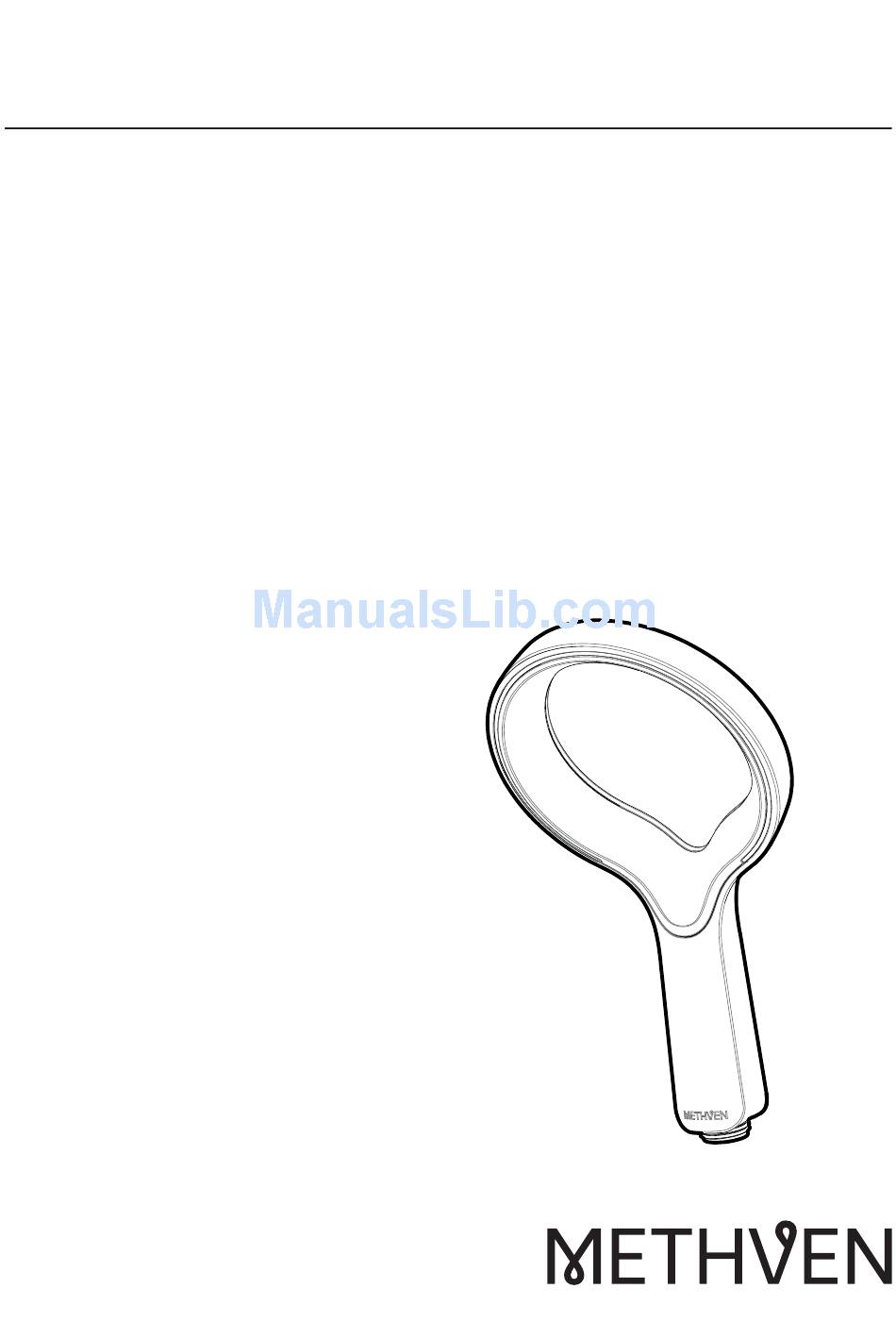

AURAJET™ HANDSET
Installation Guide
Technical Specifications:
Operating Pressure:
Min: 100kPa/1bar
Max: 500kPa/5bar*
Optimum: 150kPa/1.5bar - 500kPa/5bar
Operating Temperature:
Hot: Max 70°C*
Cold: Min 5°C
Inlet Connections:
½" BSP
* Regional specific regulations apply.
Please refer to your warranty statement at
www.methven.com
www.methven.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for METHVEN AURAJET
Summary of Contents for METHVEN AURAJET
- Page 1 AURAJET™ HANDSET Installation Guide Technical Specifications: Operating Pressure: Min: 100kPa/1bar Max: 500kPa/5bar* Optimum: 150kPa/1.5bar - 500kPa/5bar Operating Temperature: Hot: Max 70°C* Cold: Min 5°C Inlet Connections: ½" BSP * Regional specific regulations apply. Please refer to your warranty statement at www.methven.com...
- Page 2 IMPORTANT: Please read all of the instructions before installation. General: • Methven recommends this product is installed by a licensed plumber in compliance with all relevant regional regulations. • After installation all connections must be checked for leaks. • All outlets used primarily for personal hygiene shall deliver water at a safe temperature as per regional regulations.
- Page 3 Periodically the filter washer should be removed from the end of the shower hose and cleaned. Methven warrants this product against manufacturing defects and that it is suitable for use under the general operating conditions specified in this instruction sheet. However, regional regulations apply and may affect your warranty.
- Page 4 IMPORTANT: Please read all of the Step 2 Self Tapping Screw instructions before installation. Tensioning Screw • Slide soap dish onto the rail. • Slide hose retainer onto the rail (if supplied). General: • This product must be installed in Wall Boss compliance with all relevant regional Housing...
- Page 5 This product should be fitted in compliance with Water Regulations, by a qualified plumber. Use only a clean damp cloth to maintain the surface finish, use of abrasive cleaning materials will invalidate your guarantee. Website www.methven.com DTC INST274a ‐ 25.09.14...
-
Page 6: Operating Specification
Page 1 Page 6 OPERATING SPECIFICATION Pressure Minimum working pressure - 0.3 bar Recommended working pressure 0.5 - 3 bar Maximum working pressure - 5 bar (Pressure above 5 bar must be reduced via a pressure reducer) In order to assure maximum efficiency of the mixer, the operating pressures should be balanced. - Page 7 Page 5 Page 2 Maintenance Installation To replace the thermostatic cartridge; (See diagram) Turn off water supply Remove the handle cap , followed by the screw Inside the handle, remove the screw Prepare the supply pipes at 150mm centres, allowing approx 22mm of pipe to exposed Pull handle from mixer from the finished wall.
-
Page 8: Operation & Setting
Page 3 Page 4 OPERATION & SETTING Maintenance To control the temperature of the shower, turn the left handle for more hot To replace the flow control valve: or cold water, in the direction indicated by the marking. Turn off water supply Remove handle by forcing off handle cap To control the flow of water turn the handle to regulate the flow of water from the Inside the handle, remove the screw...
