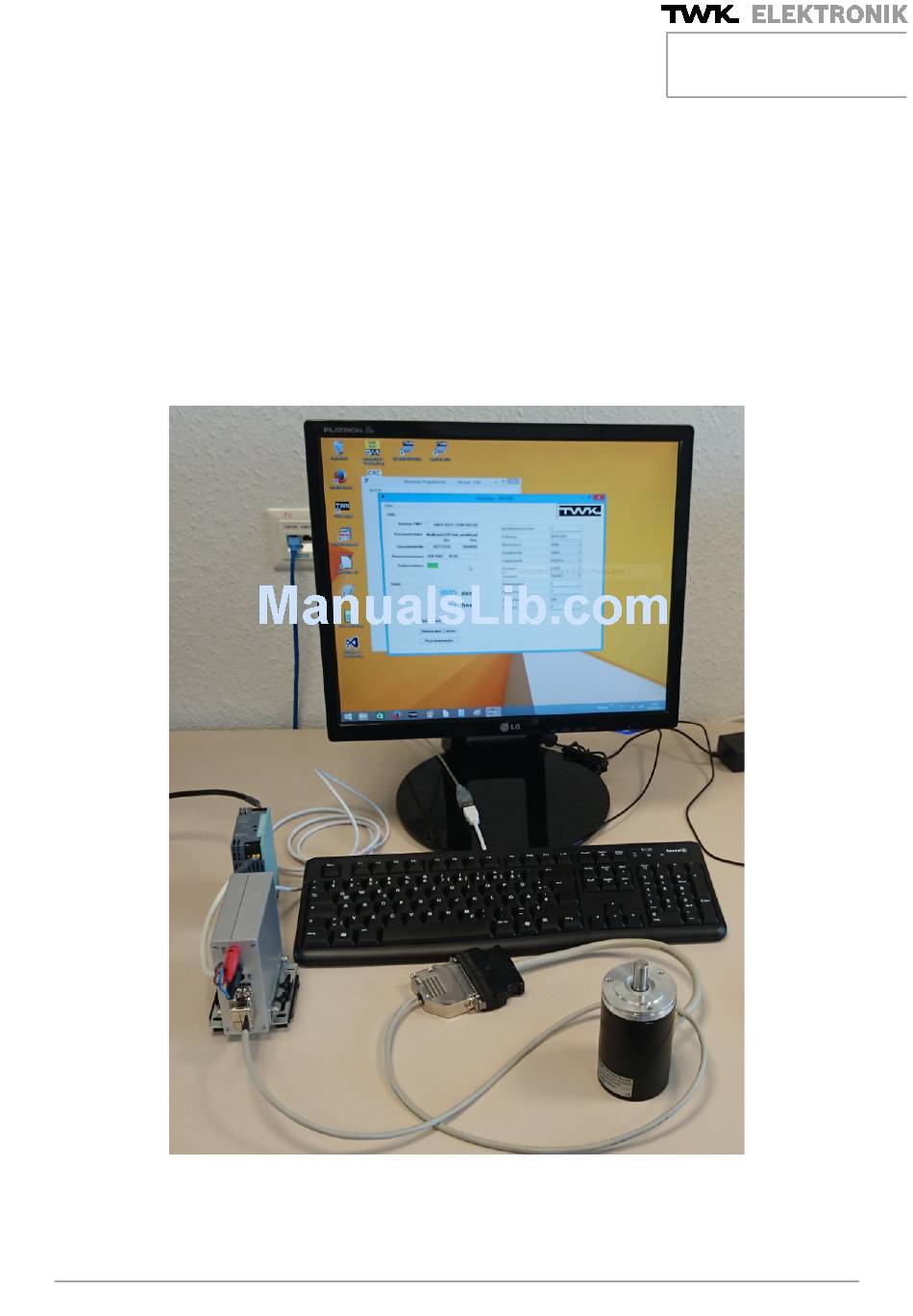

- Page 1 User Manual PMU - 04 Document No.: PMU 13375 AE Date: 04.03.2015 User Manual PMU - 04 TWK-ELEKTRONIK GmbH D-40041 Düsseldorf Tel. +49 211 96117-0 info@twk.de Heinrichstrasse 85 P.O. Box 10 50 63 Fax +49 211 637705 www.twk.de...
- Page 2 User Manual PMU - 04 COPYRIGHT: The PMU 13375 operating instructions are owned by TWK-ELEKTRONIK GMBH and are protected by copyright laws and international treaty provisions. © 2015 by TWK-ELEKTRONIK GMBH POB 10 50 63 ■ 40041 Düsseldorf ■ Germany Tel.
-
Page 3: Table Of Contents
User Manual PMU - 04 Safety instructions ___________________________________________________ 4 General information __________________________________________________ 5 Connection of the programmer PMU - 04 _________________________________ 5 Software installation _____________________________________________________ 5 Initial commissioning of PMU - 04 __________________________________________ 6 Execution of the programme PMU - 04 __________________________________ 11 Software and hardware versions _______________________________________ 14 Literature __________________________________________________________ 15 Date: 04.03.2015... -
Page 4: Safety Instructions
User Manual PMU - 04 Safety instructions Scope This user manual applies exclusively to the Universal Programmer PMU – 04. Documentation The following documents must be observed: - The owner's system-specific operating instructions and general regulations of ZVEI - User manual for Universal Programmer PMU: PMU13375 - Rotary encoder data sheets for CRF/SRF: CRF10266 and for DAF/SAF: DAF10286 (The SRF and SAF versions stand for the stainless steel versions and are electrically fully compatible with the basic versions CRF and DAF) -
Page 5: General Information
Connection of the programmer PMU - 04 Commissioning of the PMU-04 is carried out in the following steps: 1. Connection of the rotary encoder to the front side of the PMU-04 using the 15-pin SUB-D connector (connection cable corresponding to rotary encoder version /1/ ) 2. -
Page 6: Initial Commissioning Of Pmu - 04
User Manual PMU - 04 Figure 1: Universal Programmer PMU – 04 software scope 3.2 Initial commissioning of PMU - 04 The programmer PMU - 04 is connected to the PC by means of the enclosed USB cable. On automatic detection of the programmer, the following message is output: Figure 2: Programmer PMU –... - Page 7 User Manual PMU - 04 Figure 3: Close window following successful installation. If the Windows device driver is automatically found and installed, you are subsequently notified that the device is ready for use. On successful driver installation, the PMU Universal Programmer is displayed in the device manager (Figure 5).
- Page 8 User Manual PMU - 04 Figure 5: PMU - 04 in the device manager Manual installation of the PMU If automatic installation is not to take place, please carry out the following steps: Open the device manager and click onto the PMU Universal Programmer, which can be found under the USB devices, see Figure 5.
- Page 9 User Manual PMU - 04 Under the driver tab, you can install or also update the drivers for the USB device PMU – 04. The sequence is shown in Figures 7 – 11. Figure 7: Select driver software in the directory created for the programmer PMU – 04 Figure 8: Directory for the USB drivers Date: 04.03.2015 Page 9 of 15...
- Page 10 User Manual PMU - 04 Figure 9: Confirmation of the directory for the drivers Figure 10: Starting manual driver installation Figure 11: Window after updating the drivers Following successful manual driver installation, you can start the application UP_PROCOD.exe. After selecting the language and the rotary encoder type (confirm with Enter), you are routed to the main menu for programming the rotary encoder.
-
Page 11: Execution Of The Programme Pmu - 04
User Manual PMU - 04 Execution of the programme PMU - 04 The application file up_procod.exe for starting the programmer PMU – 04 can be found in the directory created by the customer for the programmer PMU – 04, Figure 12. Figure 12: Starting the programmer PMU - 04 After starting, the relevant language and the encoder type are selected (Figure 13). - Page 12 User Manual PMU - 04 Figure 14: Main window In the next step, the parameter file is created (see the CRF and DAF directories planned for this), the parameters are configured and, finally, the parameters are stored in a parameter file (Figure 15). After restarting the programmer, the selected parameters are therefore available in a customer-specific file.
- Page 13 User Manual PMU - 04 Figure 15: Main window with parameter file The rotary encoder is then programmed using the Programming button. Once this process has taken place, the green colour field again appears in the encoder status. During access, the colour field is orange. Proper programming of the rotary encoder can be checked using the "Load parameter"...
-
Page 14: Software And Hardware Versions
Figure 16: Encoder in control mode The programme can be ended using the "Close window" function. Software and hardware versions P-0571-1 PMU - 04 V02.00 DAF/SAF 02.01 CRF/SRF 02.02 PRO-PMU-04 Parallel 02.02 02.02 Date: 04.03.2015 Page 14 of 15 Document No.: PMU 13375 AE... -
Page 15: Literature
User Manual PMU - 04 Literature Universal Programmer model PMU, data sheet PMU12005DE0, TWK-ELEKTRONIK GmbH, www.twk.de Programmable electro-optical angle transducers: models CRF58, CRF 65, CRF66, CRF105, data sheet: CRF10266CE0 TWK-ELEKTRONIK GmbH, www.twk.de Electro-optical angle transducers: models DAF58, DAF65, DAF66, DAF105 data sheet: DAF10286DE0 TWK-ELEKTRONIK GmbH, www.twk.de...
