User's Manual

HDBaseT 4K2K 4-Input HDMI CATx Gate Repeater

◘

Features and functions may be added or changed

after the manual was written. Please visit our

website to download the latest version of manual

for reference.

RoHS

Table of Contents

Need help?

Do you have a question about the 4K2K and is the answer not in the manual?

Questions and answers

Summary of Contents for SERVER EDGE 4K2K

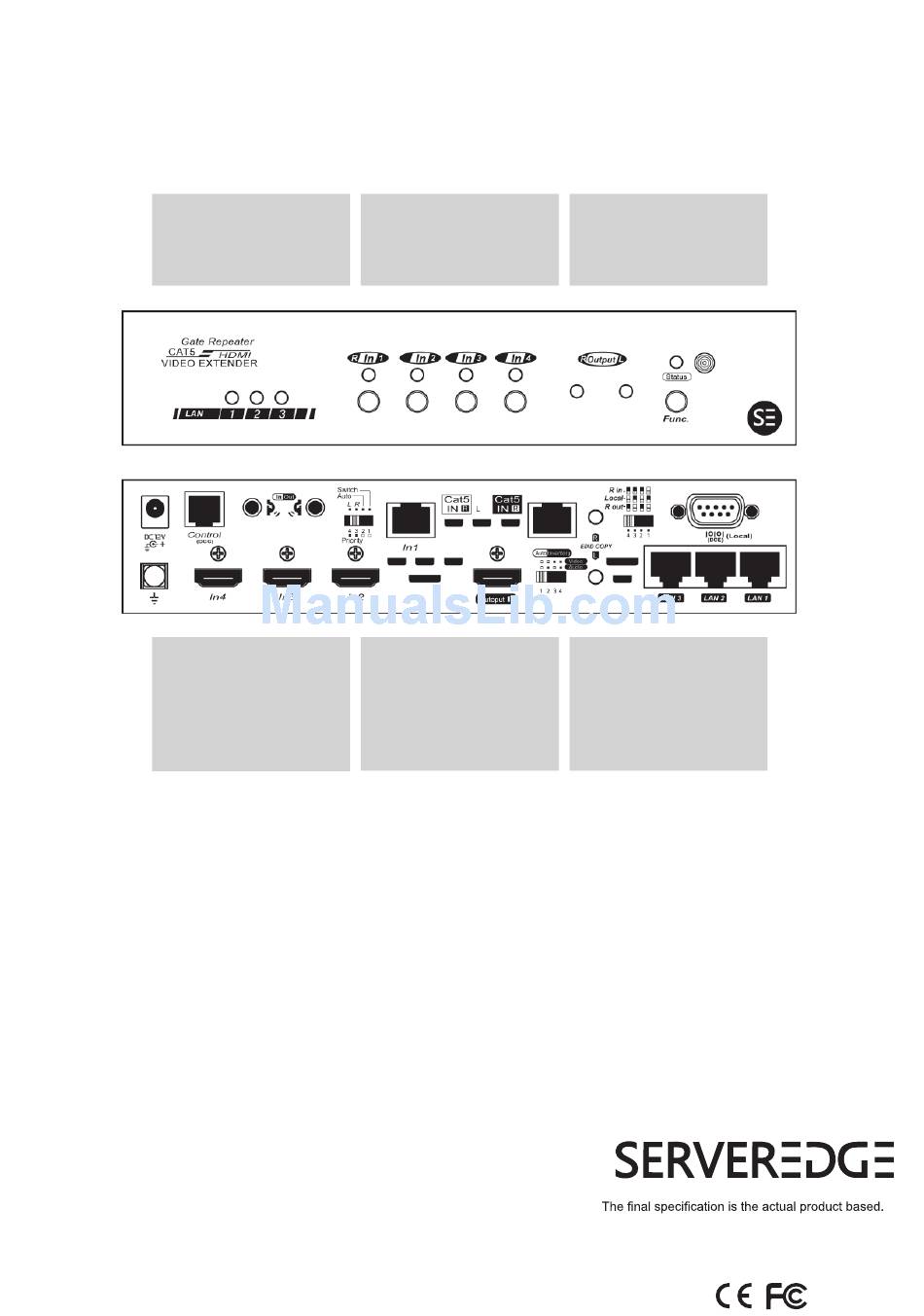

Page 1 User's Manual HDBaseT 4K2K 4-Input HDMI CATx Gate Repeater ◘ ◘ Features and functions may be added or changed after the manual was written. Please visit our website to download the latest version of manual for reference. RoHS...
Page 2: Table Of Contents
Table of Contents ---------------------- Introduction ....................1 Overview ..........................1 Features ..........................1 III. Package Content ......................2 Product Description ....................4 Installation ......................... 6 Device Connection ......................6 Connection Pattern ......................7 LED Indicator ........................ 8 VII. Operation ........................9 　...
Page 3: Introduction
SERVEREDGE 4K2K HDMI CATx Gate Repeater transmits / Receives full uncompressed 3D HD video and audio over CAT5e/6 cable up to 100 meters. It not only supports resolutions up to 4K2K (3840 x 2160), Full HD 1080p and 2048 x 1152, but supports Deep Color and HD Audio formats as well.
Page 4: Package Content
III. Package Content Content Quantity SW4I-03457-100 Power Adapter Set IR Remote Controller CD (User’s Manual + Software Utility) Quick Start Guide CATx Cable (1.5M) Grounding Wire Foot Pad Set...
Page 5 You may also need HDMI Cable (M-to-M) 1.8m for HDMI A/V source connection Serial Cable (straight type, male-female) Other transmitter and repeater Other repeater(s) Optional IR Sensor Kit RJ12 Cable + RJ12 to RS232 Adapter* *Note: If users want to use other RJ12 to RS-232 converter, please make sure that pin connection must follow what showed in the following diagram.
Page 6: Product Description
IV. Product Description Front Panel SW4I-03457-100 （） Select Button Port selection Function Button System Configuration Green/Blue: Port selected Input Port LED Flashing: Programming Green/Blue: Power on Remote Output LED Flashing: Programming Orange: Link to Ethernet device LAN Port LED Off: Unlink Green: Power on Status LED...
Page 7 EDID Setting Switch Mode Video Audio Auto Auto (Min.) Auto Inventory Inventory Auto (Min.) Inventory Inventory EGO Slide Switch Mode Description Press Kn button to select Source-N; all monitors display Source-N NOTE: When switching from other modes to Switch mode, all monitors display Source-1 (CATx Switch IN R).
Page 8: Installation
RS232 Slide Switch Connection Description Mode R out connects to Two-Way Communication between the unit (Repeater) and Local Receiver 1.Two-Way Communication between Transmitter and Receiver R out connects to R in 2.Receiver can send commands to the unit (Repeater) Two-Way Communication between the unit (Repeater) and R in connects to Local Transmitter 1.Two-Way Communication between Transmitter and Receiver...
Page 9: Connection Pattern
Connection Pattern HDMI RJ-45 Cable (CAT 5e / 6 / 6a) IR Cable RJ-12 Cable...
Page 10: Led Indicator
VI. LED Indicator (SW4I-03457-100) There are four types of LED indicators on the front panel for confirmation. And each LED indicate different status. Please refer to the following tables. Status LED Indicator STATUS Steady blue Power on Flash blue once per 3 sec. Stand-by mode Flash green Programming / IR Remote Controller Operating...
Page 11: Operation
VII. Operation Push Button Control (-1492X Series) Users may select 1 from 4 HDMI sources and distribute to the HDMI display via push button, wireless remote and serial control. A built-in buzzer would generate a high-pitched beep for a correct push button command and a short-long beep for completing a command. Otherwise, one low-pitched beep would be generated for an error, and the bad key sequence will not be forwarded to the unit.
Page 12 6. Factory Default Setting In case your settings are misbehaving, resetting it to the factory default might be just the way you are looking for. To return all settings to factory state, you can press and hold the buttons 1 and 2, and then press and hold 3 and 4.
Page 13 Method 2 NOTE: Before starting, power off the unit and connect receiver side monitor to OUT1 of the Unit Step 1. Press and hold the button “R EDID COPY” Step 2. Apply power to the unit. Step 3. Release right after the Status LED flashes GREEN. (3~4 sec.) Result.
Page 14: Ir Remote Control
IR Remote Control Users can remote control the device within the range of 5 meters. Please refer to the following for more details. NOTE: The numeric keys on the left of the controller represents each output on the rear panel (marked in dark grey area) and while the right stands for the input displays (marked in light grey area).
Page 15 RIGHT side of the IR remote controller to set it as the unit controller ID. For example, press the number (right). This sets the unit IR remote controller ID as 4. To set the unit IR remote controller ID as 15, press the number and then (right) on the right side of the...
Page 16: Serial Configuration
------------------------ Serial Configuration The 4K2K HDMI CATx Gate Repeater’s built-in serial interface allows users to control the unit via serial control. Please follow the installation and operation steps as shown below. NOTE: Use the following cable for serial connection Serial Cable (straight type, male-female) If there’s no serial connector on your computer, you may use USB-to-serial adapter for connection.
Page 17 16, Make 2560 x 1440 EDID 17, Make 2560 x 1600 EDID 18, Make 3840 x 2160 EDID 19, Make 4096 x 2160 EDID a1: video options 1, DVI 2, HDMI(2D) 3, HDMI(3D) a2: audio options 1, LPCM 2 ch 6, Dolby TrueHD 7.1 ch 11, MPEG4 AAC 5.1 ch 2, LPCM 5.1 ch...
Page 18: Gui Over Serial
II. GUI over Serial (Note: The real system interface and operation may be further updated. Be sure to operate the system according to the latest GUI system.) A. Installing Application The serial console (PC) with Windows 98/2000/XP/Vista/7 is needed to install the required software. Please follow the step-by-step instructions as listed below.
Page 19: Description & Operation
C. Description & Operation The Graphical User Interface (GUI) is designed for simple and user-friendly operation. We divide this application into two parts—Basic Operation and Advanced Operation. For more information, please refer to the following instructions. Basic Operation 1. GUI Connection After software installation, connect the DB9 RS-232 serial cable (straight type male-female) to the serial port of Gate Repeater, and connect the other end to the serial port (COM1, COM2…) of your computer.
Page 20 Step 3 Double-click “Digital Switch Splitter” on the left block, and the basic information of the device would be displayed on the right block (There are other ways to detect the device. Please refer to Toolbar Guidance / Action. ) *Note: Multi-layer cascade is not applicable through GUI.
Page 21 2.5 Help: Show the software version and copyright information. 3. Function Description The overall GUI functions would be described in the following, with four sections included: Info, Setting, EDID, and Tools. 3.1 Info: Show information and features. 3.2 Setting: In this section, users can set up port connection, enable or disable audio/video independently, etc.
Page 22 *Changing Source/Display Icon: Double-click the source/display icon and there will be a pop-up window. Users may change the icon and name the selected source or display. 1. Name the display/source: click the corresponding icon and key in any name you want. 2.
Page 23 Advanced Operation Users can not only select the desired ports to copy EDID via multiple methods but also use built-in 3.5 EDID: EDID for all connected monitors. Through Inventory EDID, users can either select the desired input ports to copy EDID via multiple methods, or backup all EDID into inventory for future use.
Page 24 Method Operation Steps Step 1. Check the desired input port(s) or check All input ports to select Copy selected input port EDID as all. factory default Step 2. Click Make EDID. Step 1. Check the desired input port. Copy selected input port EDID from selected monitor (audio &...
Page 25: Specification
------------------------ Specification Gate Repeater Model SW4I-03457-100 (Remote) RJ-45 x 1 Video Input (Local) HDMI x 3 (Remote) RJ-45 x 1 Video Output (Local) HDMI x 1 Ethernet Extension RJ-45 x 3 (10/100 Mbps) IR Extension x 2 (Transceiver x 1 + Receiver x 1) Video Resolution (Max.) UHD (3840 x 2160) Extension Distance...
Page 26: Limited Warranty
Limited Warranty IN NO EVENT SHALL THE DIRECT VENDOR BE LIABLE FOR DIRECT OR INDIRECT, SPECIAL, INCIDENTIAL OR CONSEQUENTIAL DAMAGES, LOSS OF PROFIT, LOSS OF BUSINESS, OR FINANCIAL LOSS WHICH MAY BE CAUSED BY THE USE OF THE PRODUCT EXCEEDS THE PRICE PAID FOR THE PRODUCT. The direct vendor makes no warranty or representation, expressed or implied with respect to the contents or use of this documentation, and especially disclaims its quality, performance, merchantability, or fitness for any particular purpose.
