Summary of Contents for DRITEL 3G-S7-LS-12A10W-FS
-

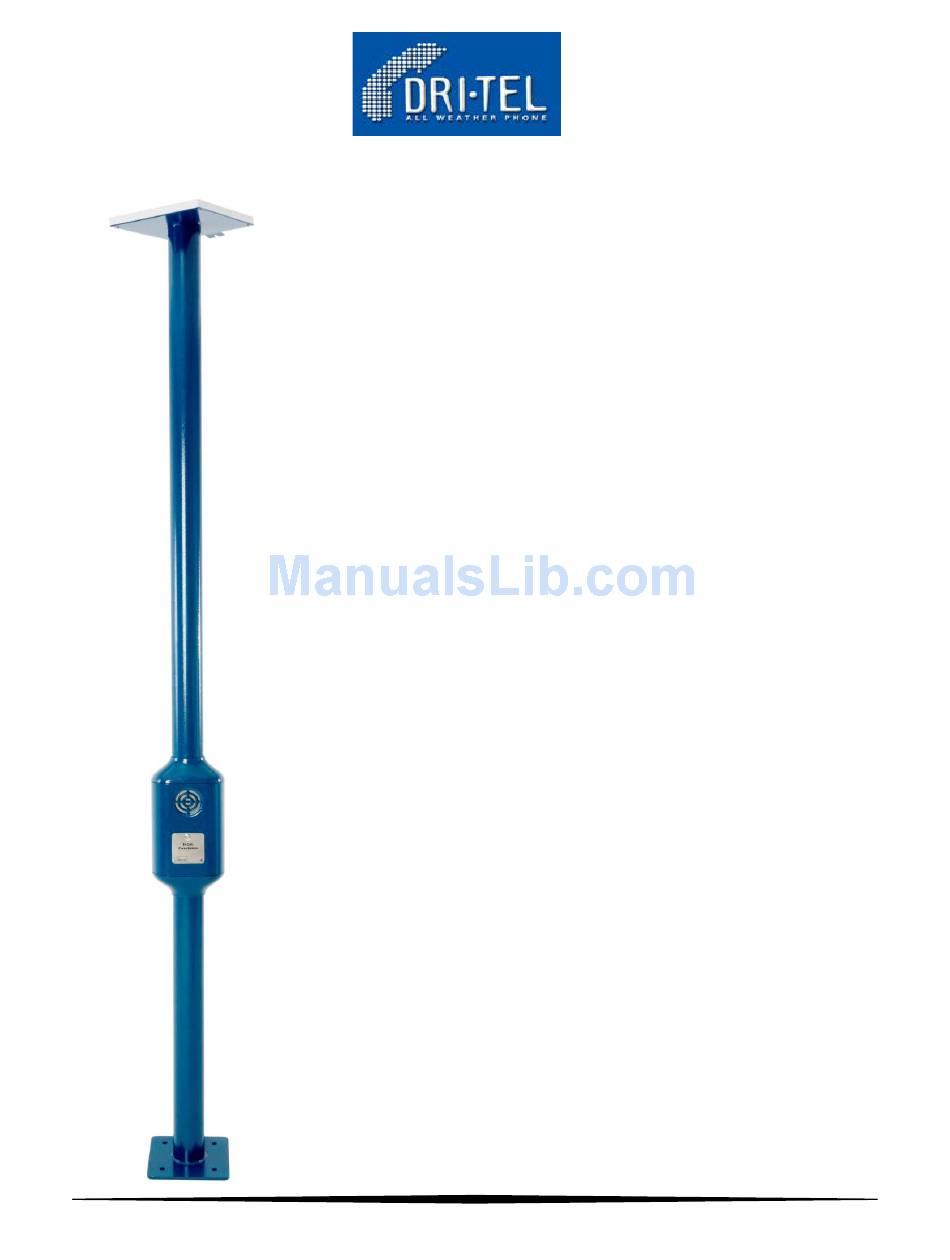

Page 1: Installation Manual
Dritel 3G Series 7 Loud Speaking Telephone Installation Manual 3G-S7-LS-12A10W-FS Manufactured with pride by KJ Precision Engineering PTY LTD Brisbane Australia. Serial Number; 3G-S7-LS-_________ Manual Version 2/2013... - Page 2 Intentionally left Blank Manual Version 2/2013...
-
Page 3: Table Of Contents
Introduction Features and Applications Specifications and Dimensions Installation Tools required Start up Closing the Phone Mother Board Trouble Shooting Parts List Modifications List User Notes Warranty Manual Version 2/2013... -
Page 4: Introduction
INTRODUCTION Thank you for selecting the Dritel Series 7 3G Solar Powered Telephone. Each unit is thoroughly tested and inspected at our factory before delivery. We take particular pride in producing one of the finest quality products available today. Please take a few minutes to familiarize yourself with this step by step manual before commissioning the unit. - Page 5 FEATURES Australian designed and manufactured Designed to maximize vandal resistance and weather proof characteristics Automatic time out or hang-up when the call is terminated Self diagnostics and automatic reporting Manufactured from Marine grade stainless and Marine grade aluminium UV rated powder coating Modular construction One person installation and ease of servicing Can be customized to suit the customer’s requirements...
-
Page 6: Specifications
SPECIFICATIONS Technical Specifications Working Frequency Range – WCDMA850/1900/2100MHz GSM850/900/1800/1900MHz Operating voltage – 7.4V-12V Idle current - 75mA off hook current - 160mA Each unit can be simply reprogrammed from any location. The Unit will send a confirmation “SMS” to the sender showing the new numbers programmed. -
Page 7: Engineering Specifications
Engineering Specifications Casing material – Marine grade extruded aluminium, Marine grade die cast aluminium, 316 stainless steel. Finish – UV rated powder coat, standard colour blue Fittings – Minimum 316 grade stainless steel Standard overall height – 3m (Height optional) Weight -20 kg (Including 12 Ah battery) Phone Case outside dimensions –... -
Page 8: Installation
INSTALLATION Careful consideration of the positioning for each unit must be made before installation. User safety should be maximized along with ease of access to the phone. The solar panel should be adjusted to achieve maximum charge. In general terms, face the solar panel to the North in the Southern Hemisphere and South in the Northern Hemisphere. - Page 9 STEP 1 In Ground Footing A footing for the phone of 600mm deep by 400 square is required. Using the recommended Rag Bolts, install them with at least 50mm of clear thread above the concrete footing. Care should be taken to ensure the Rag Bolts will fit the Base Plate of the Lower Pole before the concrete sets.
- Page 10 STEP 2 Lower Pole to in-ground footing. Screw 1 x 12mm nut on to each leg of the Rag Bolt as far down as possible. Place a 12mm flat washer on top of each nut. Fit the Lower Pole on to the Rag Bolts. Using the Spirit Level, set the Lower Pole to vertical by turning each of the 12mm nuts.
- Page 11 STEP 3 Rear Case to Lower Pole Position the Rear Case of the phone on to the top of the Lower Pole. The Locking Ring on top of the Lower Pole will locate on the recess in the Rear Case. Fit the Moveable End Cap against the Rear Case as shown in the Step 3 Dwg. Partially screw in each of the four 8mm cap screws so that the Moveable End Cap is positioned against the pole, but not held fast.
- Page 12 STEP 4 Fitting the Solar Panel and Antenna Place the antenna in the slot protruding from the top back edge of the Solar Panel Mounting Bracket, tighten the nut on the base of the antenna to fix it to the Solar Panel Mounting Bracket. Pass the antenna cable up through the hole in the Mounting Plate.
- Page 13 PV and Antenna Cable Run Manual Version 2/2013...
- Page 14 STEP 5 Connecting PV and Antenna Cable To connect the PV and Antenna cables as shown in the drawing above: 1) Insert PV cable aligning the key slot inside the connector, then secure the cable using the locking nut on the PV cable. 2) Insert the Antenna Cable carefully so as not to damage the pin inside the Antenna cable plug, then tighten the locking nut.
- Page 15 STEP 6 Fit Upper Pole to Rear Case Position the Upper Pole on to the top of the Rear Case against the collar. Fit the Moveable End Cap against rear case as shown in the Step 6 Dwg. Partially screw in each of the four 8mm cap screws so that the Moveable End Cap is positioned against the pole, but not held fast.
- Page 16 STEP 7 Connect the Front Case Cable to the Rear Case Cable To assist in field servicing, a Service Bracket is fitted in the left hand side of the Rear Case. Place the Front Case against the Service Bracket and secure it with a 6mm cap screw as shown above. Connect the wiring loom from the Front Case to the Rear Case loom.
- Page 17 STEP 8 Battery Connections and final Power Up Insert the SIM Card in to the SIM carrier. Attach the connectors on the wires named Bat + and Bat- on the PV Charge Controller to the battery. Red for positive and black for negative battery terminals. Next plug the power supply lead in to the Mother Board as shown above.
-
Page 18: Start Up
STEP 9 Start Up and Testing. Once the Mother Board is powered up, after approximately 15 seconds, the green LED light will begin a series of rapid flashes as it goes through its boot-up sequence. Once the boot-up sequence is complete the green LED will flash once every second. - Page 19 Initially the Unit may be programmed with factory testing numbers so will need to be reset. To program the Unit ready for use, carry out the following procedure. For the purposes of this example, the following numbers will apply, the destination number for the 3G Unit to call is 23232323 and the SMS reporting number is 45454545.
- Page 20 Fitting the Front Face to the Phone The final step is to secure the Front Face. First place the Front case against the Rear Case, check all wires are safely inside the phone and that there is nothing to prevent the Front Case from sealing properly against the gasket. Using the 6mm screws provided start each screw by passing it through the Rear Case and picking up the threads in the Front Case.
-
Page 21: Mother Board
Please note, connections showing a “+” or a ”–“ symbol are polarity sensitive. Failure to install wiring correctly may result in permanent and total failure of the Mother Board. Dritel strongly recommends any work performed on the Mother Board is done by the manufacturer. Failure to do so may void Manufacturers Warranty. -
Page 22: Trouble Shooting
Trouble Shooting Phone engaged: 1) SIM Card has not been activated by the Service Provider. (Very common, even when the provider assures you it is activated.) 2) Service coverage is poor Phone dead: 1) Battery is not connected properly. Check connections to battery terminals and Mother Board. -
Page 23: Parts List
DRI-RB Standard Dritel Rag Bolt set As Dritel Phones are frequently modified to accommodate customer requirements, it may be the case that some of the items in our Standard Parts List are not applicable. Page 24 carries information concerning Phone modifications, if any, done to this unit. It states the new Part number and description plus the Part number which it replaces. - Page 24 Modification Parts List Original Part Replacement Part Description number number SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE Manual Version 2/2013...
-
Page 25: User Notes
User Notes. Manual Version 2/2013... -
Page 26: Warranty
MAUFACTURERS WARRANTY. Issue 4 09/10/2013 KJ Precision Engineering will in a commercially reasonable time remedy defects in materials, design and workmanship free of charge by repairing or at our discretion replacing the product. This warranty is only enforceable by the person/company who is the original purchaser of the goods.
