1. Components 2. Hardware installation 3. App installation ANDROID 4. Bluetooth pairing and connection ANDROID 5. Listen FM 6. Listen Bluetooth streaming audio 7. Annex: Settings and Bluetooth naming BLUETOOTH ID: 0001 KBSOUND BT PASSWORD: 1234 KBSOUND 1/12...
Page 2

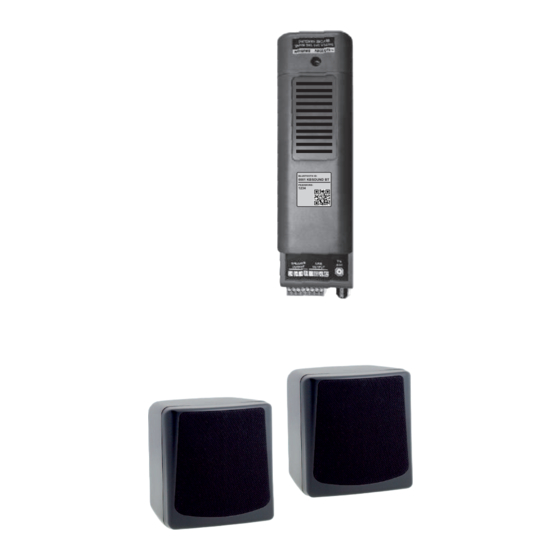

1. Components (A) Master electronic module (B) mains cable (C) FM antenna (D) and (E) speakers and audio cable 2/12...
Page 3
1. connect the speakers (D) and (E) to terminals L+, L- R+, R- ( note: terminals 65,66,4,62 unconnected) 2. connect the FM antenna (C) to the FM connector 3. connect the cable (B) to the mains (120/230Vac) FM antenna (75cm) Master 120/230Vac BLUETOOTH ID: 0001 KBSOUND BT PASSWORD: 1234 factory defaults 3/12...
Page 4
3.1. App installation (IOS) 1. open iTunes in the computer 2. in iTunes: if the App KBSOUND is already in iTunes library, delete it 3. in iTunes: add the App file (KBSOUND-IOS-V0.XX .ipa) to iTunes library 4/12...
Page 5
8. in iTunes: select the App KBSOUND to be installed to the smartphone 9. in iTunes: apply changes 10. when finish, be sure that the app KBSOUND has been installed in the smartphone IMPORTANT: disconnect the smartphone from the computer...
Page 6
(Google Nexus 5 / Android 5.0.1) since different smartphones have different configurations for different brands, models and versions 1. connect the smartphone to the PC 2. in the PC: upload the the App file (KBSOUND-ANDROID-V0.XX .apk) to the folder DOWNLOADS in the smartphone 3. disconnect the smartphone from the computer 6/12...
Page 7
4. in the smartphone: go to any file explorer and run the App file recently downloaded 5. when finish, be sure that the app KBSOUND has been installed in the smartphone (note: if any issue, desinstall previous version of the App from the settings menu)
Page 8
4.1. Bluetooth pairing and connection (IOS) before operating the KBSOUND App it is necessary to be correctly paired and connected with the Master 1. go to IOS Bluetooth settings menu BLUETOOTH ID: 2. select the Master Bluetooth ID (e.g. 0001 KBSOUND BT...
Page 9
4.2. Bluetooth pairing and connection (ANDROID) before operating the KBSOUND App it is necessary to be correctly paired and connected with the Master the following process is just an example (Google Nexus 5 / Android 5.0.1) since different smartphones have different configurations for different brands, models and versions 1.
Page 10
5. Listen FM 1. open the App KBSOUND 2. FM Screen permits to enjoy FM and save favorites FM station in the favorites list FM Screen FM Favorites Screen Master Bluetooth ID and jump to Bluetooth Naming Screen ON / OFF...
Page 11
1. Bluetooth Streaming Audio Screen permitis to enjoy Bluetooth streaming audio from Music Player 2. Go to Music Player in the smartphone, choose the music to be listened and play it 3. Go back to the KBSOUND App and control the volume and equalization mode Bluetooth...
Keep the FM ON or turn OFF automatically when Master loses the Bluetooth connection save current audio settings as "ideal mode" (volume, equalization, FM/BT and, if FM, the station tuned at this moment) IMPORTANT NOTE: Take care when change the Bluetooth ID and/or the Password since you will need it to connect again with the Master.
Page 13
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Changes or modifications not expressly approved by the part responsible for compliance could void the user's authority to operate the equipment.
Page 14
Denominación Denomination KBSOUND BT USER AND INSTALLATION Código Pieza MANUAL Part Code Material 64460111 Material SOPORTE: FORMATO PDF Fecha Date Nombre Name TINTA: Proyectado 02/02/2015 L.ABOS Projected Código Documento Edición Escala Dibujado Document Code Edition 30/04/2015 L.ABOS Scale Din A4 Drawn 00.3...
