SOIL
MOISTURE METER

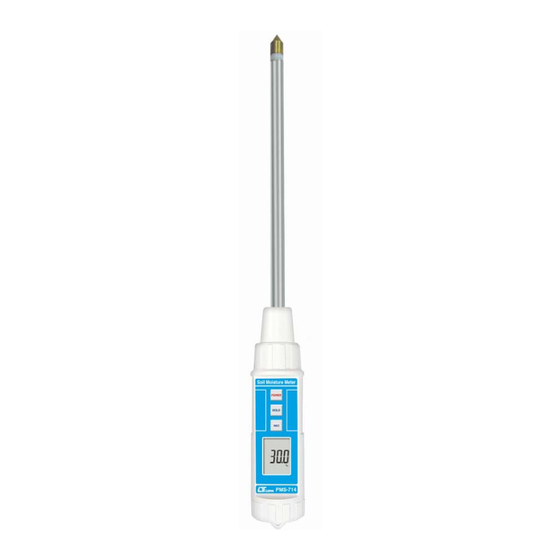

Model : PMS-714
OPERATION MANUAL
Your purchase of this SOIL
MOISTURE METER marks a
step forward for you into
the
field
of
measurement.
this
SOIL
METER is a complex and
delicate
instrument,
durable
structure
allow many years of use if
p r o p e r
o p e r a t i n g
techniques are developed.
Please read the following
instructions carefully and
always keep this manual
within easy reach.
precision
Although
MOISTURE
its
will

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PMS-714 and is the answer not in the manual?

Questions and answers

Summary of Contents for AUTOMATION24 PMS-714

  • Page 1 SOIL MOISTURE METER Model : PMS-714 Your purchase of this SOIL MOISTURE METER marks a step forward for you into field precision measurement. Although this SOIL MOISTURE METER is a complex and delicate instrument, durable structure will allow many years of use if...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. FEATURES..............1 2. SPECIFICATIONS............1 3. FRONT PANEL DESCRIPTION........3 3-1 Soil moisture Probe..........3 3-2 Moisture Sensing Head.........3 3-3 Power Button............3 3-4 Hold Button............3 3-5 REC Button............3 3-6 LCD Display............3 3-7 Battery Compartment/Cover......... 3 4. MEASURING PROCEDURE.......... 4 4-1 Measurement by selecting the different material............4 4-2 Data Hold............5...

  • Page 3: Features

    1. FEATURES * Designed to check the moisture level of soil or other similar material. * Measurement range : 0 % to 50 % moisture content of soil sample with 0.1 % resolution. * All in one digital soil meter, easy to make operation. * Data hold function to freeze the desired value on display.
  • Page 4 Measurement 0 % to 50 % moisture content on soil. Range Resolution 0.1 %. Accuracy ± ( 5 % + 5 d ) F.S. @ 23± 5 , F.S. : full scale. ℃ Circuit Custom one-chip of microprocessor LSI circuit. Probe 2 pins moisture electrode.

  • Page 5: Front Panel Description

    3. FRONT PANEL DESCRIPTION Fig. 1 3-1 Soil moisture Probe 3-2 Moisture Sensing Head 3-3 Power Button 3-4 Hold Button 3-5 REC Button 3-6 LCD Display 3-7 Battery Compartment/Cover...

  • Page 6: Measuring Procedure

    4. MEASURING PROCEDURE 4-1 Soil measurement 1)Turn on the meter by pressing the " Power Button " ( 3-3, Fig. 1 ) momentarily. * Press the " Power Button " ( 3-3, Fig. 1 ) momentarily again will turn off the meter. 2)Insert the "...

  • Page 7: Data Hold

    4-2 Data Hold * During the measurement, press the " Hold Button " ( 3-4, Fig. 1 ) momentarily to hold the measured value. The LCD will show a " HOLD " symbol. * Press the" Hold Button " once again to release the data hold function.

  • Page 8: Battery Replacement

    5. BATTERY REPLACEMENT * Replace the batteries when the left corner of the LCD displays the low battery icon " ", using 4 fresh 1.5 V ( UM4, AAA ) batteries. * To change the batteries, open ( rotate clockwise direction ) the "...

Table of Contents
