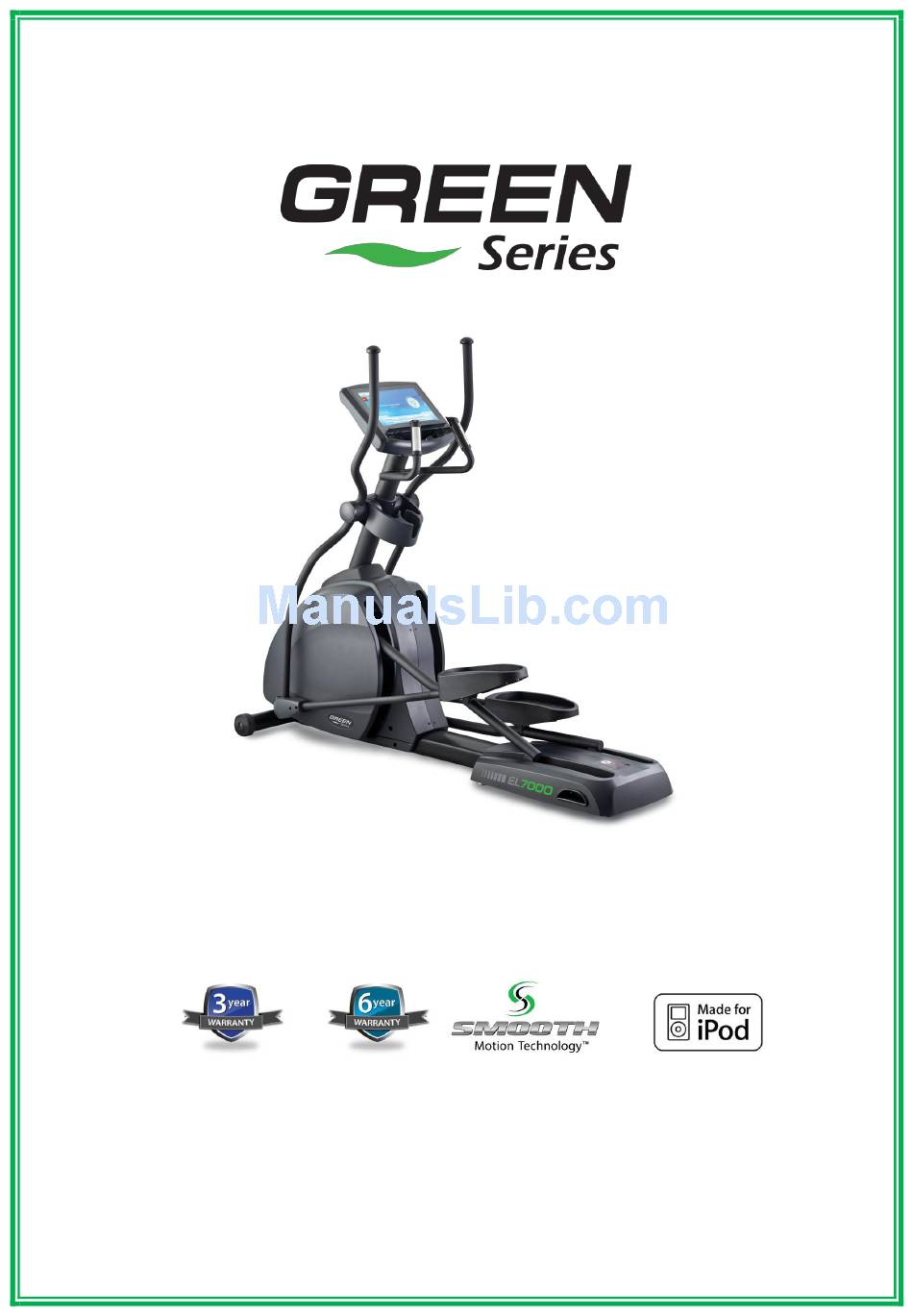

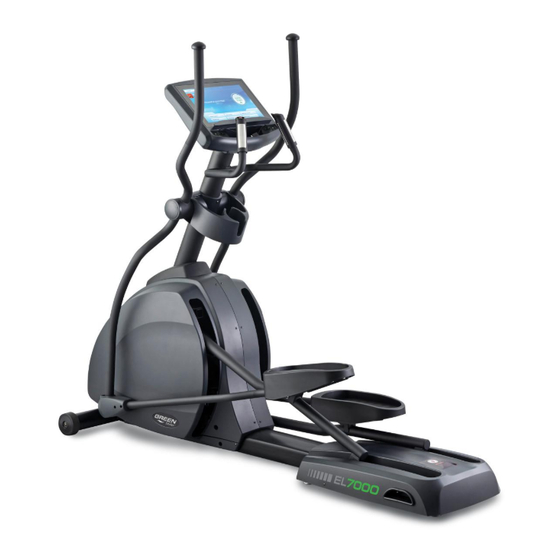

  • Page 1 Owner's Manual CIR-EL7000E-G1 Full Commercial Elliptical Full Commercial Light Commercial Install Date: _________________________ Serial Number: ________________________ www.GreenSeriesFitness.com ©April 2017 Call Toll free at (800) 269-7130 CIR-EL7000E-G1 Revision 1.2 John C. Jensen...

  • Page 2: Table Of Contents

    SETTINGS …………………………………………………………………………………13 WiFi and TV PROGRAMS ……………………………………………….…………………………..14-24 Control panel function and programs OPERATION ………………………………………………………………………..…25-26 CARE & MAINTENANCE ……………………………………………………………...…....27 PARTS …………………………………………………………………………………28, 29 EXPLODED DRAWINGS …………………………………………………………….30-32 WARRANTY ………………………………………………………………………..33-35 www.GreenSeriesFitness.com ©April 2017 Call Toll free (800) 269-7130 CIR-EL7000E-G1 Revision 1.2 John C. Jensen...

  • Page 3: Safety Precautions

    These spacing recommendations should be used when positioning equipment away from sources of heat, such as radiators, heat registers, and stoves. Avoid temperature extremes. 12” 300mm 24” 24” 24” 600mm 600mm 600mm 79” 2000mm www.GreenSeriesFitness.com ©April 2017 Call Toll free (800) 269-7130 CIR-EL7000E-G1 Revision 1.2 John C. Jensen...
  • Page 4 ‧ The unit is designed to function in an environment with an ambient temperature range of 50°F (10°C) to 104°F (40°C). The unit can be shipped and stored in an environment with an ambient temperature range of 32°F (0°C) to 140°F (60°C). www.GreenSeriesFitness.com ©April 2017 Call Toll free (800) 269-7130 CIR-EL7000E-G1 Revision 1.2 John C. Jensen...

  • Page 5: Precautions

    Sustained exercise conditions your heart, lungs and muscles. The longer you are able to sustain exercise within your target heart range, the greater the aerobic benefits. To begin maintain 2~3 minutes of steady, rhythmic exercise, then check your heart rate. www.GreenSeriesFitness.com ©April 2017 Call Toll free (800) 269-7130 CIR-EL7000E-G1 Revision 1.2 John C. Jensen...

  • Page 6: Technical Specifications

    Weight of product：107kg Program: 6 Preset Program, 3 Goal, 4 HRC, Physical Test, Virtual GO Standard features: Time, Speed, Incline, Heart Rate, Distance, Calories, Program Profile www.GreenSeriesFitness.com ©April 2017 Call Toll free (800) 269-7130 CIR-EL7000E-G1 Revision 1.2 John C. Jensen...

  • Page 7: Unpacking & Assembly

    (Left / right cover) #3-12 Allen wrench / 1pc Allen wrench / 1pc 1 pc (3mm) (5mm) 1 pc Allen wrench / 1pc Cable connector (6mm) www.GreenSeriesFitness.com ©April 2017 Call Toll free (800) 269-7130 CIR-EL7000E-G1 Revision 1.2 John C. Jensen...
  • Page 8 Please grab the grip back of the Elliptical and raise it up carefully, you may depend on the pair of the rollers to move it to the position you want. www.GreenSeriesFitness.com ©April 2017 Call Toll free (800) 269-7130 CIR-EL7000E-G1 Revision 1.2 John C. Jensen...
  • Page 9 1. Using a 6mm Allen wrench, remove the (2) M8x100mm bolts, (2) M8x110mm, (4) 8mm S washers and (4) flat washers located on the Main Frame (#5-1). #5-1 www.GreenSeriesFitness.com ©April 2017 Call Toll free (800) 269-7130 CIR-EL7000E-G1 Revision 1.2 John C. Jensen...
  • Page 10 Handlebar Set and matted Main Frame and tighten. 4. Lower and snap into place the Console Frame Cover onto the Main Frame. #5-13 #5-6 #5-10 #5-21 Allen wrench (6mm) M8x100mm M8x110mm www.GreenSeriesFitness.com ©April 2017 Call Toll free (800) 269-7130 CIR-EL7000E-G1 Revision 1.2 John C. Jensen...
  • Page 11 Fasten (1) M3x30mm screw on Left/Right Arm Cover using a 3mm wrench. M3x30mm #5-7 #5-4 #5-11 #5-14 #5-12 #5-15 X1set X1set M4x12mm Allen wrench Allen wrench (2mm) (6mm) www.GreenSeriesFitness.com ©April 2017 Call Toll free (800) 269-7130 CIR-EL7000E-G1 Revision 1.2 John C. Jensen...
  • Page 12 2. Connect the Lower Cable connector. Using a Phillips head screw driver, secure the Console to the Handlebar Set with (4) M5x12mm screws. #7-13 Allen wrench (5mm) www.GreenSeriesFitness.com ©April 2017 Call Toll free (800) 269-7130 CIR-EL7000E-G1 Revision 1.2 John C. Jensen...

  • Page 13: Warm Up & Cool Down

    Keep your right leg straight and the left foot on the floor; try to stretch your right hand toward the toe, hold this posture for 15 seconds. Relax, and then repeat the action for left leg. www.GreenSeriesFitness.com ©April 2017 Call Toll free (800) 269-7130 CIR-EL7000E-G1 Revision 1.2 John C. Jensen...

  • Page 14: Settings

    2. Press the Green Series logo for 5 seconds to enter engineering mode. Select TV and choose MENU, press the UP/Down button to AUTO TUNING then press OK to start SCAN TV channel. (For European Countries, before scan please choose your located country). www.GreenSeriesFitness.com ©April 2017 Call Toll free (800) 269-7130 CIR-EL7000E-G1 Revision 1.2 John C. Jensen...

  • Page 15: Programs

    Resistance adjustment: Use slide bar or handle button to adjust resistance. Touch screen again and showing “v” to confirm resistance. Or change by UP/DOWN button. 2.1.2 www.GreenSeriesFitness.com ©April 2017 Call Toll free (800) 269-7130 CIR-EL7000E-G1 Revision 1.2 John C. Jensen...
  • Page 16 Puts elliptical into Cool Down mode. Cool Down time is dependent on the Cool Down length of the workout. After 5 min end of cool down. 2.1.1. SPORT Mode： 2.1.1.1. PROFILE：shows workout information and graphic www.GreenSeriesFitness.com ©April 2017 Call Toll free (800) 269-7130 CIR-EL7000E-G1 Revision 1.2 John C. Jensen...
  • Page 17 PROGRAMS 2.1.1.2. LAP: Shows workout information via Lap 2.1.1.3. SIMPLE: Shows simple workout information. Press arrow to change display from side to main display. www.GreenSeriesFitness.com ©April 2017 Call Toll free (800) 269-7130 CIR-EL7000E-G1 Revision 1.2 John C. Jensen...
  • Page 18 8Pin-Lightning, but some function may not able to operate. Note 2 . Few Android device do not support music select function but able to charging. Un-locked Android device before connecting. www.GreenSeriesFitness.com ©April 2017 Call Toll free (800) 269-7130 CIR-EL7000E-G1 Revision 1.2 John C. Jensen...
  • Page 19 3 seconds. Also able to adjust Resistance and Watts from Handle Bar Resistance Level Control or Slide Bar. 2.1.5. BULLETIN BOARD：Information about club news and courses. www.GreenSeriesFitness.com ©April 2017 Call Toll free (800) 269-7130 CIR-EL7000E-G1 Revision 1.2 John C. Jensen...
  • Page 20 2.3.1.2. Enter the desired workout length using the NUMBER KEYPAD and press ENTER. 2.3.1.3. Enter the desired intensity level using the QUICK KEY choose EASY, MEDIUM, HARD. www.GreenSeriesFitness.com ©April 2017 Call Toll free (800) 269-7130 CIR-EL7000E-G1 Revision 1.2 John C. Jensen...
  • Page 21 AEROBIC: Set 75% of your maximum heart rate, program will adjust the intensity to reach the target heart rate. 2.6.1.3. PERFORMANCE: Set 85% of your maximum heart rate, program will adjust the intensity to reach the target heart rate. www.GreenSeriesFitness.com ©April 2017 Call Toll free (800) 269-7130 CIR-EL7000E-G1 Revision 1.2 John C. Jensen...
  • Page 22 2.7.2. Choose Physical Test by selecting the physical test workout button and press GO to begin the workout. 2.7.2.1. Weight：Enter user weight by NUMBER KEYPAD 2.7.2.2. Age：Enter user age by NUMBER KEYPAD 2.7.2.3. Gender: Select gender by press MALE or FEMALE. www.GreenSeriesFitness.com ©April 2017 Call Toll free (800) 269-7130 CIR-EL7000E-G1 Revision 1.2 John C. Jensen...
  • Page 23 INTER ACTIVE set up: INTER ACTIVE ON - elevation change according to video/ INTER ACTIVE OFF - elevation adjust manually. Note: Change video during workout, inter active set up will turn INTER ACTIVE OFF. www.GreenSeriesFitness.com ©April 2017 Call Toll free (800) 269-7130 CIR-EL7000E-G1 Revision 1.2 John C. Jensen...
  • Page 24 Bulletined Board: Review AD and Classes information. Same as Bulletined Board in Quick Start Mode. 2.9.4. Internet ICONs：Preset webpage link from treadmill, press the ICON and directly open the webpage. Same function as INTERNET at QUICK START MODE. www.GreenSeriesFitness.com ©April 2017 Call Toll free (800) 269-7130 CIR-EL7000E-G1 Revision 1.2 John C. Jensen...

  • Page 25: Programs

    As a general rule you should be able to reach the pedal with your heel when straightening your leg and aligning it with the pipe supporting the seat. ‧Body position Your handlebars should be set to a position in which you can reach them with slightly bent arms. www.GreenSeriesFitness.com ©April 2017 Call Toll free (800) 269-7130 CIR-EL7000E-G1 Revision 1.2 John C. Jensen...

  • Page 26: Operation

    Then roll the unit to a desired location The handle bar can be adjusted to personal preference. Loosen the handle bar fixing tube. Retighten the fixing tube. Draw www.GreenSeriesFitness.com ©April 2017 Call Toll free (800) 269-7130 CIR-EL7000E-G1 Revision 1.2 John C. Jensen...
  • Page 27 Saving and Software Updated 2.Cell Phone Music iOS Compatible: Supported i -Phone 4S, Android compatible: i -Phone 4, Cell Phone support i -Phone 3GS i -Pod touch Generation www.GreenSeriesFitness.com ©April 2017 Call Toll free (800) 269-7130 CIR-EL7000E-G1 Revision 1.2 John C. Jensen...

  • Page 28: Preventative Maintenance

    " 0 ", then redoing the test. Don't do this test while running. www.GreenSeriesFitness.com ©April 2017 Call Toll free (800) 269-7130 CIR-EL7000E-G1 Revision 1.2 John C. Jensen...
  • Page 29 H022813-000 Rivet nut 3-51 F083071-001 Power cord 6-26 F300607-100 Cover for TV bracket / K90 3-52 F419009-000 Magnet 6-27 F916438-000 Green Series Logo 3-53 H021101-001 Washer www.GreenSeriesFitness.com ©April 2017 Call Toll free (800) 269-7130 CIR-EL7000E-G1 Revision 1.2 John C. Jensen...

  • Page 30: Parts

    F373412-004 7-40 F419008-000 Connector-1 7-41 F419004-000 Connector-2 7-42 F373424-000 Csafe PCB 7-43 F083133-000 Csafe power 7-44 F300646-100 Csafe cover 7-45 F346007-000 Cooper Tube 7-46 F916303-013 logo www.GreenSeriesFitness.com ©April 2017 Call Toll free (800) 269-7130 CIR-EL7000E-G1 Revision 1.2 John C. Jensen...

  • Page 31: Exploded Drawings

    EXPLODED DRAWING www.GreenSeriesFitness.com ©April 2017 Call Toll free (800) 269-7130 CIR-EL7000E-G1 Revision 1.2 John C. Jensen...
  • Page 32 EXPLODED DRAWING (CONSOLE SET) www.GreenSeriesFitness.com ©April 2017 Call Toll free (800) 269-7130 CIR-EL7000E-G1 Revision 1.2 John C. Jensen...

  • Page 33: Exploded Drawings

    EXPLODED DRAWING (CONSOLE MAST SET) www.GreenSeriesFitness.com ©April 2017 Call Toll free (800) 269-7130 CIR-EL7000E-G1 Revision 1.2 John C. Jensen...

  • Page 34: Warranty

    The warranty and remedies set forth below are exclusive and in lieu of all others, oral or written, expressed or implied. No reseller, agent or employee is authorized to make any modification, extension or addition to this warranty. www.GreenSeriesFitness.com ©April 2017 Call Toll free (800) 269-7130 CIR-EL7000E-G1 Revision 1.2 John C. Jensen...
  • Page 35 14. All GREEN SERIES™ equipment shall be properly cleaned and cared for in accordance to the procedures outlined the in the owner’s manual. www.GreenSeriesFitness.com ©April 2017 Call Toll free (800) 269-7130 CIR-EL7000E-G1 Revision 1.2 John C. Jensen...

  • Page 36: Warranty

    ➢ By using this product, I indicate that I understand and agree to the terms of this warranty. www.GreenSeriesFitness.com ©April 2017 Call Toll free (800) 269-7130 CIR-EL7000E-G1 Revision 1.2 John C. Jensen...
