Summary of Contents for Peweta DCF77
-

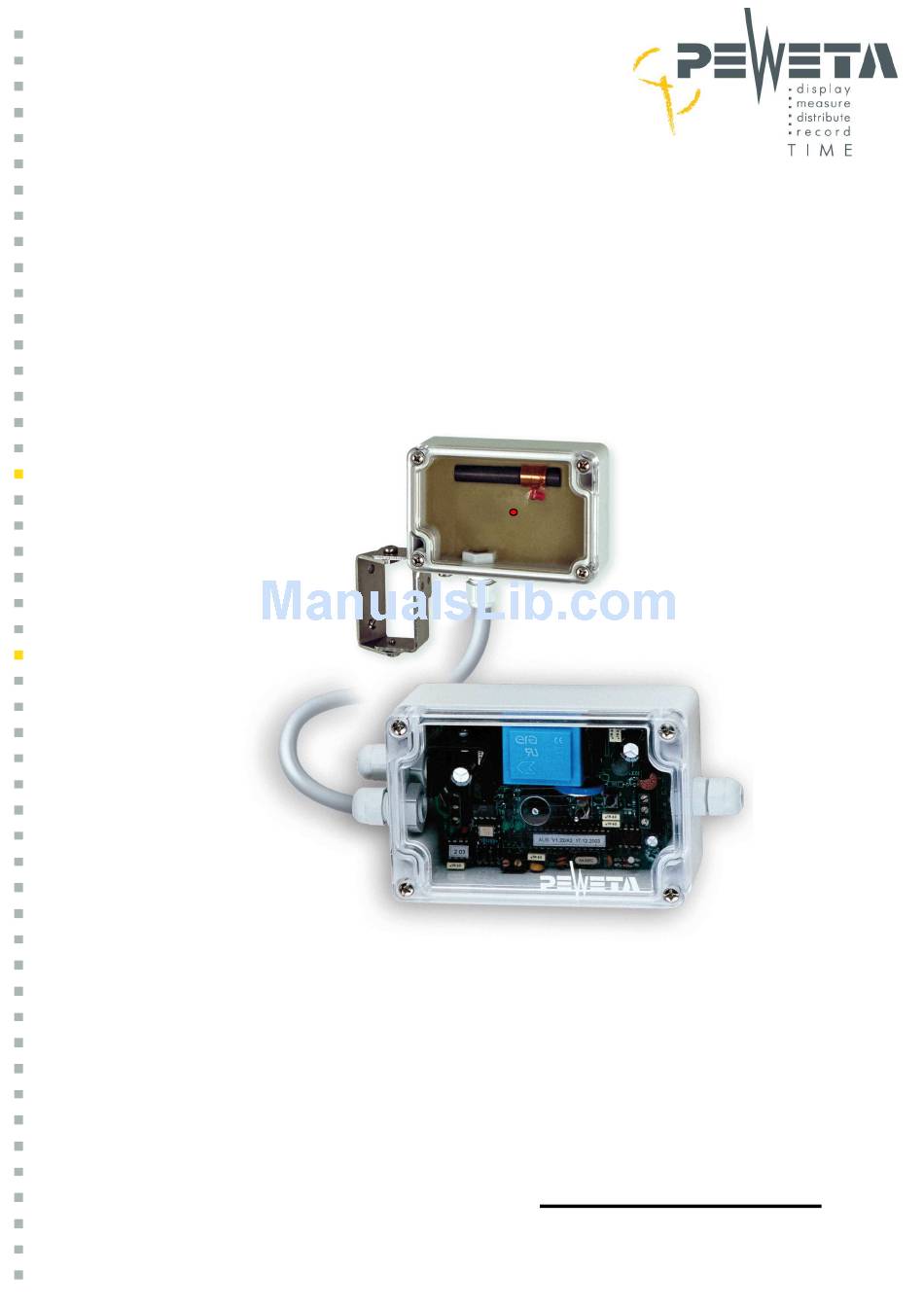

Page 1: Installation Manual

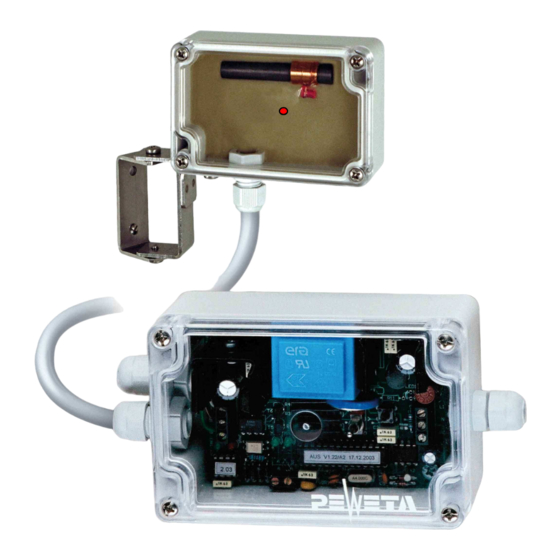

DCF77 Radio Control Unit output: alternating polarity minute pulse 24 V line voltage Item No. 10.950.100, 10.950.101 installation manual V1.1/1012... - Page 2 For your better understanding please read this instruction manual once before installation! 1.0 application and function By means of a DCF77 aerial this control unit receives the exact time including the trigger signal for the automatic change-over between summer and winter time. In case of impaired reception due to local conditions pulse transmission to the slave clocks connected will be kept up.
- Page 3 LEDs in control unit: - green: reception quality of DCF77 radio control signal. - red: blinks once each second: no DCF77 reception within the past 24 hours or no DCF77 reception after mains power failure. - red: blinks twice each second: short circuit at slave clock movement(s) and/or more than 4 pcs slave clock movements connected.
-
Page 4: Control Unit
Im Interesse unserer Umwelt und um die verwendeten Rohstoffe möglichst vollständig zu recyceln, ist der Endnutzer aufgefordert, gebrauchte und defekte Geräte PEWETA KG (GmbH + Co.) zu den öffentlichen Sammelstellen für Elektro-und Elektronikschrott zu bringen. Das Symbol der durchgestrichenen Mülltonne mit Balken Holsteinischer Kamp 64-66 bedeutet, dass dieses Produkt an einer Sammelstelle für Elektro- und...
