Power Computers
DA Series Expansion Modules
Expansion modules with Time Synchronization ports, RS-232/422/485 and
RS-232/485 serial ports, 10/100 Mbps LAN and unmanaged switch ports,
100 Mbps fiber LAN ports, and PCI development kit
Overview
Moxa's peripheral expansion modules, which come with serial ports,
LAN ports, switch ports, fiber ports, Time Synchronization IRIG-B
ports, and PCI slots, give end-users the greatest flexibility for setting
up industrial applications and are fully compatible with Moxa's
embedded computers that have perpheral expansion slots.
The serial port modules include an 8-port RS-232/422/485 module
with either DB9 or terminal block connectors, and an 8-port RS-
422/485 module with terminal block connectors. Some modules are
even designed with 2 kV digital isolation, making them fully suitable
for the great demands of industrial applications that use serial
communication.

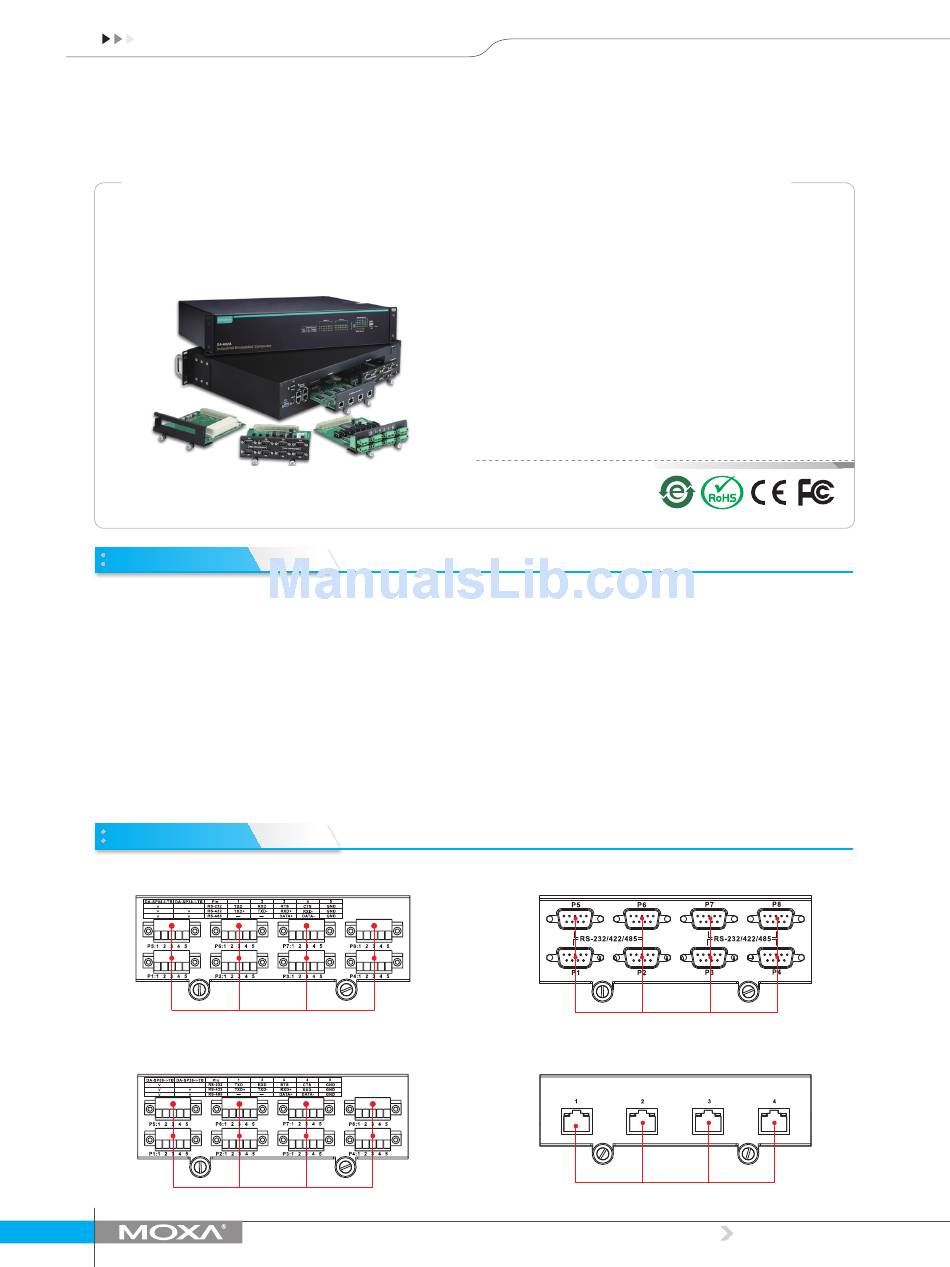

Appearance
DA-SP08-I-TB
RS-232/422/485 Serial Port x 8
DA-SP38-I-TB
RS-422/485 Serial Port x 8
1
›
IRIG-B Time Synchronization module
›
Universal PCI expansion module
›
4-port 10/100 Mbps LAN module
›
4-port 100 Mbps Fiber LAN module
›
8-port 10/100 Mbps unmanaged switch module
›
8-port RS-422/485 serial module with terminal block connectors
›
8-port RS-232/422/485 software-selectable serial modules with
isolation protection
›
Fully compatible with Moxa embedded computers that have
peripheral expansion slots
In addition, a 4-port LAN module, 8-port switch module, and 4-port
fiber LAN module are available for setting up industrial communication
applications with Ethernet-based devices. A universal PCI development
kit is also available for PCI-based devices for expanding industrial
applications at a reasonable cost.
The time synchronization module features 3 digital inputs and 4 digital
outputs and provides precision timing information using IRIG-B input
signals. The module is designed for embedded computers that support
the PCI/104 interface.
All modules are designed to offer the greatest flexibility for setting up
applications and performing industrial tasks. In particular, users can
swap out modules quickly and easily.
DA-SP08-DB/DA-SP08-I-DB
RS-232/422/485
Serial Port x 8
DA-LN04-RJ
10/100 Mbps Ethernet Port
10/100 Mbps
Ethernet x 4
