Summary of Contents for Ignition WRX-1

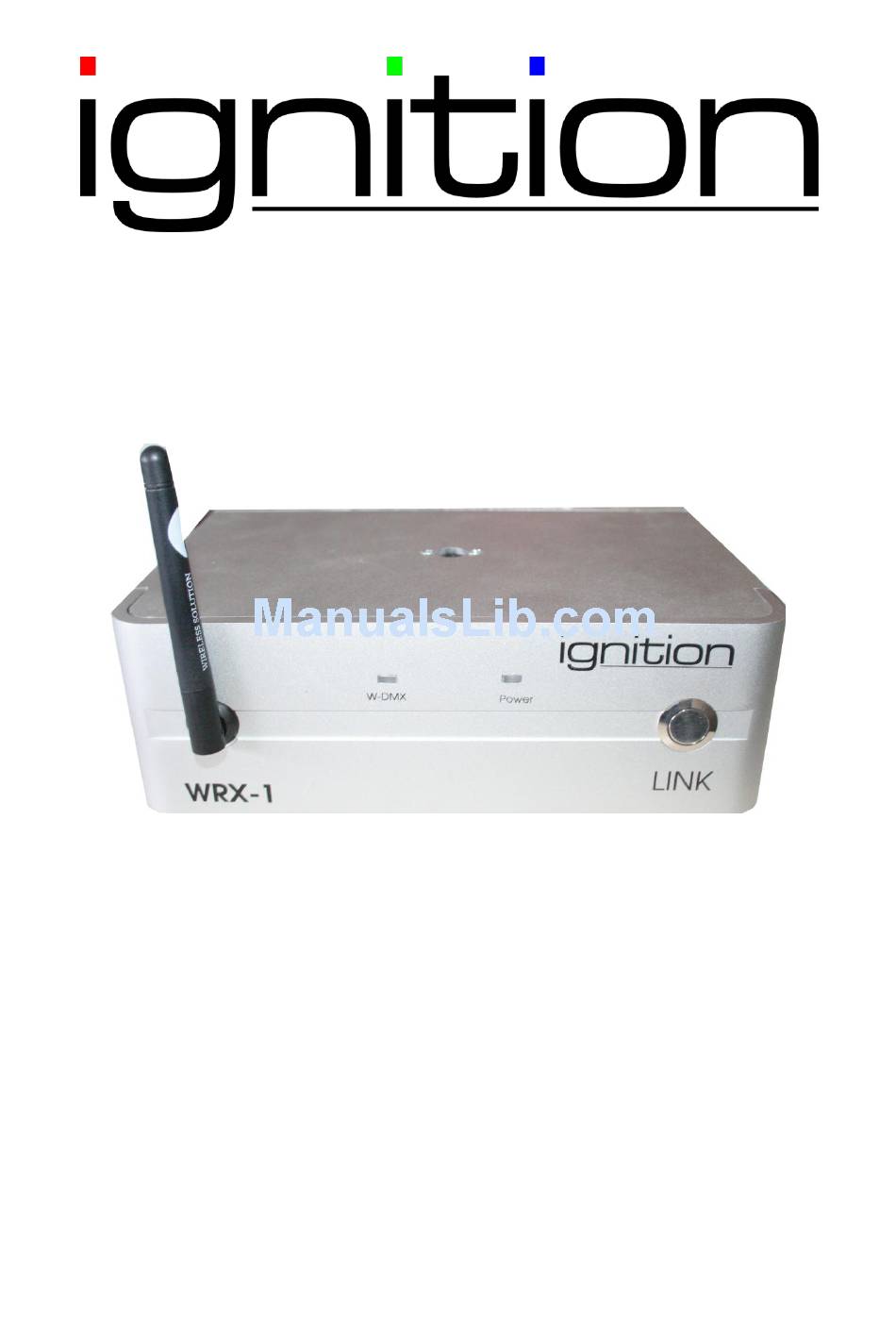

- Page 1 U S E R M A N U A L WRX-1 Single DMX universe receiver...
-
Page 2: Table Of Contents
W R X - 1 Table of contents Safety instructions ........................... 3 1.1. FOR SAFE AND EFFICIENT OPERATION ................3 Description ............................4 Front panel details ........................... 5 Rear panel details ..........................5 Technical data ..........................6 Installation ............................8 6.1. -
Page 3: Safety Instructions
W R X - 1 1. Safety instructions This device is suitable for indoor use only. All modifications to the device will void the warranty. Repairs are to carry out by skilled personnel only. Use only fuses of the same type and original parts as spare parts. Protect the unit from rain and humidity to avoid fire and electric shocks. -
Page 4: Description
WRX-1 can be used for both Multicasting and Point-to-Point systems. In a Multicast system, each DMX 512 device has its own WRX-1, which negates the need for DMX 512 cable as the entire system is wireless. In a Point-to-Point situation, W-DMX is used to “bridge” a distance. -
Page 5: Front Panel Details
W R X - 1 3. Front panel details ON: correct Power input present Antenna Shows the receiving state OFF: not linked with a transmitter ON: linked with a transmitter Rapid Flash: Linking with transmitters 4. Rear panel details DMX Out 3Pin XLR 5Pin XLR Rj45... -
Page 6: Technical Data
W R X - 1 5. Technical data DMX INTERFACE Full compliance with USITT DMX-512 (1990) & 512-A standards Maximum number of transceivers on a single bus: 32 (compliant with the EIA/TIA RS-485 standard) Data rate 250kbps (slew rate limited to minimize EMI) Electrostatic discharge protection +/- 15 kV DMX frame rate and frame size... - Page 7 W R X - 1 Enclosure Diecast aluminium casing Operating temp range 0°C to +55°C (32°F to 131°F) 219 x 45 x 131 mm (8.6“ x 1.8“ x 5.2“) Dimensions (W x H x D) Weight 1005 g (35.45 oz) Connectors N-type female antenna connector, N-RP-SMA adaptor included 2 Neutrik XLR 5-pin gold plated DMX connectors...
-
Page 8: Installation
W R X - 1 6. Installation 1. Attach the antenna to the connector on the front panel. If using the standard antenna, use also the supplied adaptor. 2. Link the DMX source to the DMX out socket on the rear panel. 3. - Page 9 W R X - 1 Importer: B&K Braun GmbH Industriestraße 1 D-76307 Karlsbad-Ittersbach www.bkbraun.com info@bkbraun.com 9 / 9...
