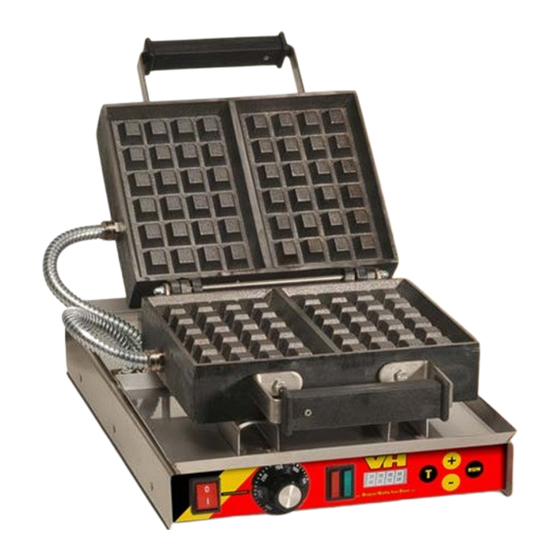

L i e g e Wa f f l e Ma k e r

V H - L W I - 0 1 / V H - L W I - 0 2

B r u s s e l s Wa f f l e Ma k e r

V H - B W I - 0 1 / V H - B W I - 0 2

Wa f f l e o n a s t i c k Ma k e r

V H - W S I - 0 1 / V H - W S I - 0 2

U S E R G U I D E

v 1 . 4 J u n 2 0 1 2

Table of Contents

Need help?

Do you have a question about the VH-LWI-01 and is the answer not in the manual?

Questions and answers

Summary of Contents for VH VH-LWI-01

Page 1 L i e g e Wa f f l e Ma k e r V H - L W I - 0 1 / V H - L W I - 0 2 B r u s s e l s Wa f f l e Ma k e r V H - B W I - 0 1 / V H - B W I - 0 2 Wa f f l e o n a s t i c k Ma k e r V H - W S I - 0 1 / V H - W S I - 0 2...
Page 2: Table Of Contents
VH Professional Waffle Iron User Manual Series : VH-LWI01 / VH-LWI02 VH-WSI01 / VH-WSI02 VH-BWI01 / VH-BWI02 Contents Page 2 Safety Notice Page 5 Control Panel Overview Page 6 Extra Features Semi Digital waffle maker Page 7 Setting Semi Digital waffle maker...
Page 3: Safety Notice
SAFETY NOTICE When using this electrical appliance, basic safety precautions should always be followed, including the following: Read all instructions before using.  Do not touch hot surfaces; use handles only.  To protect against a risk of electric shock, do not immerse cord, plug or any other part of this waffle iron in water or other liquid.
Page 4  Do not place on a hot gas or electric burner, in a heated oven or microwave.  When using this appliance, provide adequate air space above and on all sides for air circulation. On surfaces where heat may cause a problem, an insulated hot pad is recommended.
Page 5 Warranty VH warrants this product against any defects that are due to faulty material or workmanship for a one-year period after the original date of customer purchase. This warranty does not include damage to the product resulting from accident, misuse, acts of God or repairs performed by unauthorized personnel.
Page 6: Control Panel Overview
CONTROL PANEL OVERVIEW Front VH-LWI-01 / VH-BWI-01 / VH-WSI-01 1. ON/OFF bipolar master switch with integrated pilot light. 2. Set temperature reference marker. 3. Thermostat control dial, adjustable between 0 to 300C°. 4. Red pilot light, lights up as the thermostat heats up.
Page 7 EXTRA FEATURES Only available on semi-digital models, VH-LWI-02, VH-BWI-02 , VH-WSI-02 SETTING THE BAKING TIMER  Press and hold the “T” button to enter the time set.  Wait until the digital display starts to flash (approximately 2 seconds). ...
Page 8 SETTINGS MENU  Press and hold both the “+” and the “-“ button simultaneously for about 2 seconds until “SET” appears in the digital display.  Press “+” or “-“ to scroll through the settings menu marked as follows : ...
Page 9: Waffle Iron Initialization
WAFFLE IRON INITIALIZATION Before using for the first time, the baking surfaces should be cleaned with a moist cloth. Do not immerse unit in water. Following first time actions should also be followed to insure proper operation. These will not be necessary on subsequent occasions. Please note that the waffle initialization process should be done in well ventilated area.
Page 10: Baking Instructions
BAKING INSTRUCTIONS DO NOT EAT THE FIRST SET OF WAFFLES IF YOU COMMENCE BAKING EMMEDIATELY AFTER INITIALIZATION. 1. Plug cord into a dedicated electrical outlet and turn on. The green power on light illuminates. 2. Completely open the waffle iron and set the thermostat to 200°C. 3.
Page 11: Helpful Tips
 Allow yourself ample time to get used to the waffle iron, experiment with dough and mixes adjusting your temperature setting and timing to bake your perfect waffle. Waffle on a stick maker , VH-WSI-01 or VH-WSI-02 Page 10...
Page 12: Maintenance And Cleaning
MAINTENANCE & CLEANING The outer frame and base: Before cleaning your appliance, unplug it and let the iron cool down. Clean the frame with a sponge dipped in warm water and liquid detergent. Stubborn marks may be removed with a fit-to-purpose product. Never use abrasive products or metallic brushes.
Page 13: Recipes
12. Using a ladle, pour some dough into one side of the waffle grids ; close and flip the waffle grid. 13. Bake for about 2min 30sec at 200°C. Experiment with the temp setting of the waffle iron to obtain your preferred waffle texture. Brussels Waffle , VH-BWI-01 or VH-BWI-02 Page 12...
Page 14 Add 450gr of pearl sugar and divide the mixture into dough-balls. Leave the dough-balls to rest for a couple of hours at room temperature prior to baking them. Liege waffle or Pearl sugar waffle , VH-LWI-01 or VH-LWI-02 Page 13...
Page 15 - Pearl sugar waffle mix - - Waffles on a stick mix - Sales is exclusively done via our websites VH commercial waffle makers are custom made for V&H Corporation cvoa in Luxembourg. (c) by V&H Corporation cvoa all rights reserved.
Page 16 w w w . B e l g i a n W a f f l e I r o n S t o r e . c o m w w w . W a f e l i j z e r W i n k e l . b e w w w .

This manual is also suitable for:

Vh-lwi-02 Vh-bwi-01 Vh-bwi-02 Vh-wsi-01 Vh-wsi-02
