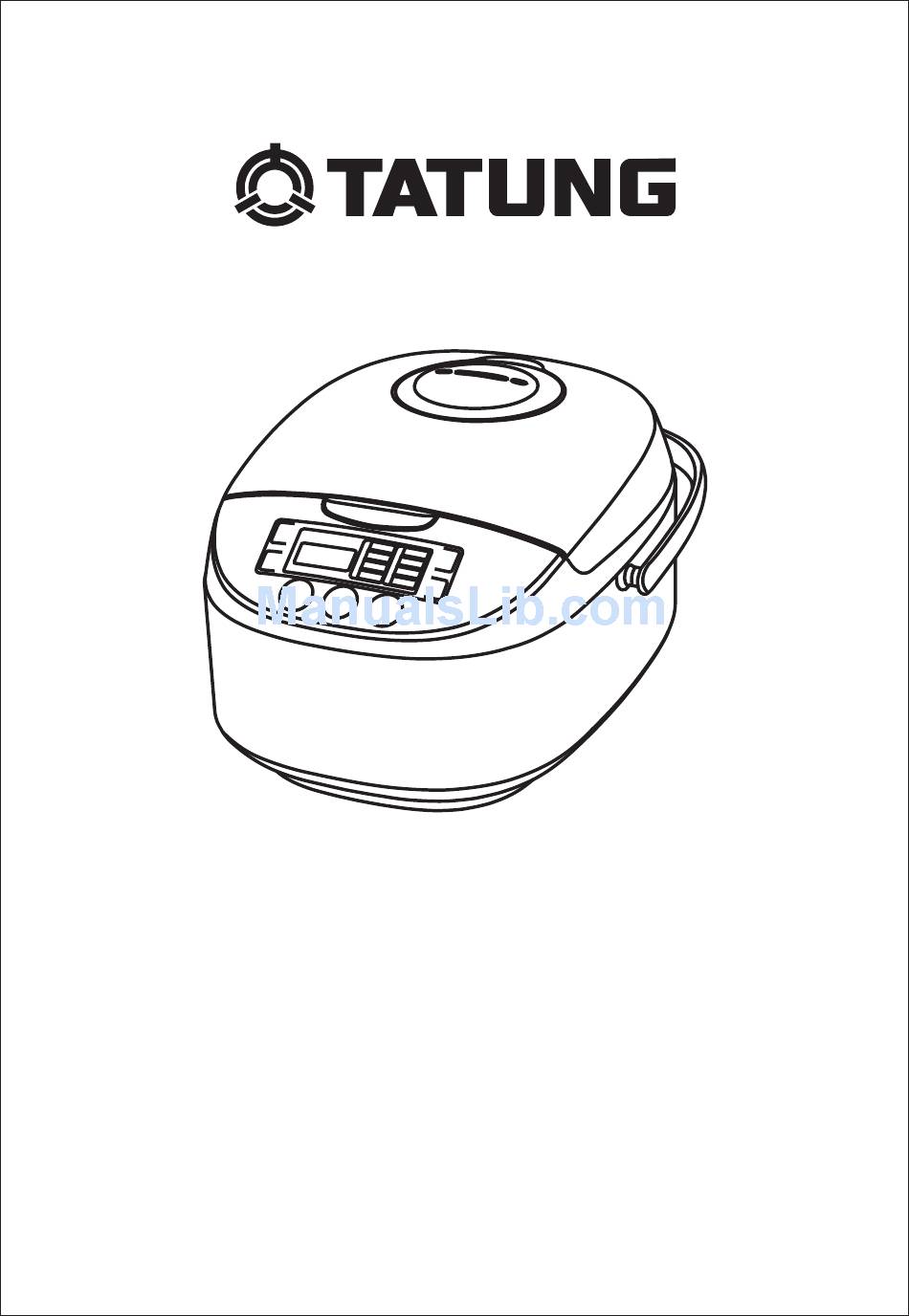

Model No.: TFC-5817 User Manual Thank you for purchasing the Tatung Electric Rice Cooker. Please read the user Manual carefully before using and keep it for future reference. Diagram images are for reference only, and may not be your exact model.
Contact Tatung customer service for examination, repair or adjustment. 8. The use of accessory attachments not recommended by Tatung may result in fire, electrical shock or injury. 9. Do not use outdoors.
19. Use extreme caution when opening the lid during or after cooking. Hot steam will escape and may cause scalding. 20. Rice should not be left in the inner cooking pot with the Keep-Warm function on for more than 12 hours. 21.
Polarized Plug This appliance has a polarized plug (one blade is wider than the other); follow the instructions below: To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician.
Parts Name Cover Removable Inner Lid Open Removable Button Inner Pot Control Panel Handle Cooker Base Power Cord Accessories Measuring Spoon Scoop Steamer...
Control Panel Warm/Cancel Button If you want your food to stay warm (around 158-168°F) after cooking, press this button. The indicator light Standby Mode will be on when the warming mode (----)on the display is active. This button only works in indicates that the Standy Mode.
Page 7
Cooking Modes/Menu Your rice cooker features many cooking options. The 3 common cooking modes are listed below. These cooking modes are prominently displayed on your rice cooker. 1. Congee the default cook time is 2hr. Use the Hour or Min button to adjust the time from 1.5hr to 4hr.
Page 8
Cooking Modes/Menu 6. Stew the default cook time is 2 hr. Use the Hour or Min button to adjust the time from 45 min to 2 hr. 7. Slow Cook the default cook time is 2 hr.Use the Hour or Min button to adjust the time from 2 hr to 10 hr.
Initial Use Clean Before First Time Use 1. Wash lid and accessories in warm soapy water. Rinse and dry thoroughly. 2. Remove inner pot from rice cooker and clean with warm soapy water. Rinse and dry thoroughly before returning to cooker 3.
Page 10
5. Place the inner pot into the cooker 6. Close the lid on the cooker until you hear a "click" sound 7. Plug the power cord into the wall outlet. Once the power cord is plugged in correctly the LED will display "----" and the indicator light on the Start button will flash.
Page 11
Timer Your rice cooker features a 24 hour timer. Select your cooking function then press "Timer". The default time for the Timer is 2 hours (2:00 will be displayed on the timer and it will flash). Use the Hour or Min button to adjust the time.
Page 12
keep Warm Your rice cooker will automatically keep food warm for you after the cooking process is complete. The "Warm" indicator light will light up to indicate that it is in "Warm" mode and the number 0 will be displayed under Hour.
Page 13
Reheat The "Reheat" button will heat at a temperature of 248°F~266F, which is a higher temperature than the "Warm" mode temperature of 158°F~ 168.8°F. Use the "Reheat" button if you would like to make your food hotter than 158F~168.8F. We suggest sprinkling a small amount of water over your rice to add moisture.
Page 14
Cleaning Inner Lid Instructions After removing inner lid, Dry this area with a dry wipe the inside panel with cloth. a dry cloth Cleaning Inner Pot and Heating Plat Remove the inner pot. Using a dry cloth to dry any visible water on the heating plate.
Method of disassembling and cleaning the cover plate Push down inner lid set holder here after you’ve released the inner lid Press here Clean the inner lid with soap Water(Hand wash only) To remove the inner lid, press down on the left Dry the inner and right release buttons.
Page 16
Cleaning and Maintenance Clean the cap Clean it with water after opening. To install the steam cap, Press it down to install the steam valve. align the unlock/lock icons under the lines and turn it clockwise to lock.
Troubleshooting When you think that the product has problem, please carefully check the following circumstances before contact the customer service Department. Problem Possible Causes Solution Key did not respond The power cord loose Plug the power cord securely Water Add too much Add correct amount of water and rice Inner bottom of the pot section had Clear stained rice from inner pot...
Schematic circuit diagram 120V~60Hz Temperature fuse Connection wire Display Black panel Power panel Heating plate Blue Bottom sensor White Cover sensor Black...
1-800-827-2850 Ext. 242 Tatung USA One Year Warranty 1. One year carry in warranty from the day of purchase. 2. During the warranty, Tatung USA will not be responsible of the condition listed as below: a. lmproper use or self-disassembly.
Page 20
VIII.DISCLAIMER Information in this User's Manual is subject to change without notice.Tatung assumes no responsibility for any inaccuracies that may be contained in this User's Manual. If you find information in this manual that is incorrect, misleading, or incomplete, we would appreciate your comments and suggestions...
Page 39
1-800-827-2850 Ext. 242 Tatung USA One Year Warranty 1. One year carry in warranty from the day of purchase. 2. During the warranty, Tatung USA will not be responsible of the condition listed as below: a. lmproper use or self-disassembly.
Page 40
VIII. 免责声明 本用户手册信息如有更改,恕不另行通知。对于本用户手册 所包含的任何误差,大同公司不承担任何责任。如果您发现 本手册存在任何错误、误导性或不完整信息,请及时告知。 对于您的意见和建议,我们将不胜感激。...
