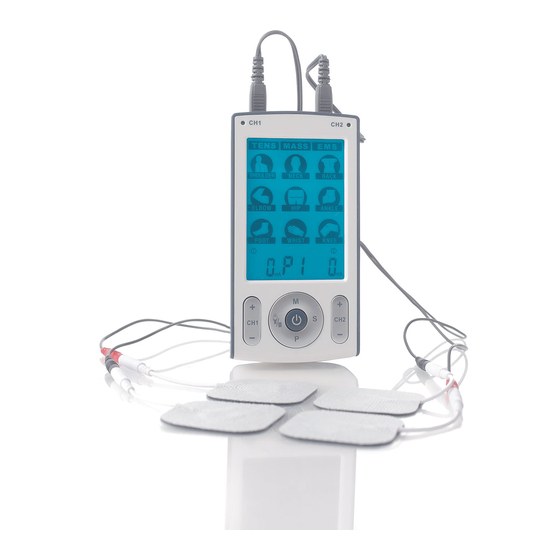

3 IN 1 COMBO STIMULATOR
INSTRUCTION MANUAL
Advertisement
Table of Contents
Summary of Contents for KYARA LT3011A
-
Page 1: Instruction Manual
Distributed by: Fax. +39 055 96 21 200 Via Bruxelles, 3 - Meleto www.morettispa.com 52022 Cavriglia (Arezzo) info@morettispa.com Tel. +39 055 96 21 11 Manufacturer: Name: Shenzhen Dongdixin Technology Co., LTD. Add: No.3 Building XiliBaimang Xusheng Industrial Estate, Nanshan Shenzhen, China 518108 Tel: 0086-755-27652316 Authorized EC-representative: Shanghai International Holding Corp. -
Page 2: Table Of Contents
Table of Contents This manual is valid for the LT3011A REF.LTK545 This user manual is published by Shenzhen Dongdixin 1. Foreword................4 Technology Co., LTD. 1.1 Introduction 1.2 Medical background Shenzhen Dongdixin Technology Co., LTD. does not 2. Safety information.............7 guarantee its contents and reserves the right to improve and 2.1 Indication for use... -
Page 3: Foreword
5. Therapy program............24 6. Cleaning and maintenance..........29 1.1 Introduction 6.1 Cleaning the device The LT3011A Ref.LTK545 is a battery operated pulse 6.2 Cleaning the electrodes generator that sends electrical impulses to the body and 6.3 Cleaning the Electrodes cords reach the nerves and underlying muscle group,this is a unit 6.4 Maintenance... - Page 4 and/or physical treatments. TENS does not always treat the muscle contraction. Neuromuscular stimulation has many cause of pain. Consult your doctor if pain persists. uses beyond its traditional application to prevent disuse atrophy. How Does TENS Control Pain? The device provides pain relief in two ways. The first is the How does EMS work? gate control method.
-
Page 5: Safety Information
2. Safety information 2.3 Warning The long-term effects of chronic electrical stimulation 2.1 Indications for use are unknown. This device is used in following instance: For external use only. 1) Symptomatic relief of chronic intractable pain, acute This device should be used only under the continued post traumatic pain or acute post surgical pain. -
Page 6: Precautions
risk of ventricular fibrillation and lead to cardiac arrest. by a person qualified in the management of pain Never use on the eye area, or applied across or through afflicted patients. the head. Isolated cases of skin irritation may occur at the site of Never use near the genitals. -
Page 7: Adverse Reactions
3. Presentation Inspect Applicator cables and associated connectors before each use. 3.1 Reception of equipment and accessories Electrical stimulators should be used only with the leads Your stimulator is supplied with case containing: A. 1pc the stimulator and electrodes recommended for use by the B. -
Page 8: Lcd Display
(5) [CH1+] key: (14) Battery cover Increasing the output intensity of channel 1. (15) Socket for channel 1 ◆ (6) [ ] key: (16) Socket for channel 2 In user select mode: To select the user (U1 or U2); ◆ In memory mode: To check the memory data and ◆... -
Page 9: Technical Information
4. Instructions for use 3.4 Technical information Material:-------------------------------ABS 4 .1 Check Battery Channel:-------------------------------Two channel Insert a fresh 4xAAA batteries into the battery compartment. Power supply:----------------------- 4x AAA batteries Make sure you are installing the battery properly.The battery Waveform:----------------------------Biphase square-wave pulse is inserted in the casing on the back of the stimulator. -
Page 10: Connect Electrodes To Lead Wires
4.3 Connect lead wires to the device Never remove the self - adhesive electrodes from the LT3011A Ref.LTK545 has two output channels, skin while the device is still switched on. the user can use one channel with... -
Page 11: Select The Therapy Mode And Treatment Part
You can select U1 or U2 by press [ ] button, the device will 4.7 Select the therapy program enter into waiting mode after press [ S ] button. There are 3 therapy modes and 9 treatment parts in this device, each treatment part has 3 or 4 programs in one Caution：... -
Page 12: User Program Setting
Caution: The strength/intensity of stimulation may be adjusted depending upon the individual requirement of the user. The maximum intensity level is 90, 1level/step. Before removing the electrode pads please make sure the device turned off first. The safety lock feature automatically activates after there is no press any button in 20 seconds. -
Page 13: Turn The Device Off
5. Therapy program Caution: The device will return to waiting mode when you press [ ] button or 30 seconds later. There are 3 therapy modes (TENS, EMS and MASSAGE) Press and hold [ S] button for 3 seconds, the total and 9 treatment parts (SHOULDER, NECK, BACK, ELBOW, recording number will flash on LCD when the device in HIP, ANKLE, FOOT, WRIST and KNEE) in this device, each... - Page 14 5.2 EMS program: -25- -26-...
- Page 15 5.3 MASSAGE program: Pulse Work Rest Treatment Pulse width rate time time Program Phase Therapy part program Time(min) (µs) (Hz) SHOULDER P1，P2， P3，P4 50~220 NECK P2，P3，P4 50~220 BACK P1，P2，P3 50~220 ELBOW P2，P3 30~220~150 12.0 P1，P2，P3，P4 30~220~150 10.3 ANKLE P3，P4 30~220~150 FOOT P3，P4 30~220~150...
-
Page 16: Cleaning And Maintenance
6. Cleaning and maintenance To use these electrodes: Attach the electrode to the lead wire. 6.1 Cleaning the device Remove the protective backing from the electrode Remove the batteries from the device every time surface. Do not throw away the protective backing before cleaning. - Page 17 7.Trouble-shooting 6.4 Maintenance Maintenance and all repairs should only be carried out If your device does not seem to be operating correctly, refer by an authorized agency. The manufacturer will not be to the chart below to determine what may be wrong. Should held responsible for the results of maintenance or repairs none of these measures correct the problem, the device by unauthorized persons.
- Page 18 8. STORAGE For a prolonged pause in treatment, store the device in a dry room and protect it against heat, sunshine and moisture. Store the device in a cool, well-ventilated place Never place any heavy objects on the device. 9. DISPOSAL Used fully discharged batteries must be disposed of in a specially labeled collection container, at toxic waste collection points or through an electrical retailer.
-
Page 19: Normalized Symbols
Disposal in accordance with Directive 2002/96/EC (WEEE) The warranty period for LT3011A Ref.LTK545 products is one year from date of purchase. In case of a warranty Complies with the European Medical Device claim, the date of purchase has to be proven by means Directive (93/42/EEC) and amended by of the sales receipt or invoice. - Page 20 Appendix: Stimulation position Muscular Placement of Stimulation Voluntary start of the groups electrodes positions contraction phase Hams- Lie flat on your Contract vigorously Muscular Placement of Stimulation Voluntary start of the groups electrodes positions contraction phase trings stomach with the muscles on the your ankles fixed back of the thigh Plantar...
- Page 21 Muscular Placement of Stimulation Voluntary start of the Muscular Placement of Stimulation Voluntary start of the groups electrodes positions contraction phase groups electrodes positions contraction phase Lie down stretched out Abdominal Strongly contract Erector Take up a seated Vigorously contract on your back, which muscles your abdominal...
- Page 22 Muscular Placement of Stimulation Voluntary start of the Muscular Placement of Stimulation Voluntary start of the groups electrodes positions contraction phase groups electrodes positions contraction phase Pectoralis Take up a seated Vigorously contract Hand Take up a seated Strongly contract position, with the your pectoral muscles, flexors...
