SCHWINTEK IN-WALL™ SLIDEOUT TROUBLESHOOTING
16. Apply OEM recommended sealant to the entire length of the slide column along the inside edge where
it will contact the side face of the unit.
17. Remove the shipping angles from the system (Fig. 4A).
18. Gently slip the system through the opening between the slide room and the side wall opening. Tuck
the gear racks inside the bulb seal attached to the T-molding.

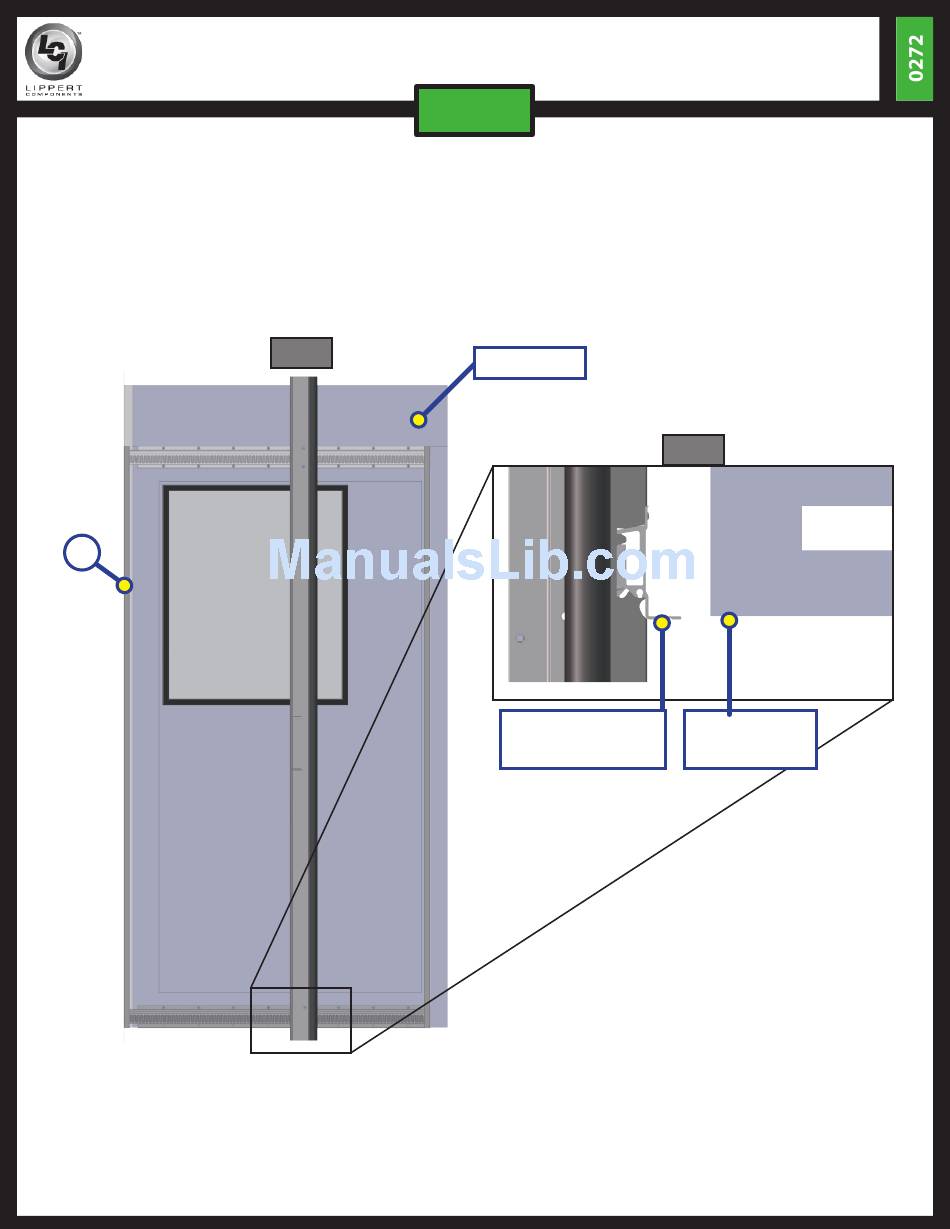

19. Align the bottom lip of the lower gear rack with the bottom edge of the slide room (Fig. 5).
A
20. Push the bottom gear rack tight against the bottom of the slide room and put a screw into each end of
the gear rack.
Contact us: Lippert Components Inc. - www.lci1.com/customerservice - Phone: (574) 537-8900 - Email: warranty@lci1.com
June 17, 2014 10:35 AM
AND COMPONENT REPLACEMENT
SLIDEOUTS
Fig. 4
Slide Room
Lower Gear Rack
Alignment Flange
Page 5
Fig. 5
Bottom Edge
of Slide Room
LIP Sheet -0272
