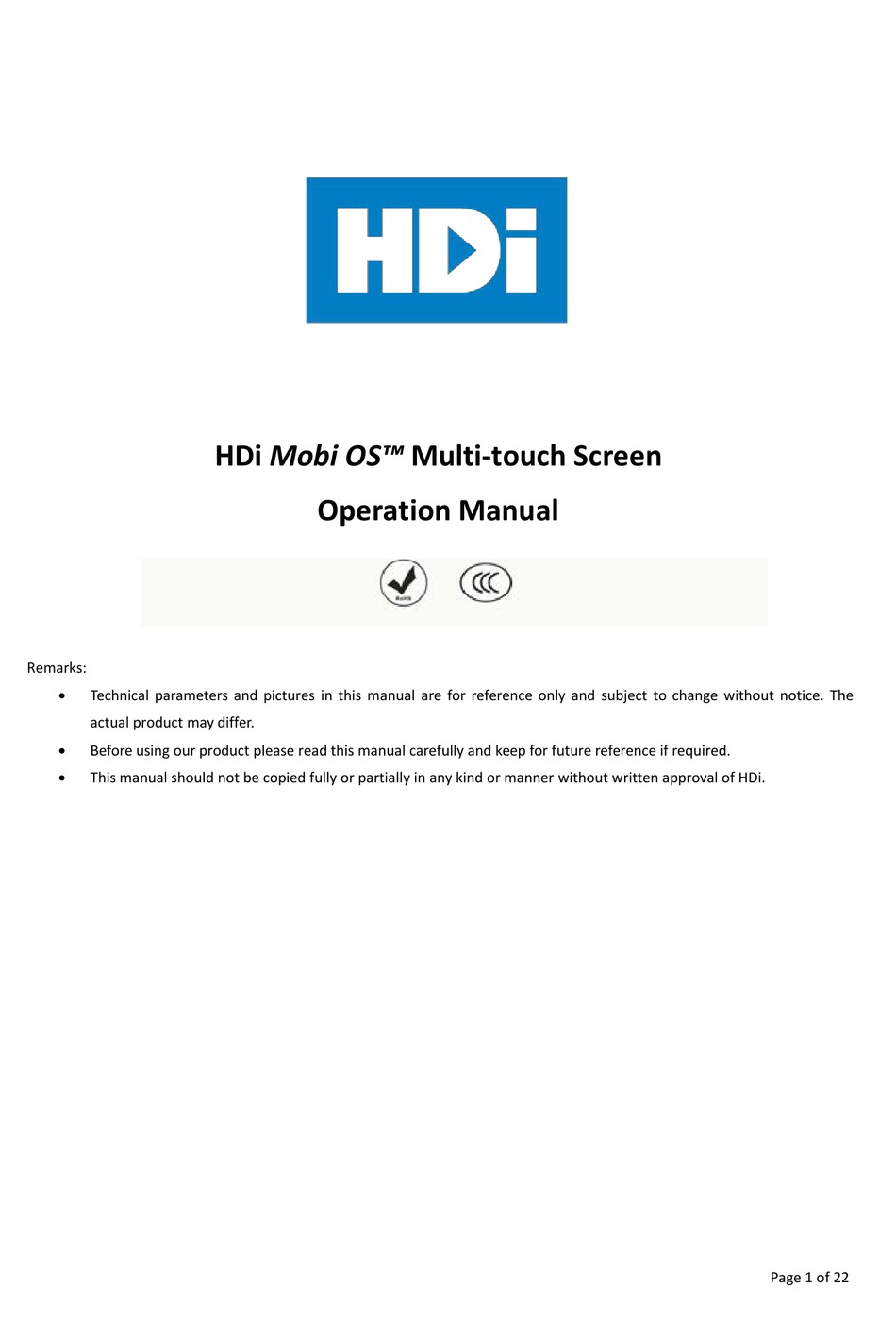

HDi Mobi OS™ Multi-touch Screen

Operation Manual

Page 1 of 22

Table of Contents

Need help?

Do you have a question about the mobi os and is the answer not in the manual?

Questions and answers

Summary of Contents for HDI mobi os

Page 1 Before using our product please read this manual carefully and keep for future reference if required.  This manual should not be copied fully or partially in any kind or manner without written approval of HDi. Page 1 of 22...
Page 2: Introduction
HDi is dedicated to developing and improving the performance and reliability of our products. We have designed and manufactured this device with one objective in mind and that is to ensure that our customers’ needs and user experience are fulfilled.
Page 3: Safety Considerations
Safety considerations WARNING Do not place containers with liquid on or near this product. Use only dry cloth to clean. Do not block any ventilation holes. Install this product according to manufacturer’s specifications A distance of at least 160mm must be kept from this product and other objects and/or walls. Do not install this product near heat sources.
Page 4: Table Of Contents
Contents Introduction..............................2 Safety considerations............................3 Main functions............................. 5 Technical specification..........................5 Front panel of interactive display........................ 8 Rear view of interactive display........................9 Side/rear port description..........................10 RCU (Remote Control Unit)........................12 Introduction of OSD............................13 Operation of OSD — How to choose analog channel................13 Full touch..............................19 Connecting PC............................19 Page 4 of 22...
Page 5: Main Functions
The HDi multi-touch display is a combination of two advanced technologies. The IR (Infrared) touch technology and high definition (HD) digital display technology (HDTV) creating the HD Interactive Android Version Multi Touch Screen (MTS). This combination provides the user the ability to interact with an HDTV screen using a finger or any solid object.
Page 6 HDMI input 3 X HDMI-A (horizontal), one inside. RS232 1XRS232 Output AV OUT 1 X 3.5mm Stereo audio-in jack terminals Processor Mobi OS™ (Built on Android 4.2.2) Frequency 1.5GHz Mobi OS™ INAND 4GB specification wifi 2.4G SD CARD port RJ 45 port Voltage range AC(90～240)V-50/60HZ...
Page 7 Technical Specification (touch parameters) Working temperature 0°C～40°C Set up As per this Operations Manual Touch points Single/Two/Four/Six points available Writing mode Finger, writing pen or any non-transparent object Positioning technology IR technology Positioning accuracy <2mm Positioning resolution 4096*4096/16384*16384/32768*32768 Writing response time <8ms Cursor speed >180 dot/sec...
Page 8: Front Panel Of Interactive Display
Front panel of interactive display 55’’ J-RCU receiver and button lamp A-Turn On/Off P-Android USB B-Source input Q-PC USB C-Menu R- HDMI 3 D-Volume+ S-TOUCH USB E- Volume- F- Channel+ G-Channel-(Menu item+/-) H-Power in, AC110-220V I-Switch K & L - Speaker Note: Front panel picture for reference only may differ from actual product Page 8 of 22...
Page 9: Rear View Of Interactive Display
Rear view of interactive display Note: Reference only may differ from actual product 1.Touch port 2.USB 3.0 3.Headphone 4.OPTICAL 5.AV OUT 6.YPBPR 7.AV2 IN 8.AV1 IN 9.RS 232 10.PC audio 11.RJ 45 12.SD CARD 13.USB 1 (2.0) 14.USB 2 (2.0) 15.HDMI 1 16.HDMI 2 17.VGA...
Page 10: Side/Rear Port Description
Side/rear port description Side View Remark: For reference only. Video Input: Connect VGA cable with interactive touch HDTV and source. Audio Input: When using VGA input, an audio cable is needed to connect PC and HDTV. Touch Input: Using a USB cable to connect PC and interactive touch HDTV Page 10 of 22...
Page 11 Packing List Part name Quantity RCU (Remote Control Unit) Warranty Card USB cable (1.5 Meter, B-type) USB cable (1.5 Meter, A-type) Writing Pen (3 pieces with different color) Marker Accessory Box CD for Touch frame User Manual Wall Mount Brackets Wall Mount Screws Power cable (1.8 meter, Australia specification) VGA cable (1.8 meter, black)
Page 12: Rcu (Remote Control Unit)
RCU (Remote Control Unit) 1)Standby: turn on or turn off the machine 2)Mute: mute or restore the sound 3)0-9 numeric key: selection or input number 4)DIS: display the screen 5)CHLISI: program list under TV ,can be edited,deleted or skipped etc 6)INPUT:enter or select source channel 7)MENU: enter or exit from the menu 8),12),9),10) up/down/left/right: select up/down/left/right...
Page 13: Introduction Of Osd
Introduction of OSD Operation of OSD — How to choose source input 1. The source input can be selected by three different methods. 1.1 Press “Source” to choose 1.2 Press “▲（Source）”as follows to choose 1.3 Press “Source”on the front panel or remote control to choose. Page 13 of 22...
Page 14 2. It will showed as follows after choosing the “Source” 3. When “Source”showed as above, there are three ways to enter it： 3.1 Directly click. 3.2 Select "source" and then automatically enter it. 3.3 Press “▲▼”to select the signal channel wanted and then press "OK" to confirm.
Page 15 *Sound 1.1 Directly click on the icon to choose. 1.2 Press“ ▲▼”to select. Press " ◄► " to confirm the submenu and adjust the value. Press " ◄► " to move the wanted submenu(purple color light means to be selected) *Adjust 1.1 Press “Adjust”to select the submenu.
Page 16 How to use Network setting Press “main page” to enter, press " ▲▼◄► " button to select [system setting] and press “enter”. Press " ▲▼ " button to select Choosing the net connection mode and setting up the right number. “Net Settings”and press“enter”...
Page 17 press“Enter”to enter the wireless network setting. 2) Press "◄► " to select [Search] to enter the network setting, press " ▲▼ " to select the WI-FI network from the list, press " ▲▼" to select[Next ] and press enter 3) Password: Input the WI-FI password, press “Enter”and then press " ▲▼◄► " to select [Finish] and press“Enter”, then press " Page 17 of 22...
Page 18 ▲▼◄►" to select “Next”to start the wireless connection. Network Status Lookup Check the connection status. Remote control Page 18 of 22...
Page 19: Full Touch
Full Touch Open the MTS, Android characters will disappear on the bottom right corner of screen, and then using finger or touch pen draws straight line upwardly (the line should be longer then 10CMS) in the middle of the border-bottom. If the menu of the full touch does not appear, please try it again, and see the picture of Menu as follow: Connecting PC 1) Leave the HDTV unit powered off...
Page 20: Trouble Shooting
1) Connect USB cable to the PC and to the touch port of the HDTV unit. 2) Power up the HDTV unit and use the remote control unit (RCU) to select input source (HDMI Source) 3) Use cables supplied together with this HDTV unit. The HDTV unit has a driver-less touch frame.
Page 21 ● Corrective actions: Re-connect VGA or HDMI line and check if it is fixed firmly ● Select the right input source No Audio ● Possible causes: audio line not connected, check audio output from PC (e.g. volume, mute, etc.) ● Corrective actions: Ensure audio cable is connected if using VGA, check volume and mute output in PC Touch frame issues ●...
Page 22 ○ ○ ○ ○ ○ ○ Accessories ○ ○ ○ ○ ○ ⅹ * : PCB parts includes PCB board and its components, such as resistor, capacitor, IC, connector etc. ○: Represents toxic and hazardous substance content contained in all homogeneous materials of designated part below National Standards of SJ/T 1364-2006.
