Induction Cooktop
Model Number STR-B60ICSG
INSTRUCTION MANUAL
AFTER SALES SUPPORT
info@tempo.org
AUS
1300 886 649
MODEL: STR-B60ICSG PRODUCT CODE: 56422 04/2017
N13275

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STR-B60ICSG and is the answer not in the manual?

Questions and answers

Related Manuals for Stirling STR-B60ICSG

Summary of Contents for Stirling STR-B60ICSG

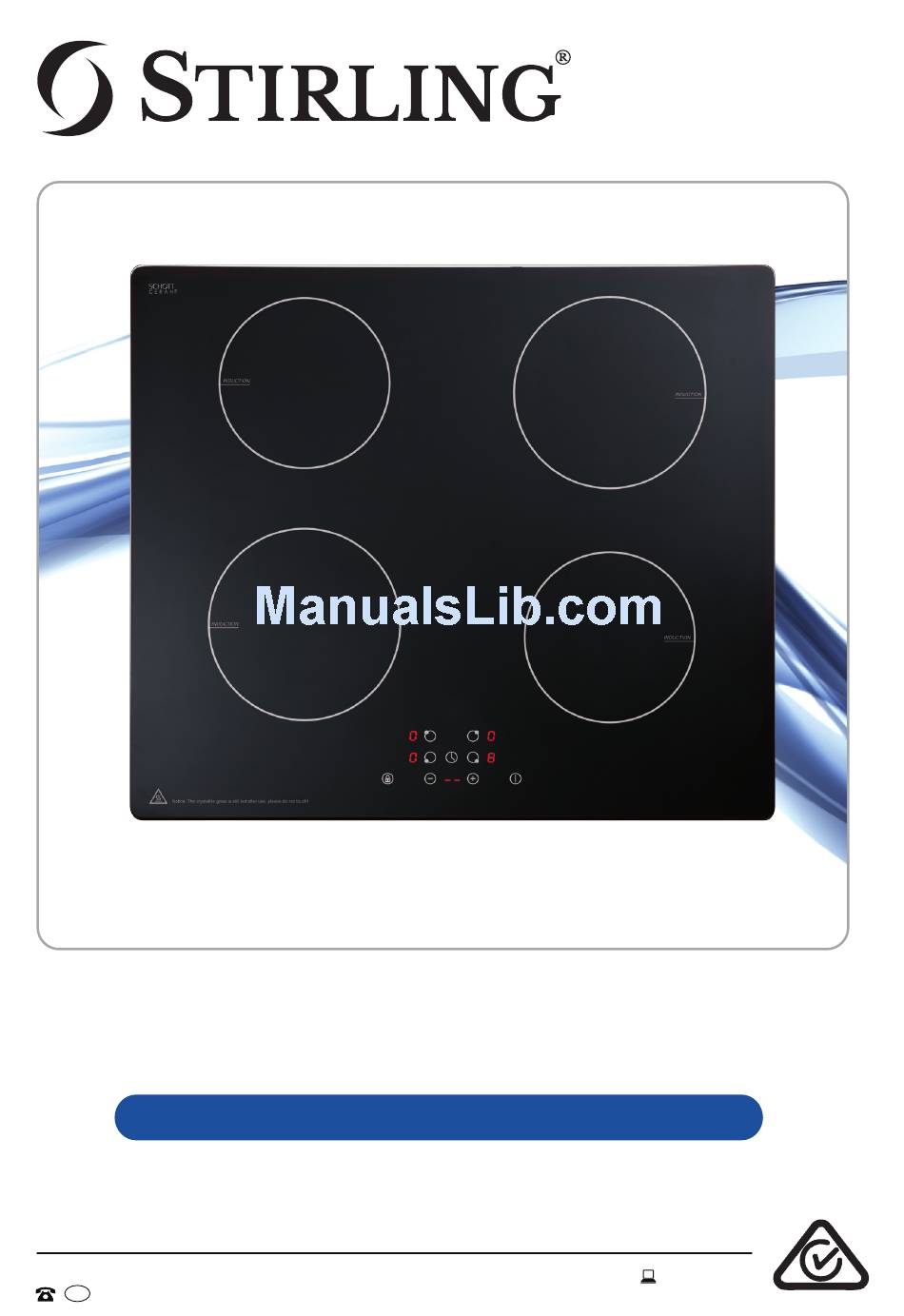

  • Page 1 Induction Cooktop Model Number STR-B60ICSG INSTRUCTION MANUAL AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-B60ICSG PRODUCT CODE: 56422 04/2017 N13275...

  • Page 2: Welcome

    Welcome Congratulations on choosing to buy a STIRLING product. ® ® All products brought to you by STIRLING are manufactured to the highest standards of performance and safety and, as part of our philosophy of customer service and satisfaction, are backed by our comprehensive 3 Year in Home Warranty.

  • Page 3: Table Of Contents

    08 Product Overview 10 Installation 19 Getting Started 22 Instructions 31 FAQs & Troubleshooting Guide 34 Other Useful Information 39 Repair and Refurbished Goods or Parts Notice AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-B60ICSG PRODUCT CODE: 56422 04/2017...

  • Page 4: Warranty Details

    You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-B60ICSG PRODUCT CODE: 56422 04/2017...

  • Page 5: General Safety Instructions

    RCD with a rated residual operating current not exceeding 30mA to provide additional safety protection when using electrical appliances. See your electrician for professional advice. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-B60ICSG PRODUCT CODE: 56422 04/2017...
  • Page 6 Handle with care: Do not place or drop heavy objects on your cooktop. Do not stand on your cooktop. Do not use pans with jagged edges or drag pans across the induction glass surface as this can scratch the glass. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-B60ICSG PRODUCT CODE: 56422 04/2017...
  • Page 7 Saucepan handles may be hot to touch. Ensure that saucepan handles do not overhang other cooking zones that are on. Keep handles out of reach of children. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-B60ICSG PRODUCT CODE: 56422 04/2017...

  • Page 8: Product Overview

    Product Overview Induction Cooktop Layout Control Panel Layout AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-B60ICSG PRODUCT CODE: 56422 04/2017...
  • Page 9 Due to continued product improvement, images and illustrations in this manual may vary slightly from the product purchased. All images in this manual are for reference purposes only. Parts are not necessarily pictured to scale. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-B60ICSG PRODUCT CODE: 56422 04/2017...

  • Page 10: Installation

    Alterations to the domestic wiring system must only be made by a qualified electrician. Failure to follow this advice may result in electric shock or death. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-B60ICSG PRODUCT CODE: 56422 04/2017...
  • Page 11 If the appliance is going to be used for prolonged periods of time, additional ventilation may be required. If in doubt about your ventilation requirements, consult your qualified installer. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-B60ICSG PRODUCT CODE: 56422 04/2017...
  • Page 12 • Electrical impedance: This appliance must only be connected to an electricity supply with system impedance of no more than 0.427 ohm. If necessary, please consult your electricity provider for system impedance information. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-B60ICSG PRODUCT CODE: 56422 04/2017...
  • Page 13 There are ventilation holes around the outside of the cooktop. When you put the cooktop into position, you must ensure that these holes are not blocked by the worktop. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-B60ICSG PRODUCT CODE: 56422 04/2017...
  • Page 14 Air Outlet ≥5 <35 Seal Application The installation hardware includes some sealing tape which when applied around the cooktop prevents liquid from entering the cabinet. To apply it: AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-B60ICSG PRODUCT CODE: 56422 04/2017...
  • Page 15 (Fig. 4). Screw hole Bracket Base Screw • Adjust the bracket position to suit your benchtop thickness (Fig. 5). Glass Retaining bracket Screw ST3.5*8 cabinet Worktop/kitchen Bottom case AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-B60ICSG PRODUCT CODE: 56422 04/2017...

  • Page 16: Electrical Connection

    • Care must be taken to avoid the cable being in contact with hot parts of the appliance. • IMPORTANT: The appliance must NOT be connected to the mains supply by means of a 10A cord and plug. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-B60ICSG PRODUCT CODE: 56422 04/2017...
  • Page 17 For a single-phase installation using a 3-core cable (not supplied), join the two live contacts and the two neutral contacts inside the terminal block with the aid of a link wire (not supplied). Fig. 6 AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-B60ICSG PRODUCT CODE: 56422 04/2017...
  • Page 18 Installation (Cont.) Wiring and Connection Diagram Fig. 7 Connecting Wires AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-B60ICSG PRODUCT CODE: 56422 04/2017...

  • Page 19: Getting Started

    The glass becomes hot only because the pan eventually warms it up. Fig. 8 Iron Pot Magnetic Circuit Ceramic Glass Plate Induction Coil Induced Currents AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-B60ICSG PRODUCT CODE: 56422 04/2017...

  • Page 20: Suitable Cookware

    • Do not use cookware with jagged edges or a curved base (Fig. 10). Fig. 10 AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-B60ICSG PRODUCT CODE: 56422 04/2017...
  • Page 21 (e.g. a utensil or a cloth) covering them. Even a thin film of water may make the controls difficult to operate. • Each touch control has a corresponding visual display (indicator light). Fig. 13 AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-B60ICSG PRODUCT CODE: 56422 04/2017...

  • Page 22: Instructions

    • See page 28 for recommended heat levels. You can modify the heat level at any time during cooking, just touch the cooking zone control first. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-B60ICSG PRODUCT CODE: 56422 04/2017...

  • Page 23: When You Have Finished Cooking

    24 for more on the residual heat indicator. • Turn the whole cooktop off by touching the ON/OFF control (Fig. 20). Fig. 19 Fig. 20 Fig. 18 AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-B60ICSG PRODUCT CODE: 56422 04/2017...
  • Page 24 However, do not rely on this feature; always switch off a cooking zone when you have finished cooking. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-B60ICSG PRODUCT CODE: 56422 04/2017...

  • Page 25: Safety Features

    4–6 4:00 example, if a zone is left unattended while 7–9 2:00 set to heat at power level 4, it will switch off automatically after four hours. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-B60ICSG PRODUCT CODE: 56422 04/2017...

  • Page 26: Using The Timer

    [ -- ] (Fig. 26). IMPORTANT: The cooktop will continue to cook, this timer function is a minute minder only, it does not turn Fig. 26 the cooktop ON or OFF. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-B60ICSG PRODUCT CODE: 56422 04/2017...
  • Page 27 [ – ] (Fig. 35). NOTE: To change the time after the timer is set, start from step 1. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-B60ICSG PRODUCT CODE: 56422 04/2017...

  • Page 28: Heat Settings

    3–4 ● Cooking rice ● Cooking pancakes 5–6 ● Sautéing 7–8 ● Cooking pasta ● Stir-frying ● Searing ● Bringing soup to the boil ● Boiling water AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-B60ICSG PRODUCT CODE: 56422 04/2017...

  • Page 29: Hints And Tips

    Do not use the cooktop if the surface is broken or cracked. Switch off the appliance immediately to avoid the possibility of electric shock and contact our after sales support centre for advice. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-B60ICSG PRODUCT CODE: 56422 04/2017...

  • Page 30: Cooking Guidelines

    • Stir the ingredients gently to make sure they are heated through. Serve immediately. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-B60ICSG PRODUCT CODE: 56422 04/2017...

  • Page 31: Faqs & Troubleshooting Guide

    “H” displayed. zone buttons? Knowing which cooking zone is still warm should also help you save energy for keeping food warm. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-B60ICSG PRODUCT CODE: 56422 04/2017...
  • Page 32 (typically alternating support centre. with one or two digits in the cooking timer display). AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-B60ICSG PRODUCT CODE: 56422 04/2017...
  • Page 33 Failure of the IGBT Contact our after sales support centre and F9 / FA temperature sensor arrange for a service. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-B60ICSG PRODUCT CODE: 56422 04/2017...

  • Page 34: Other Useful Information

    Use with extreme care and always store it safely and out of reach of children. Failure to use caution could result in injury or cuts. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-B60ICSG PRODUCT CODE: 56422 04/2017...
  • Page 35 Do not use the cooktop if the surface is broken or cracked. Switch off the appliance immediately to avoid the possibility of electric shock and contact our after sales support centre for advice. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-B60ICSG PRODUCT CODE: 56422 04/2017...

  • Page 36: Spare Parts

    Do not attempt to repair the appliance yourself! Spare Parts Our after sales support centre stocks the following spare parts for the STR-B60ICSG STIRLING Induction Cooktop. To purchase a part, call the centre on 1300 886 649 or email us at info@tempo.org •...

  • Page 37: Technical Specifications

    Observe any local regulations regarding the disposal of electrical consumer goods and dispose of it appropriately for recycling. Contact your local authorities for advice on recycling facilities in your area. AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-B60ICSG PRODUCT CODE: 56422 04/2017...
  • Page 38 AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-B60ICSG PRODUCT CODE: 56422 04/2017...

  • Page 39: Repair And Refurbished Goods Or Parts Notice

    PO BOX 6056 Frenchs Forest, Sydney, Australia NSW 2086 Telephone: 1300 886 649 (Aust) - Fax: (02) 9975 2688 Tempo Help Desk: 1300 886 649 (Aust) (Operating Hours: Mon-Fri 08:30am to 06:00pm EST) Email: info@tempo.org AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-B60ICSG PRODUCT CODE: 56422 04/2017...
  • Page 40 Version No Issue Date Description V1.0 16 November 2016 Original release V1.1 05 December 2016 Minor update, page 5 V1.2 13 December 2016 Updates: pages 9, 14, 15, 17 AFTER SALES SUPPORT info@tempo.org 1300 886 649 MODEL: STR-B60ICSG PRODUCT CODE: 56422 04/2017...
