Celabs QMPro 1100 Instruction Manual

Qmpro series encoder / modulators
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Encoder / Modulators

Advertisement

Table of Contents
loading

Summary of Contents for Celabs QMPro 1100

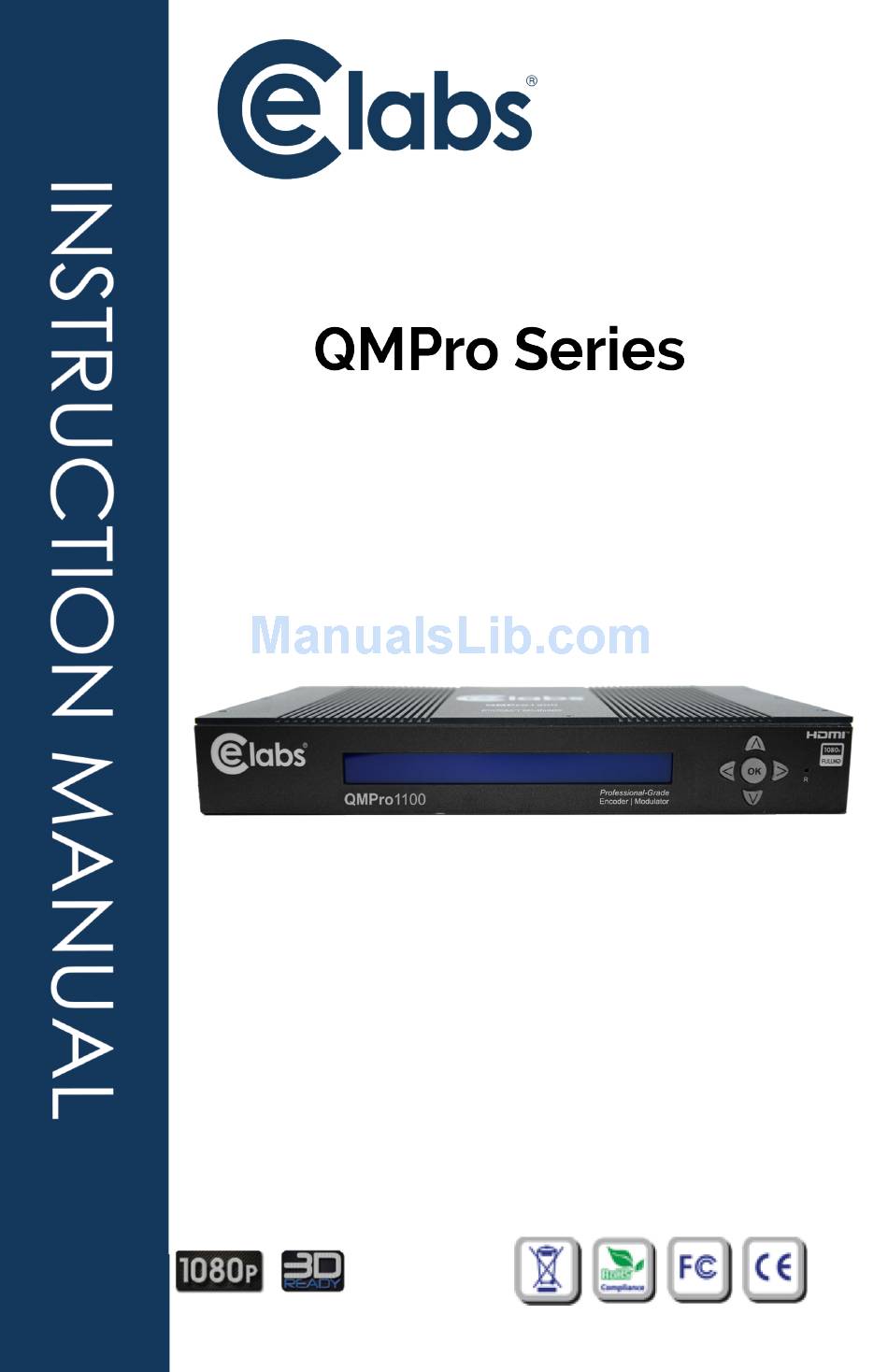

  • Page 1 Encoder / Modulators...

  • Page 2: Table Of Contents

    Contents Package Contents Features Introduction Installation Specifications Visual Identification Illustrations Encoder Programming and Setup via GUI Interface Virtual Channel Number Streaming Setup Output Setup Management IP Setup Initial Setup & Configuration Front Panel LCD Menu Tree Encoder Setup: QMPro1100/I Encoder Setup: QMPro1200/I Encoder Setup Administration Network Setup...
  • Page 3 The presence of this symbol is to alert the installer and user to the presence of uninsulated dangerous voltages within the product’s enclosure that may be of sufficient magnitude to produce a risk of electric shock. TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS DEVICE TO RAIN OR MOISTURE.

  • Page 4: Package Contents

    Package Contents This package contains one of the following: - QMPro1100/1100i or QMPro1200/1200i Encoder / Modulator - DIN cable(s) - One installation / configuration manual Inspect the package before starting installation to ensure there is no damage and all supplied contents are present.

  • Page 5: Features

    Features • HD RF Distribution allows unlimited displays over any distance • HD Video/Audio Distribution over Coax • 1080p/i, 720p, 480p/i Output (1080p h.264 only) • Mini DIN cabling connection for DirectTV interface • Front-panel Controls, LCD Display for easy setup •...

  • Page 6: Introduction

    Introduction The QMPro1100/i (Single) and QMPro1200/i (Dual) is CE labs® technology series of encoders/modulators that convert Digital Video Broadcasting (DVB) Standard or High definition video and audio signals to a QAM RF output. This RF signal may be routed throughout a building using traditional CATV coax and distribution network.

  • Page 7: Installation

    Installation System Installer must adhere to Article 820-40 of the NEC that provides guidelines for proper grounding and specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as possible. Each unit is shipped factory tested.

  • Page 8: Specifications

    Specifications VIDEO/AUDIO INPUTS HDMI 1.4v Component & Composite VIDEO FORMATS 1080p (H.264 Only), 1080i, 720p, 576p, 576i, Resolution 480p, 480i VIDEO / AUDIO COMPRESSION Video Codes MP@HL MPEG-2 > 1080p30, HP@Level 4.2 / ≤1080p30, HP@ Video Codecs Level 4 >720p30, HP@Level 3.2 / ≤720p30, HP@ H.264 (HD) Level 3.1 Video Codecs...
  • Page 9 IP (QMPro 1100i/1200i) Streaming Protocols UDP/RTP Unicast, Multicast Stream Types Single Program TS Stream Control Enable / Disable Connector 1 GbE IP stream General Local Monitoring Enhanced LCD system indicator GUI Management 1 RJ-45 10/100 Management GUI Supported Microsoft Edge, Firefox, Chrome, Safari Password Protected GUI: Changeable Fan Cooled...

  • Page 10: Visual Identification Illustrations

    Visual Identification Illustrations...

  • Page 11: Encoder Programming And Setup Via Gui Interface

    Encoder Programming and Setup via GUI Interface: After connecting the device to the Remote Setup port located on the rear of the device and connecting to a PC / Laptop. Step 1: Enter Device's IP address in web browser. (QMPro1200i shown) Command Processing: Please not that upon system initialization, the hardware will boot in a few minutes and then populate system parameters.
  • Page 12 Step 1: Enter Device's IP address in web browser. (QMPro1200i shown) Step 2: Enter User Name/Password Select Encoder Setup After selecting the Encoder Setup Tab the user will be prompted to enter the user name and password for device. GUI Login Password: Default User Name: admin Default Password: Admin123 Note: To change the Password for the GUI go to the Administration...
  • Page 13 Step 3: Encoder Setup This page allows the user to configure the parameters of each encoder. After changes are made, use the Save and Confirm button. The modulator(s) will apply the new settings.
  • Page 14 Encoder Setup page allows the integrator to select and set the parameters needed for each stream. Select the “Edit” Icons for the Encoders. (Both Encoders can be managed at the same time) Select and set the specific parameters settings as required.
  • Page 15 3. After setting all the required parameters- Select the edit icon again. (Note: All changed parameters will be shown in red)
  • Page 16 4. Select “Active/Inactive” to activate for remaining parameter(s) as required. 5. Select “Save and Confirm” to save all changed parameters. 6. Select “Apply” in the pop-up window. Repeat process for each encoder or if additional changes are required.

  • Page 17: Virtual Channel Number

    VCN Auto to set 134.1 and 135.1 Both channels of the QMPro 1200 and 1200i will occupy QAM channel 134 (855MHz) in a 6MHz bandwidth. (2 Programs within 1 QAM Channel) Note: QMPro 1100/1100i will allow CH 135(861MHz) to be selected.
  • Page 18 VCN (Manual two-part)- VCN Manual 2-part- will allow the installer to control VCN channels regardless of the CH/freq. selected on the Output Setup page of the device. Examples: CH/freq QMPro 1100/1100i QMPro1200/1200i 7 (177MHz) 2.1, 9.1 57 (423MHz) 55.1 23.1, 57.2 101 (657MHz) 100.1...

  • Page 19: Streaming Setup

    Streaming Setup Enable the Stream by selecting the check box 1-2. (All streams can be enabled at the same time by using the “mas- ter” checkbox) 3. Enter the stream Destination IP [example: udp://224.1.1.4:1234]. 4. Set the TTL value. 5. Select ‘Save and Confirm’ once all the streams are setup. Dis- abling IP Stream(s): To disable an IP Stream uncheck the checkbox in front of the appro- priate IP Stream_ID...

  • Page 20: Output Setup

    Output Setup Use the Output Setup page to set the RF output type, RF Output CH/ frequency, Attenuation, QAM, and Interleaver. Enable the RF by checking the checkbox. (Factory Default is en- abled) Select and set the required parameters for your installation RF: Normal, C.W., Inverted (Factory Default is Normal) Channel Type: STD, HRC, IRC (Factory Default is STD) CH/Freq.: Fac- tory Default is 101.
  • Page 21 Application Note: When installing more than 1 device into a system, each device must have a unique RF TS_ID. We highly recommend you save your encoder configuration files. See Administration tab for how to backup device settings.

  • Page 22: Management Ip Setup

    Management IP Setup: Use the Network Setup to configure the device’s Management Port’s IP address (GUI address) of the device, Subnet Mask, Gateway, En- able/Disable DHCP, and set Host Name. Save and Confirm: Once all parameters are set remember to Save and Confirm all changes.
  • Page 23 Section 7 Administration: Reboot: Use the Reboot command button to reboot the device. Note: Any unsaved changes will be lost. Reset to Default: Use the Reset to Default button to reset all parameters to original factory settings. Saving your configuration files We highly recommend you save your configuration files.
  • Page 24 Restore/Upload saved file configurations: Select Administration tab. Select “Choose file” menu. Locate the required file to be imported. Select “Upload” to import the selected file into the device. Remember to save and backup any and all changes. Change Password: Use the Change Password section to change or modify the device’s password as desired.

  • Page 25: Initial Setup & Configuration

    Initial Setup & Configuration Front Panel Information: Encoder Setup Channel .# HD Bitrate: Short Name: Video Output: Audio Output: IN-1 15.508Mbps DTV-101 MPEG2 IN-2 15.405Mbps DTV-102 MPEG2 Output Setup RF #: Output CH#: Constellation Interleaver RF-1 101(657.000MHz) QAM256 I128,J1 Streaming Setup 1st Destination IP: 224.1.1.20 1st Destination Port: 10000 2nd Destination IP: 224.1.1.21...

  • Page 26: Front Panel Lcd Menu Tree

    Front Panel LCD Menu Tree Modulator Configuration: Turn on the QAM modulator. Once the modulator is powered up, it will go through an internal booting process. First will be display: the rev of unit for 8 seconds, then "Booting" activity for 47 seconds, then "CE labs HD Series"...

  • Page 27: Encoder Setup: Qmpro1100/I

    Encoder Setup: QM- Encoder Setup: QM- Pro1100/I Pro1200/I __Select Encoder: 1 __Select Encoder: 2 __ Back to Main Menu __ Back to Main Menu __Closed caption: Enable (Enable, Disable) __2 Close caption: Enable __Program Num: 1 (1 to 65534) __2 Program Num: 2 __TS ID (IP ONLY): 1000 (1 to 65535) __2 TS ID (IP ONLY): 1001...
  • Page 28 Administration: Reset to Default: No (No.Yes) Reset unit Back to Main: Network Setup: Management IP: __ Host Name: QM-000 (Selecting this option unit will be rebooting) __ To Network setup __ Gateway: 0 .0 .0 .0 . __ Subnet Mask: 255.255.255.0 __ IP Address: 192.168.1.9 __ DHCP: Disable (Enable, Disable) Back to Main:...
  • Page 29 __ Subnet Mask: 255.255.255.0 __ IP Address: 192.168.1.10 Output Setup: RF Output Setup: __Enable RF: Enable (Enable, Disable) __ To Output Setup __ Interleaver: I:128 J:1 ( I:8 J:16 , I:16 J:8, I:32 J:4, I:64 J:2, I:128 J:8, I:128 J:7, I:128 J:6, I:128 J:5, I:128 J:4, I:128 J:3, I:128 J:2, I:128 J:1) __ Constellation: QAM 256 (QAM 64, QAM 256) __ Attenuation: 0 .
  • Page 30 Streaming Setup: __ Select IP Output: 1 __ Select IP Output: 2 __ Back to Main __ Back to Main __ TTL: 4 (1-255) __ TTL: 4 __ Destination Port: 7000 (1024- 65535) __ Destination Port: 7000 __ Destination IP: 224.1.1.20 __ Destination IP: 224.1.1.21 __ Streaming Method: RTP (MLT __ Streaming Method: RTP...

  • Page 31: Encoder Setup

    Encoder Setup Select Encoder- Use the OK button to enter the Select Encoder Menu. Using the Scroll Up/Down buttons select the encoder you wish to program. Use the OK button to set the Encoder. Select Encod- er 1 or 2. Once selected the display will indicate which Encoder you are pro- gramming while in the setup function.
  • Page 32 Factory default: 128. Saturation – Use the Scroll Up/Down button to select Saturation. Press the OK button to enter the Saturation menu. Use the Scroll Up/ Down button to select the desired Saturation value (0 to 255) and press the OK button to set. Factory default: 128.
  • Page 33 fault: 4000 (4 Mbps). HD Bitrate: – Use the Scroll Up/Down button to select HD Bitrate. Press the OK button to enter the HD Bitrate menu. Use the Scroll Up/ Down button to set the HD Bitrate. HD Bitrate Range MPEG2: 10000 (10Mbps) to 15700 (15.7Mbps). Facto- ry default: 14800 (14.8 Mbps).
  • Page 34 134 (855MHz) in a 6MHz bandwidth. (2 Programs within 1 QAM Channel) Note: QMPro 1100/1100i will allow CH 135(861MHz) to be selected. VCN (Manual two-part)- VCN Manual 2-part- will allow the installer to control VCN channels regardless of the CH/freq. selected on the...
  • Page 35 Examples: CH/freq QMPro 1100/1100i QMPro1200/1200i 2.1, 9.1 7 (177MHz) 23.1, 57.2 57 (423MHz) 55.1 101.1,107.1 101 (657MHz) 100.1 130.1, 129.2 134 (855MHz) 134.1 As shown in the above examples, the installer can easily set and select any Virtual channel regardless of the Output Channel occupied by the modulator.
  • Page 36 VCN Mode: Auto (two-part)- VCN will be set based on the Channel output selected in ‘Output Menu: Output Channel’. Example: Output Channel set to 101. VCN for device will be set at 101.1 and 102.1 VCN (Minor Ch. No.)-Use the Scroll Up/Down button to enter VCN (Minor CH No.) menu.
  • Page 37 set. Repeat the process until the Short Channel Name is completed. Press the OK button to set and exit. Short Name can be 7 characters. Factory Default: DTV-101 and DTV-102 RF Number- Press the OK button to enter the RF Number menu. Use the Scroll Up/Down button to Select the RF section of the Encoder.

  • Page 38: Administration

    Administration Reset to Default- Use the Scroll Up/Down button to select reset to Default Menu. Press the OK button to enter the Reset to Default menu. Use the Scroll Up/Down button to select no/yes. Press the OK button to select no/yes. Unit will reboot if yes is selected.

  • Page 39: Network Setup

    Network Setup Management IP (Sub Menu of Network Setup Menu) Hostname: Use the Scroll Up/Down button to select Hostname. Press the OK button to enter the Hostname menu. Use the Left/Right buttons to modify the Hostname as requiredPress the OK button to set.
  • Page 40 Note: IP Address Range(s): 10.0.0.0 ~ 10.255..255.255 172.16.0.0 ~ 172.31.255.255 192.168.0.0 ~ 192.168.255.255 DHCP – Use the Scroll Up/Down button to select DHCP. Press the OK button to enter the DHCP menu. Use the Scroll Up/Down button to Enable/Disable. Press the OK button to set. Factory Default: Disable Once a change is made the unit will reboot to set the new settings.
  • Page 41 then press the OK button to set. Repeat the process until the Subnet Mask is completed. Press the OK button to set. Factory Default: 255.255.255.0. IP Address – Use the Scroll Up/Down button to select IP Address. Press the OK button to enter the IP Address menu. Use the Scroll Up/ Down button to enter the IP address.

  • Page 42: Output Setup

    Output Setup RF Output Setup Enable RF-Use the Scroll Up/Down button to select Enable RF. Press the OK button to enter the Enable RF menu. Use the Scroll Up/Down button to select Enable / Disable. Then press the OK button to set. Factory Default: Enable To Output Setup Select To Output Setup to return to the RF Output Setup Menu...
  • Page 43 The LCD Display will show both the channel # and the frequency # of the output channel (example:103 669.0000MHz). Note: When setting VCN Auto(two-part)- output channel will reflect output channel selected here. Examples: VCN Mode: Auto(two-part) found in Encoder Setup will reflect channel of selected output channel.
  • Page 44 Delay Buffer-Press the OK button to enter the Delay Buffer menu. Use the Scroll Up/Down button to select the appropriate Audio Buf- fer. Press the OK to set. Range: 0 ~ 65535. Factory default: 0 To Output Setup- Select To Output Setup to return to the Output Setup Menu.

  • Page 45: Streaming Setup

    Scroll Up/Down buttons select the IP Stream to program. Use the OK button to select Select IP Out 1 or 2. Factory default: Select IP Output: 1 FOR QMPRO 1100 AND 1100i Select IP Output: 2 FOR QMPRO 1200 AND 1200i Once Selected the display will indicate which Streaming Setup (1 or 2) you are programming while in the setup function.
  • Page 46 Destination IP Address Range(s): Unicast: 0.0.0.0 ~ 223.255.255.255 Multicast: 224.0.0.0 ~ 239.255.255.255 Factory Default: Stream1: RTP Multicast default: 224.1.1.20 Stream2: RTP Multicast default: 224.1.1.21. Streaming Method – Use the Scroll Up/Down button to select Streaming Method. Press the OK button to enter the Streaming Meth- od menu.

  • Page 48: Warranty
