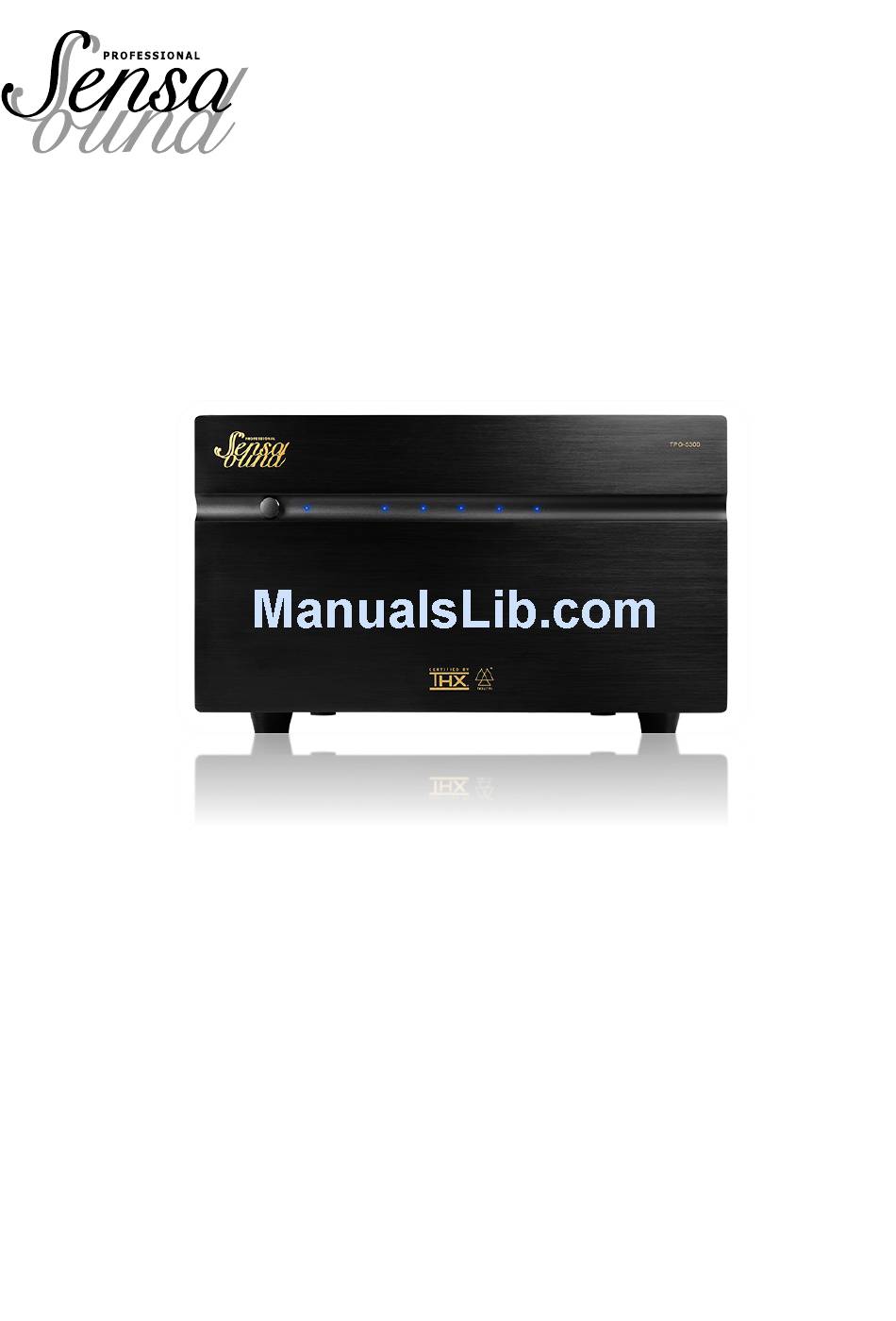

TPO-5300 User's Manual

Table of Contents

Need help?

Do you have a question about the TPO-5300 and is the answer not in the manual?

Questions and answers

Summary of Contents for Sensa Sound TPO-5300

Page 2: Table Of Contents
TABLE OF CONTENTS Preface CauDons Unpacking InstrucDon Important Safety NoDce Product Features What the expert say About THX and THX Ultra CerDﬁcaDon Supplied Accessories Quick OperaDon Guide Front & Rear Panels ApplicaDons TroubleshooDng SpeciﬁcaDons Warranty...
Page 3: Preface
TPO-5300. From correct system connecDon, placement and opDmized performance, this manual will guide you through from the beginning to the end. Should you sDll have any quesDons about the products, please contact your local dealer or directly contact us about your inquiry. Welcome to our...
Page 4: Important Safety Nodce
12. Unplug the power cord from ampliﬁer when unused for a period of Dme. 13. The objects which are ﬁlled with water, such as vases, should not be placed on the ampliﬁer. 14. Do not place the ampliﬁer on unstable stand, shelf, bracket or table. This may cause a serious injury and product damage. Please follow all instrucDons in this manual. Important: Turn oﬀ all equipment before you making any connecDon. SENSASOUND USA LLC TPO-5300 User’s Manual 4...
Page 5: Product Features
Four-level safety design and fully protected circuit design to protect from short- §  circuit, self-excitaDon, over-heated, and direct circuit etc. 45A high-current output §  SensaSound special HIC powers supply design. The opDmum structure design with §  high-end capacitor, which together make sure that there is no signal loss, distorDon and less inference , under high and wide dynamic range Unique Home Theater model auto wakeup and shot down design. The TPO-5300 will §  wakeup automaDcally with pre-amp or other AV equipment, when given 12 Voltage input from other wired equipment. What the expert say “Along with meeDng our strict THX Ultra performance requirements, the Sensasound TPO-5300 ampliﬁer has a lot of power capability, ensuring dialogue and explosions alike are heard clearly and without distorDon or clipping.” —Jon Cielo, Director of AV Technology at THX Jon Cielo, Director of AV Technology, has spent over 10 years at THX and his current responsibiliDes include managing the technical accounts of THX’s audio partners as well as...
Page 6: About Thx And Thx Ultra Cerdﬁcadon
THX Ultra is speciﬁed and designed for large home theaters or living rooms capable of THX reference Level in a room up to 3,000 cubic feet. In order to get THX Ultra CerDﬁed, all ampliﬁers need to go though conDnuous output tests and the dynamic tests. All in all, THX CerDﬁcaDon is a guarantee that products truthfully deliver the arDst’s intenDon. Supplied Accessories Base Board •  •  ① ② ③ ① Power supply cord ② 12 V trigger cord ③ User’s Manual SENSASOUND USA LLC TPO-5300 User’s Manual 6...
Page 7: Quick Operadon Guide
(+) and negaDve (–) polariDes between speakers and the ampliﬁer. If the connecDons are mistaken, the correct orientaDon will not be obtained. 4. Select balanced input (XLR)or unbalanced input (RCA) with the INPUT SELECT switch. The ampliﬁer possesses a balanced input (XLR) and unbalanced input (RCA) for each channel and the switch for the two is located between the two input terminals. Select the proper input type depending on the funcDonality of the connected cables and the control ampliﬁer. 5. Make sure the TRIGGER/ON switch is in the desired status. The TPO-5300 has a unique home theater mode, which can be waked-up/turned-on automaDcally when a preampliﬁer outputs a 12V signal by default. If you do not need this funcDon and want to conceal the ampliﬁer or put it into a separate equipment room using integrated central control system, make sure switch it to ON. Under ON mode, when you want to turn on the ampliﬁer, just simply turn on the power switch at the rear panel. SENSASOUND USA LLC TPO-5300 User’s Manual 7...
Page 8: Front & Rear Panels
Front & Rear panels Front Panel ① On/Standby bu[on This bugon is used to set the ampliﬁer to On or Standby. Please note to wait for at least 5 seconds if you want to turn on the ampliﬁer again aser it is turned oﬀ. ② On/Standby indicator When the ampliﬁer is turned on, the indicator light will stay blue aser ﬂashing about 5 seconds. When the ampliﬁer is switched to standby, the indicator light will stay red. ③ Status indicator When the ampliﬁer is turned oﬀ, the indicator lights will be all out. When the ampliﬁer is turned on, the indicator lights will be all blue. Please note that when one or more indicator ﬂashing red, the ampliﬁer is in self-protecDon mode. Please check if there are any short-circuits or any low impedance loads with the speakers. ④ SensaSound registered logo This is SensaSound registered logo for professional series. ⑤ THX logo and THX ULTRA applica3on icon ⑥ Product model name SENSASOUND USA LLC TPO-5300 User’s Manual 8...
Page 9 ③ ⑩ ⑦ ① 12V trigger switch This switch enables the ampliﬁer to be opened in two ways. This switch stays in TRIGGER mode by default. Under this mode, when given 12V input, TPO-5300 will be turned on automaDcally. When the switch stays in ON mode, it will be turned on by push the power bugon in the rear panel. ② 12V output This output is designed to trigger other ampliﬁers or equipment by its 12V output. ③ 12V input When given a 12V input, TPO-5300 will wakeup automaDcally.
Page 10 4 Ohms at a high volume level, it may trigger the built-in self protecDon system. Long-term use may damage the speaker or the ampliﬁer itself. •  Before setup the system, make sure be powered oﬀ. •  When wire the speaker, pay special agenDon to the polarity of the cable. And make sure the posiDve wire connect to the posiDve terminal and negaDve to negaDve (See below illustraDon). •  Don’t short-circuit or it may damage the ampliﬁer. •  To take full advantage of the ampliﬁer’s sonic quality, we recommend using SensaSound high-quality speaker cable. SENSASOUND USA LLC TPO-5300 User’s Manual 10...
Page 11 ⑧ Power switch Switches the main AC power to On and Oﬀ. When the ampliﬁer will not be used in a fairly longDme, switches the power oﬀ. Under normal use, no need to switch the power oﬀ every Dme. (The standby power usage is less than 1 wag) ⑨ 110V/22V power supply indicator The ampliﬁer automaDcally detects and switches between 110V and 220V. These indicators tell you which line voltage the ampliﬁer has detected. No manual acDon is required. ⑩ AC input Never connect to AC that exceeds the power range or it may damage the ampliﬁer. SENSASOUND USA LLC TPO-5300 User’s Manual 11...
Page 12 Applica3ons The ampliﬁer is designed to amplify the audio signals, which can be used as audio signal ampliﬁer in home theater system or while enjoy the music. Troubleshoo3ng If you experience any of the following diﬃculDes while using the TPO-5300 power ampliﬁer, use this troubleshooDng guide to help you remedy the problem. Should any problem persist, please contact SensaSound directly or consult your nearest SensaSound dealer. Problem: There’s no sound/output . Check: •  Are the AC properly connected? •  Are the signal lights on? •  Are the level controls turned up? • ...
Page 13 Speciﬁca3ons TPO-5300 Rated power output ..... . . 200W／each @ 8 Ohms, all channels driven 330W / each @ 4 Ohms, all channels driven 450W / each @ 4 Ohms, single channel driven Frequency response ........ ..20Hz~75KHz(+1/-3dB) Signal to noise ra3o ...... ..≥112dB (A-weighted), unbalance ≥107dB (A-weighted), balance THD..……............≤0.08% （1khz） Recommend Power ..........1400W @ 8 Ohms 2200W @ 4 Ohms Input sensi3vity........ . . ..1.4 V rms @ 200W Gain..............29.5dB Product Dimensions (W*H*D).... . .... 19.7’’*17.3’’*9.4’’ Package Dimensions(W*H*D) .. . ......25.2’’*23.6*15.4’’ Net Weight ......... .. ..77.2lbs. (35kg) Gross Weight ........ ....90.4 lbs. (41Kg) SENSASOUND USA LLC TPO-5300 User’s Manual 13...
Page 14: Warranty
•  Bought, repaired, modiﬁed or use of parts that are not made or authorized by SensaSound. •  If the serial number has been altered, defaced or removed. •  For deterioraDon of component parts, the nature of which is to become worn or depleted with use. Shipping charge: If the repairs are covered by the warranty, you need to pay for the charge incurred from sending the product to the maintenance point, and SensaSound will pay for the return shipping charge. We provide all support and guidance to make sure the process moves smoothly. SENSASOUND USA LLC TPO-5300 User’s Manual 14...
Page 15 SENSASOUND USA LLC, P.O. Box 4137, Warren, NJ 07059, USA www.sensasound.com SENSASOUND USA LLC TPO-5300 User’s Manual 15...
