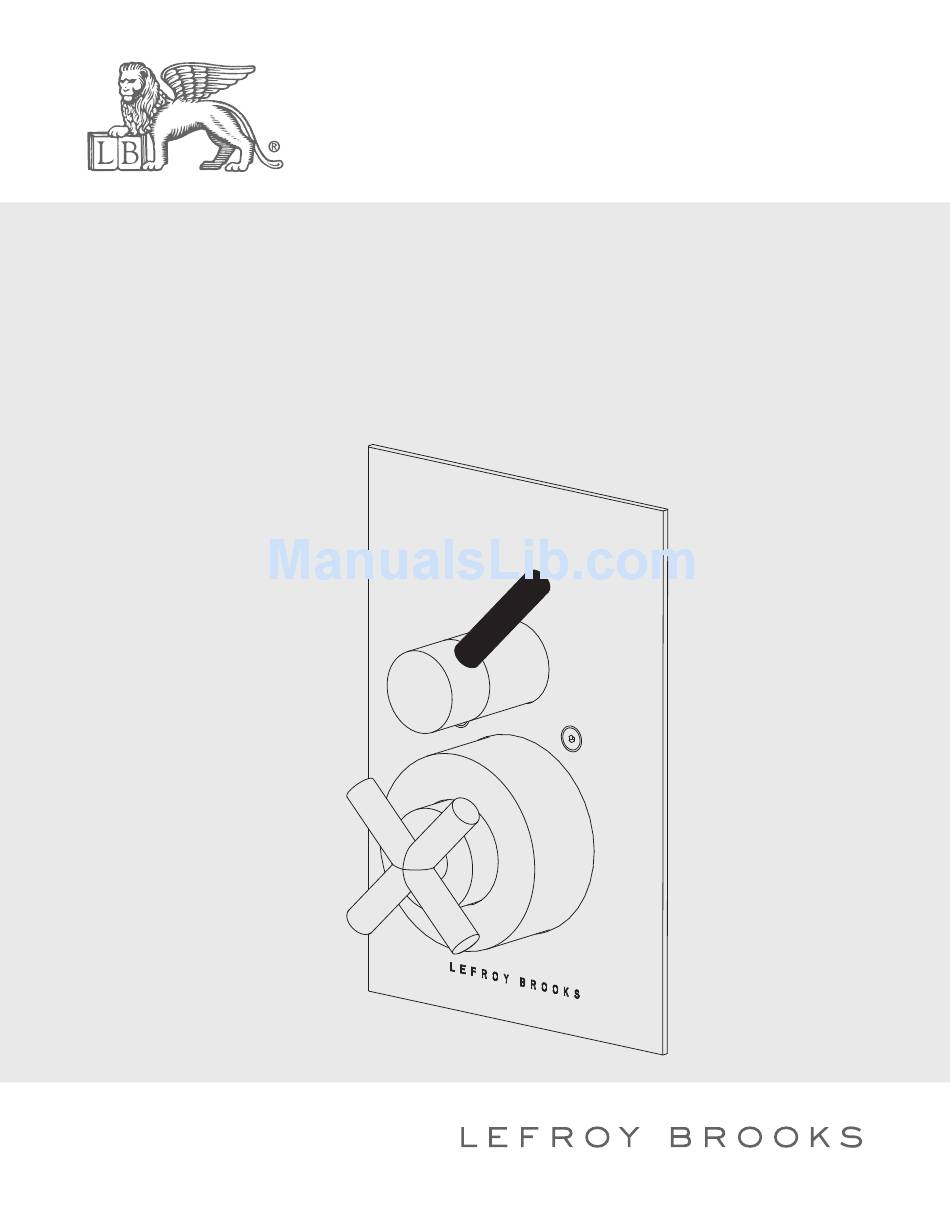

- Page 1 INSTALLATION INSTRUCTIONS X1-2010 (XO5400) CROSS HANDLE THERMOSTATIC WITH ZU LEVER FLOW CONTROL TRIM ONLY, TO SUIT M1-4201 ROUGH...
- Page 2 Dimensions in Inches (& Millimetres) 5 11/16" (145mm) 2 3/16" (55mm) 45° 1 1/16" 1 15/16" 7/8" (27.5mm) (22.2mm) (49mm) 3/16" (4.5mm) 9/16" (15mm) 1 7/16"~3 1/16" (37~78.5mm) Whilst every effort is made to ensure accuracy, design and dimensions are subject to change without notice as part of the company’s product development process.
-
Page 3: What You Need To Know
What you need to know Tools: Maintenance Adjustable Wrench Your new bathroom faucet is designed for years Groove Joint Pliers of trouble-free performance. Hacksaw Keep it looking new by cleaning it periodically with Phillips Screwdriver a soft cloth. Avoid abrasive cleaners, wire wool and Pipe Tape harsh chemicals as these will dull the finish and Spatula... -
Page 4: Installation Procedure
Steps 1-3 Installation Procedure Lefroy Brooks always recommends that plumbing products be installed by a licensed professional. Shut off main water supply before installation. 1 3/8"~1 5/8" Marble wall (35mm~42mm) 3 1/8”-4 1/8” 80-105 Before installing the valve into the wall, Cut a hole on the wall surface for fitting the trim kit. - Page 5 Steps 5-8 Installation Procedure Lefroy Brooks always recommends that plumbing products be installed by a licensed professional. Shut off main water supply before installation. Take out the stopper. Turn off the water supply. Install the stopper and make sure its "B" plane, as shown, is horizontal and on the left side.
- Page 6 Steps 9-12 Installation Procedure Lefroy Brooks always recommends that plumbing products be installed by a licensed professional. Shut off main water supply before installation. Horizontal Set screw Install the canopies. Fix the canopy with screw. When it is fixed, ensure the temperature-limit-button is in the horizontal position.
-
Page 7: Exploded View
Exploded View Parts List Screw (008772) Seal (013218) Screw (008255) Cross handle (069910) Plug (028008) Screw (008186) Screw (008994) Handle seat (215479) Extension stem (110438) Adaptor (018210) Button (036272) O-ring (048085N) O-ring (048060) Spring (005157) Sleeve (041817) Set screw (065086) Pin (003147) Allen key (031003) Canopy (071437) - Page 8 The right to modify designs and dimensions is reserved. Christo Lefroy Brooks is a member of ACID (Anti Copying in Design).
