VL LRS55 Scabbler & VL Compactor
Operation and Maintenance Manual
www.trelawnyspt.co.uk

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VL LRS55 and is the answer not in the manual?

Questions and answers

Summary of Contents for Trelawny VL LRS55

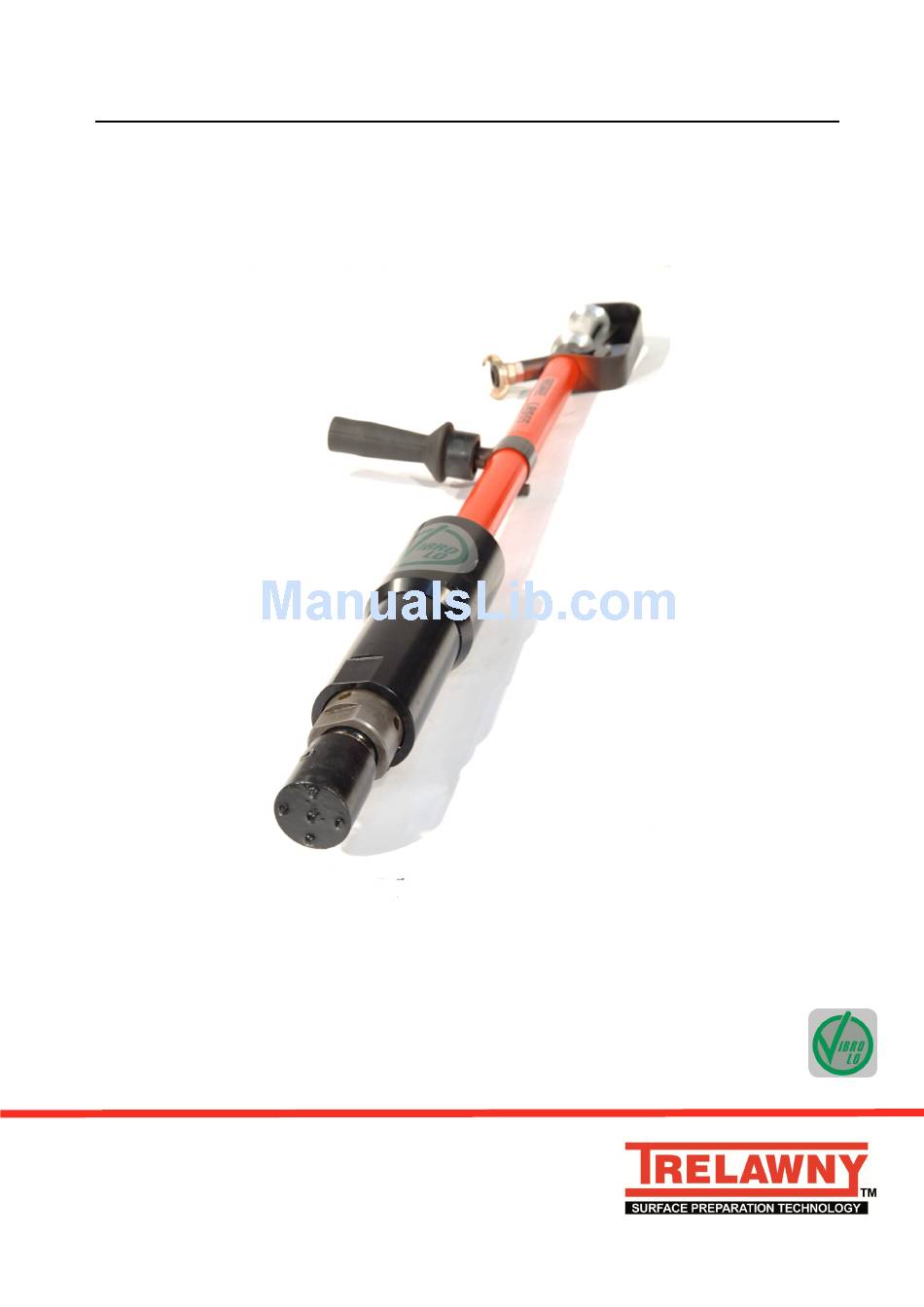

  • Page 1 VL LRS55 Scabbler & VL Compactor Operation and Maintenance Manual www.trelawnyspt.co.uk...

  • Page 2: Operation

    General Information Trial and error is not the safe way The correct air pressure for this Before operating the VL LRS55 to become familiar with this piece machine is to 6.2bar (90psi). Scabbler/VL Compactor, this manual of equipment.

  • Page 3: Starting Work

    OPERATION / MAINTENANCE Risk of Hand-Arm Before operating the tool ensure that Maintenance the tool is not near your chin or face. Vibration Injury Only a competent person, in a suitably equipped workshop, must These tools may cause Hand-arm Safe use of this tool requires a solid carry out maintenance.
  • Page 4 OPERATION / MAINTENANCE Hold body assembly (18) on the flats It is good practice to renew all Ensure that the threads of the provided and unscrew the cylinder O'Rings and especially the locknut cylinder and body are clean and free (23).

  • Page 5: Machine Storage

    OPERATION / MAINTENANCE Lubricate the exposed part of the Using a 8mm punch align the hole in Knock over the tab washer onto piston and cylinder. the throttle lever (5) with the holes in one of the locknut flats. (See recommended lubricants) the handle (4).

  • Page 6: Exploded View

    EXPLODED VIEW...

  • Page 7: Parts List

    PARTS LIST ITEM PART NUMBER DESCRIPTION 627.5002 Adapter 712.5001 Valve Spring 809.5599 O‟Ring (Valve seat) 424.5025 Handle Assembly (includes 1,2,4,5,6,7,& 26.) 649.5001 Throttle Lever 448.5022 Valve Stem (Includes O‟Rings) 813.0840 Throttle Lever Pivot Pin 8/18 411.5052 Cowl & Body Assembly 813.1040 Locking Pin 422.5220...

  • Page 8: Technical Data
