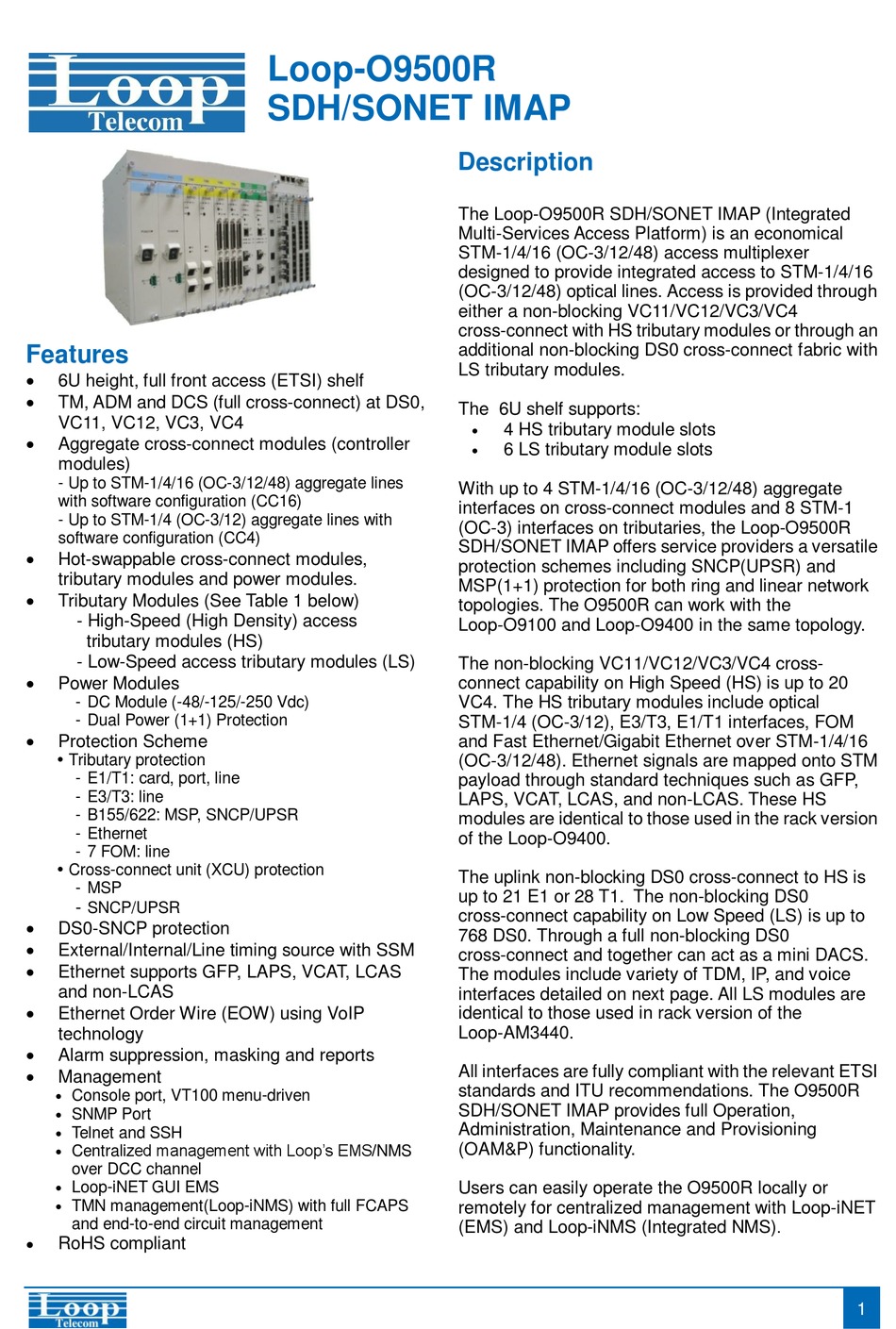

Loop Telecom Loop-O9500R Manual

Features

6U height, full front access (ETSI) shelf

TM, ADM and DCS (full cross-connect) at DS0,
VC11, VC12, VC3, VC4

Aggregate cross-connect modules (controller
modules)
- Up to STM-1/4/16 (OC-3/12/48) aggregate lines
with software configuration (CC16)
- Up to STM-1/4 (OC-3/12) aggregate lines with
software configuration (CC4)

Hot-swappable cross-connect modules,
tributary modules and power modules.

Tributary Modules (See Table 1 below)
- High-Speed (High Density) access
tributary modules (HS)
- Low-Speed access tributary modules (LS)

Power Modules
- DC Module (-48/-125/-250 Vdc)
- Dual Power (1+1) Protection

Protection Scheme
 Tributary protection
- E1/T1: card, port, line
- E3/T3: line
- B155/622: MSP, SNCP/UPSR
- Ethernet
- 7 FOM: line
 Cross-connect unit (XCU) protection
- MSP
-
SNCP/UPSR

DS0-SNCP protection

External/Internal/Line timing source with SSM

Ethernet supports GFP, LAPS, VCAT, LCAS
and non-LCAS

Ethernet Order Wire (EOW) using VoIP
technology

Alarm suppression, masking and reports

Management

Console port, VT100 menu-driven

SNMP Port

Telnet and SSH
Centralized management with Loop‟s EMS/NMS

over DCC channel

Loop-iNET GUI EMS

TMN management(Loop-iNMS) with full FCAPS
and end-to-end circuit management

RoHS compliant
Loop-O9500R
SDH/SONET IMAP
Description
The Loop-O9500R SDH/SONET IMAP (Integrated
Multi-Services Access Platform) is an economical
STM-1/4/16 (OC-3/12/48) access multiplexer
designed to provide integrated access to STM-1/4/16
(OC-3/12/48) optical lines. Access is provided through
either a non-blocking VC11/VC12/VC3/VC4
cross-connect with HS tributary modules or through an
additional non-blocking DS0 cross-connect fabric with
LS tributary modules.
The 6U shelf supports:

4 HS tributary module slots

6 LS tributary module slots
With up to 4 STM-1/4/16 (OC-3/12/48) aggregate
interfaces on cross-connect modules and 8 STM-1
(OC-3) interfaces on tributaries, the Loop-O9500R
SDH/SONET IMAP offers service providers a versatile
protection schemes including SNCP(UPSR) and
MSP(1+1) protection for both ring and linear network
topologies. The O9500R can work with the
Loop-O9100 and Loop-O9400 in the same topology.
The non-blocking VC11/VC12/VC3/VC4 cross-
connect capability on High Speed (HS) is up to 20
VC4. The HS tributary modules include optical
STM-1/4 (OC-3/12), E3/T3, E1/T1 interfaces, FOM
and Fast Ethernet/Gigabit Ethernet over STM-1/4/16
(OC-3/12/48). Ethernet signals are mapped onto STM
payload through standard techniques such as GFP,
LAPS, VCAT, LCAS, and non-LCAS. These HS
modules are identical to those used in the rack version
of the Loop-O9400.
The uplink non-blocking DS0 cross-connect to HS is
up to 21 E1 or 28 T1. The non-blocking DS0
cross-connect capability on Low Speed (LS) is up to
768 DS0. Through a full non-blocking DS0
cross-connect and together can act as a mini DACS.
The modules include variety of TDM, IP, and voice
interfaces detailed on next page. All LS modules are
identical to those used in rack version of the
Loop-AM3440.
All interfaces are fully compliant with the relevant ETSI
standards and ITU recommendations. The O9500R
SDH/SONET IMAP provides full Operation,
Administration, Maintenance and Provisioning
(OAM&P) functionality.
Users can easily operate the O9500R locally or
remotely for centralized management with Loop-iNET
(EMS) and Loop-iNMS (Integrated NMS)
.
1
