Power integrations 2SC0108T2Dx-xx Preliminary Manual

Dual channel ultra-compact low-cost scale-2 driver core
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
SCALE™-2 2SC0108T2Dx-xx
SCALE™-2 2SC0108T2Dx-xx
Preliminary Description & Application Manual
Dual Channel Ultra-compact Low-cost SCALE™-2 Driver Core

Abstract

The new low-cost SCALE™-2 dual-driver core 2SC0108T2Dx-xx combines unrivalled compactness with broad
applicability. The driver was designed for universal applications requiring high reliability. The 2SC0108T2Dx-xx
drives all usual IGBT modules up to 650V (2SC0108T2Dx-07) or 1200V (2SC0108T2Dx-12). The embedded
paralleling capability allows easy inverter design covering higher power ratings. Multi-level topologies are also
supported.
The 2SC0108T2Dx-xx is the most compact driver core available for industrial applications, with a footprint of
only 45mm x 34.3mm and an insertion height of max. 16mm. It allows even the most restricted insertion
spaces to be efficiently used.

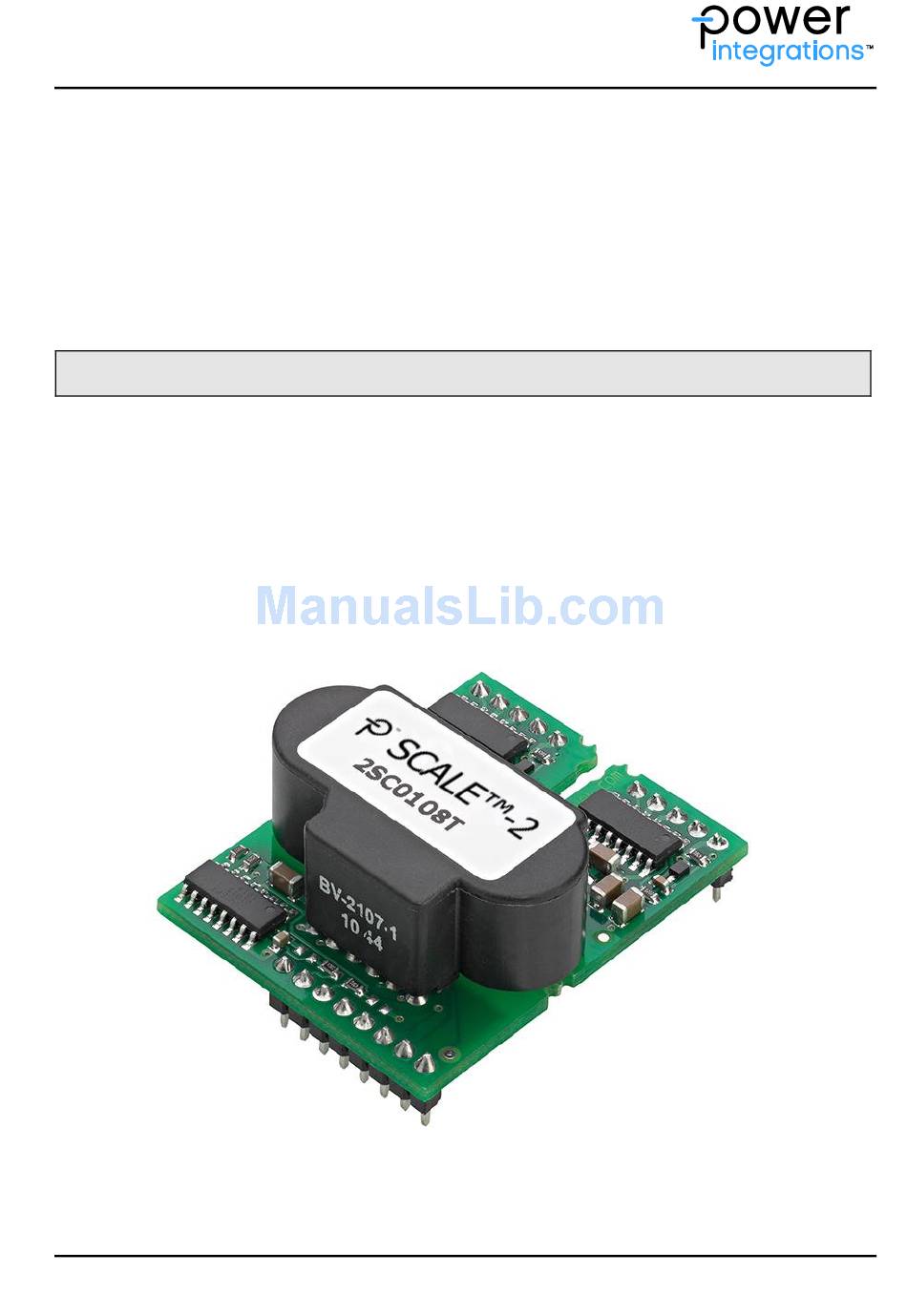

Fig. 1 2SC0108T2Dx-xx driver core
www.power.com/igbt-driver
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2SC0108T2Dx-xx and is the answer not in the manual?

Questions and answers

Summary of Contents for Power integrations 2SC0108T2Dx-xx

  • Page 1: Abstract

    Multi-level topologies are also supported. The 2SC0108T2Dx-xx is the most compact driver core available for industrial applications, with a footprint of only 45mm x 34.3mm and an insertion height of max. 16mm. It allows even the most restricted insertion spaces to be efficiently used.

  • Page 2: Table Of Contents

    ....................16 CE,sat Gate turn-on (GHx) and turn-off (GLx) terminals ..............16 How Do 2SC0108T2Dx-xx SCALE-2 Drivers Work in Detail? ............17 Power supply and electrical isolation ................... 17 Power-supply monitoring ....................17 Parallel connection of 2SC0108T2Dx-xx ................17 3-level or multilevel topologies ....................
  • Page 3 SCALE™-2 2SC0108T2Dx-xx Preliminary Description & Application Manual Legal Disclaimer ........................... 19 Ordering Information ........................20 Information about Other Products ....................20 Manufacturer ..........................20 Power Integrations Worldwide High Power Customer Support Locations ........21 www.power.com/igbt-driver Page 3...

  • Page 4: Driver Overview

    Preliminary Description & Application Manual Driver Overview The 2SC0108T2Dx-xx is a low cost driver core equipped with Power Integrations' latest SCALE-2 chipset /1/. The SCALE-2 chipset is a set of application-specific integrated circuits (ASICs) that cover the main range of functions needed to design intelligent gate drivers.

  • Page 5: Mechanical Dimensions

    SCALE™-2 2SC0108T2Dx-xx Preliminary Description & Application Manual Mechanical Dimensions Fig. 3 Interactive 3D drawing of 2SC0108T2Dx-xx www.power.com/igbt-driver Page 5...
  • Page 6 SCALE™-2 2SC0108T2Dx-xx Preliminary Description & Application Manual Fig. 4 Mechanical drawing of 2SC0108T2Dx-xx The primary side and secondary side pin grid is 2.54mm (100mil) with a pin cross section of 0.64mm x 0.64mm. Total outline dimensions of the board are 34.3mm x 45mm. The total height of the driver is max.

  • Page 7: Pin Designation

    SCALE™-2 2SC0108T2Dx-xx Preliminary Description & Application Manual Pin Designation Pin No. and Name Function Primary Side Ground Signal input A; non-inverting input relative to GND Signal input B; non-inverting input relative to GND Supply voltage; 15V supply for primary side Set blocking time Status output channel 2;...

  • Page 8: Recommended Interface Circuitry For The Primary Side Connector

    Fig. 5 Recommended user interface of 2SC0108T2Dx-xx (primary side) Description of Primary Side Interface General The primary side interface of the driver 2SC0108T2Dx-xx is very simple and easy to use. The driver primary side is equipped with an 8-pin interface connector with the following terminals: ...

  • Page 9: Mod (Mode Selection)

    SCALE™-2 2SC0108T2Dx-xx Preliminary Description & Application Manual MOD (mode selection) The MOD input allows the operating mode to be selected with a resistor connected to GND. Direct mode If the MOD input is connected to GND, direct mode is selected. In this mode, there is no interdependence between the two channels.

  • Page 10: Ina, Inb (Channel Drive Inputs, E.g. Pwm)

    SCALE™-2 2SC0108T2Dx-xx Preliminary Description & Application Manual INA, INB (channel drive inputs, e.g. PWM) INA and INB are basically drive inputs, but their function depends on the MOD input (see above). They safely recognize signals in the whole logic-level range between 3.3V and 15V. Both input terminals feature Schmitt- trigger characteristics (refer to the driver data sheet /3/).

  • Page 11: Recommended Interface Circuitry For The Secondary Side Connectors

    SCALE™-2 2SC0108T2Dx-xx Preliminary Description & Application Manual Recommended Interface Circuitry for the Secondary Side Connectors Fig. 7 Recommended user interface of 2SC0108T2Dx-xx (secondary sides). Description of Secondary Side Interfaces General Each driver’s secondary side (driver channel) is equipped with a 5-pin interface connector with the following terminals (x stands for the number of the drive channel 1 or 2): ...

  • Page 12: Active Clamping (Aclx)

    Collector sense (VCEx) with resistors The collector sense of each channel of the 2SC0108T2Dx-xx must be connected to the IGBT collector or MOSFET drain with the circuit shown in Figs. 6 or 7 in order to detect an IGBT or MOSFET short circuit.
  • Page 13 SCALE™-2 2SC0108T2Dx-xx Preliminary Description & Application Manual left). During this time, a current flows from the collector (blue circle in Fig. 8) via the resistor network and the diode BAS416 to GHx. The current is limited by the resistor chain.

  • Page 14: Desaturation Protection With Sense Diodes

    Desaturation protection with sense diodes 2SC0108T2Dx-xx also provides desaturation protection with high-voltage diodes as shown in Fig. 9. However, the use of high-voltage diodes has some disadvantages compared to the use of resistors: ...
  • Page 15 SCALE™-2 2SC0108T2Dx-xx Preliminary Description & Application Manual          CEsat   CEsat The reference voltage V which is internally set to 9.3V must be higher than V refx Fig. 9 Recommended circuit for desaturation protection with sense diodes (one channel shown)

  • Page 16: Disabling The V

    Preliminary Description & Application Manual Disabling the V detection CE,sat To disable the V measurement of 2SC0108T2Dx-xx, a resistor with a minimum value of 33kΩ must be CE,sat placed between VCEx and VEx according to Fig. 10. Fig. 10 Disabling the V detection...

  • Page 17: How Do 2Sc0108T2Dx-Xx Scale-2 Drivers Work In Detail

    If parallel connection of 2SC0108T2Dx-xx drivers is required, please refer to the application note AN-0904 /5/ on www.power.com/igbt-driver/go/app-note. 3-level or multilevel topologies If 2SC0108T2Dx-xx drivers are to be used in 3-level or multilevel topologies, please refer to the application note AN-0901 /6/ on www.power.com/igbt-driver/go/app-note. Additional application support for 2SC0108T2Dx-xx...

  • Page 18: Bibliography

    Data sheet SCALE™-2 driver core 2SC0108T2D0-07 and 2SC0108T2D0-12, Power Integrations Application note AN-1101: Application with SCALE™-2 Gate Driver Cores, Power Integrations Application note AN-0904: Direct Paralleling of SCALE™-2 Gate Driver Cores, Power Integrations Application note AN-0901: Methodology for Controlling Multi-Level Converter Topologies with SCALE™-...

  • Page 19: The Information Source: Scale-2 Driver Data Sheets

    Preliminary Description & Application Manual The Information Source: SCALE-2 Driver Data Sheets Power Integrations offers the widest selection of gate drivers for power MOSFETs and IGBTs for almost any application requirements. The largest website on gate-drive circuitry anywhere contains all data sheets, application notes and manuals, technical information and support sections: www.power.com.

  • Page 20: Ordering Information

    SCALE™-2 2SC0108T2Dx-xx Preliminary Description & Application Manual Ordering Information The general terms and conditions of delivery of Power Integrations Switzerland GmbH apply. Type Designation Description 2SC0108T2D0-07 Dual-channel SCALE-2 driver core for IGBTs up to 650V 2SC0108T2D0-12 Dual-channel SCALE-2 driver core for IGBTs up to 1200V Product home page: www.power.com/igbt-driver/go/2SC0108T...

  • Page 21: Power Integrations Worldwide High Power Customer Support Locations

    SCALE™-2 2SC0108T2Dx-xx Preliminary Description & Application Manual Power Integrations Worldwide High Power Customer Support Locations World Headquarters China (Shanghai) India (Bangalore) 5245 Hellyer Avenue Rm 2410, Charity Plaza, No. 88 #1, 14th Main Road San Jose, CA 95138 | USA...
