INSTALLATION MANUAL AND USER GUIDE

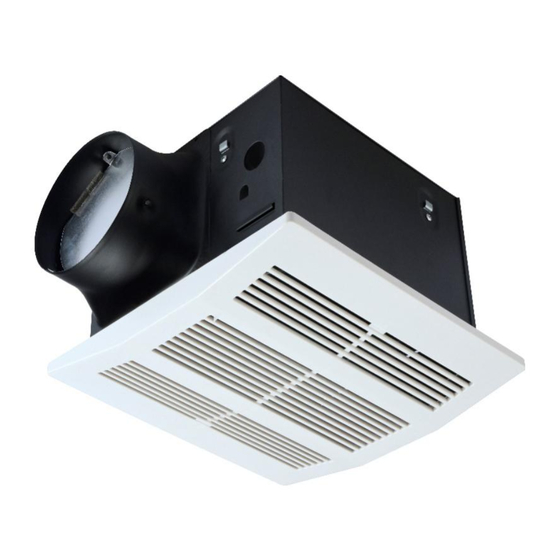

Two-Speed Bathroom Ventilation Fan
READ AND SAVE THESE INSTRUCTIONS
This commercial series bathroom fan uses state-of-the-art technology providing superior, long-life performance for your
room ventilation needs.
Table of Contents
GENERAL SAFETY INFORMATION AND WARNINGS . ........................................................................................................... 1
LIST OF INCLUDED PARTS AND ACCESSORIES .................................................................................................................... 2
LIST OF ADDITIONAL TOOLS/SUPPLIES REQUIRED FOR INSTALLATION ............................................................................. 2
PLANNING INSTALLATION .................................................................................................................................................. 3
SPECIFICATIONS ................................................................................................................................................................. 4
DIMENSIONS ...................................................................................................................................................................... 4
WIRING DIAGRAM . ............................................................................................................................................................. 4
FAN HOUSING INSTALLATION (DIRECT JOIST MOUNTING OR SUSPENSION BRACKET JOIST MOUNTING) . .................... 5 -6
CLEANING THE VENTILATION FAN . ..................................................................................................................................... 7
WARRANTY.........................................................................................................................................................................................8
MODEL: BPT18-44A-CSBG150/200
Menard's SKU: 611-3055
Advertisement
Table of Contents
Related Manuals for Tuscany BPT18-44A-CSBG150
Summary of Contents for Tuscany BPT18-44A-CSBG150
-
Page 1: Table Of Contents
MODEL: BPT18-44A-CSBG150/200 Menard’s SKU: 611-3055 INSTALLATION MANUAL AND USER GUIDE Two-Speed Bathroom Ventilation Fan READ AND SAVE THESE INSTRUCTIONS This commercial series bathroom fan uses state-of-the-art technology providing superior, long-life performance for your room ventilation needs. Table of Contents GENERAL SAFETY INFORMATION AND WARNINGS ...................... 1 LIST OF INCLUDED PARTS AND ACCESSORIES ........................ 2 LIST OF ADDITIONAL TOOLS/SUPPLIES REQUIRED FOR INSTALLATION ................ 2 PLANNING INSTALLATION .............................. 3 SPECIFICATIONS ................................. 4 DIMENSIONS .................................. 4 WIRING DIAGRAM ................................ 4 FAN HOUSING INSTALLATION (DIRECT JOIST MOUNTING OR SUSPENSION BRACKET JOIST MOUNTING) ..... 5 -6 CLEANING THE VENTILATION FAN ............................ 7 WARRANTY…………………………………………………………………………………………………………………………………………………………………..8... -
Page 2: General Safety Information And Warnings
Page 1 Model: BPT18-44A-CSBG150/200, Menards SKU: 611-3055 GENERAL SAFETY INFORMATION AND WARNINGS For your safety and to ensure proper performance of the unit, it is very important to read these instructions carefully before installation. Failure to comply with the instructions contained herein could result in personal injury or property damage. We recommend that you keep this booklet for future reference. All units should be installed by a licensed electrician. 1. Electrical service supply must be 120V 60Hz. 2. Wires from the house power supply to the unit should not be smaller than size 14 AWG. 3. Follow all local safety and electrical codes, as well as requirements for NEC (National Electrical Code) and OSHA (Occupational Safety and Health Act). 4. This unit must be properly grounded. 5. This unit is equipped with a built-in thermal cut-off for safety and to prolong the life of the motor. 6. Always disconnect the power supply prior to servicing the fan, motor or junction box. 7. Do not bend or kink the power wires. ◦ ◦ 8. Do not install where the air temperature will exceed 40 C (104 F). 9. This ventilating fan is approved for use over a bathtub or shower when installed in a GFCI-protected circuit. 10. Do not use to exhaust hazardous or explosive vapors. 11. Do not install in a cooking area. 12. Use this unit in the manner intended by the manufacturer. If you have any questions, please call Customer Support at (888) 930-8528. 13. Installation work must be carried out by qualified person(s) in accordance with all local and safety codes, including the rules for fire-rated construction. -
Page 3: List Of Included Parts And Accessories
Model: BPT18-44A-CSBG150/200, Menards SKU: 611-3055 Page 2 LIST OF INCLUDED PARTS AND ACCESSORIES NOTE: Unpack and carefully remove unit from carton. Refer to the supplies and parts list to verify that all parts are present. Please call Customer Support at (888) 930-8528 to request missing or replacement parts. Part # Part Name/Photo Qty Part # Part Name/Photo Qty M4*30 M4*12 Bath fan housing M4*10 12” Suspension bracket Bath fan grille 6” Suspension bracket 14” Extension bracket LIST OF ADDITIONAL TOOLS/SUPPLIES REQUIRED FOR INSTALLATION þ Safety glasses þ 6-in. round duct, elbows if needed, installation tools and other supplies including foil duct tape or 6-in. clamp to secure to fan housing þ Switch to operate fan þ Phillips screwdriver þ Tape measure þ Utility knife or saw for cutting drywall þ Wire cutter/stripper þ Wire nuts þ Ladder For Customer Support please email support@strategicretailsolutions.com, or call (888)930-8528. Please provide the bath fan model number found... -
Page 4: Planning Installation
Page 3 Model: BPT18-44A-CSBG150/200, Menards SKU: 611-3055 PLANNING INSTALLATION When installing the ventilation fan in a new construction site, install the main body of the fan and ductwork during the rough-in construction of the building. The grille should be installed after the finished ceiling is in place. Use the dimensions provided in this manual to determine the required hole size for the ceiling. The ducting from this fan to the outside of the building has a strong effect on the airflow, noise and energy- use of the fan. Use the shortest, straightest duct routing possible for best performance and avoid installing the fan with smaller ducts than specified in this manual. Insulation around the ducts can reduce energy loss and inhibit mold growth. Fans installed with existing ducts may not achieve their rated airflow. Do not install the ventilation fan in areas where the ductwork will require configurations as shown in Fig. 1 below. Recommended installation includes insulating around ductwork and the fan housing to minimize heat loss (see Fig. 2 above). Seal all gaps around the housing with caulk or other similar material to inhibit air leakage to the exterior of the thermal envelope of the building. Rigid sheet metal duct and the shortest path to the outside will minimize static pressure losses and promote adequate air flow. For Customer Support please email support@strategicretailsolutions.com, or call (888)930-8528. Please provide the bath fan model number found on the front of this manual when contacting Customer Support. -
Page 5: Specifications
Model: BPT18-44A-CSBG150/200, Menards SKU: 611-3055 Page 4 SPECIFICATIONS Model No. Air CFM Duct Diameter Noise (Sones) BPT18-44A-CSBG150/200 150/200 CFM 120 6 in. (15.25 cm) 1.5/2.5 DIMENSIONS Ceiling Ceiling Housing Housing Grille Opening – D Opening – W x L Dimension – W x L Dimension - D Dimension – W x L 11/16 11/16 in. in.x10 in in.x10 in 8 in. in. x 12 in. (21 cm) (26.5cm x 26.5 cm) (26.2 cm x 26.2 cm) (20.32 cm) (32.2 cm) WIRING DIAGRAM For Customer Support please email support@strategicretailsolutions.com, or call (888)930-8528. Please provide the bath fan model number found... -
Page 6: Fan Housing Installation (Direct Joist Mounting Or Suspension Bracket Joist Mounting)
Page 5 Model: BPT18-44A-CSBG150/200, Menards SKU: 611-3055 FAN HOUSING INSTALLATION (DIRECT JOIST MOUNTING OR SUSPENSION BRACKET JOIST MOUNTING) § Check the area above installation location to be sure that: a. Ductwork can be run and there is sufficient area for proper ventilation; b. Wiring can be run to the planned location (wires from the power supply to the unit should not be smaller than size 14 AWG); c. There will be access to ductwork and wiring for inspection and future maintenance; and d. No wiring or other obstructions will interfere with installation. For installation in existing construction: § Installing the fan housing in an existing building requires access (attic or crawl space) in the planned installation location above the existing ductwork and wiring. § Inspect existing ductwork and wiring before proceeding with installation. Step 1: Select the location for your fan in the ceiling. For optimal performance, plan for the shortest possible duct with the fewest elbows. When positioning fan housing for installation, flange of housing must be level with bottom of joist, or no lower than the finished ceiling. Step 2: Direct Joist-Mount: Slide suspension brackets (Part Suspension Bracket-Mount: Slide suspension #5 (back) and Part #6 (front)) into slots in fan brackets (Part #5 (back) and Part #6 (front)) into housing. Using wood screws (Part #3), secure slots in fan housing. Using wood screws (Part #3), housing flange to joist, then secure suspension secure suspension brackets to joists. If spacing brackets to joist on other side. If spacing between between joists is greater than 16”, use extension joists is greater than 16”, use extension bracket (Part bracket (Part #7, see diagram right). - Page 7 Model: BPT18-44A-CSBG150/200, Menards SKU: 611-3055 Page 6 Steps 3-8 All Installations: Step 3: To secure brackets to fan housing, insert Step 4: Install a 6-in. circular duct and secure to machine screws (Part #4) in each. Tighten machine housing with foil duct tape or clamp. screws to prevent housing vibration while fan is in operation. Step 5: Disconnect the power supply before Step 6: Set desired fan speed using speed control switch located on fan housing. proceeding with Step 5. Run 120V 60Hz house wiring (with ground) from wall switches to fan location. Remove junction box cover and, using wire nuts, connect house wires to unit wires. Refer to Wiring Diagram on page 4. Step 7: Finish ceiling. Flange of housing must be level Step 8: To attach the grille, pinch both mounting with bottom of joist, or no lower than the finished springs on grille and insert ends into narrow ceiling. rectangular slots inside the fan housing next to the fan motor. For Customer Support please email support@strategicretailsolutions.com, or call (888)930-8528. Please provide the bath fan model number found on the front of this manual when contacting Customer Support.
-
Page 8: Cleaning The Ventilation Fan
Page 7 Model: BPT18-44A-CSBG150/200, Menards SKU: 611-3055 CLEANING THE VENTILATION FAN Cleaning the unit periodically is advisable since dust, molds, grease, and other dirt particles can affect the conductivity of the air in the unit. Clean the unit as follows: 1) Remove the plastic grille. 2) Wash the cover with lukewarm water and use mild detergent such as liquid soap (avoid harsh detergent or boiling water). 3) Dry the grille with a cloth or kitchen towel. 4) Clean inside of unit with vacuum cleaner (fan housing should not come into contact with harsh chemicals or liquids). 5) Put the grille back in place. For Customer Support please email support@strategicretailsolutions.com, or call (888)930-8528. Please provide the bath fan model number found on the front of this manual when contacting Customer Support. -
Page 9: Warranty
Tuscany bath fan Model BPT18-44A-CSBG150/200 is covered by a 5-year limited warranty. The manufacturer warranties the bath fan motor and all other parts/components on this bath fan present at the time of shipment from the factory to be free from defects in workmanship and material for 5 years after the date of purchase by the original purchaser, when properly installed and under normal conditions of use. To obtain warranty service you must register your product as directed below. This warranty does not cover products that have been abused, altered, damaged, or misused. The manufacturer DISCLAIMS all other implied or express warranties including warranties of merchantability and/or fitness for a particular purpose. As some states do not allow exclusions or limitations on an implied warranty, the above exclusions and limitations may not apply. This warranty gives you specific rights, and you may have other rights that vary from state to state. THIS WARRANTY IS LIMITED TO REPAIR OR REPLACEMENT OF DEFECTIVE PARTS ONLY, AND ANY COSTS RELATED TO SAME SHALL NOT EXCEED THE USER’S COST OF THE PRODUCT. MANUFACTURER ALSO RETAINS THE OPTION OF REFUNDING PURCHASE PRICE AS FULL SETTLEMENT OF ANY WARRANTY CLAIM. Any changes related to installation, repair, replacement, or damages related to same are excluded. CUSTOMER SUPPORT For Customer Support please call us at (888)930-8528, or email support@strategicretailsolutions.com. Please provide your bath fan model number when contacting Customer Support. PRODUCT REGISTRATION To warranty your fan, complete registration by using either of the following methods: Fill out the registration form on our website, at www.strategicretailsolutions.com/#productreg Fill out the warranty registration below and mail it to this address: Strategic Retail Solutions Attn: Bath Fan Registration PO Box 2086 Stillwater, MN 55082 TUSCANY BATH FAN WARRANTY REGISTRATION First Name: Last Name: Street Address: City: State: Zip: Phone: ( ) Date of Purchase: Model Number: BPT18-44A-CSBG150/200 SKU Number: 611-3055 For Customer Support please email support@strategicretailsolutions.com, or call (888)930-8528. Please provide the bath fan model number found on the front of this manual when contacting Customer Support.
