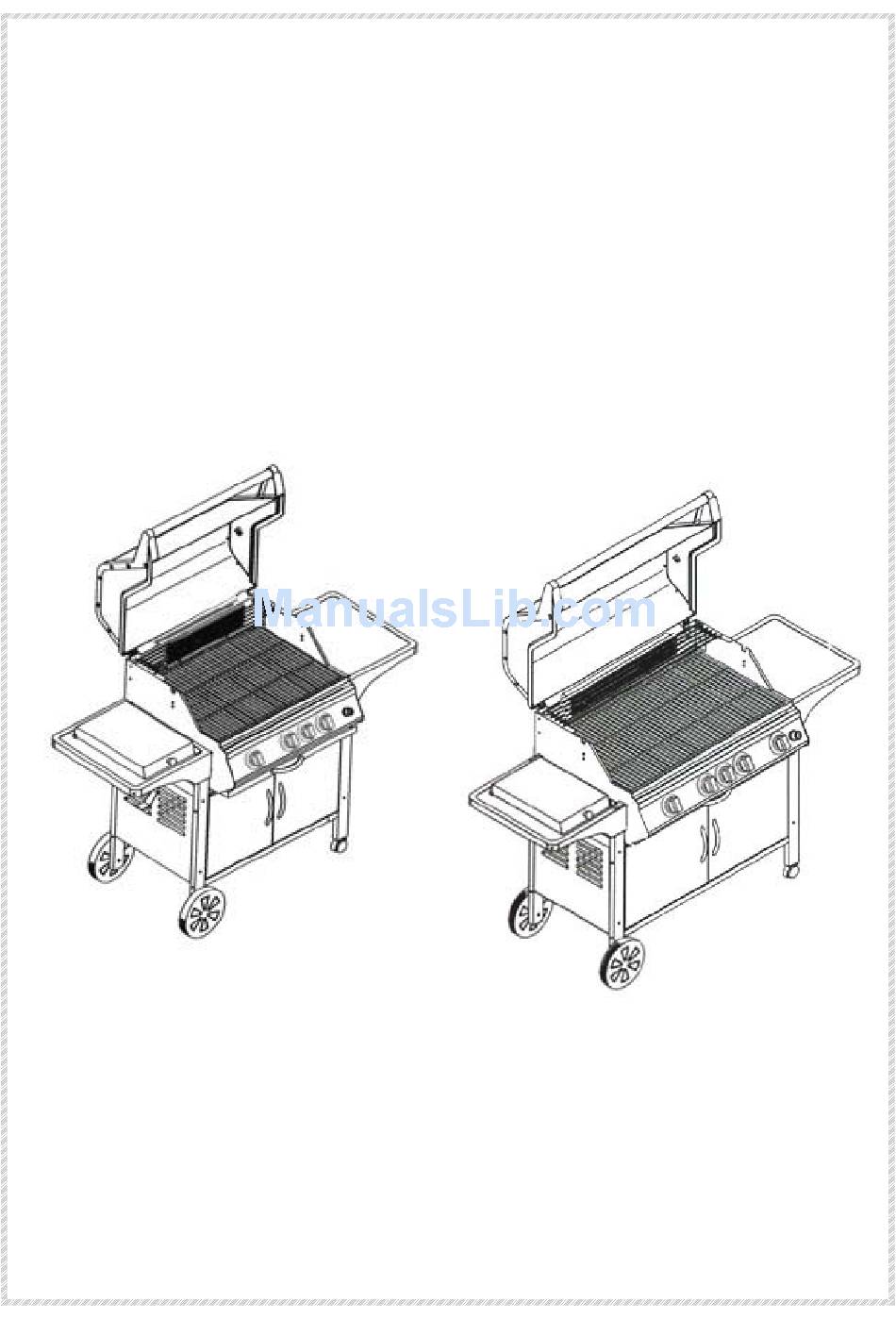

Assembly and Maintenance Instructions
SH-0183-I & SH-0184-I
SH-0283-I & SH-0284-I
Before you begin assembling and using your new BBQ grills we recommend that you read
through owner's use and care manual to avoid serious body injury or property damage.
Note to Assembler/Installer: Leave these instructions with the consumer.
Note to Consumer/User: Keep these instructions for future reference.
for
Advertisement
Summary of Contents for SHIE HSANG SH-0183-I
- Page 1 Assembly and Maintenance Instructions SH-0183-I & SH-0184-I SH-0283-I & SH-0284-I Before you begin assembling and using your new BBQ grills we recommend that you read through owner’s use and care manual to avoid serious body injury or property damage. Note to Assembler/Installer: Leave these instructions with the consumer.
-
Page 2: Important Safety Instructions
KEEP THESE INSTRUCTION FOR FUTURE USE ASSEMBLY AND USER INSTRUCTIONS OUTDOOR GAS GRILL USING LIQUEFIED PETROLEUM GAS SH-0183-I & SH-0184-I Your new GRILL is made from the highest quality materials, and produced under strict manufacturing controls Please read the Instructions for assembly before commencing, and follow the instructions for use carefully. -
Page 3: Table Of Contents
10. A hose conforming to the national standard must be connected at one end to the regulator and at the other to the barbecue nipple using hose clips. The hose length must not exceed 1.5 m. 11. Lead the hose away from the grill body without twisting it. Do not let the hose touch the hot surface. -
Page 4: Technical Data
1 . Technical Data –SH-0183-I & SH-0184-I Barbecue Grill The barbecues are I 3+(28-30/37), I 3B/P(30) and I 3B/P(50) appliances, designed to operate on Butane at 28/30mbar, Propane 37mbar and B/P 30/50mbar. Gas consumption, pressures and injectors orifices sizes are shown below:... - Page 5 - 4 -...
- Page 6 SH-0183-I Parts Trolley base Leg Unit for Caster Leg Unit for Wheel Cabinet Side Panel Cabinet back panel Handle of cabinet Cabinet door Door stop strip Side table Side burner Wheel Caster Grill body Control knob Grease tray Flame tamer...
- Page 7 SH-0184-I Parts Trolley base Leg Unit for Caster Leg Unit for Wheel Cabinet Side Panel Cabinet back panel Handle of cabinet Cabinet door Door stop strip Side table Side burner Wheel Caster Grill body Control knob Grease tray Flame tamer Cooking grid Door stopper Warming rack...
- Page 8 - 7 -...
- Page 9 - 8 -...
- Page 10 - 9 -...
- Page 11 - 10 -...
- Page 12 - 11 -...
- Page 13 - 12 -...
- Page 14 Dear User, When you have assembled your barbecue, please pull all screws tight after 2 – 3 days, especially the screws holding the frame (but do not over tighten them). Only then can the stability of your barbecue be assured. The materials used tend to loosen again after the first tightening and connections could thus become unsteady.
-
Page 15: Instructions For The First Users
Protect the hose from dripping grease and do not allow it to touch any hot surface or sharp edges. Attach the regulator to the gas cylinder. Refer to the instructions supplied with the regulator for details regarding fitting. Test for gas leaks. Do a leak test each time the cylinder is installed, whether or not it has been filled. -
Page 16: Instructions For Use
Do not leave the BBQ on the highest setting for an extended period – this may damage your BBQ. 6. Instructions for use Leak control check – Before use, ensure the security of the Gas supply. To light –Open the lid of your grill before lighting. Do not stoop over the grilling space. -
Page 17: Cooking Tips
• Once all burners are lit, close the roasting hood and preheat cooking surfaces before cooking. IMPORTANT: • Should the flame be blown out by the wind, turn off the control knobs, open the hood and wait five minutes before re-lighting. •... - Page 18 Tune off the gas, take precautions against burns, and clean the grate surface with a metal brush. When cool, very dirty grates can be washed by hand. Brush with cooking oil before use. Flame Tamer Plate- Ensure that the hood is opened, and heat the grill for a few minutes on high heat.
- Page 19 Gas valve orifices are correctly positioned and secured inside the burner inlet (venturi). SERVICING Your gas barbecue should be serviced annually by a competent registered person. Storage- Turn off gas container valve, and remove regulator from container. Store gas container outside, on the ground level surface, upright, away from sunlight and any drains or gully, with valves closed and valve caps in place.
-
Page 20: Troubleshooting
9 . Troubleshooting- PROBLEM CAUSE CHECK Gas smell 1. Orifice not fitted 1. Check the connection properly in the venturi 2. Straighten tube 2. Bent hose Burner does not light 1. Gas tank is empty 1. Exchange for a new 2. - Page 21 IF YOU SMELL GAS: 1. Shut off gas at the appliance, if possible 2. Extinguish any open flame 3. Open Hood 4. If odour continues, call you gas expert. Do not store or use petrol or any other flammable vapours and liquids in the vicinity of this or any other appliance.
- Page 22 Beware of spiders and insects • Burners should be inspected and cleaned regularly. • Spider nests and other insect nests like wasps could obstruct gas flow in the burners and venturi’s. • This could result in a flash back fire which can cause serious damage. •...
