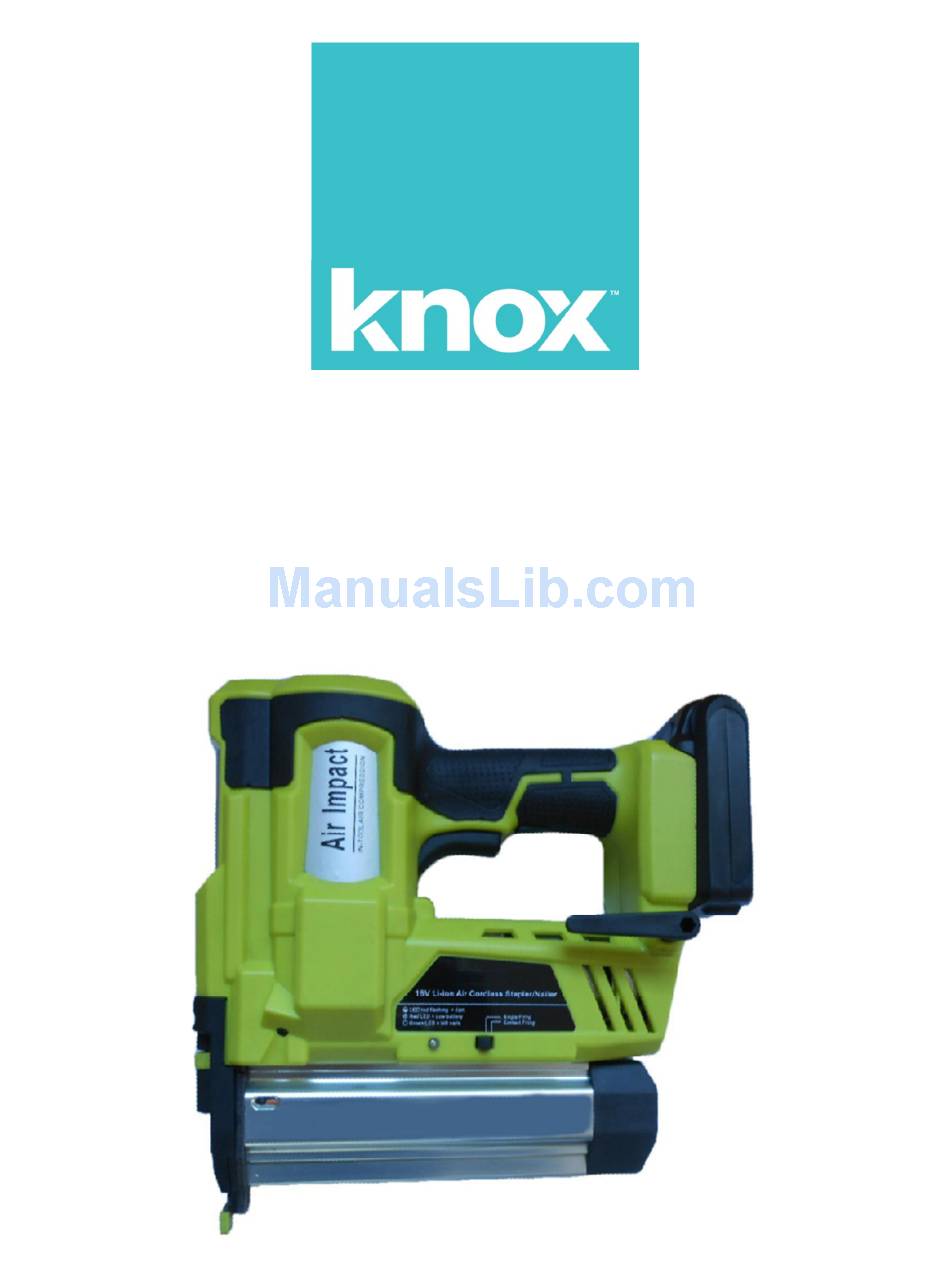

  • Page 1 KN-CBN18V Brad Nailer Instruction Manual...
  • Page 2 Index Index Index Index Warning Messages – Page 1 General Operation – Page 2 to 5 Safety Instructions – Page 6 Technical Specifications – Page 7 Device Diagram – Page 7 Caution: Recharge using only the charger and battery packs specified by the manufacturer.
  • Page 3 General General Operation Operation General General Operation Operation 1. Intended Use: The machine is intended for the tacking of cardboard, insulating material, fabric, foils, leather and similar materials on surfaces of wood, or materials similar to wood. 2. LED Status Indicator: a.
  • Page 4 (image A) (image B) 5. The brad nailer offers LED lights on each side of the unit that can be turned on when the device is in use to provide workspace illumination. 6. Checking the Contact Trip Mechanism a. Remove all staples and nails from the magazine. b.
  • Page 5 A. Loading staples: B. Loading nails: 9. Instructions For Use (Nailing or Stapling): a. Prior to operation, make sure the battery pack is fully charged. b. Check whether the nails or staples are placed in the magazine correctly. c. Hold the handle firmly with magazine flat on the work surface at a 90 degree angle.
  • Page 6 b. Turn the Depth Adjustment Wheel to the icon and the nail or staple will be fired deeper into the work surface. c. Turn the Depth Adjustment Wheel to icon and the nail or staple will be fired into the work surface at a shallower depth. 11.

  • Page 7: Safety Instructions

    Safety Safety Instructions Instructions Safety Safety Instructions Instructions Keep work area clean and well lit. Avoid dangerous environments. Do not operate power tools near explosive or flammable liquids, gases or dust. Power tools create sparks which may ignite dust or fumes. Keep children and bystanders away while operating a power tool.
  • Page 8 Model KN-CBN18V Battery Charge 100-240V, 50/60Hz Input Voltage 18VDC, 2000mAh Firing Speed Average 60 nails/min Max Magazine Capacity Holds up to 100 Nails/Staples Max Length of Nails 50mm 18-Gauge Brad Nail Max Length of Staples 40mm 18-Gauge Light Duty Staple Overall Dimensions 11.5”...
