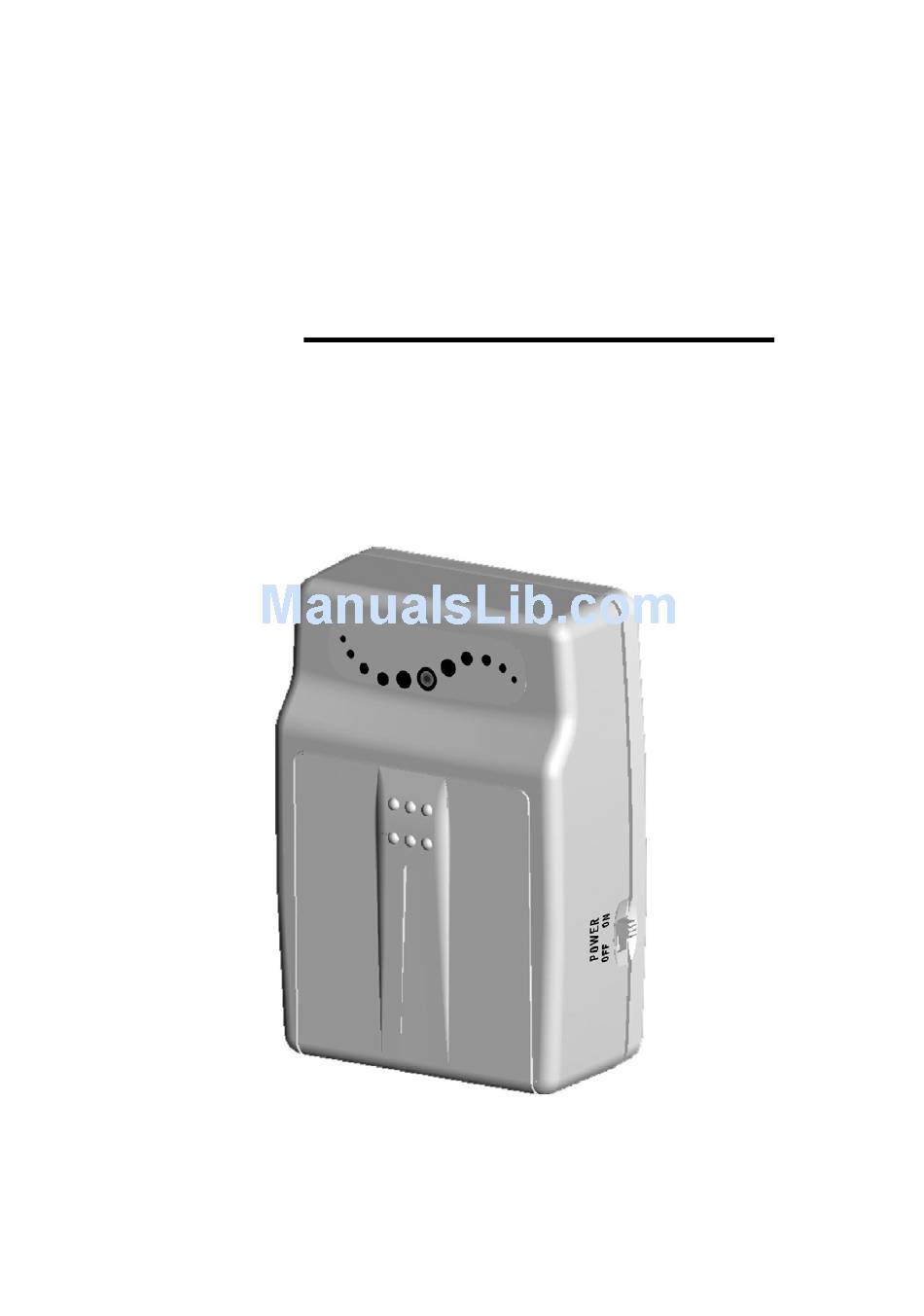

- Page 1 PDVCD-4G U S E R M A N U A L VER.: 1.0, P/N: R040143/2...
-
Page 2: Table Of Contents
CONTENTS 1. SAFETY PRECAUTIONS..........................2 2. INTRODUCTION ............................3 3. FEATURES ..............................4 4. ACCESSORIES...............................5 5. INSTALLATION .............................6 6. NAME and FUNCTION of EACH PART .......................7 6.1 Front Pannel ..............................7 6.2 Monitoring Mode............................9 6.3 Record Mode ............................10 6.4 Playback Mode ............................11 7. SYSTEM SETUP ............................13 7.1 Main Menu ..............................13 7.2 Date/ Time Setup .............................13 7.3 Motion Detection Setup...........................14... -
Page 3: Safety Precautions
1. SAFETY PRECAUTIONS CAUTION RISK OF ELECTRIC SHOCK. DO NOT OPEN! CAUTION : TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO NOT OPEN COVERS (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. It is advised to read the Safety Precaution Guide through carefully before operating the product, prevent any possible danger. -
Page 4: Introduction
2. INTRODUCTION This product is a professional, personal proof collector and a movable device. Built-in high quality pinhole camera, which enables 3 types of schedule record mode: Manual, Continuous, and Motion Detection. Enables picture storage to built-in Flash Memory. Furnished with fixed bracket that makes it perfect for simple installation under many different occasions: Applications using the bracket, such as front door, room door, garage door and so on. -
Page 5: Features
3. FEATURES The device is extremely portable with built-in Hi-resolution camera. Simultaneous monitoring and recording. Automatic image control functions. Functions supported: Auto Electronic shutter (AES), Auto White Balance (AWB), and Auto Gain Control (AGC). Video capture device record images in built-in Flash memory (capacity differs depending model type). -
Page 6: Accessories
4. ACCESSORIES Unpack the product and inspect to make sure that nothing noticeable is wrong or that all accessories are included inside the product package. If you have any questions, please contact your local dealer. Qty. Item Description Item Picture Camera Video Line Power Adaptor... -
Page 7: Installation
5. INSTALLATION Please refer to the instructions below for camera mounting and bracket installation: Bracket Installation Guide: Camera Mounting Installation Guide: Video Output and Power Adaptor Connection Guide:... -
Page 8: Name And Function Of Each Part
6. NAME and FUNCTION of EACH PART 6.1 Front Pannel (1) Function Switch NTSC<->PAL The two most common video standards used are NTSC and PAL. NTSC is the video system or standard commonly used in North America, Taiwan, Japan, Korea, and South America. PAL is the predominant video system or standard mostly used in China, Hong Kong, Europe, and India. - Page 9 When power-loss occurs during recording, error may occur. To switch off the power correctly, please refer to “6.3 Record Mode”. Power Source Jack. LED Operation Mode Indicators LED light easily allows the user to distinguish the current system status. For example REC LED: The LED indicator lit indicates recording, and when unlit indicates no recording (REC LED flashes when the power supply is insufficient).
-
Page 10: Monitoring Mode
Power On 1. The power switch is situated on the right side of the device. NOTE: Each time after power-on, the system auto-detects its peripherals. When the REC LED flashes indicate that the system memory is proceeding testing (complete boot time is several seconds). -
Page 11: Record Mode
6.3 Record Mode 1. Start Record: 3 Types of recording mode. Manual Record: Suitable to record at anytime. Press《Rec / 》button, to enter manual recording status (start recording). For more information, please refer to【7.4 Record Setup】. Motion Detection Reco rd: Suitable to record, when there are severe image changes. -
Page 12: Playback Mode
6. Video may be recorded to the system memory. When the video has been stored, the REC LED flashes indicate that the system is currently loading the file to the system memory. 7. No matter which record mode is used, please enter the main menu (Refer to 7.1 Main Menu) and then switch off the power. - Page 13 (2) Search and Playback: Enter MENU and select【SEARCH AND PLAY】item. S E A R C H A N D P L A Y ■ ■ D A T E L E S D A T E P A G E ...
-
Page 14: System Setup
7. SYSTEM SETUP 7.1 Main Menu ■ M E N U S E A R C H A N D P L A Y > S E T D A T E I M E > S E T M O T I O N D E T E C T >... -
Page 15: Motion Detection Setup
7.3 Motion Detection Setup 1. Motion detection sensitivity rate setup: Changing the threshold value setup may affect the recording sensitivity of the Motion Detection 1 Sensitivity Bar ： Color black indicates image variable value and color red indicates the MD threshold. 2 MD Energy ：... -
Page 16: Sd Card Options
2. SCHEDULE RECORD (Continuous/ Motion Detection ): Schedule Record: Records only within the setup time range. RECORD ： Enable or disable schedule recording (ON/ OFF). SCHEDULE ： Hh:Mm –Hh:Mm = 24 hour recording and 00:00–00:01 = Record of one minute image from 00: 00 to 00:01. Motion Detection Recording - DURATION TIME Setup: DURATION ：... -
Page 17: Factory Default
7.7 Factory Default F A C T O R Y D E F A U L ■ ■ R E C A L D E F A U L N O W ? Y E S E N T E R Press《+》button, returns all settings to the factory default value. -
Page 18: Trouble Shooting
8. TROUBLE SHOOTING Q1. Does the product support SDHC 32G? A1. Suggested tested brands are as shown below: Brand Capacity Specification A-DATA Class 6 Transcend Class6 Silicon-Power Class6 Apacer Class4 Kingston Class4... -
Page 19: Specifications
9. SPECIFICATIONS Sensor 1/4” Color CMOS Sensor Lens Cone Lens f3.7mm / F2.0 Effective Picture Elements VGA (H/V: 640x480) S/ N Ratio 46 dB Electronic Shutter Auto Gain Control Auto Auto White Balance RCA (1 Vp-p. / 75 Ohms) Synchronous System NTSC / PAL (adjustable) Video Output Port VGA (640x480)/ QVGA (320x240) - Page 20 MEMO...
