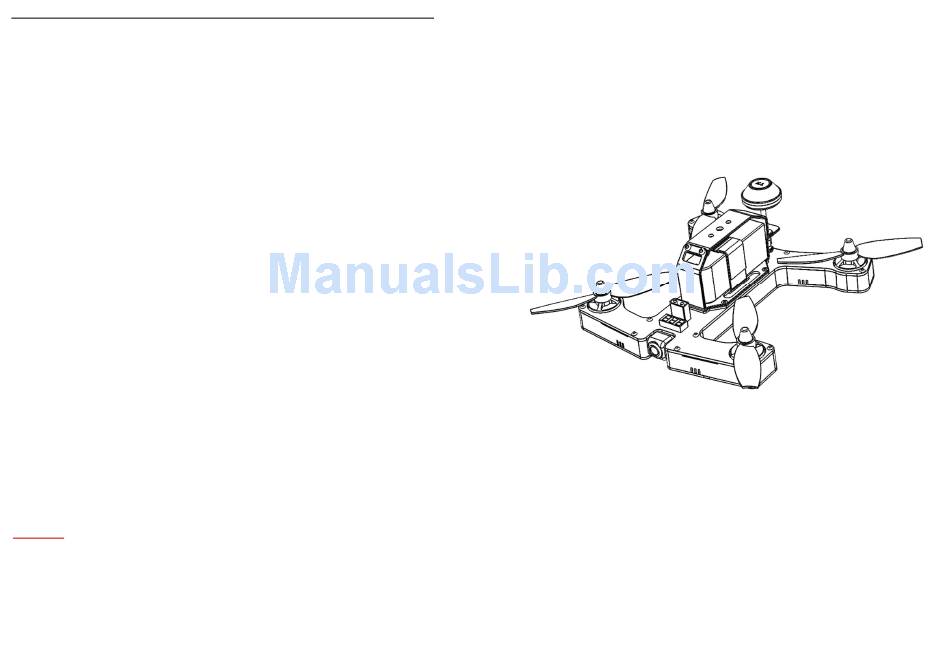

VIFLY R220 Quick Start Guide
Group A: CH1:5658MHz CH2:5695MHz CH3:5732MHz CH4:5769MHz CH5:5806MHz CH6:5843MHz CH7:5880MHz CH8:5917MHz
Group B: CH1:5740MHz CH2:5760MHz CH3:5780MHz CH4:5800MHz CH5:5820MHz CH6:5840MHz CH7:5860MHz CH8:5880MHz
Group C: CH1:5865MHz CH2:5845MHz CH3:5825MHz CH4:5805MHz CH5:5785MHz CH6:5765MHz CH7:5745MHz CH8:5725MHz
Group D: CH1:5705MHz CH2:5685MHz CH3:5665MHz CH4:5645MHz CH5:5885MHz CH6:5905MHz CH7:5925MHz CH8:5945MHz
Group E: CH1:5733MHz CH2:5752MHz CH3:5771MHz CH4:5790MHz CH5:5809MHz CH6:5828MHz CH7:5847MHz CH8:5866MHz
VIFLY
Website: www.viflydrone.com
Facebook: www.facebook.com/viflydrone
YouTube: www.youtube.com/c/viflydrone
ATTENTION
The motors will spin when the aircraft is armed.
Always remove all propellers before tuning the aircraft.
Before using VIFLY R220, please read Quick Start Guide and watch video tutorials on VIFLY official
website (www.viflydrone.com).
16 / 16
VIFLY
R220 M2
QUICK START GUIDE V1.2
www.viflydrone.com
