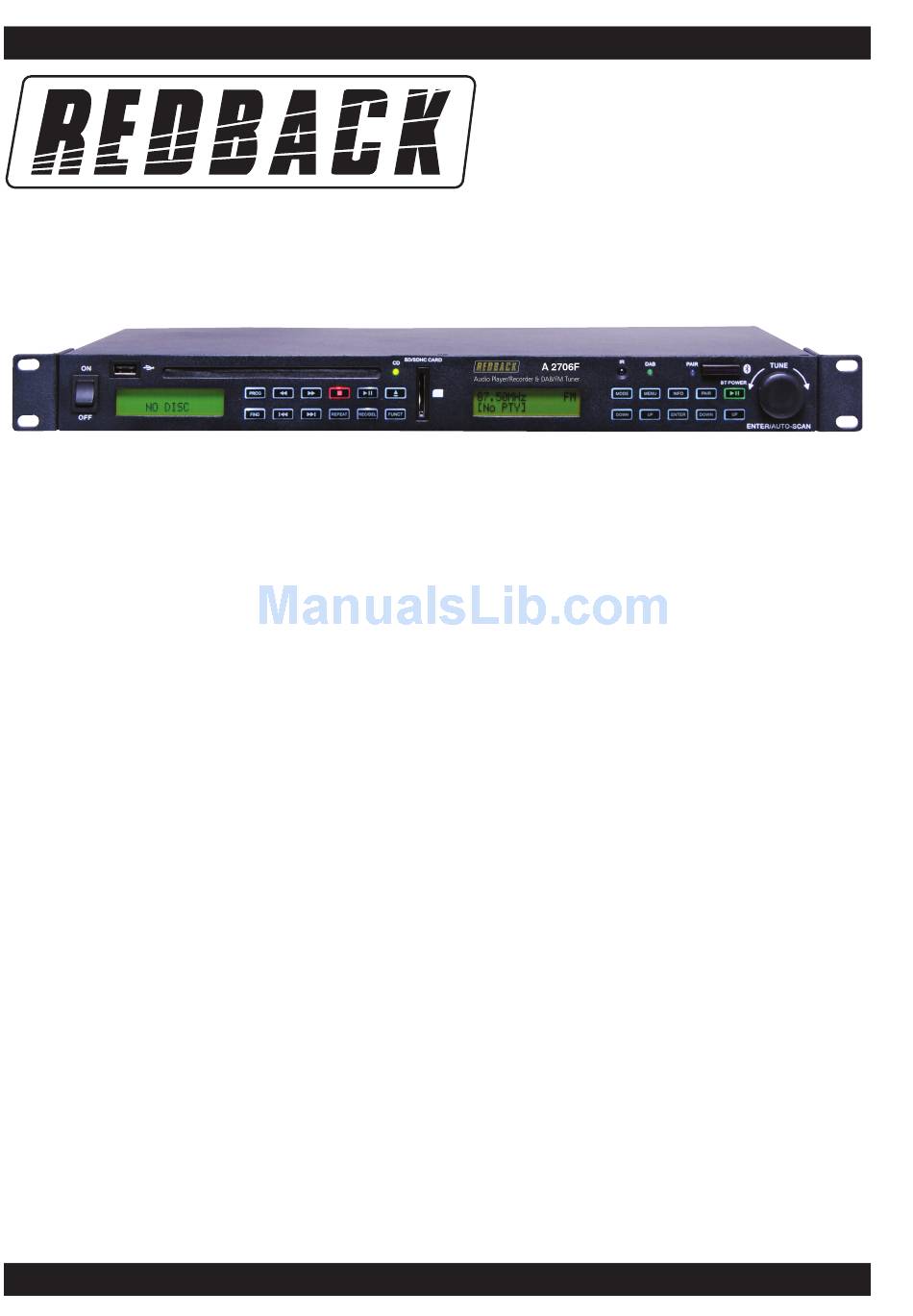

AM/FM TUNER & CD/MP3 DISC PLAYER
REDBACK
®
CD/MP3 AUDIO PLAYER WITH
DAB+/FM TUNER AND BLUETOOTH
Congratulations on your purchase of the Redback anti shock CD / USB/ SD Card reader player with DAB+ and FM radio tuner as
well as Bluetooth sync playback. This device is a versatile media player with RS-232 port for PC interfacing as well as an IR
remote control. It is comprised of two sections - a receiver (DAB+/FM tuner + Bluetooth) and a media player (CD / USB / SD
CARD) which also boasts a record function (AUX).
Features
• Anti-shock CD player which accepts CD, CD-R, CD-RW, MP3 discs plus USB flash drive and SDHC/MMC memory cards for
MP3 playback
• Accepts file types of MP3 and WMA files (on all formats above).
• Has 4x RCA outputs (CD/Tuner/Bluetooth/Priority) and 1x RCA input (AUX) for recording (analogue to MP3 digital).
• Can record CD or AUX input direct to either USB or SD media (max 32GB SD card).
• Copy digital MP3 files directly at high speed from USB to SD Card and vice versa.
• Any output (or another source) can be routed to the AUX input RCA for recording to USB or SD card.
• Stream Bluetooth, FM/DAB, play CD or SD card or USB drive all at once to different outputs.
Included Accessories
• FM/DAB Antenna Wire
• CD / USB Media Player Remote Control
• IEC Power Cord
• Rack Mounting Brackets
Operating Guidelines
• Do not use this player where the temperatures are below 5°C or exceed 35°C.
• To keep the laser pick-up clean, do not forget to close the disc tray.
• Do not attempt to clean the unit with chemical solvents as this may cause damage. Use a clean, dry cloth.
Installation
1. The unit is supplied with separate Tuner and Audio player RCA line level outputs, plus a Priority RCA live level output. The
Priority output gives the audio player priority and then switches to Tuner when the audio player tracks have finished. Connect
the stereo RCA output(s) as required to a line level amplifier input.
2. Connect a suitable FM antenna to the FM antenna terminals, and connect the AM loop antenna to the AM antenna terminals.
3. Connect the IEC cable to the unit, and plug it in to a 240V mains outlet. Install the batteries (supplied) in the remote control.
4. Switch the mains outlet on.
Manufactured in China for Altronic Distributors Pty Ltd
www.altronics.com.au
®
A 2706F
